LU0100079-NDS-1G - Overview

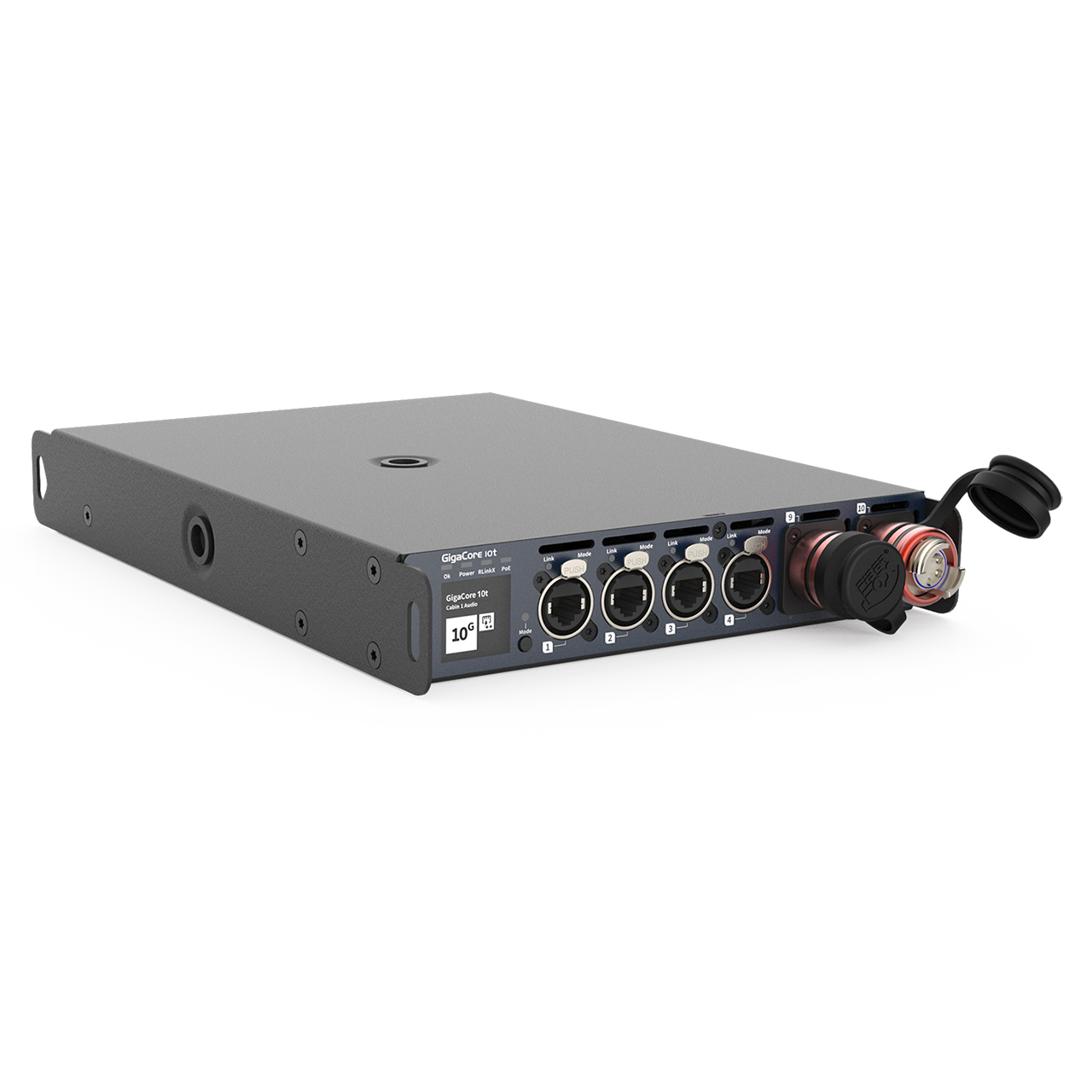

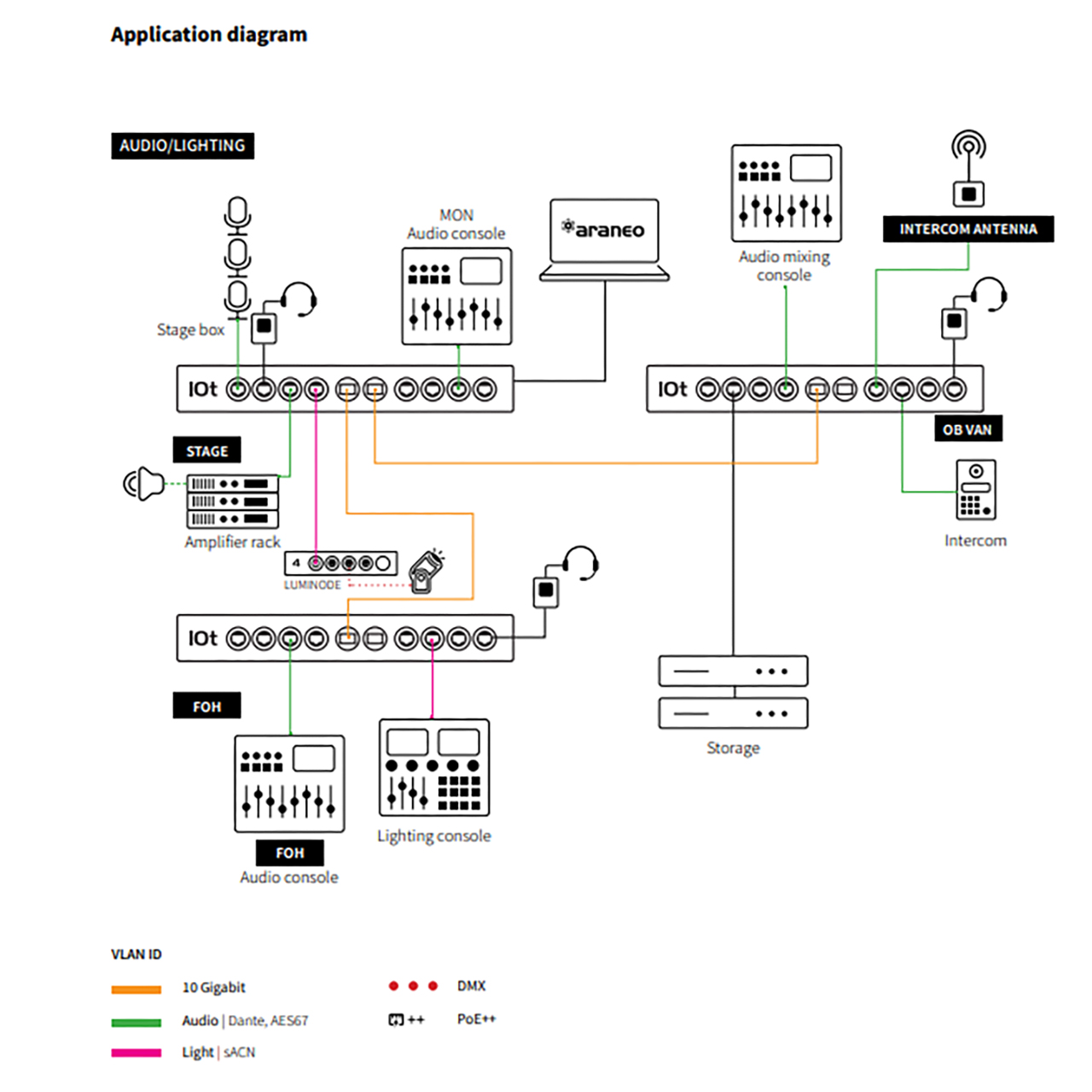

1Gb Ethernet switch for professional touring applications handling lighting control, audio, intercom, and video.

The Luminex GigaCore 10t is a 1 Gigabit Ethernet 10 port switch for professional touring, perfect for lighting, audio and video applications. It is designed rugged enough to survive the road and supports the most advanced AV protocols out of the box. Make it the backbone for a converged network, allowing multiple applications to co-exist.

PoE++
PoE++ implementation on every copper port allows you to connect any PoE device operating under 802.3af, 802.3at and 802.3bt protocols. GigaCore 10t can directly drive almost any IP PTZ camera, network node or PoE powered loudspeaker on the market.

AV Validated for Real Applications
GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, RAVENNA/AES67, ST-2110, IPMX, MA-Net, and many more.

Suitable Applications:
- Lighting Control
- Audio and Video for live events and touring - Rack or Truss Mount (2x M10)

Features:
- Easy to configure with WebUI & ARANEO
- 2x 1 Gbps Rugged fiber connectors

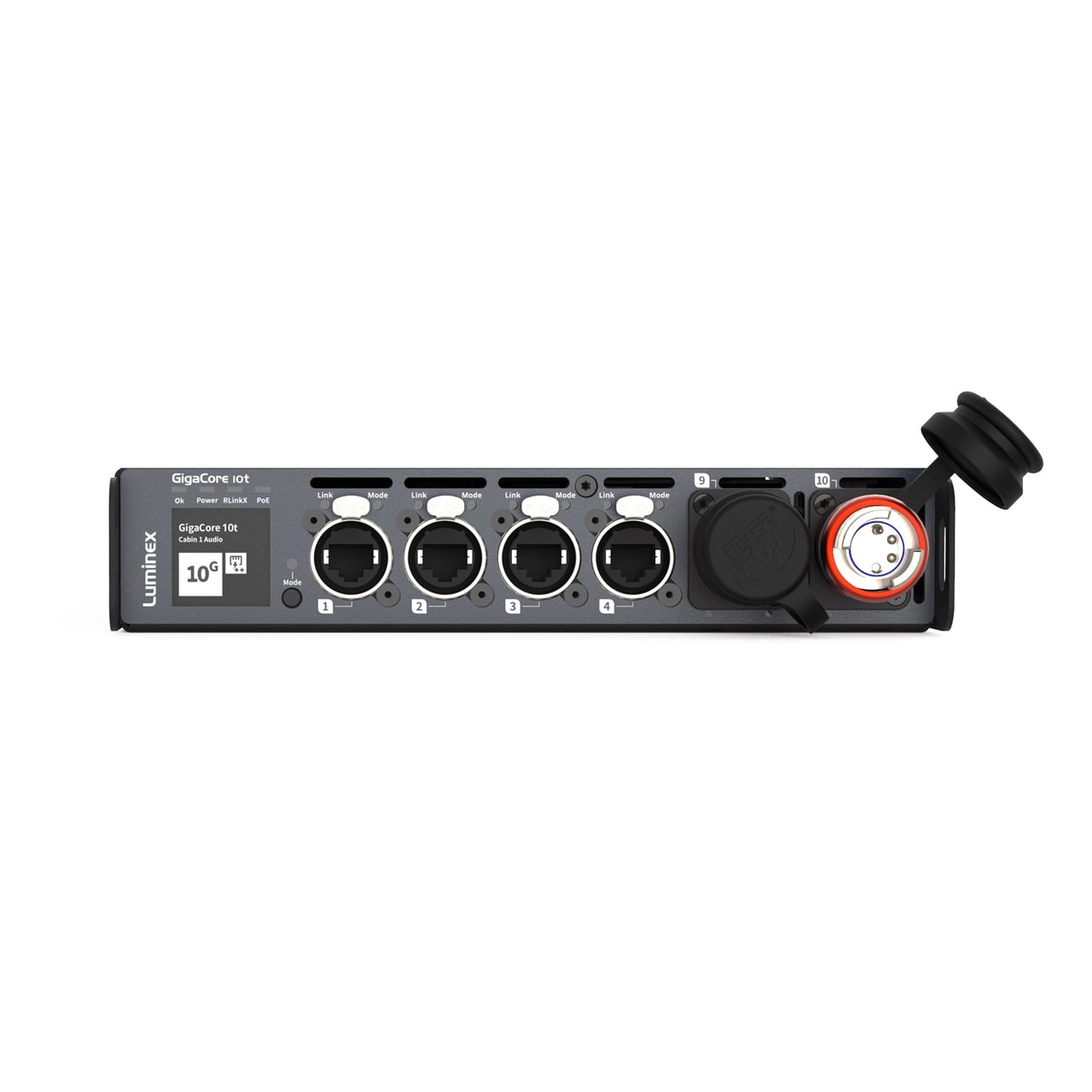

- 4x Gigabit EtherCON on front panel

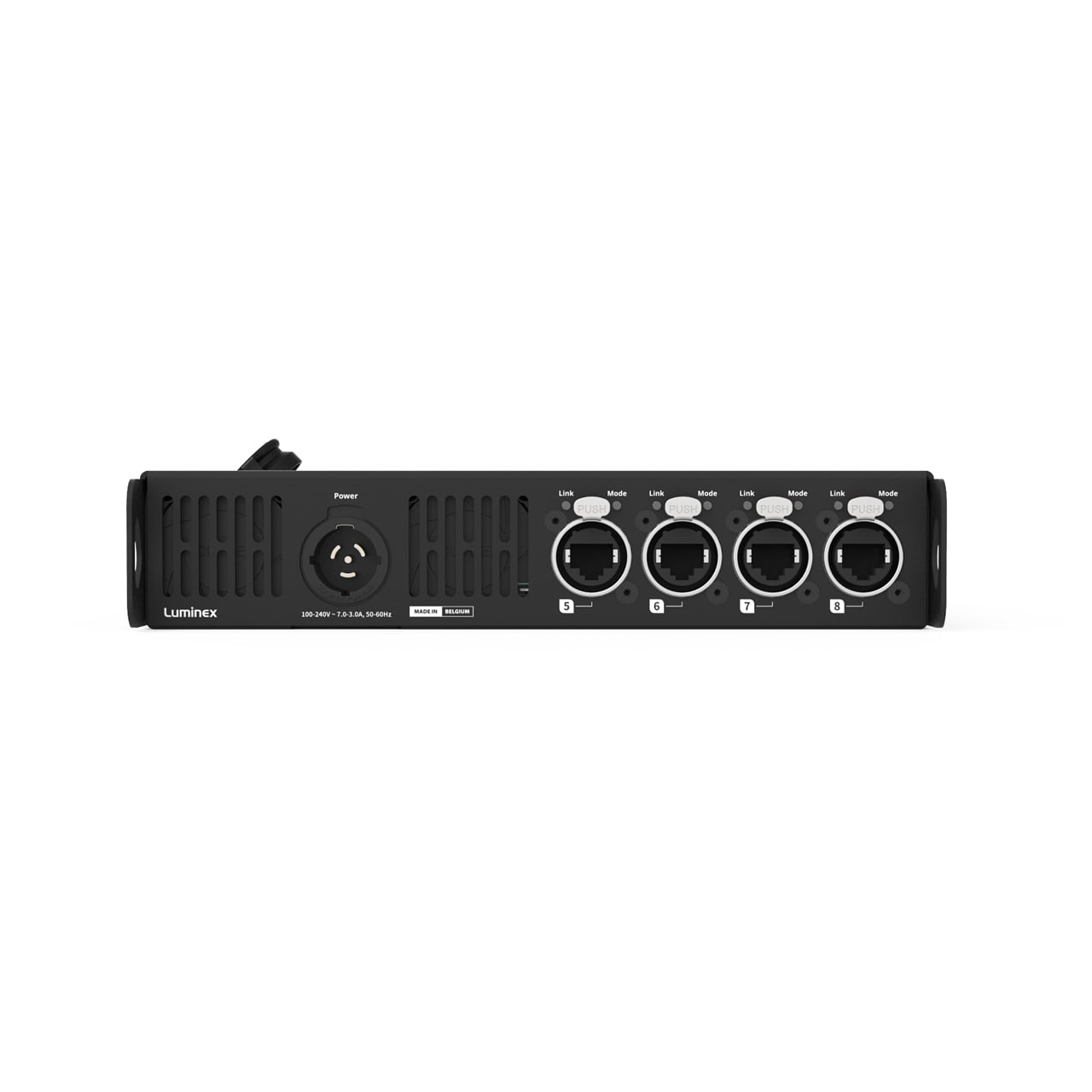

- 4x Gigabit EtherCON on rear panel
- Pre-configured for ProAV - no compromises required
- Pre-defined Groups (VLANs), Custom Groups (VLANs), and Custom Trunk technology with matching color-coded LED indicators per port
- PoE++ support on all copper ports
- Dedicated connection for the RPSU 5580, enabling redundant power or increased PoE budget
- TAA Compliance: Yes
Specifications:
- Ethernet Connectivity: 8x RJ45 1 Gigabit EtherCON Ethernet (Link Aggregation) PoE++ (60 W, 802.3bt Type 3)
- Fiber Connectivity: 2x ruggedized LC Neutrik opticalCON DUO Singlemode NDS* fiber connectors (1Gbps)(independent from other ports)(front panel)
- Ethernet Port Speed: 1Gbps
- Serial: No

  Power
- Power Connectivity: 1x PowerCON True1 in
- Power Input: 100V - 240VAC, 50-60Hz
- Power Consumption: Max 30W (Non PoE model) - Max 510W (PoE model)
- Fuse: NA
- Backup Power Input: No
- Backup PoE Power Input: No
- PoE: PoE++ (up to 450W)

  Protocols
- Supported Protocols: Dante®, RAVENNA/AES67®, Ethersound®, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN, IEEE 802.1as (gPTP) and more
- Sound Protocol Compliance: Yes (low jitter)
- Ethernet Compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 Pt Pv2, IEEE 802.1 BA-2011 AVB, IETF RFC2710, IETF RFC3810

  Physical
- Mounting: Rack, Truss (2x M10)
- Enclosure: Robust metal housing
- Dimensions (WxDxH): 8.66" x 13" x 1.73" (220mm x 330mm x 44mm)
- Weight: 7.5lbs (3.4kg)
- Packaging: TBC

  Environment
- Operating Temperature: 32°F - 122°F (0°C - 50°C)
- Storage Temperature: -40°F - 158°F (-40°C - 70°C)
- Humidity (non condensing): 5% - 95% RH
- Silent Fan Mode: Yes
- Noise Level @1m: TBC
- BTU:
  - 10t: Maximum BTU = 51.18 BTU/hr
  - 10t with PoE: Maximum BTU = 204.72 BTU/hr
- Certificates/Approvals: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
- Standards: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024

  * NDS signifies Neutrik DUO Singlemode
Item Includes:
- 1x LU 01 00079-NDS-1G / GigaCore 10t -1G- with NeutrikDUO SMF
Warranty:
- 2-Year Limited Warranty
