Lumens VS-KB30 IP Camera Controller - Pan/Tilt/Zoom for PTZ Video Cameras

ITEM #: LUM-VS-KB30 MFG #: VS-KB30

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,739.12

Our Price:

$1,565.21

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VS-KB30 - Overview

The Lumens VS-KB30 is an ergonomic and compact camera controller supports Sony VISCA protocol, VISCA over IP, Pelco P&D, and NDI|HX making it easier to discover, connect, and control PTZ cameras. This camera controller features quick access functionality that allows instant adjustments to exposure, white balance, focus, PTZ speed and six assigned keys for frequently-needed camera functions. The camera controller is equipped with the RS-232C/RS-422/Ethernet communication interfaces with PoE for the transmission of power and control in "one-cable". The VS-KB30 is applicable for education, broadcasting, events, house of worship and other environments.

Quick Camera Control
VS-KB30 is a compact controller for PTZ and block box cameras. Quick to set up and easy to use, it is surprisingly powerful, capable of supporting up-to 255 devices on the same network. The panel is customizable to meet your needs, enabling fast access to image settings, presets, zoom angle, and multi-axis camera motion.

The Universal VISCA Controller
VS-KB30 recognizes and controls cameras from any manufacturer that employs the VISCA over IP standards, including Lumens, NewTek, Marshall, Sony, Canon, and Birddog. Cameras are instantly recognized over the network, allowing the device to take instant control, whether the cameras are PTZ or box cameras. VS-KB30 also supports Pelco P and Pelco D protocols. VS-KB30 is designed to work with cameras that route control signals over IP networks and support serial control. If you are looking for a pure serial controller, check out Lumens VS-K20.

NDI Workflows

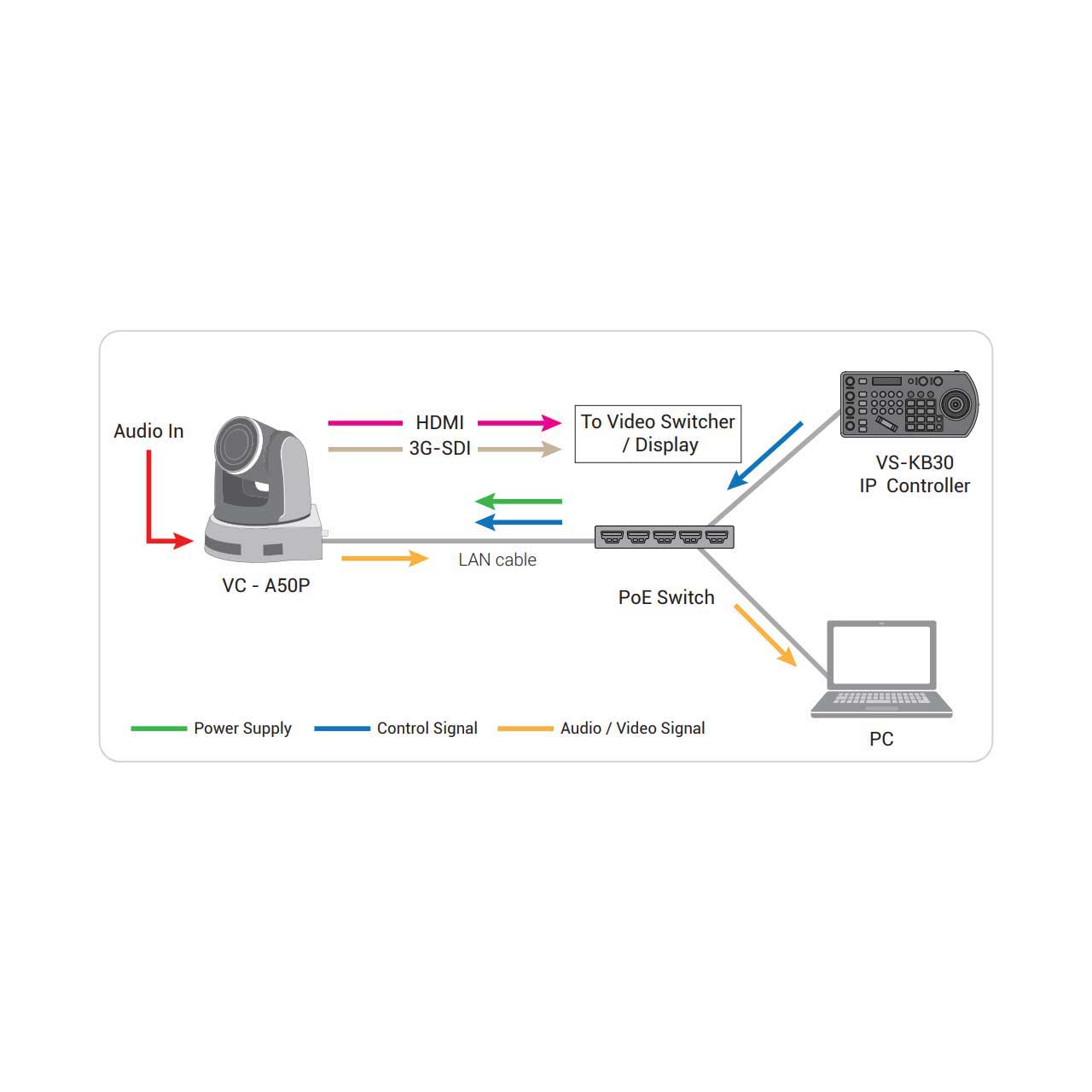

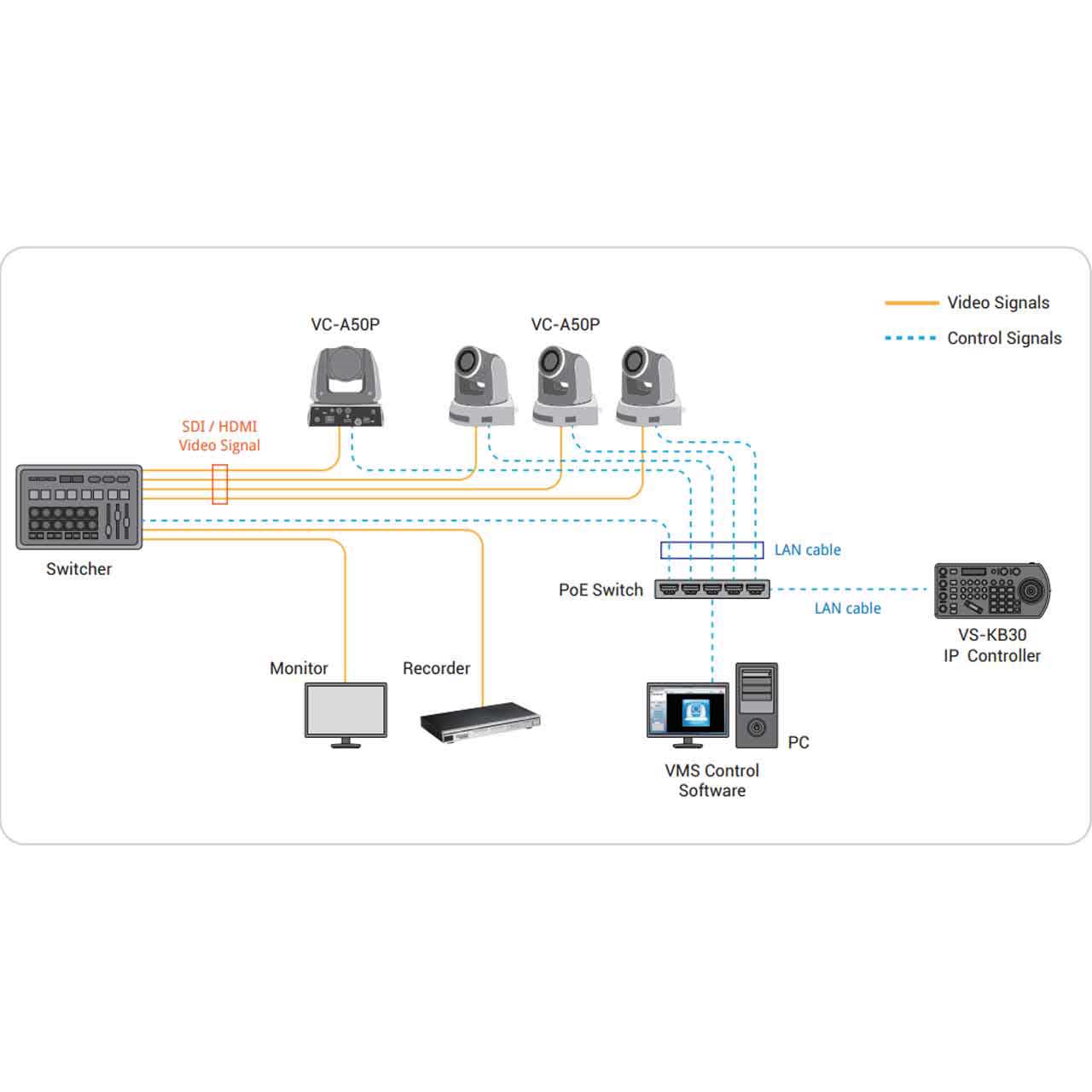

NDI is a video networking technology that runs on IP infrastructures. As an IP-connected device, VS-KB30 supports NDI and NDI|HX workflows that are popular in live events, video studios, colleges, conference venues, houses of worship, and theaters. Control over IP and NDI networks is fast and efficient, with the VS-KB30 even able to draw power from PoE-enabled routers and switches.

  • Features:

    • Joystick for Pan / Tilt / Zoom
    • Quick access control of exposure, white balance, focus, PTZ speed and 6 user-assignable keys
    • The RS-232C / RS-422 x2 / Ethernet control interfaces allow long-distance communication
    • Protocol by VISCA, VISCA Over IP and Pelco P&D
    • Control up to total of 255 IP cameras on a single network with PoE support
    • Support NDI|HX, fully compatible with NDI|HX PTZ camera, including Lumens, NewTek and Marshall

  • Specifications:

    • Comm. Interface: RS-232, RS-422 x2, Ethernet
    • Display: LCD
    • Joystick: 4-axis (Pan / Tilt / Zoom)
    • Speed Control: x2 (2 Knobs)
    • Zoom Control: x1 (Zoom Seesaw Lever)
    • Gain Control: R / B Gain (2 Knobs)
    • Assign Button: x6
    • Keypad with backlight: Yes
    • Protocol: VISCA, Pelco P&D, VISCA Over IP
    • Baud Rate: 2400, 4800, 9600, 19200, 38400 bps
    • Camera Address: 1~255
    • Preset: 255
    • Dimensions: 278 x 132 x 99.5 mm (10.9 x 5.2 x 3.9 In)
    • Weight: 1 kg (2.2 lbs)
    • Power: DC12V / PoE
    • Power Consumption:
      - PoE: 5W
      - DC In: 5W

  • Warranty:

    • 5 Year Warranty


VS-KB30 - Required Accessories
