PTZOptics PT-SUPERJOY-G1 SuperJoy PTZ Camera Joystick Controller with Simultaneous NDI / HX - IP & Serial Control

ITEM #: PTZ-PTSUPERJOYG1 MFG #: PT-SUPERJOY-G1

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$989.00

Our Price:

$899.00

Availability: In Stock
iAvailability Description Popup


    PT-SUPERJOY-G1 - Overview

    Create a Powerful, Precise and Versatile Production Experience

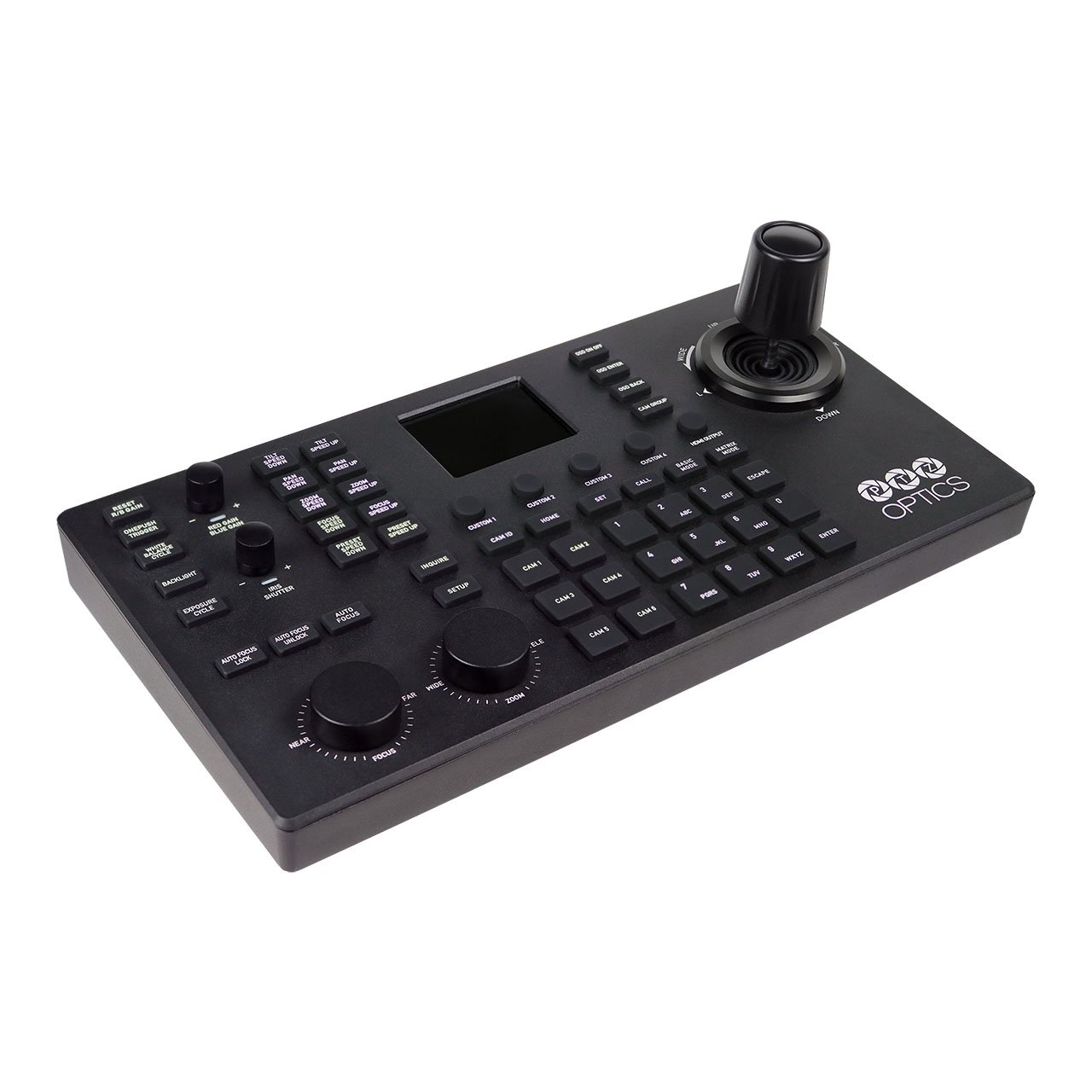

    Introducing the PTZOptics PT-SUPERJOY-G1 SuperJoy, a PTZ camera joystick controller designed for smooth, efficient production workflows. The SuperJoy takes remote pan, tilt, and zoom camera operations to the next level in a simplified user interface with advanced controls for power users.

    Custom Control Across a Variety of Cameras and Devices

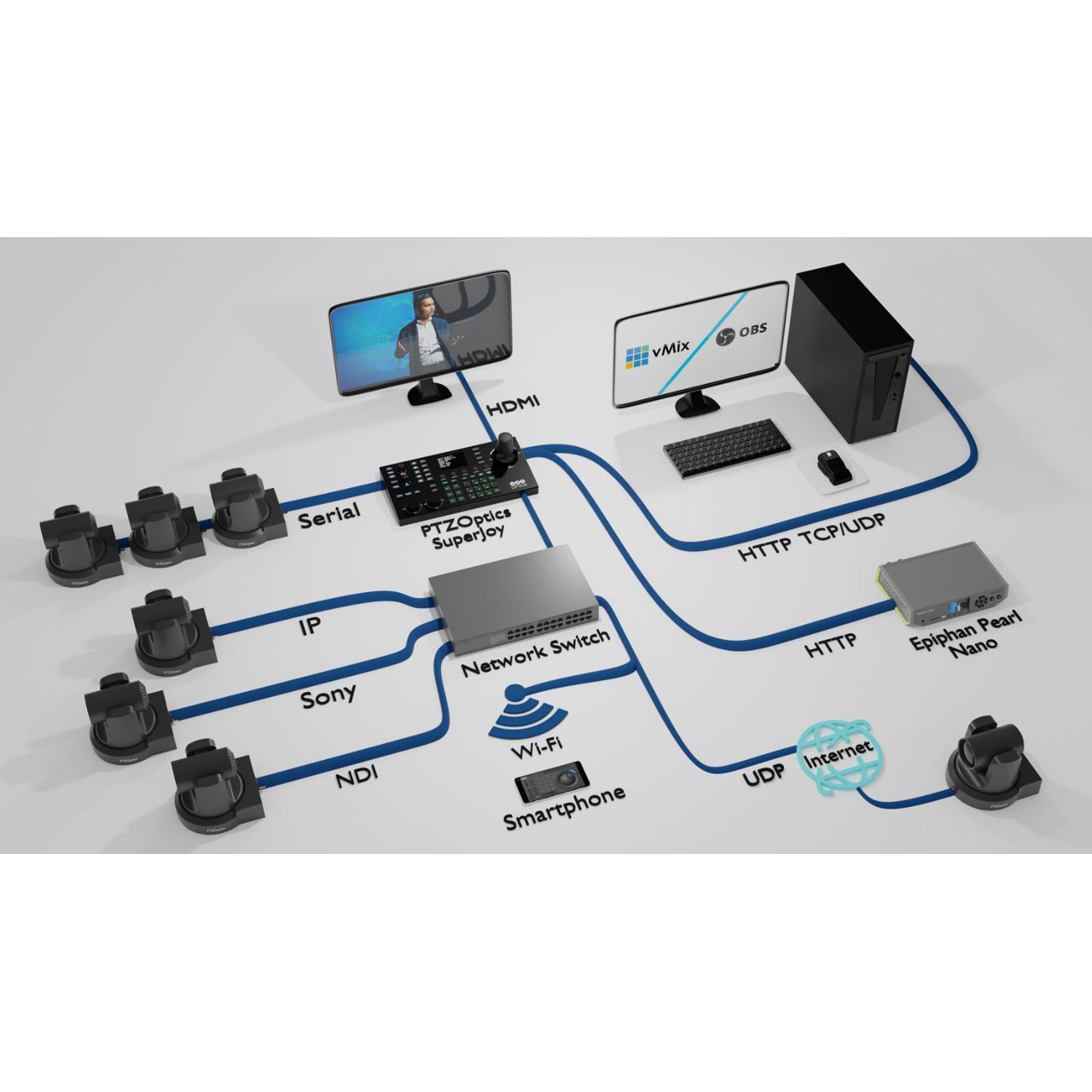

    The PTZOptics SuperJoy Joystick Controller is a comprehensive solution supporting mix-and-match serial and network-based control for PTZ cameras of any generation. Simultaneous pan, tilt and zoom control across IP, NDI® and serial cameras from multiple brands including PTZOptics, HuddleCamHD, Sony, BirdDog, and NewTek

    If it's IP-controlled, chances are the SuperJoy can control it - cameras, lights, projector screens and more - using four customizable buttons

    Powerful Super-Preset buttons are programmable to trigger synchronized multi-preset commands across up to four unique camera groups with up to eight cameras each

    Streamlined, Real-Time Production

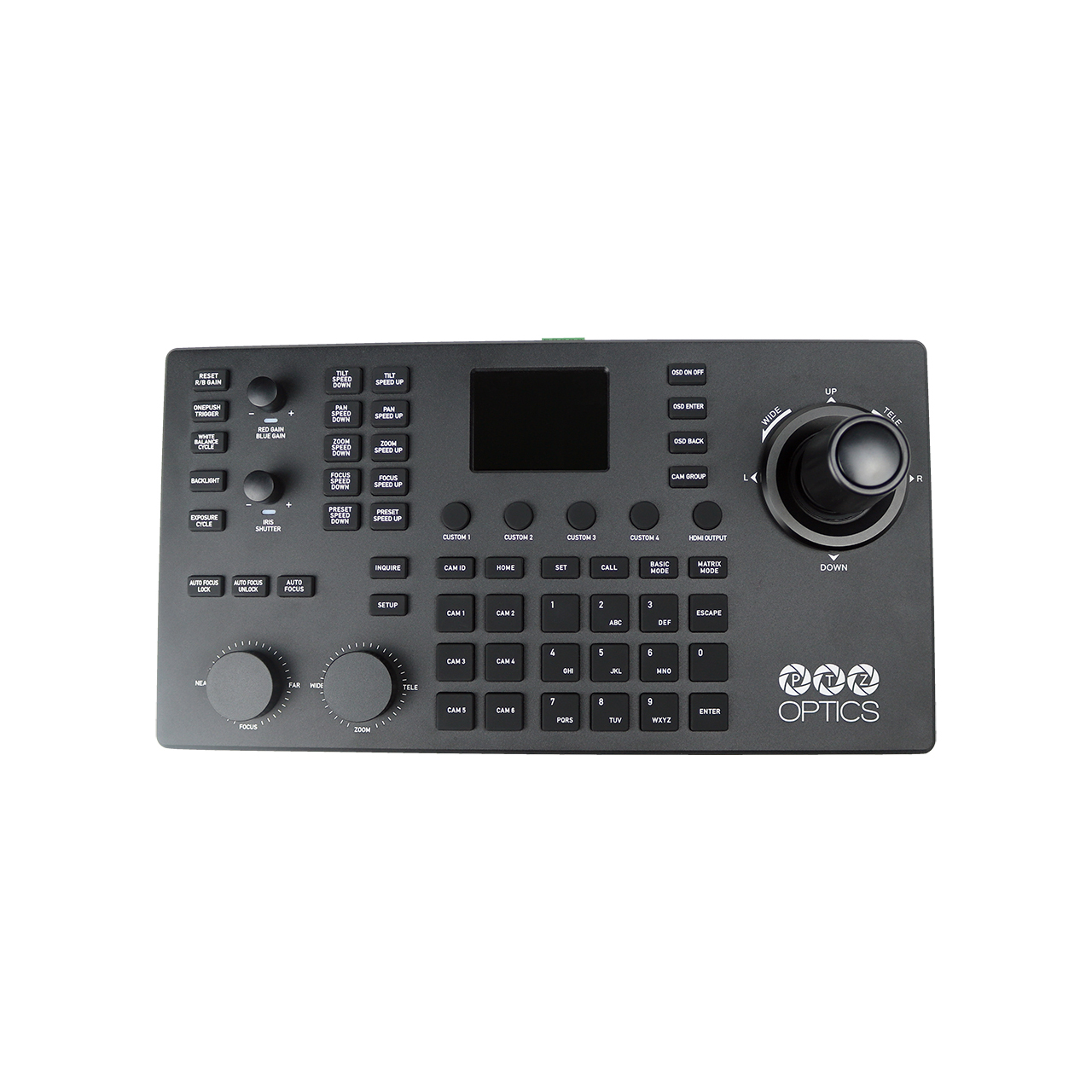

    The SuperJoy offers an intuitive, tactile interface, simplifying and streamlining even the most complex production setups. Ergonomic, rubberized controls and pressure-sensitive knobs for precise, on-the-fly-tuning, with no OSD adjustments required Status-responsive backlit buttons and knobs indicate available camera modes, while optional tablet/computer control can allow for remote monitoring

    Use the built-in decoder with HDMI output for setup and monitoring, while current configuration status is displayed on the SuperJoy's built-in LCD screen

    From Power Users to Novices, a Controller for Everyone
    With three user-centered control modes designed to accommodate varying skill levels, the SuperJoy offers unparalleled flexibility for production teams of all backgrounds and experiences.

    Use Basic and Basic Plus mode to limit functions to presets and single-camera control. Matrix mode enables operators to call presets across up to three cameras. Expert users can program custom buttons for production automation.

    Superior Performance, Flexibility and Support - All for Less Than You Might Think
    Backed by PTZOptics' 2-year warranty, plus full support from PTZOptics' technical team, the SuperJoy is an ideal choice for video production crews looking to improve their workflows and streamline their production processes

    • Features:

      • Durable metal housing
      • PTZOptics VISCA over IP & Serial control
      • Limited NDI®& Sony®control
      • PTZOptics Camera On Screen Display control
      • Full Pan / Tilt / Zoom camera control
      • P/T/Z Speed adjustment on the fly
      • Direct exposure & white balance control
      • 4 Camera Control Groups - 7 Cameras per Camera Group
      • 255 camera presets, 9 Quick presets
      • 4 Customizable buttons (TCP, UDP, & HTTP)
      • Fine tune zoom & focus control dials
      • Buttons glow when available
      • RTSP output via HDMI
      • PTZOptics Focus Lock & Unlock
      • Large LCD screen with controller status
      • Import / Export settings via network & USB

    • Specifications:

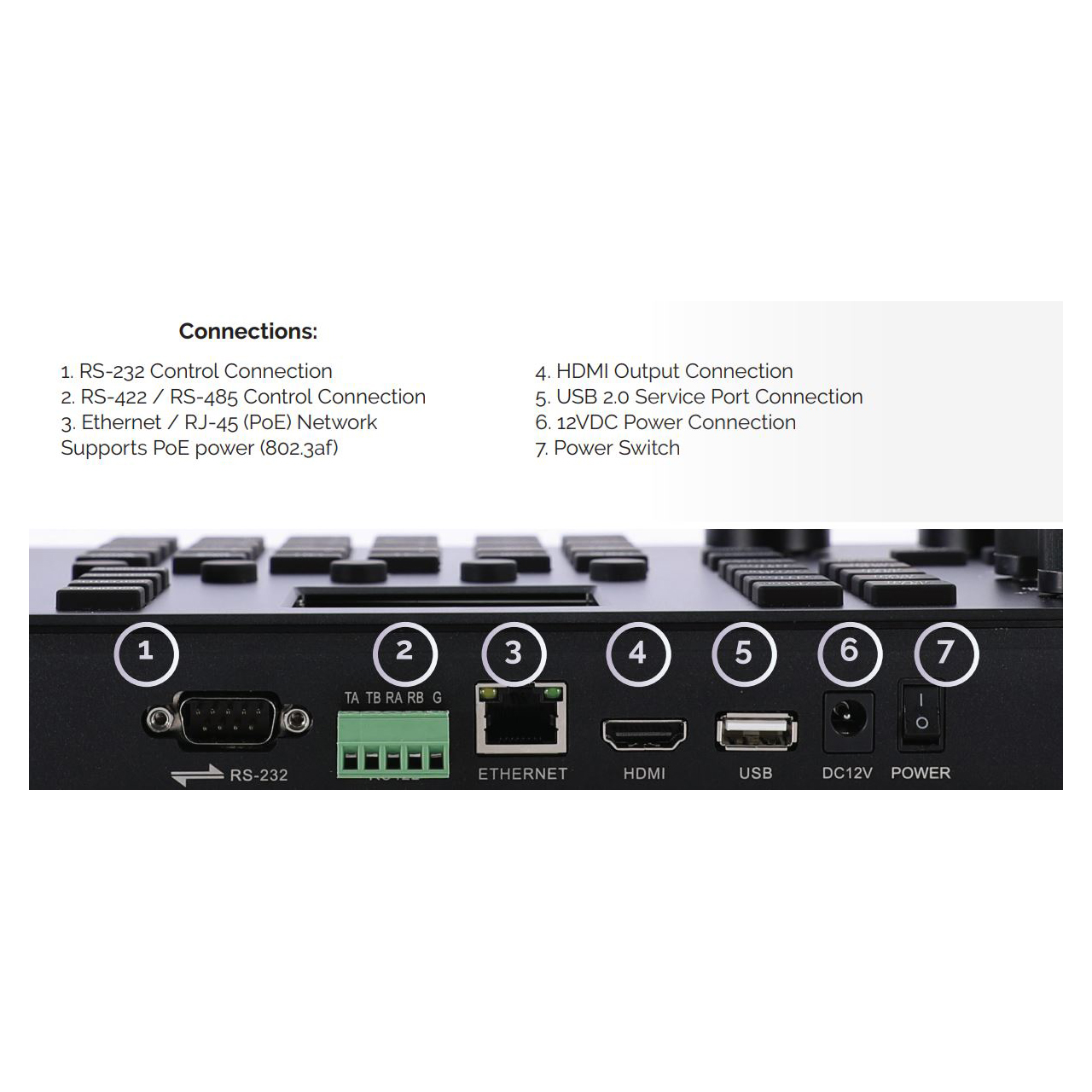

      • Connections: RS-232, RS-485, RS-422, RJ-45
      • Control Protocols: VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI
      • Max Cameras: 28 cameras total (4 groups of 7 channels)

        Recommended Max Distance
      • RS-232 / RS-422: 50 ft | 15m
      • RS-485: 3,937 ft | 1200m
      • Ethernet: 328 ft | 100m

      • Baud Rate: 1200 ~ 19200 bps
      • Power: 6W | 12VDC / PoE (802.3af) (Only use one (1) power source at a time.)
      • Working Temp: 14° F ~ 122° F | -10° C ~ +50° C
      • Working Humidity: 10% ~ 90% (non-condensation)
      • Weight: 3.75 lbs | 1.70 kg
      • Dimensions (in.): 13.94 W x 7.05 D x 3.98 H
      • Dimensions (mm.): 370 W x 180 D x 101 H

    • Item Includes:

      • 1x PT-SUPERJOY-G1 Joystick Controller
      • 1x 12V 2A DC International Power Supply
      • 1x RS-232C cable 8ft (2.4m)
      • 1x PT-SUPERJOY-G1 Quick Start Guide

    • Warranty:

      • 2-Year warranty
