LRINAMF1 - Overview

The LumenRadio Aurora is a flexible unit able to transmit or receive one universe of DMX/RDM with several connectivity options. Using the intuitive color screen to change
settings on the fly and move between universes, it is powerful enough for single universe transmissions as well as being a receiver packing the most advanced features.

The onboard Wi-Fi can receive sACN and Art-Net, while the Bluetooth interface enables configuration via the CRMX Toolbox App and streaming of DMX. The 5-pin XLR port can be used as an input or output for DMX/RDM from any source, making the Aurora act as a protocol converter.

With the intuitive color screen, it's easy to configure locally, using the rotary knob to move between settings and universes. For even more control, the CRMX Toolbox App is capable of configuration from any smart device.

  • Features:

    • Single universe CRMX Flex unit
    • DMX/RDM, sACN and Art-Net 3
    • 5 GHz WiFi and Bluetooth
    • Configuration via app or front panel
    • Compatible with CRMX and W-DMX

  • Specifications:

      Supported Protocols
    • DMX/RDM
    • sACN/Art-Net 1-3
    • CRMX
    • W-DMX G3/G4s
    • WiFi IEEE802.11b/g/n/ac
    • Bluetooth 5.0

      RF Characteristics
    • Frequency Range: 2402MHz - 2480MHz
    • Radio Module: TimoTwo
    • 5ms latency
    • 128-bit encryption
    • Forward Error Correction

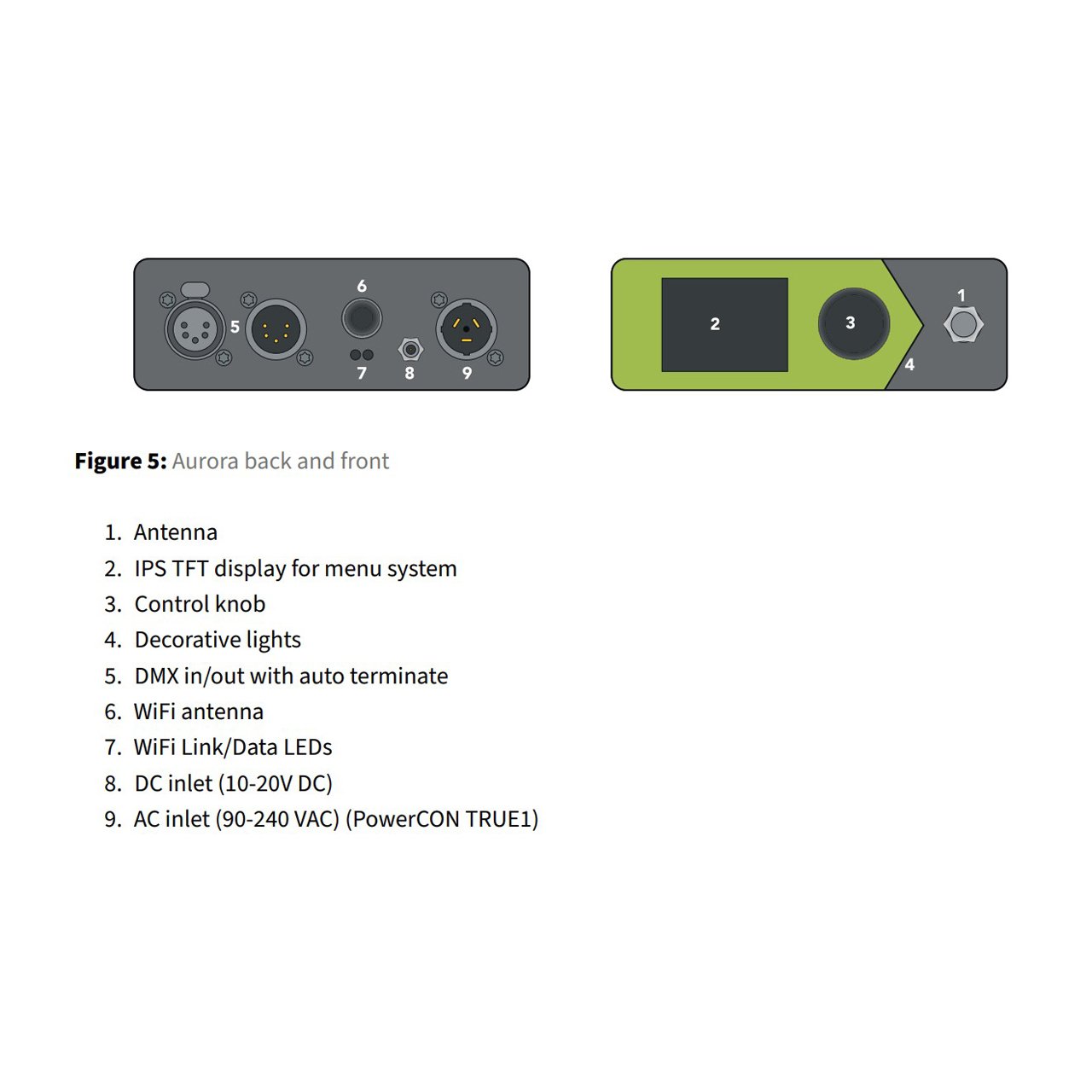

      Connectors
    • Antenna: RP-TNC
    • DMX: 5-pin XLR female & male
    • DC: 2.5mm/5.5mm Barrel connector
    • AC: powerCON Tru1

      Power
    • DC: 10V - 20V
    • AC: 100V - 240VAC

      Physical
    • IP20 Aluminium enclosure
    • Front panel color screen and rotary knob
    • M10 and ⅜" Threads
    • Rack and wall mount accessories
    • V-Lock battery mount accessory
    • Dimensions: 5.51" x 7.87" x 1.73" (14cm x 20cm x 4.4cm)
    • Weight: 2.26lbs (1.2kg)

  • Item Includes:

    • 1x AURORA Single Universe DMX/RDM Transceiver

  • Warranty:

    • 1 Year Limited Warranty
