Obsidian Control Systems NETRON RDM 10 5-Pin Hybrid Splitter - 2x DMX - 10 Port

Name: Obsidian Control Systems NETRON RDM 10 5-Pin Hybrid Splitter - 2x DMX - 10 Port
Brand: Elation
SKU: ELAT-NRD101
Price: 960.00 USD
Availability: InStock

ITEM #: ELAT-NRD101 MFG #: RDM 10

Elation

List Price:

$1,150.00

Our Price:

$960.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

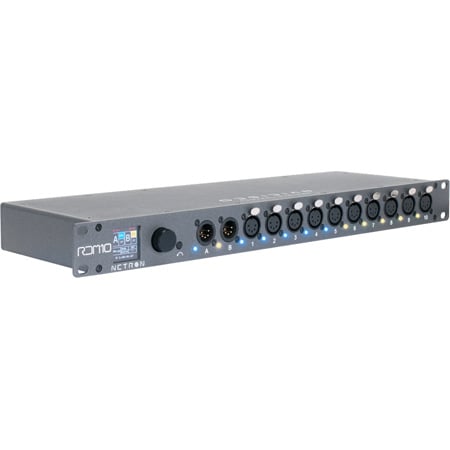

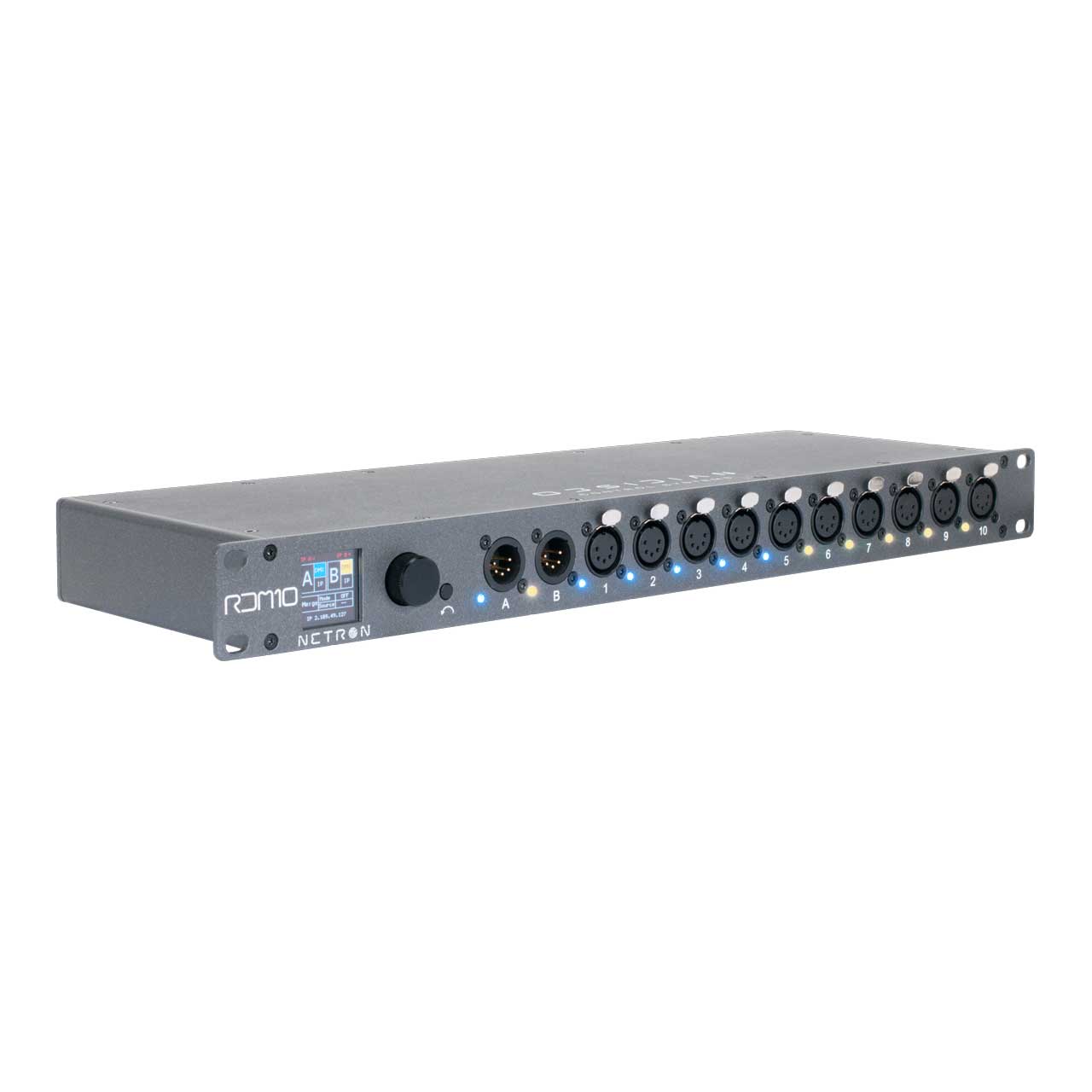

RDM 10 - Overview

The NETRON RDM 10 is a first of its kind hybrid splitter. Dual DMX input, 10 port RDM Splitter, Merger and EtherDMX Gateway are unified into the RDM10, with an advanced feature set to cover a wide variety of applications. 99 internal cues, factory and user presets plus external contact closures provide a unique combination of multiple devices to solve many required tasks in one powerful unit.

Features:
- 10 assignable DMX outputs
- Integrated 2 Universe Artnet/sACN node
- Configurable DMX refresh rate
- Dual DMX Inputs for backup and signal loss options
- Remote configuration via internal webpage
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing
Specifications:

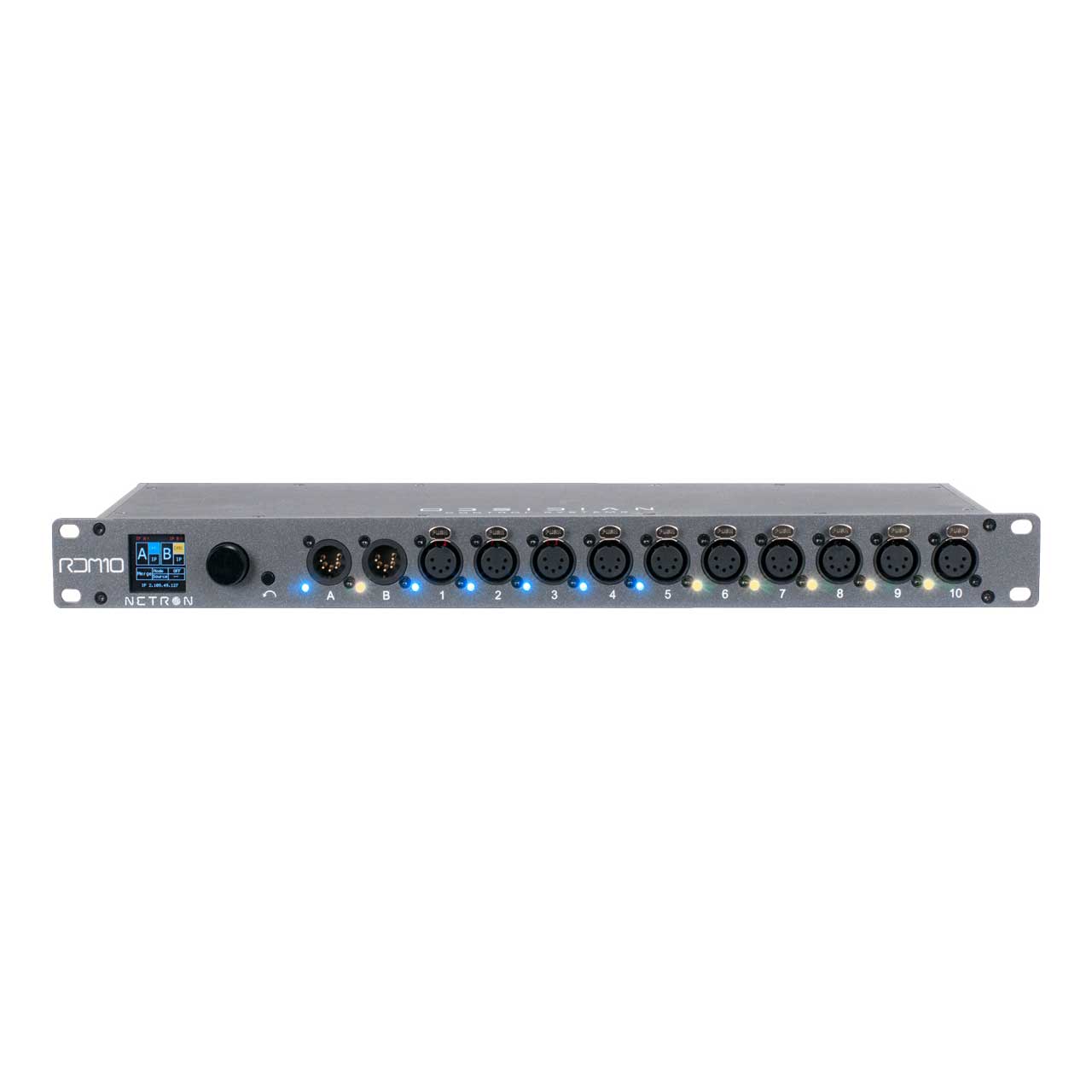

- Front:
- (2) 5pin DMX Input
- (10) 5pin Opto-Isolated DMX Outputs
- Full color OLED display
- Encoder w. Push to Select / Exit Button

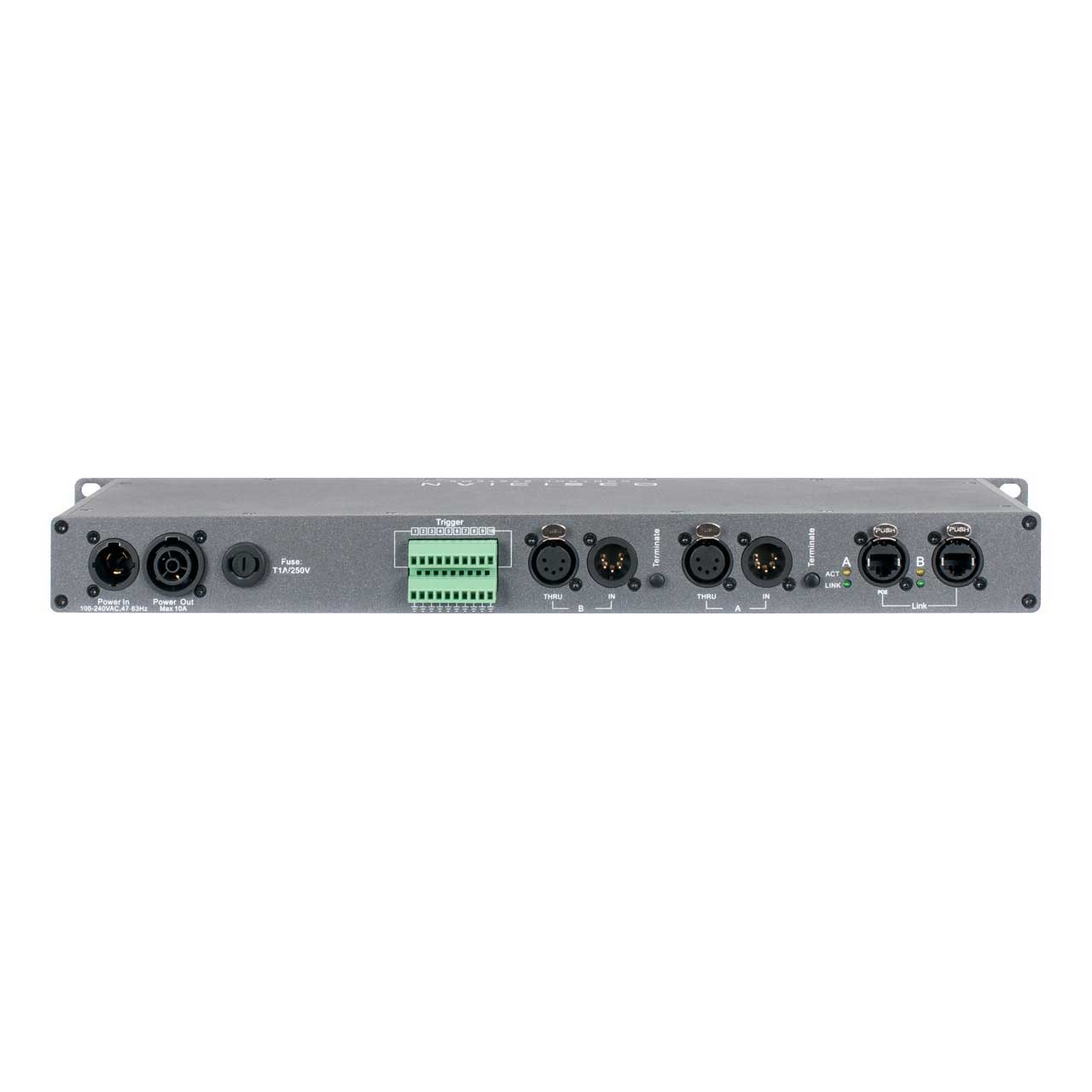

  Back:
- (2) 5pin DMX Input (parallel with front)
- (2) 5pin DMX Through
- (2) Locking RJ45 Ethernet Network In
- (10) Contact Closures (Terminal Block)
- Locking Power In/Thru

  Physical:
- Length: 482.5 mm (19 in.)
- Width: 146 mm (5.7 in.)
- Height: 44 mm (1.7 in.)
- Weight: 1.82 kg (4 lbs)

  Electrical:
- 100-240 V nominal, 50/60 Hz
- POE 802.3af

  Approvals / Ratings:
- cETLus
- CE
- IP20
Item Includes:
- 1x NRD101 RDM 10 Hybrid Splitter
- 1x Power Cable
Warranty:
- 2 Year
GTIN:
0810008260654
