LumenRadio LUNA Single Universe DMX Transceiver with Bluetooth

ITEM #: LUR-LRINLFX1 MFG #: LRINLFX1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$775.00

Our Price:

$697.50

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LRINLFX1 - Overview

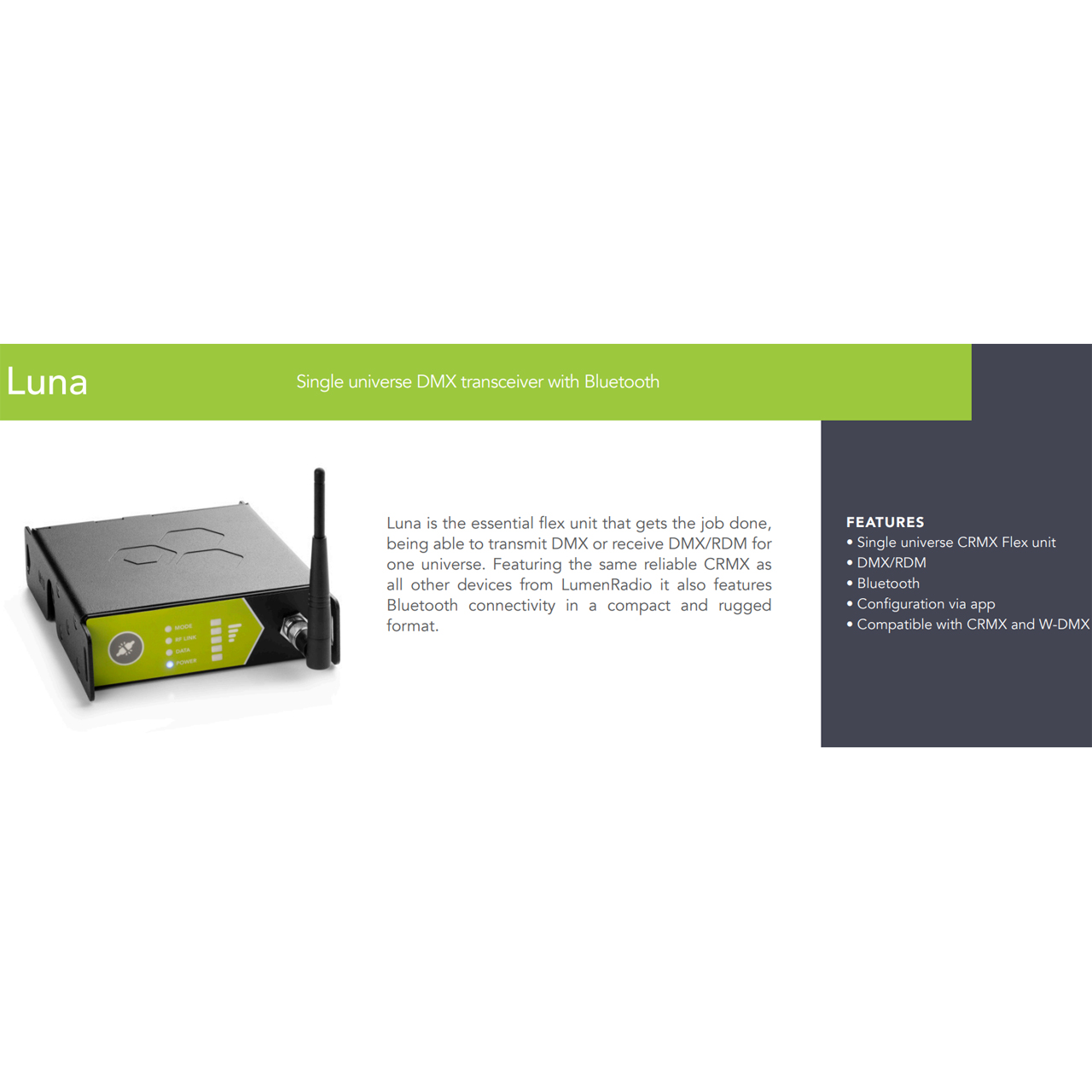

The LumenRadio Luna is the essential flex unit that gets the job done, being able to transmit or receive one universe of DMX. Featuring the same reliable CRMX as all other devices from LumenRadio it also features Bluetooth connectivity in a compact and rugged format.

By using LumenRadios CRMX Toolbox App it is possible to configure all settings of the device via the Bluetooth interface. The same interface can also be used to transmit DMX data directly from supported lighting control apps without the need of any additional hardware.

With the improved radio design and external antenna, Luna has the same range as both Aurora and Stardust with LED indicators on the front panel along with the one button interface for quick operation.

Luna features a 5-pin XLR for DMX, DC barrel plug for 10-20V and powerCON Tru1 for AC power. Tailor Luna to meet your specific needs with accessories such as V-Lock battery mount, Rack mount, Wall mount, Clamps and Threads.

  • Features:

    • 5-pin XLR port for DMX
    • Single Universe CRMX Flex unit
    • DMX/RDM (in RX)
    • Bluetooth
    • Configuration via App
    • Compatible with CRMX and W-DMX G3/G4s

  • Specifications:

      Supported Protocols
    • DMX/RDM (in RX)
    • CRMX
    • W-DMX G3/G4s
    • Bluetooth 5.0

      RF Characteristics
    • Frequency Range: 2402MHz - 2480MHz
    • Radio Module: TimoTwo
    • 5ms Latency
    • 128-Bit Encryption
    • Forward Error Correction

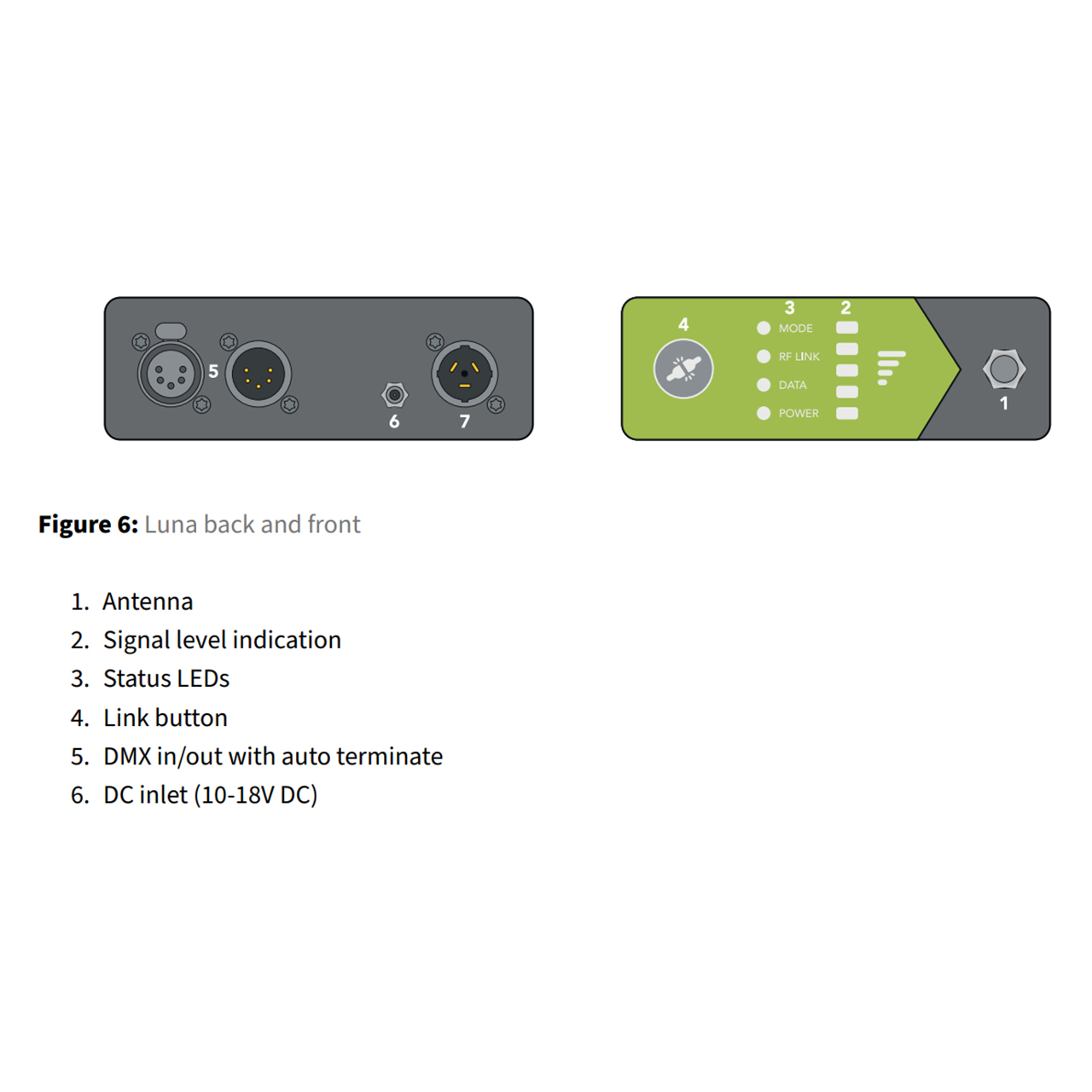

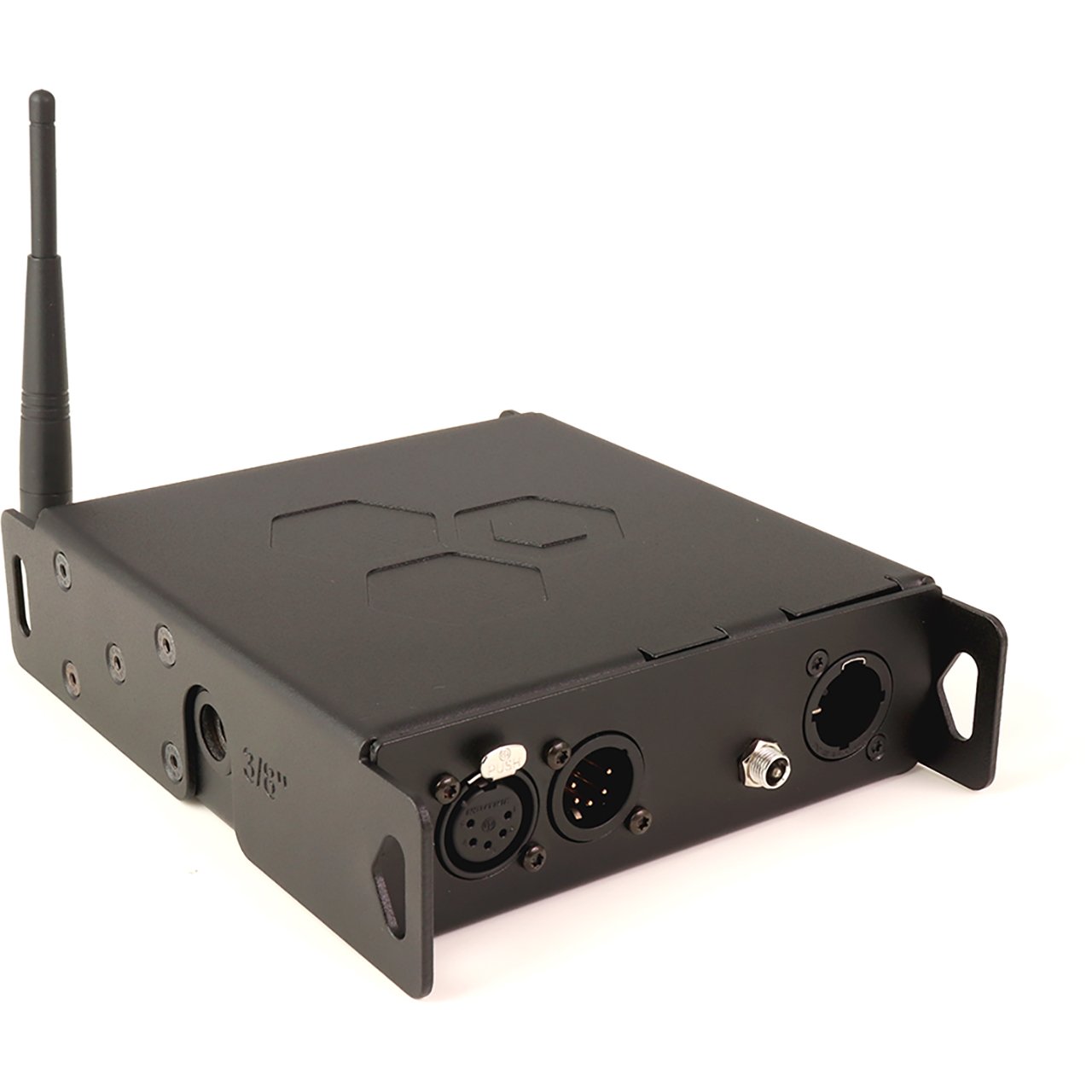

      Connectors
    • Antenna: RP-TNC
    • DMX: 5-pin XLR female & male
    • DC: 2.5mm/5.5mm Barrel connector
    • AC: powerCON Tru1

      Power
    • DC: 10V - 20V
    • AC: 100V - 240VAC

      Physical
    • IP20 Aluminium enclosure
    • Front panel LEDs and button
    • M10 and ⅜" Threads
    • Rack and wall mount accessories
    • V-Lock battery mount accessory
    • Dimensions: 7.5" x 5.5" x 1.7" (14cm x 19cm x 4.4cm)
    • Weight: 2.26lbs (1.2kg)

  • Item Includes:

    • 1x LUNA Single Universe DMX Transceiver
    • 1x Power Cable

  • Warranty:

    • 1 Year Limited Warranty
