Fiberplex ADP-2981 8-Inch Annunciator Speaker with High Intensity Strobe - Wall or Shelf Mount

ITEM #: LVP-ADP-2981 MFG #: ADP-2981

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Patton
Free Shipping with $49 Minimum Order

Our Price:

$3,210.48

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

ADP-2981 - Overview

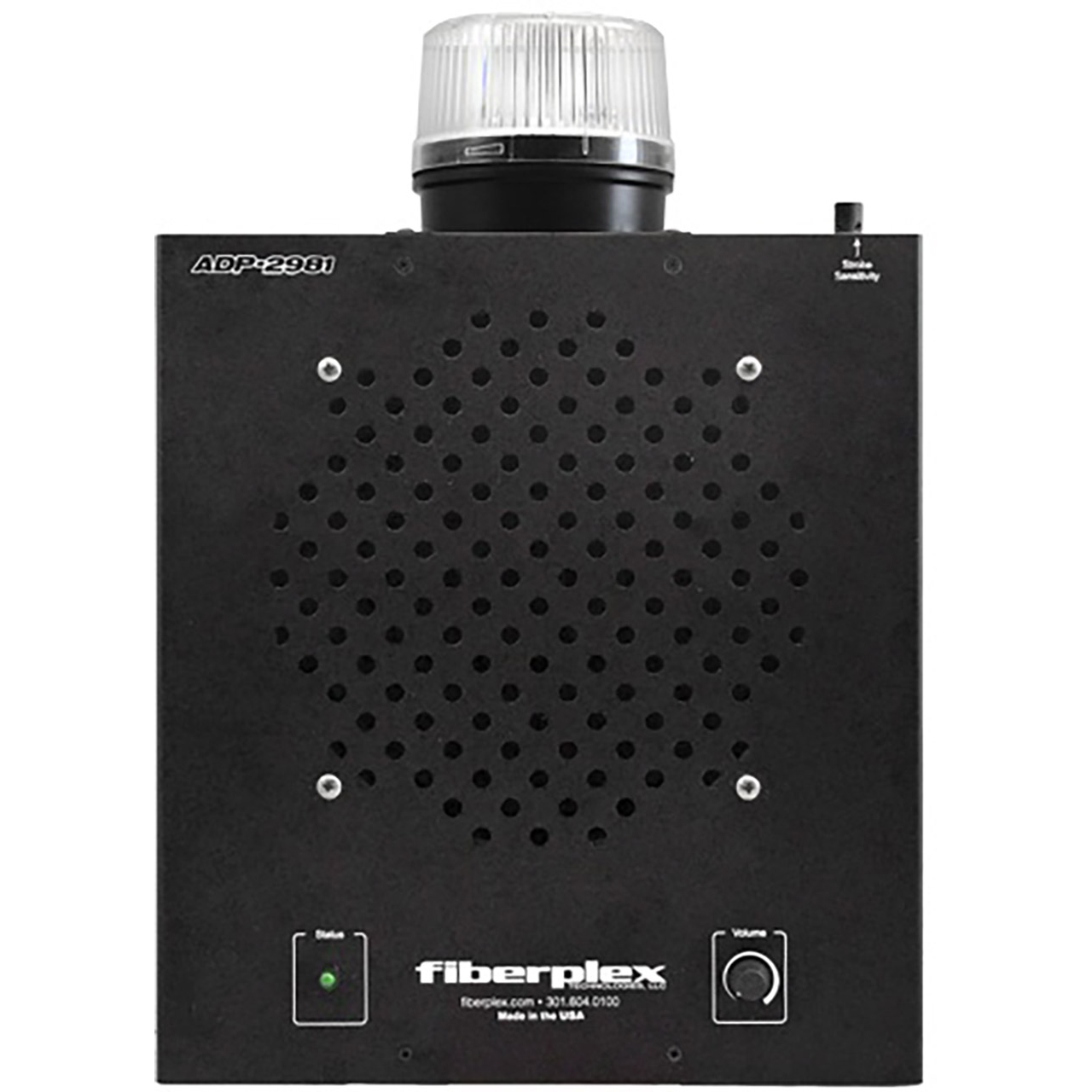

The ADP 2981 is a stand-alone wall or shelf mountable loudspeaker unit that house and power an 8-inch speaker and a high-intensity strobe.

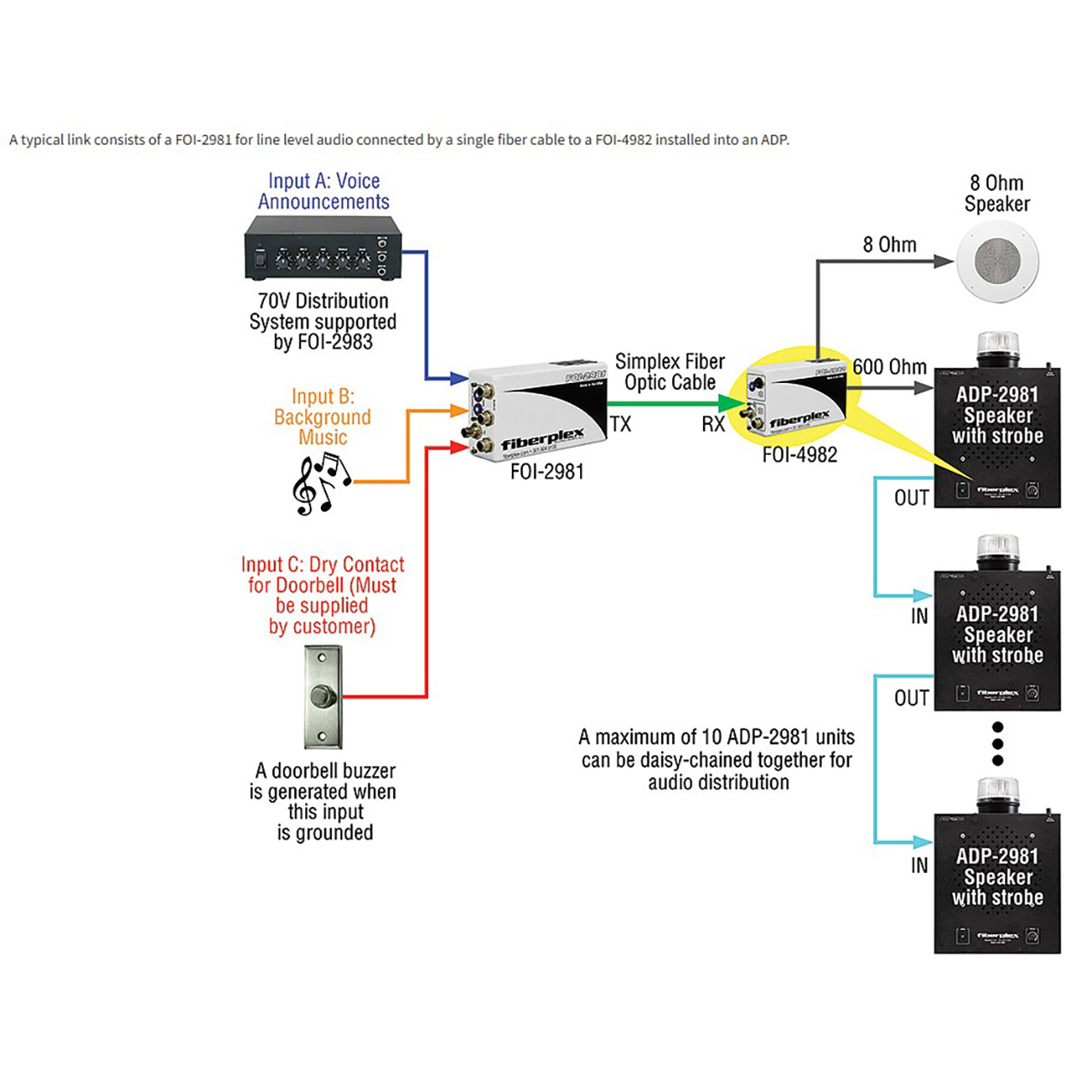

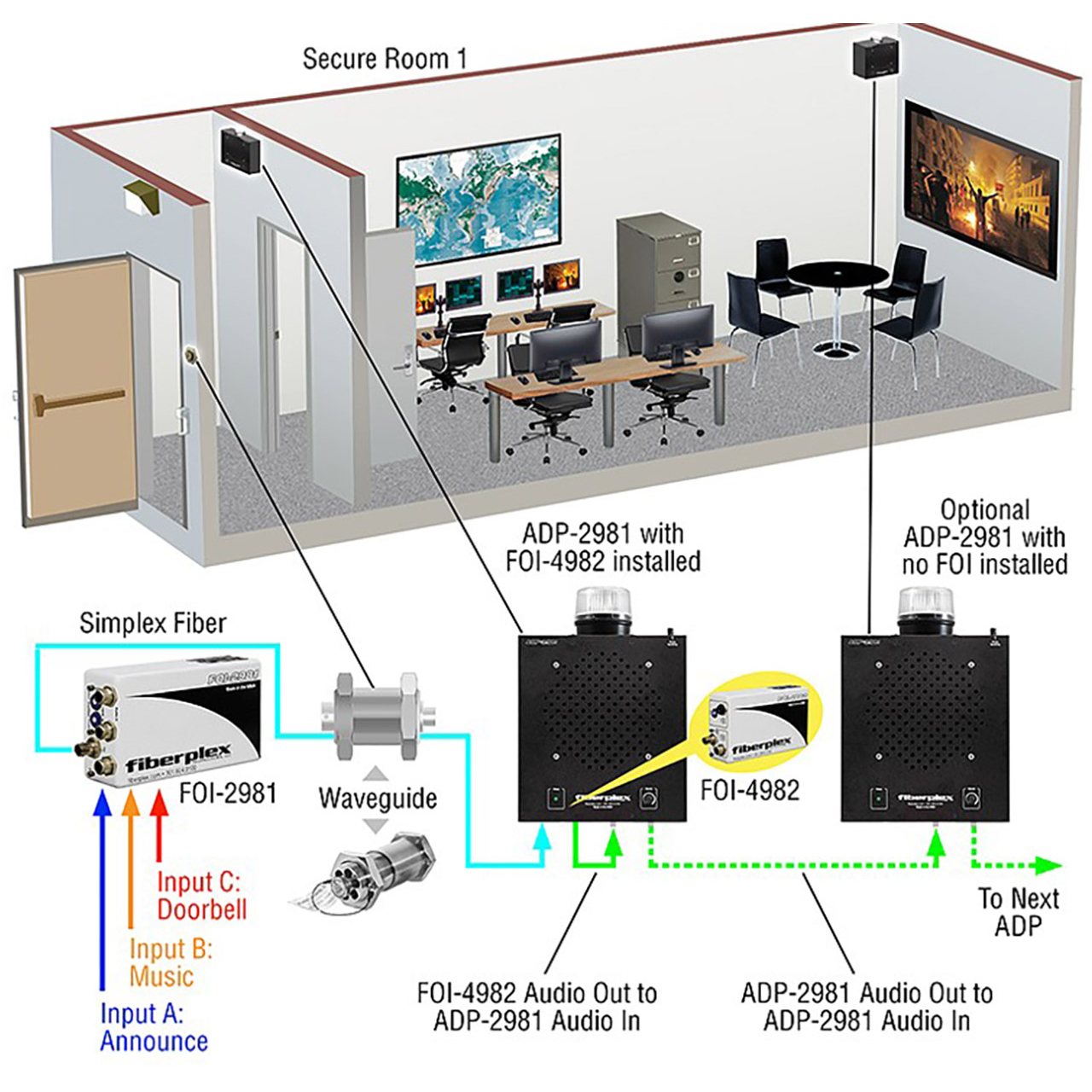

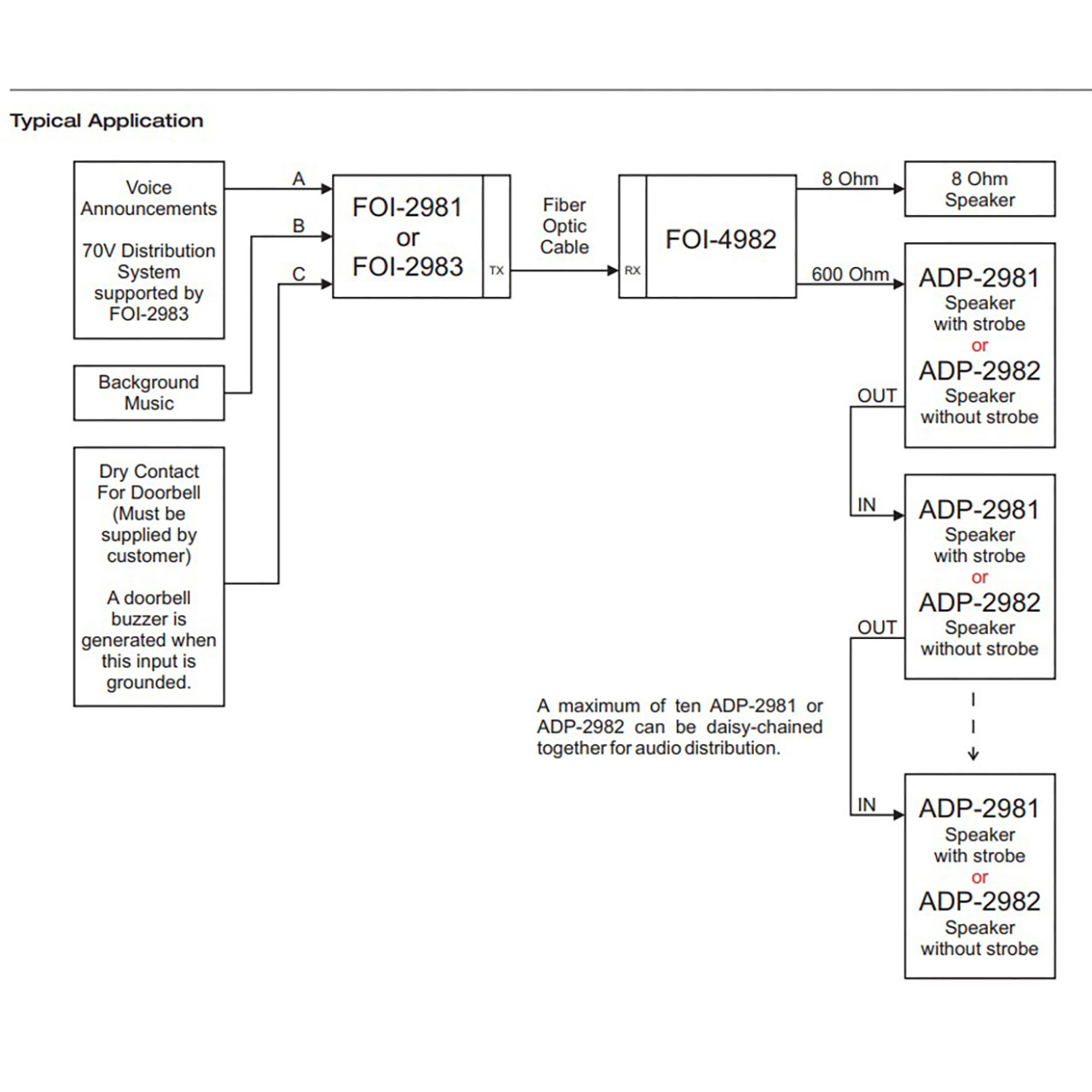

The unit utilizes FiberPlex FOI series modules to extend Public Address and Mass Notification systems via fiber. External audio signals such as voice announcements, music, a doorbell buzz, etc. are first connected to a FOI-2981 or FOI-2983. This FOI unit then transmits the signal via a fiber optic link to a FOI-4982, conveniently housed and powered by an ADP unit. From there the FOI-4982 drives up to 10 ADP units in a daisy chain (items sold separately).

Each ADP unit is equipped with an AC line-powered supply to drive the amplifier and supply DC power to an attached FOI module.

The ADP-2981 also contains a strobe annunciator, useful for areas with high background noise or those with hearing difficulties. A knob on top of the unit controls the volume threshold that the audio must exceed for the strobe to flash.

  • Features:

    • Provides power to a single FOI Module
    • Accepts unbalanced line level audio from any FOI audio source including FOI-4982, FOI-7280 or other FiberPlex FOI line level audio devices.
    • Backwards compatible with legacy FOI-2982 with optional spacer installed.
    • ADP units may be linked on a copper audio daisy-chain scheme, up to 10 units long, with no unit configuration required.

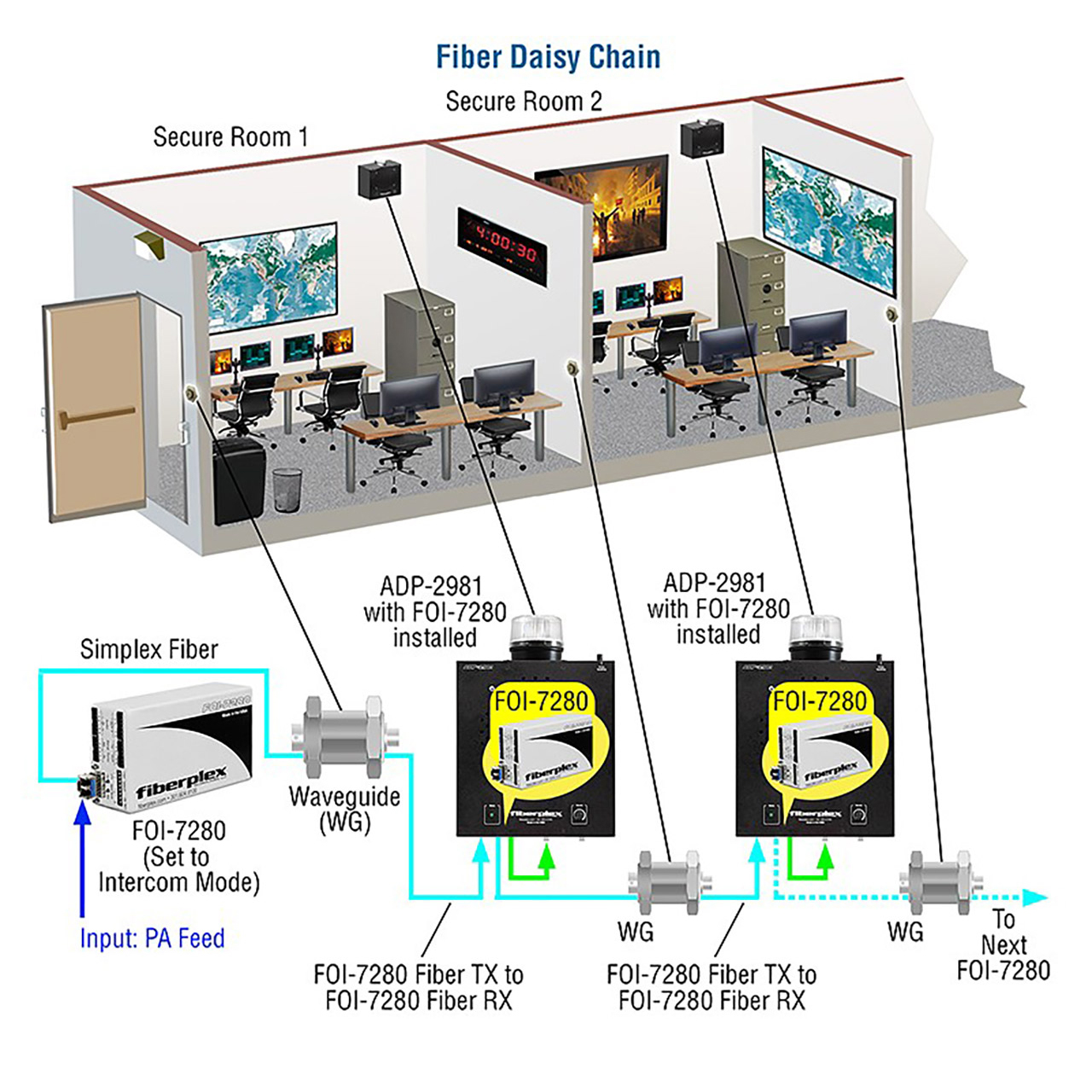

    • Using the FOI-7280, ADP units can be fiber daisy-chained
    • The fiber optic isolator is accessible and removable through the front of the enclosure.
    • One standard regionally-appropriate power cord is included with each panel.
    • The AC mains fuse is of a common type and readily changed without disassembly of the unit.
    • The unit can be mounted at a downward angle to facilitate better sound projection when mounted near the ceiling.
    • The enclosure is durable, corrosion resistant aluminum alloy with an anodized finish.


  • Specifications:

    • Power Requirement: 120V/240VAC, 50/60Hz
    • Input Connector: RCA Type Phono Jack
    • Input Impedance: 50kΩ
    • Output Connector: RCA Type Phono Jack
    • Output Impedance: 600Ω
    • Output Signal Level: 100mV
    • Operating Temperature: 32°F - 122°F (0°C - 50°C)
    • Storage Temperature: -40°F - 185°F (-40°C - 85°C)
    • Case Dimensions (HxWxD): 11-1/8" x 11-1/2" x 4-1/16" (283mm x 292mm x 103mm)
    • Weight: 15lbs (6.8kg)
