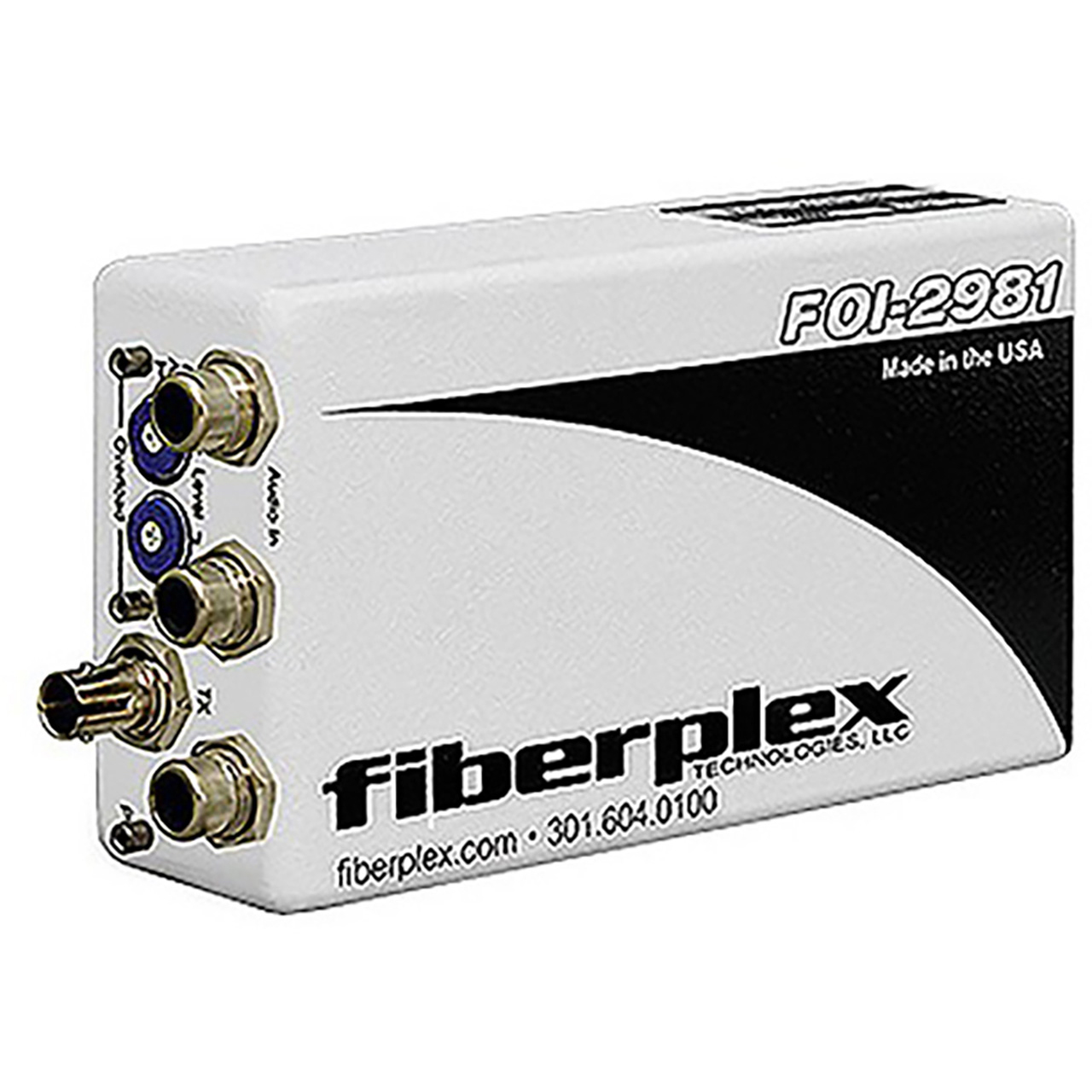

Fiberplex FOI-2981-ST Optical Transmitter with 2 Audio Inputs and 1 Doorbell Input

ITEM #: FOI-2981-ST MFG #: FOI-2981-ST

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$635.04

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


FOI-2981-ST - Overview

The FOI-2981, FOI-4982, and FOI-2983 all provide complete electrical isolation for audio communications. The unit can be used in areas of high electrical noise or in and out of RF shielded enclosures. The fiber optic cable is not susceptible to interference caused by impulse noise, crosstalk, or EMI. Privacy of communications is also enhanced because the fiber optic cable does not radiate any emissions. In addition, fiber optic cable offers much longer transmission distances than copper wiring. Multimode optics on the units can extend the distance to 2km. A typical link consists of either an FOI-2981 or an FOI-2983 at one end of the network transmitting optical signals to an FOI4982 at the other end of the network with a single fiber optic cable between them.

  • Features:

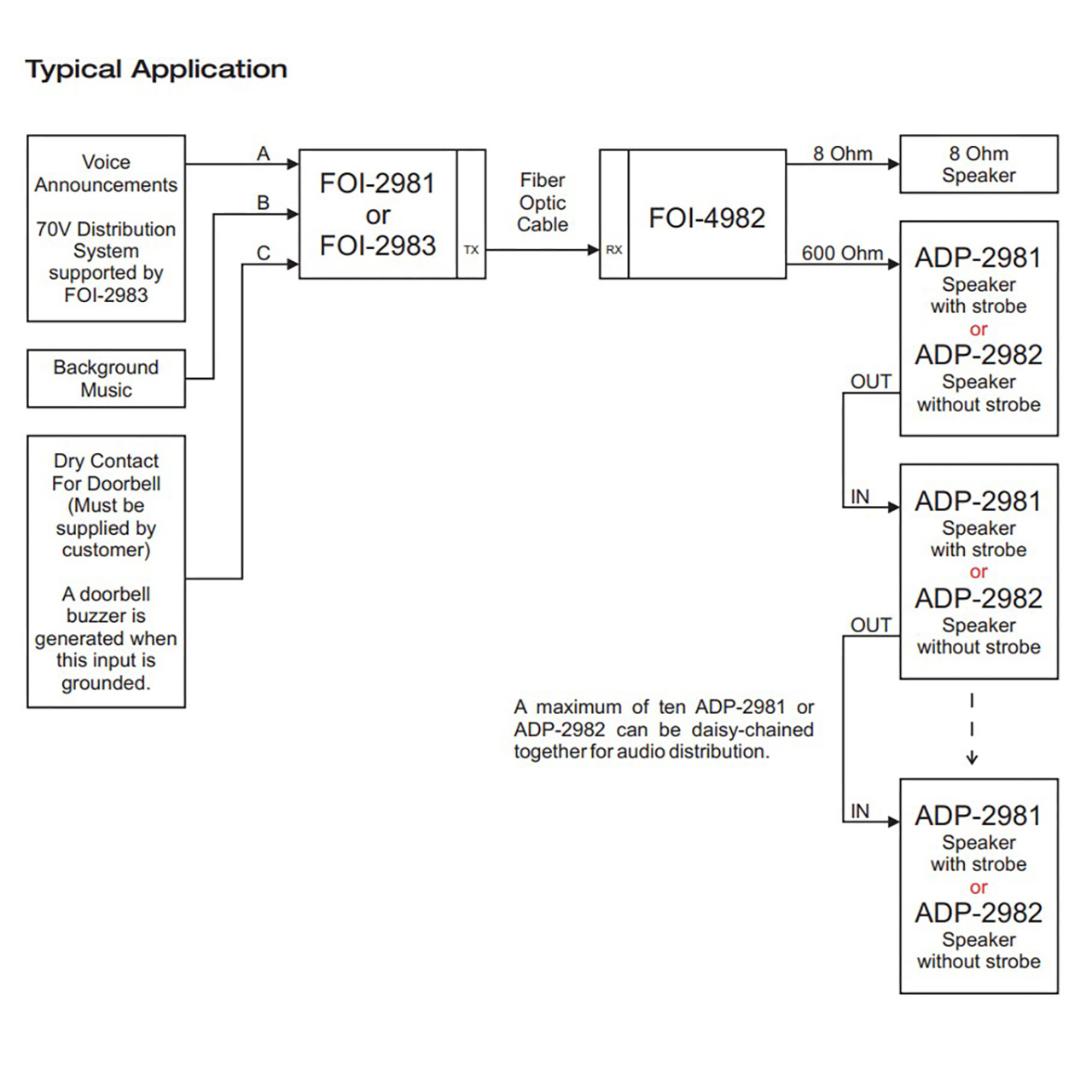

    • Typical Application: - Input A: voice announcements, - Input B: background music, - Input C: dry contact for doorbell (must be supplied by customer), A doorbell buzzer is generated when this input is grounded,
    • Order of Precedence: - A (highest - overides B and C), - C (overides B), - B (lowest).

  • Specifications:

    • Power Requirement: 9V DC @ 275mA
    • Frequency Response: 100Hz - 8kHz ±3dB
    • Input Level for A and B:
      - Minimum: 50mV RMS
      - Maximum: Audio inputs can be adjusted for high signal levels and clipping by turning the LEVEL adjustment counter-clockwise until the OVERLOAD LED turns off
    • Doorbell Operation for C: A doorbell buzzer is generated when this input is grounded
    • Priority Scheme: A (highest - overides B and C), C (overides B), B (lowest)

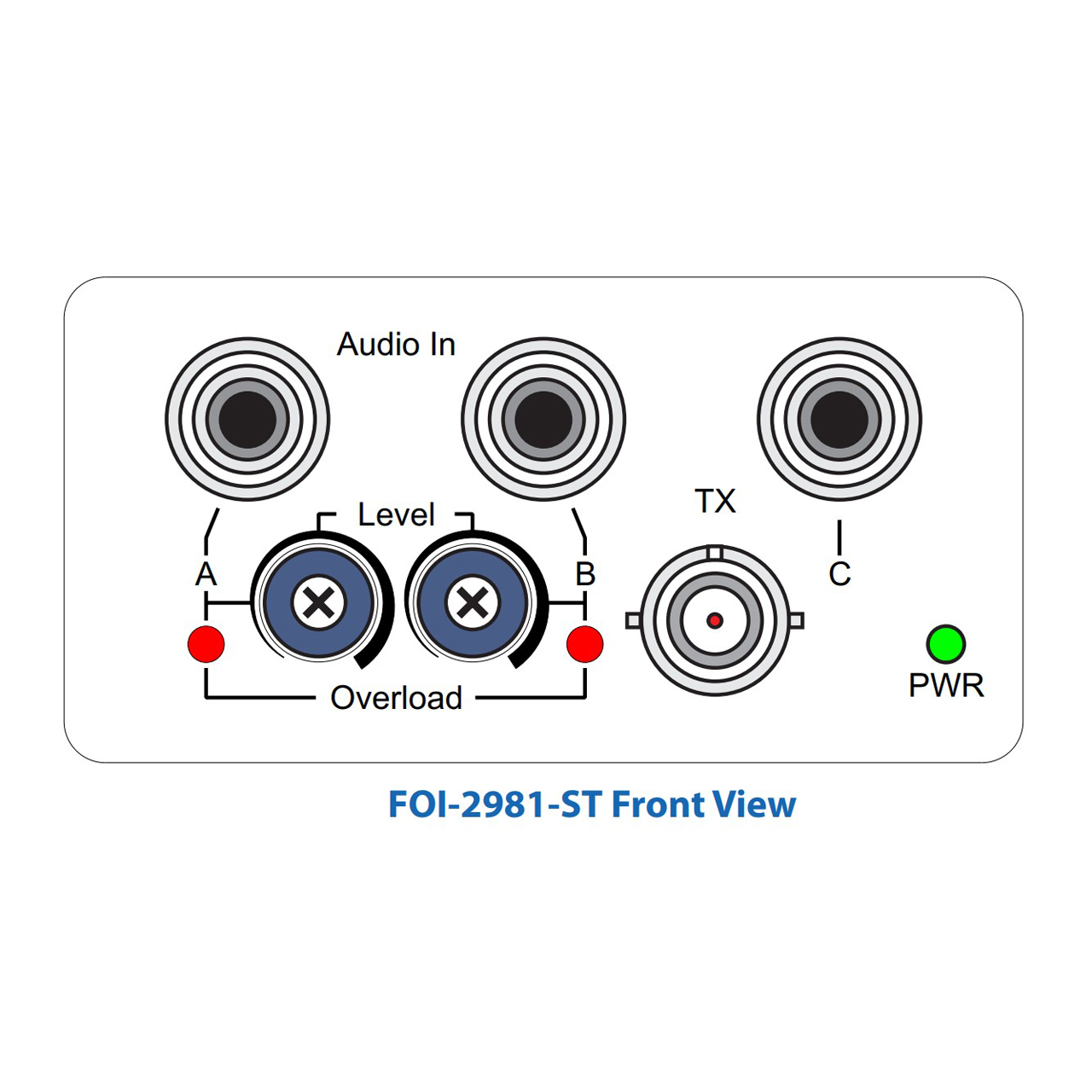

    • Interface Connector A, B, and C: RCA Type Phono Jack
    • Optical Characteristics: Multimode, 62.5/125µm, Max Distance 2km, Output Power: -18dBm
