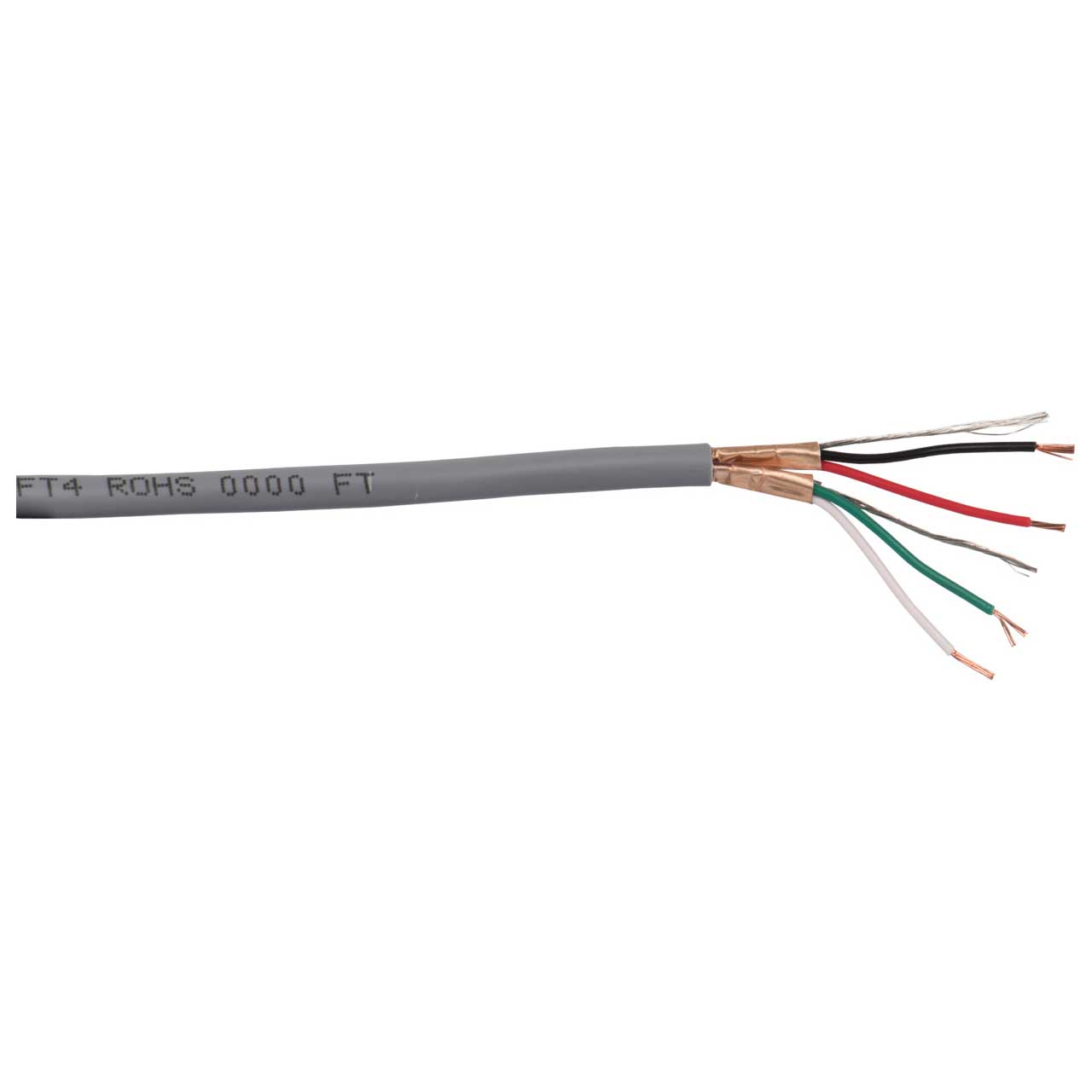

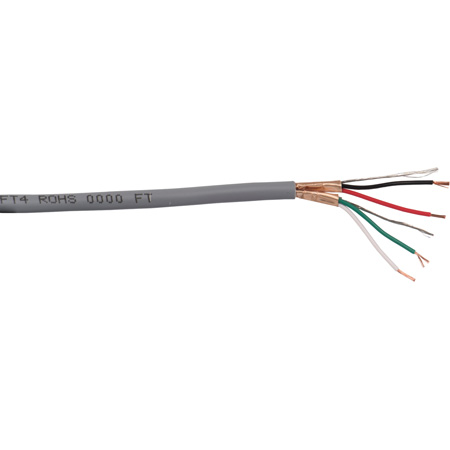

Liberty 22-2P-INDSH-GRY Grey Riser Audio and Control 22 AWG 2 Pair Individually Shielded Box Cable - 1000 Feet

LWC-222PINDSHGRY - Overview

• Features:

  • 7-Strand annealed bare copper conductors
  • Polypropylene dielectric insulation
  • Tightly twisted and shielded
  • Each pair individually shielded with its own drain
  • PVC jacket
  • NEC CM, CEC CMG FT4, RoHS compliant
  • 1000 foot nested pull boxes


• Specifications:

  • Conductor
  • 22 AWG
  • 7-strand annealed bare copper conductors
  • Diameter: 0.029" | 0.74mm

    Electrical
  • DC resistance: 16.4 Ω / 1000' | 53.79 Ω/KM
  • Mutual capacitance: 27.1 pF/FT | 88.89 pF/M
  • Impedance: 56 Ω
  • Velocity of Propagation: 67%
  • Voltage rating: 300V
  • Maximum current: 2.3A@25°C

    Insulation
  • Polypropylene
  • Wall thickness: 0.008" | 0.20mm
  • Diameter: 0.048" | 1.14mm

    Regulatory
  • NEC: CMR 75°C
  • CEC: CMG FT4 60°C
  • EU RoHS 2002/95/EC Compliant

    Color Code
  • Pair 1: Red, Black
  • Pair 2: White, Green
