Manfrotto MVK504TWINMCUS 504 Video Head with CF Twin Leg Tripod MS 100/75mm
  • Manfrotto MVK504TWINMCUS 504 Video Head with CF Twin Leg Tripod MS 100/75mm
  • Manfrotto MVK504TWINMCUS 504 Video Head with CF Twin Leg Tripod MS 100/75mm

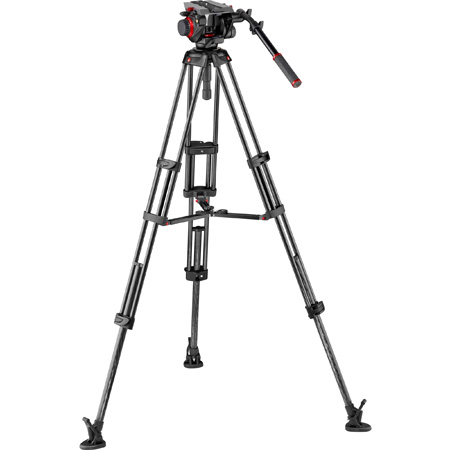

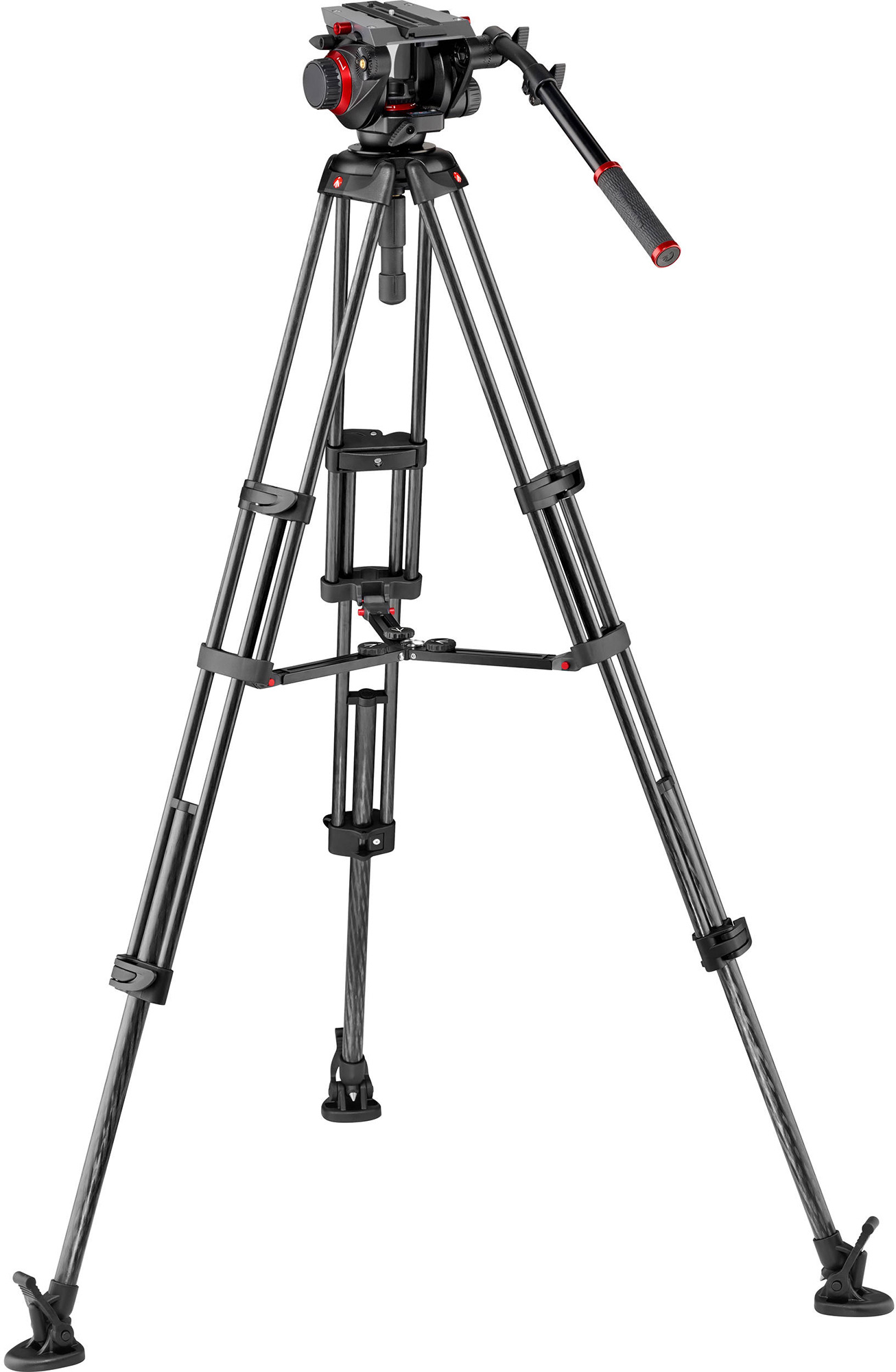

Manfrotto MVK504TWINMCUS 504 Video Head with CF Twin Leg Tripod MS 100/75mm

Manufacturer: Manfrotto



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.



Item unavailable. Please select another option.

Items similar to the MAN-MVK504TNMCUS

California Residents:
Cancer and Reproductive Harm -

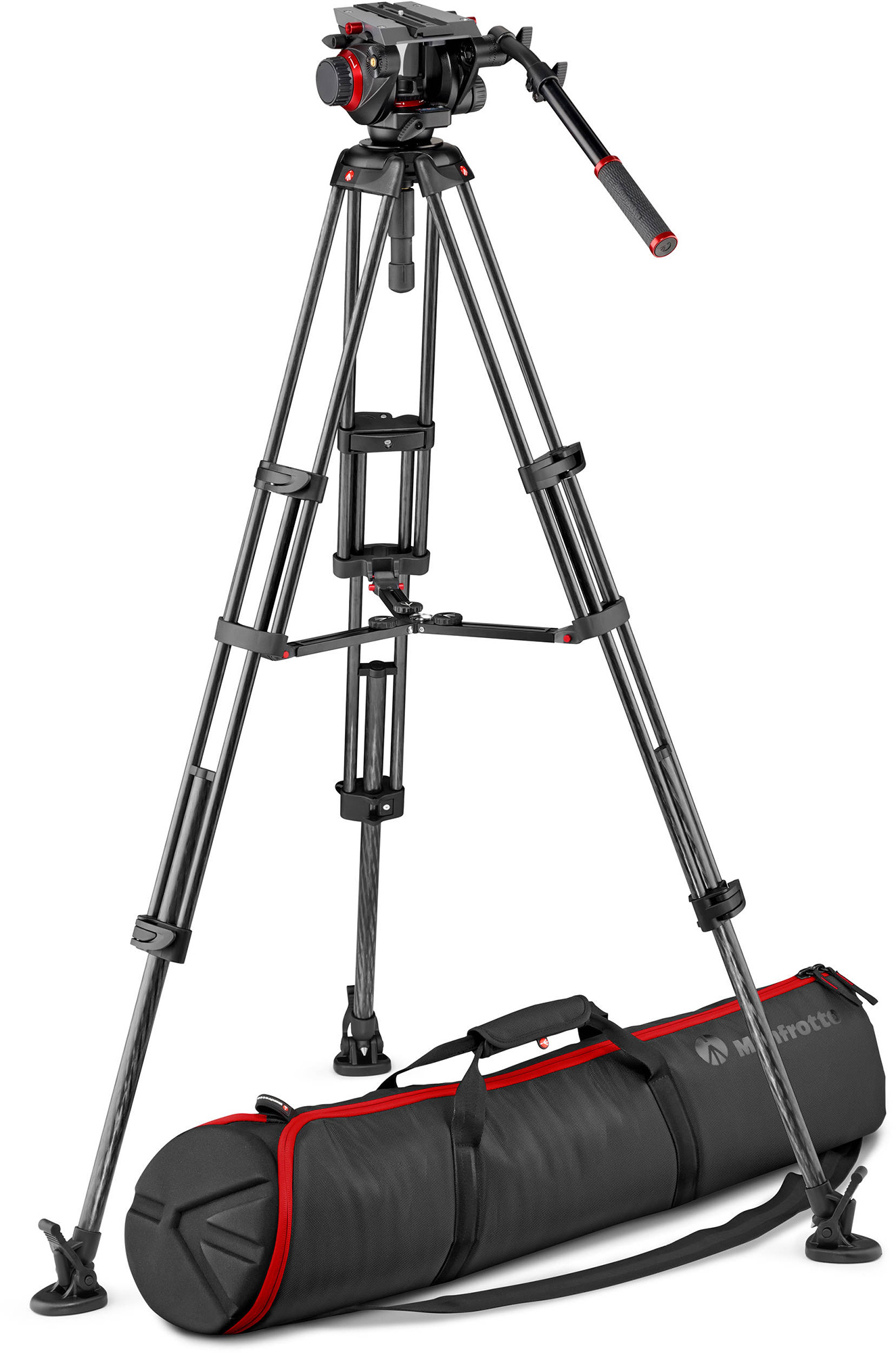

The MVK504TWINMCUS video system features the 504 Fluid Video Head with incorporated 75mm half ball, the MVTTWINMCUS professional carbon fiber twin leg tripod with middle spreader, and the handy MB MBAG100PN tripod bag.

The Manfrotto 504 fluid video head with incorporated 75mm half ball features variable fluid drag system in both pan and tilt movement which allows smooth shooting, a 4-step counterbalance system up to 7.5 Kg and a maximum payload of 12 Kg at 55mm C.O.G.. Easy link 3/8" thread connections allow an external monitor or other accessory equipment to be fitted.

The MVTTWINMCUS carbon fiber twin leg with middle spreader video tripod is a professional quality tripod with a two-stage, extremely rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level videos or films, then this is the must have tripod. It features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm when needed.

The tripod has mid-level spreader with telescopic arms that helps you to set leg angles accurately. It is also detachable, allowing the usage of the tripod also in combination with the ground spreader Manfrotto 165MV which is sold separately.

Leg locks are secure and reliable and twin spiked feet with rubber overshoes are provided for solid grounding. For maximum versatility, the tripod can be used with various dollies (114MV and 181B). With its combination of robust construction and compatibility options, this tripod definitely has it all.

  • Features

    • Variable fluid pan & tilt drag system
    • 4-step counterbalance system
    • Head with inbuilt Ø75mm levelling half ball
    • Carbon fiber twin leg tripod for greater rigidity and lightness
    • Adjustable middle spreader for extra stability and versatility
  • Specifications

    • Weight: 203.51 oz
    • Collection/Series: 504
    • Material: Carbon Fiber
    • Safety Payload Weight: 26.46 lbs
    • Min Height: 28.35 in
    • Maximum Height: 65.35 in
    • Head Type: Video/Fluid Head
    • Leg Sections: 3
    • Legs Tube Diameter: 0.63 - 0.98 in
    • Quick Release: Yes
    • Counterbalance System: Variable Steps
    • Counterbalance Weight: 0 - 5.51 - 11.02 - 16.53 lbs
    • Center of gravity: 2.17 in
    • Spreader: mid level - variable arm length
    • Closed Length: 32.68 in
    • Ball Flat: 75 Ball
    • Accessory Compatibility: MVAPANBARM; MVAPANBARL;502HLV; 509HLV; 114MV; 181B; 165MV
    • Top Attachment: 1/4" screw, 3/8" screw
    • Powered by (batteries): Lithium
    • Bubble Spirit Level (No.): 1
    • Carrying Bag Included: MB MBAG100PN
    • Certifications: WEEE; RoHS
    • Color: Black
    • Easy Link: Yes
    • Front Tilt: -60° / +90°
    • Leg Type: Twin
    • Leg Lock Type: Flip Lock
    • Maximum Working Temperature: 60°
    • Minimum Working Temperature: -20°
    • Pan Bar Included: Yes
    • Pan Drag: continuously adjustable from 0 to max level
    • Panoramic Rotation: 360
    • Plate Type: 504PLONG
    • Tilt Drag: continuously adjustable from 0 to max level
  • GTIN:
