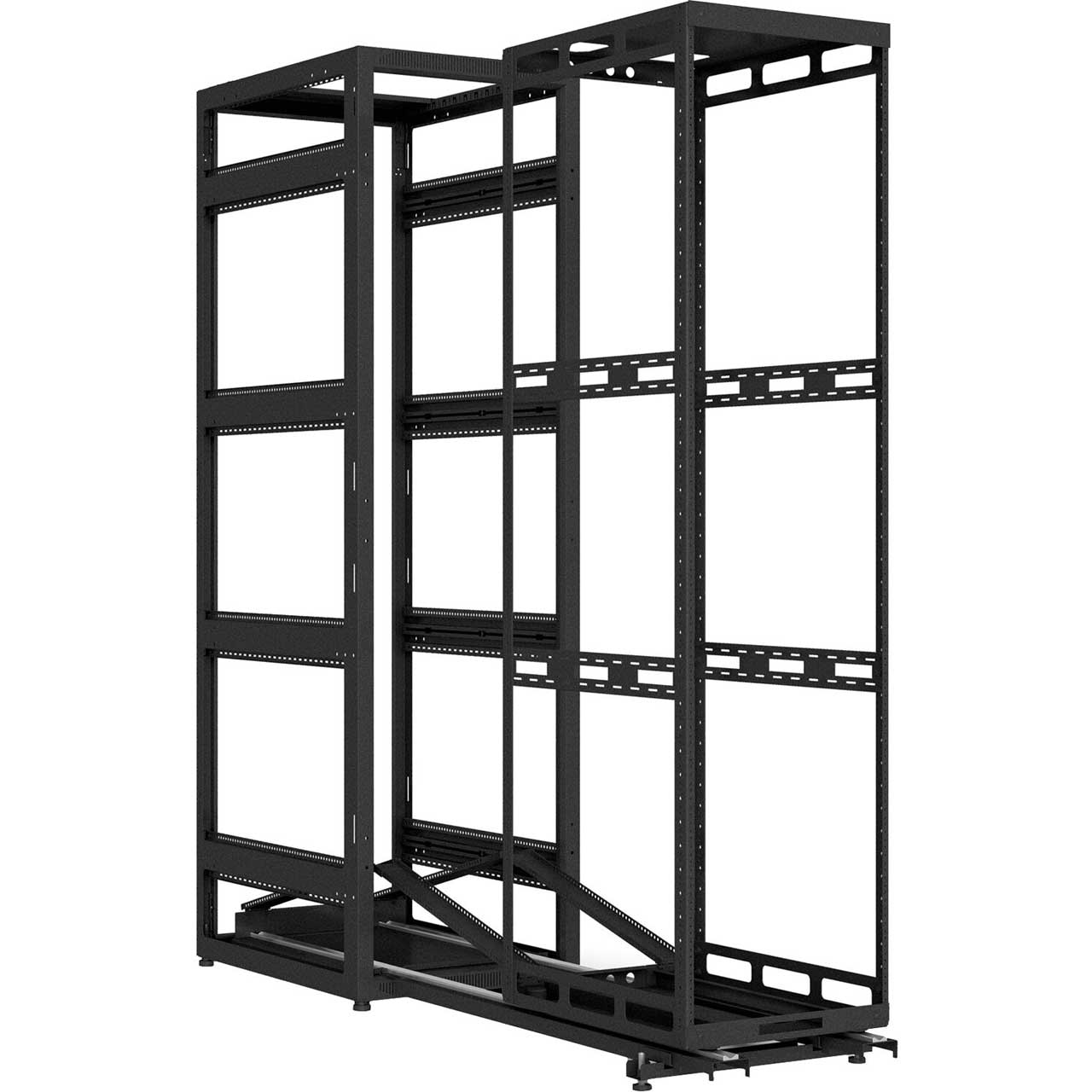

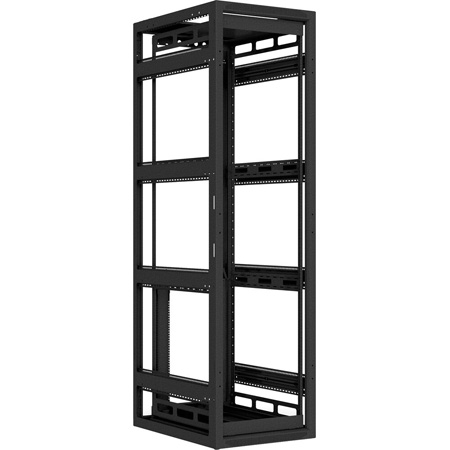

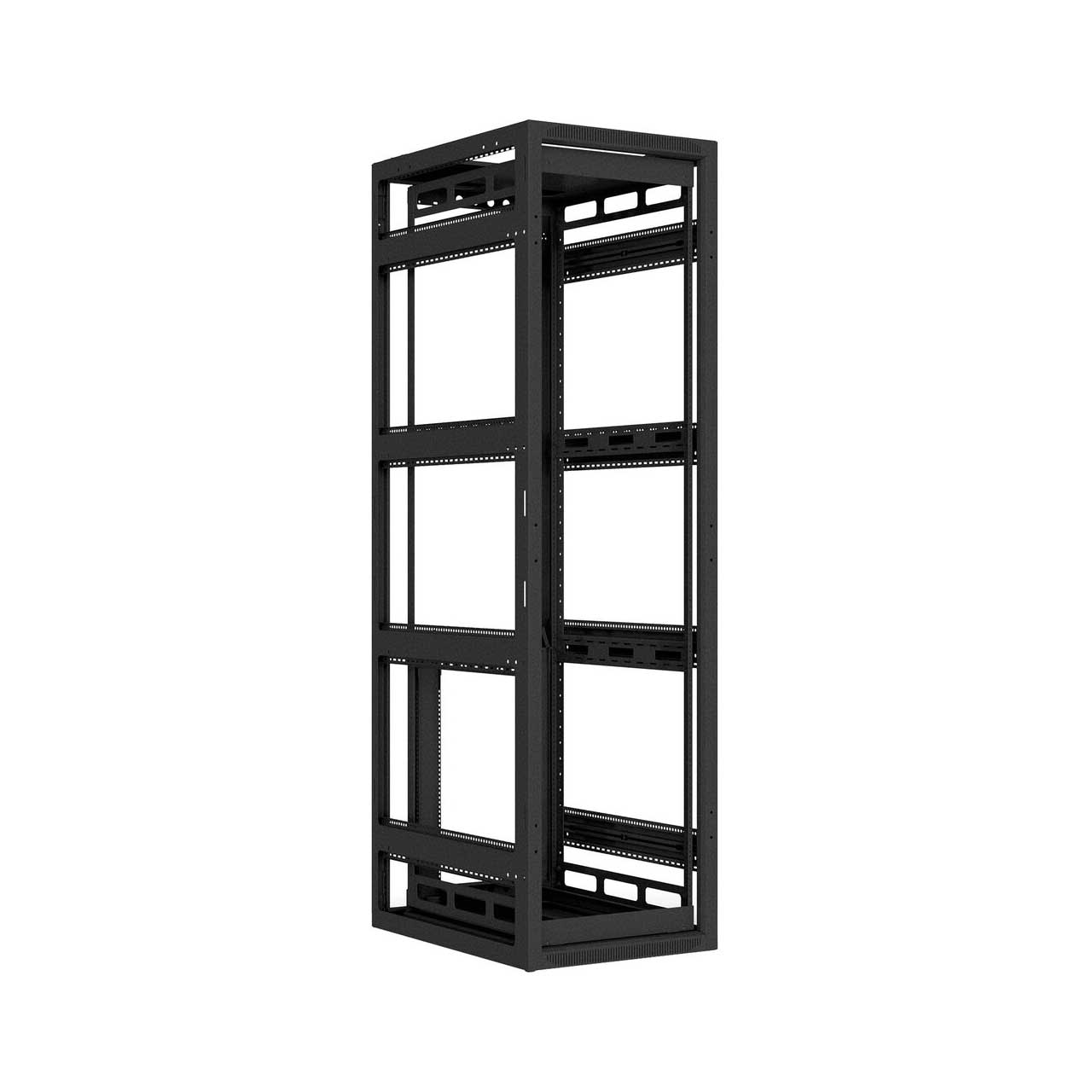

Middle Atlantic AXS-IR-4527-20 45 RU AXS Series IR Rack

AXS-IR-4527-20 - Overview

• Features:

  • The rack can be pre-installed on-site allowing for equipment installation and cabling to be done off-site in the AXS system
  • Seismically rated when installed with AXS-IR-Z4K kit
  • Meets OSHPD OPM (https://oshpd.ca.gov/) requirements in the State of California when using AXS-IR-Z4K seismic mounting kit
  • AXS includes standard fixed front and rear 10-32 threaded rackrail with numbered spaces
  • Includes extending cable carriers for effective cable management when the AXS is pulled out or retracted
  • Includes rack, rack frame, cable carriers, base, and safety leashes
  • Service Track
  • Accepts standard BGR options like doors, side panels, tops, etc. (see below for all Compatible Products)


• Specifications:

  • Dimensions & Measurements
  • Depth: 27 in (68.58 cm)
  • Height: 83.75 in (212.72 cm)
  • Panel Width: 19 in (48.26 cm)
  • Primary Package Weight: 183 lbs (83.01 kg)
  • Rack Units: 42 RU
  • Usable Depth: 20 in (50.8 cm)
  • Usable Height: 73.5 in (186.69 cm)
  • Width: 23 in (58.42 cm)

    Characteristics & Features
  • Base Series: AXS
  • Federal Ops Country of Origin: USA
  • Gangable: Yes
  • Rack Rail Type: 10-32
  • Seismic Rated: No
  • Weight Capacity: 650 lbs (294.84 kg)

    Certifications & Warranties
  • ASCE Number: 7-10
  • Certifications: ASCE, Greenguard, LEED Contribution, OSHPD, RoHS, UL Listed
  • Seismic Load Capacity: 1200
  • UL Listing Number: E173107
  • UL Standards Tested: UL 1678


• Item Includes:

  • 1x Middle Atlantic AXS-IR-4527-20 45 RU AXS Series IR Rack
