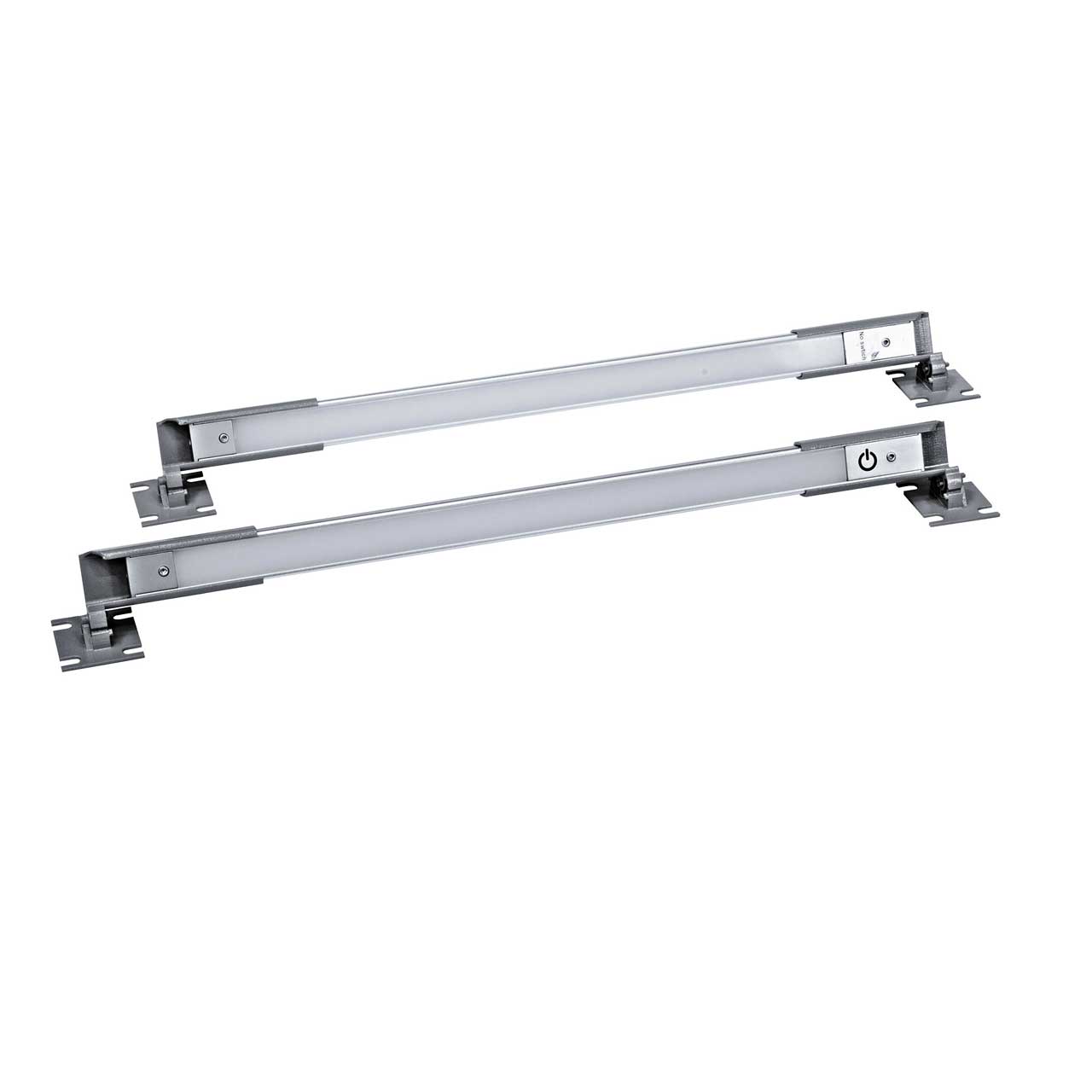

Middle Atlantic Dual LED Work Light with Interconnect Cables

ITEM #: MAP-LTCABUTLDUAL MFG #: LT-CABUTL-DUAL

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$300.00

Our Price:

$270.00

Availability: In Stock
iAvailability Description Popup


    LT-CABUTL-DUAL - Overview

    The Rackmount LED Work Light is an integrator-focused rack lighting option offering unparalleled visibility during installation and servicing. Designed with flexible mounting and positioning capabilities, this full-rack lighting solution ensures premium illumination where the integrator needs it. Dual light with interconnect cable and multiple international power supplies included.

    • Features:

      • Complete flexibility to illuminate anywhere in the rack.
      • The only rack light with both vertical and horizontal mounting capabilities to light anywhere it’s needed or space is available.
      • Adjustable-angle light bar can be positioned so that its bright white LEDs will maximize full rack height illumination.
      • Ships with multiple power connections for expanded international application.
      • Low-profile, unobtrusive design won’t impose on the installation and serviceability of the enclosure.

    • Specifications:

      • INPUT (AC/DC ADAPTER)
      • Input Voltage Range: 90VAC - 260VAC
      • Input Frequency Range: 50/60Hz
      • Max AC Current Draw @ Full Load: 800mA AC
        OUTPUT (AC/DC adapter)
      • Nominal DC Output Voltage: 12VDC
      • DC Output Voltage Range: 11.4VDC - 12.6VDC
      • Typical DC Current Draw: Single Light-0.6ADC, Dual Light-1.2ADC
      • Max DC Load Current: 2.0ADC
      • Short Circuit Protection: Yes
      • DC Output Connector: 3.5mm x 1.35mm x 12mm, Center Positive
        PHYSICAL (AC/DC adapter)
      • Dimensions: 1.8 x 3.5 x 1.5 in (45.5mm x 88mm x 38mm)
      • AC Receptacles: Four(4) Interchangeable: US, BS, SAA, EU
      • Weight: 0.39lb (175g)

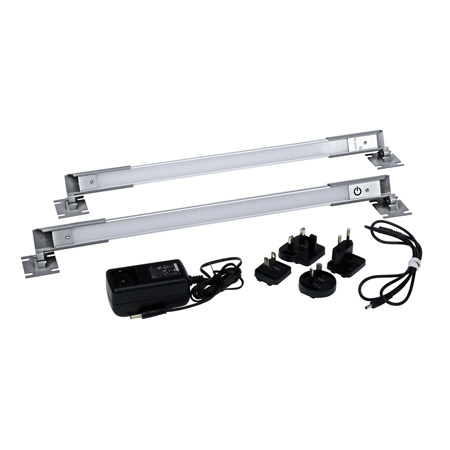

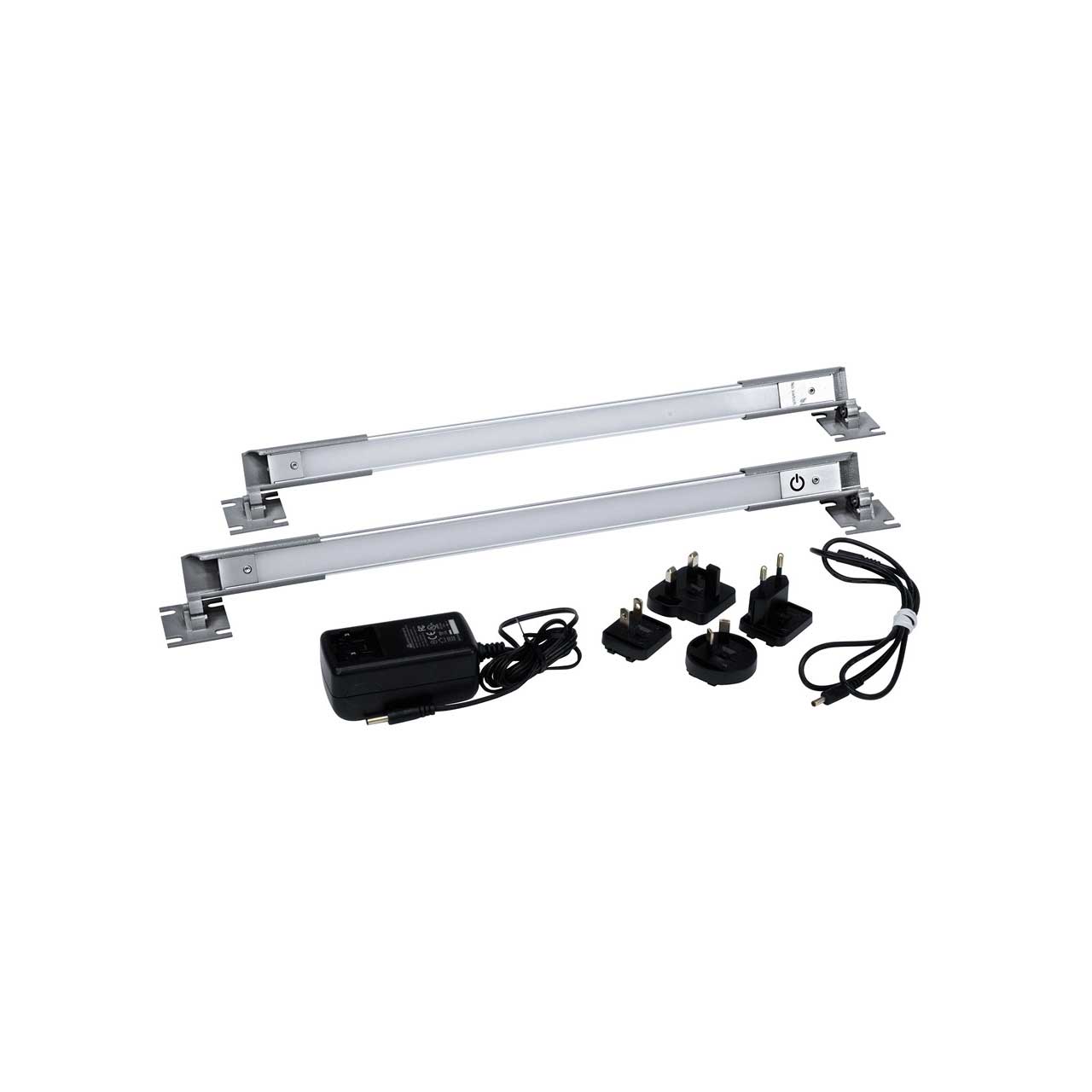

    • Item Includes:

      • 10-32 x 3/4 Phil.Head Screw With Washer-(x4 for Single, x8 for Dual Work Light)
      • 10 x 5/8 Phil. Head Wood Screw-(x4 for Single, x8 for Dual Work Light)
      • Connector Cable-(9’, Dual Work Light Only)
      • 12V 2A Power Supply-(x1 Single and Dual Work Light)
      • Work Light With Attached Telescoping Brackets-(x1 for Single, x2 for Dual Work Light)
      • 10-32 Oval Nut-(x4 for Single, x8 for Dual Work Light)

    • Warranty:

      • 3 Years

    • GTIN:

      0656747275135
