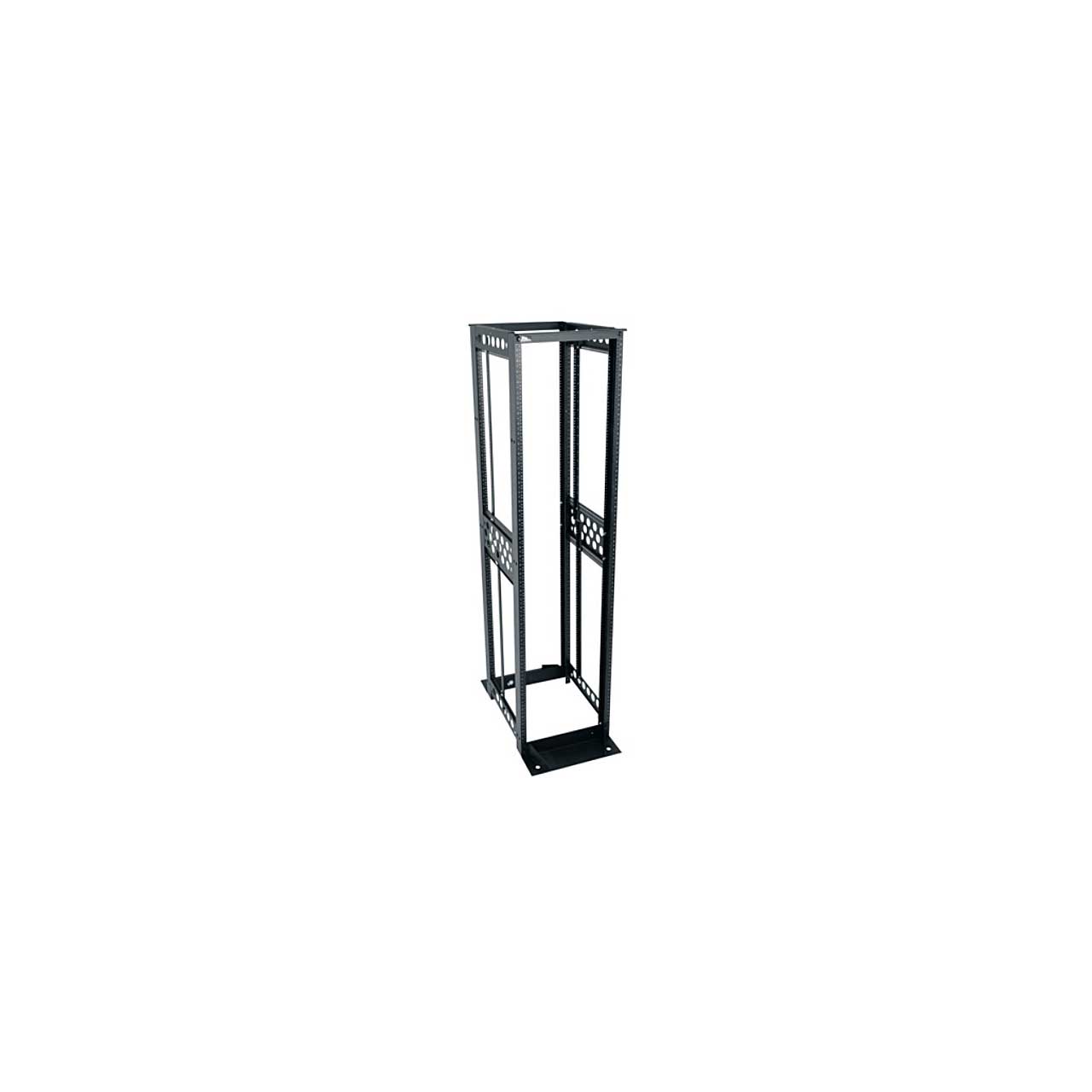

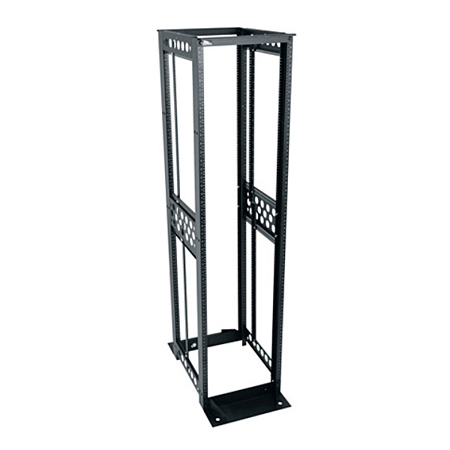

Middle Atlantic R412-4530B R4 Series 45U Four-Post Open-Frame Rack - 30 Inch Useable Depth

R412-4530B - Overview

• Features:

  • Open top accepts direct mounting of optional cable ladder
  • Versatile base mounts inward to save space or outward for stability
  • Rack gangs to additional 4-post or 2-post open frame racks
  • Open frame design facilitates unrestricted air flow
  • 1/4" aluminum uprights, with a 3/16" thick aluminum base
  • Ships flat to save space
  • Includes 100 pcs. of 12-24 threaded mounting hardware
  • Includes additional split rackrail to provide up to three mounting depths
  • Overall depth includes base angles. See key specifications for usable depth of rack


• Specifications:

  • Usable Depth: 30"
  • Usable Height: 78.75"
  • Capacity Weight (US): 2500
  • Depth: 42"
  • Height: 84.22"
  • Width: 20.45"
  • Primary Package Weight (US): 83
  • Rack Units: 45
  • Rackrail Type: 12-24
  • UL Load Capacity: 800
  • Material: Steel
  • Mounting: Horizontal
  • Finish Type: Black Powder Coat
  • UL Standards Tested: UL1678
  • RoHS: Yes
  • Greenguard: Yes
  • UL Listing No: E173107


• GTIN:

  0656747095573
