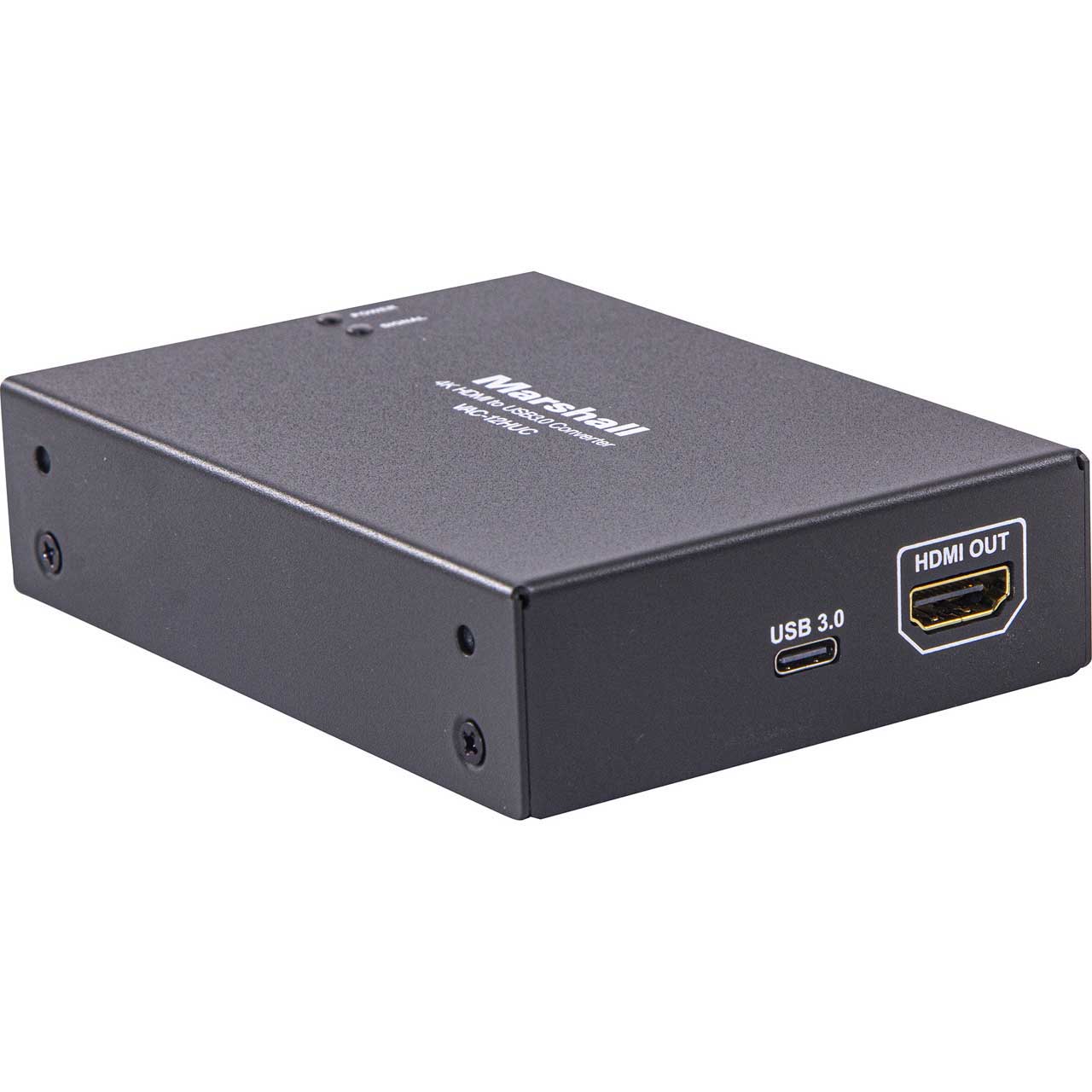

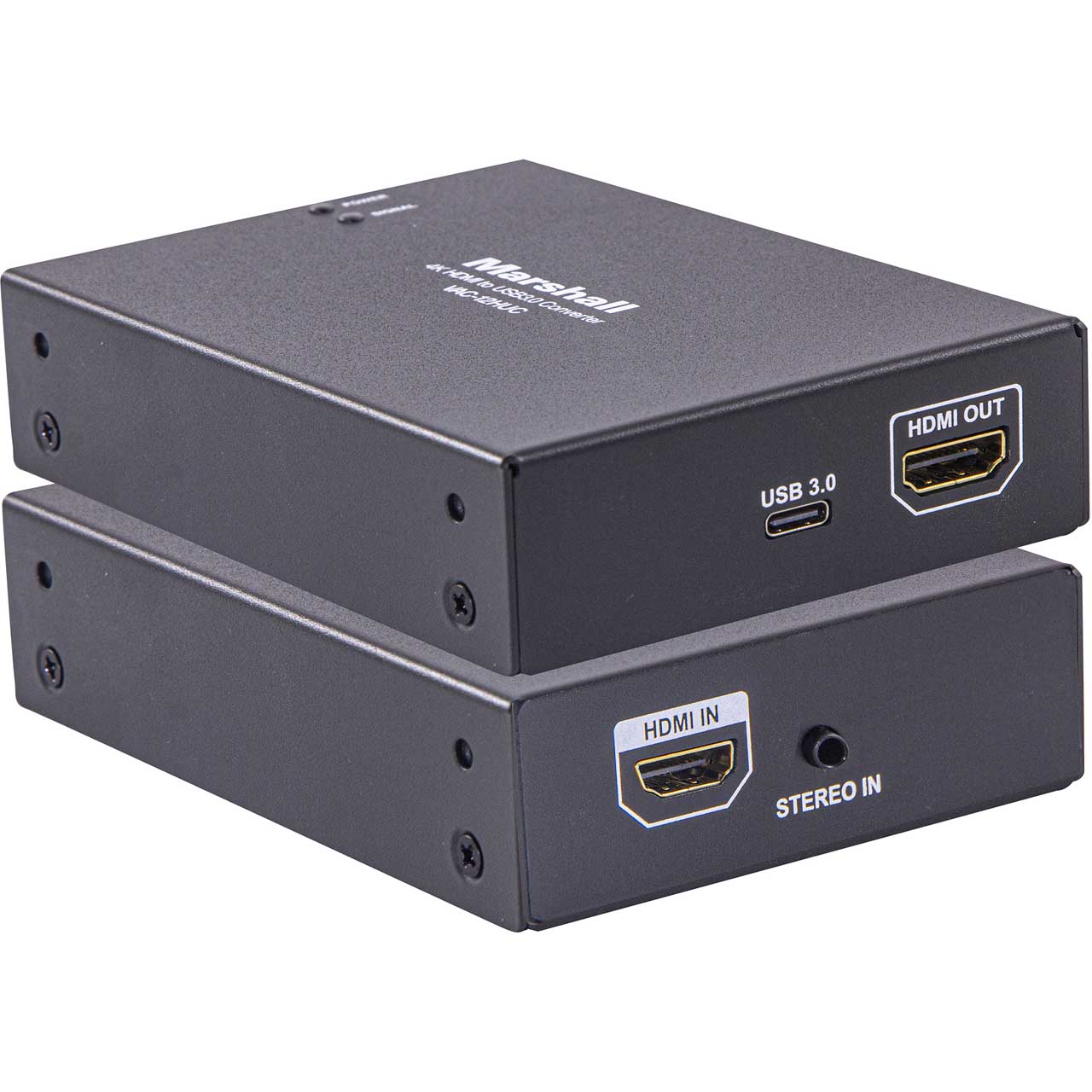

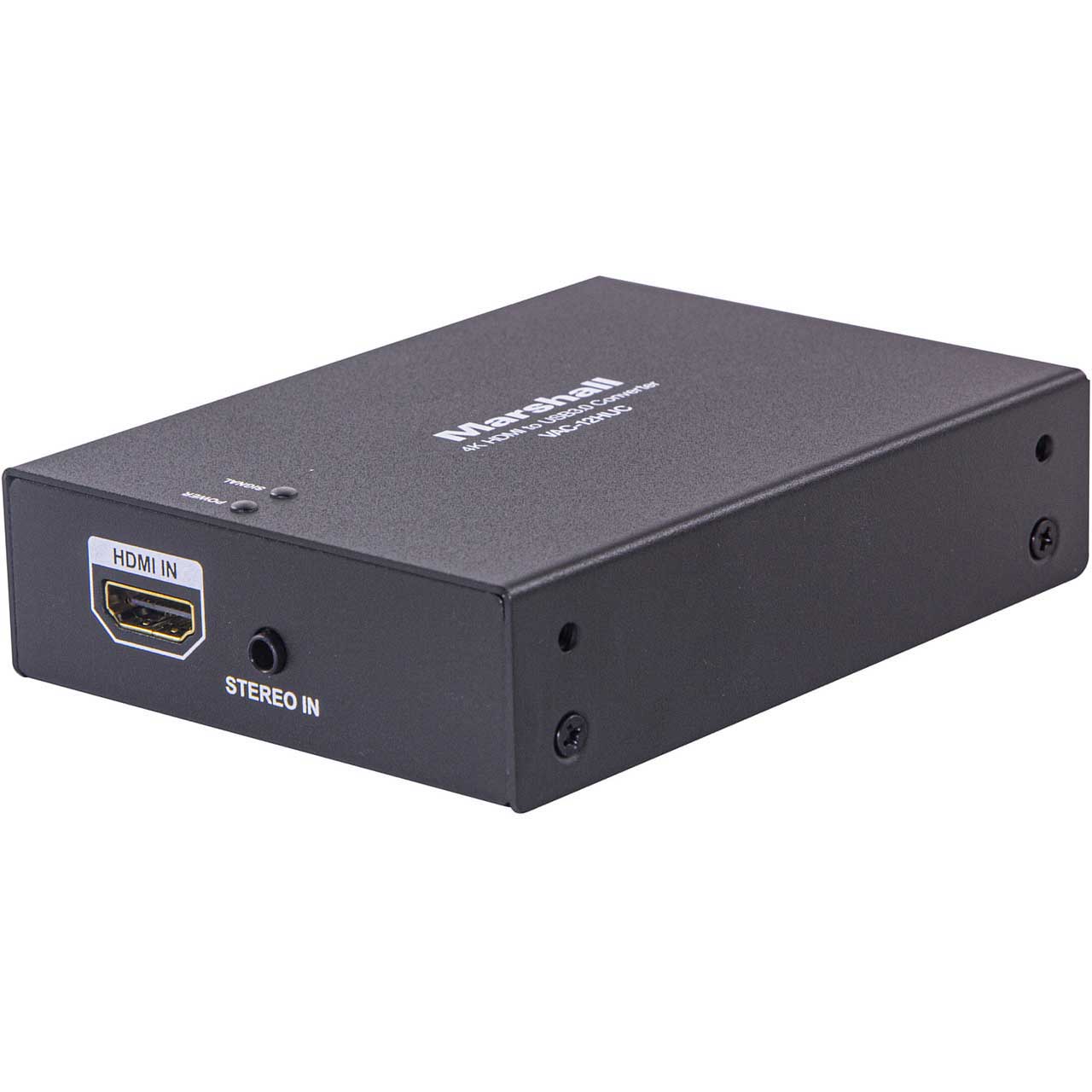

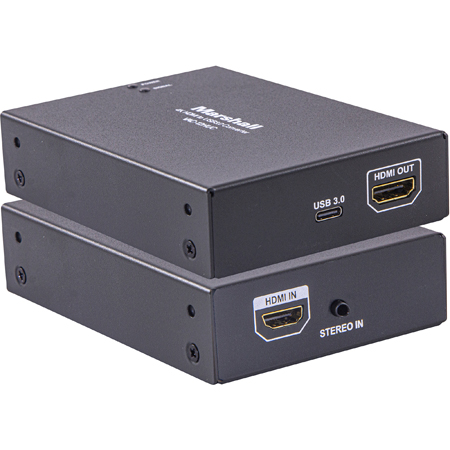

Marshall VAC-12HUC HDMI Video / Audio to USB-C (USB3.0/2.0) Converter - ClickShare Compatible

VAC-12HUC - Overview

• Features:

  • HDMI inputs to USB-C (3.0/2.0) output
  • HDMI loop-outs (pass thru) to other workflows
  • HDMI input up to 4096 x 2160p at 30fps
  • USB-C (3.0) output up to 3840 x 2160p at 30fps
  • 3.5mm embedded line-in audio jack to USB (48KHz)
  • USB2.0 backward compatible (maximum 1280 x 720 @30 on USB2.0)
  • Supported operating systems (Windows 10, Windows 11 and Mac OS)
  • All power derived from USB-C port (USB3.0/2.0)
  • Plug and play operation. No special driver required


• Specifications:

  • HDMI Input and Output
  • HDMI Conforms to HDMI 2.0 standard
  • HDCP 1.4 and 2.2 compliant
  • Video Frame Rates from 23.98 to 60.00
  • Video Input Formats from 480i/p, 576i/p to 4096x2160p at 30 fps
  • USB-C (USB3.0/2.0) output backwards compatible to USB 2.0
  • Actual video format and frame rate dependent on UVC control commands received from the host computer. Connected via USB 3.0, transfers formats up to 3840 x 2160p30 sent to host computer
  • Connected via USB 2.0, transfers formats up to 1280 x 720p30 sent to host computer
  • When connected to a USB 2.0 port, recommended input video source 720p or below

    Audio Input
  • Embedded audio from HDMI passed through to HDMI Out. Channels 1 & 2 are sent to USB
  • External stereo analog line level input on 3.5mm stereo TRS jack. Switches on when plug is inserted.
  • Replaces audio to HDMI Out and USB to computer

    System Requirements
  • Host computer with recent operating system, such as Windows 10 or Mac OS X
  • Available USB 3.0 port (supports up to 3840 x 2160p30 to host computer)
  • Available USB 2.0 port (supports up to 1280 x 720p30 to host computer)

    Operating Temperature
  • 32-104°F

    Power Rating
  • 5V 1A


• Item Includes:

  • 1x VAC-12HUC Unit
  • 1x USB 3.0 "A - type" to "C - type" cable
  • 2x Mounting brackets with 8 attachment screws


• GTIN:

  0801813229615
