Magewell 32100 SDI to USB Capture 4K Plus Dongle w/ Loop Out & Audio In/Out - USB 3.1/3.0/2.0/USB-C

ITEM #: MGW-32100 MFG #: 32100

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:


Availability: In Stock
iAvailability Description Popup

    32100 - Overview

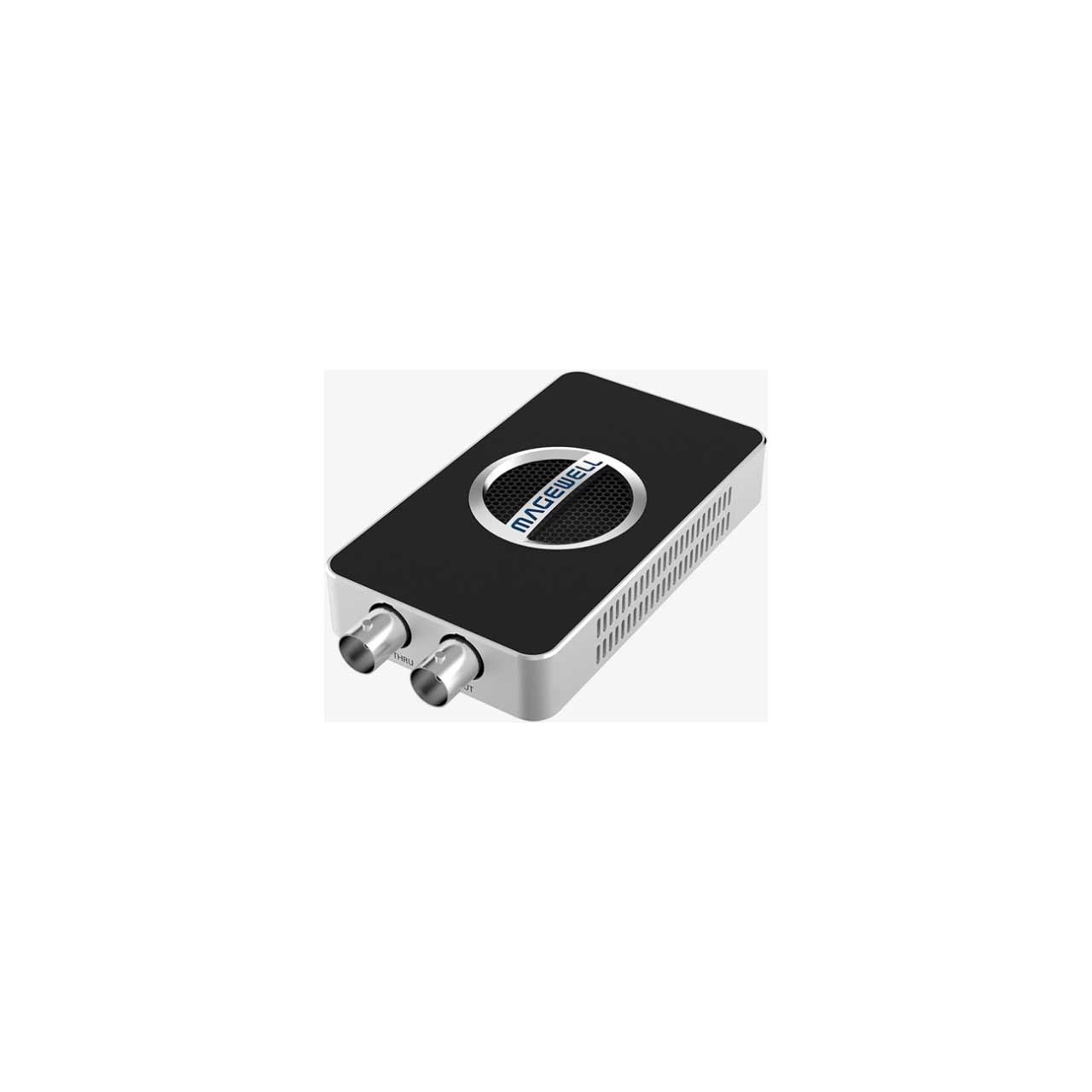

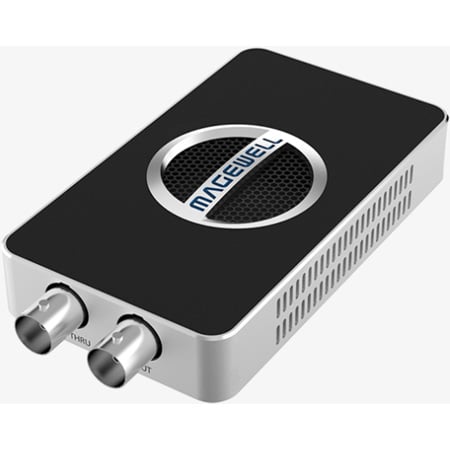

    With a ruggedized metal housing, the Magewell 32100 USB Capture SDI 4K Plus is a 1-channel 4K capture dongle that can capture SD/HD/3G/2K/6G SDI signals with embedded audio and loop-through SD/HD/3G/2K/6G SDI signals. It's suitable for all kinds of mobile video capturing settings, even for outdoor use.

    The dongle has 10/12-bit color depth support, has support for up to 8 mono audio channels at 48kHz, captures resolutions of up to 4096 x 2160 and frame rates of up to 120fps. It allows for full 8-bit video processing with features such as cropping, scaling, de-interlacing, aspect ratio, color format and frame rate conversion and vertical flip and mirror.It has an input interface as well as a loop-through one, which enables monitoring the image while streaming/recording. Audio input is available through the Line In 3.5mm jack and audio output via the Line Out 3.5mm jack, which enables you to extract the embedded audio from the SDI signal. You have the ability to connect multiple devices to one system and they all can be upgraded simultaneously. High quality chips and other components are used to ensure accurate video capture. The dongles pass through continuous high load tests in temperatures ranging from 32°F - 104°F, 24/7.

    The USB Capture Plus Family features a good user experience because it's so easy to use, and many of the functions are automatic. Users don't need to install drivers on Windows, Linux, or Mac OS X. Simply plug it in and the driver will be installed. The dongles are plug-and-play and driverless. These dongles automatically determine the input video format and then automatically converts it to the specified output size and frame rate. It will determine the input audio format and convert it to 48kHz PCM stereo audio. The device is compatible with most popular professional third party software for streaming, recording, video conferencing, video stitching, VJ, etc. It supports multiple Windows, Linux, Mac operating systems as well as Chrome operating system, Windows, Linux and Mac OS APIs and multiple software platforms such as vMix, Wirecast and Adobe Flash Media Encoder.

    USB 3.1 interface is used and no external power is needed. It also has a USB 2.0 port, but the real-time frame rate and transmission will be reduced through this port due to limited bandwidth.

    Includes a USB-A to USB-C adapter.

    • Features:

      • SDI
      • Integrated cable equalizer supporting cable lengths up to 150M for 3G-SDI signals
      • Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G (SMPTE 2081) standards
      • Support for 2K (2048 x 1080) & 4K (4096 x 2160) mode
      • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
      • Support for 10/12-bit color depth
      • Support for extraction of SMPTE 352 payload identifier
      • Support for up to 8 (mono) audio channels at 48KHz
      • Support for extraction of audio formation information & channel status data
      • Limited support of 3Gb-DS: only the first stream can be captured
      • Limited support for capture of the first link of dual link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60; YCbCr 4:4:4 10-bit: captured as 4:2:2; RGB 4:4:4: R/B sub-sampled

        Analog Audio
      • Extract the embedded SDI audio and output via 3.5mm unbalanced Line Out
      • Capture analog audio via 3.5mm unbalanced Line In interface

      • Multiple Devices on One Host
      • Continuously Work for 24/7
      • High-Speed Memory
      • LED Status Indicator
      • Windows & Linux SDK
      • Capture SD/HD/3G/2K/6G SDI + embedded audio
      • Loop-through SD/HD/3G/2K/6G SDI
      • Audio input via Line In
      • Extract SDI embedded audio and output via Line Out
      • Support for up to 4096 x 2160 input resolution
      • Video processing pipelines with 640 Mpixels/s processing bandwidth
      • Auto or manual selection of input and capture aspect ratio
      • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
      • Auto or manual selection of input color format & quantization range
      • Auto or manual selection of capture color format, quantization range & saturation range
    • Specifications:

      • Supported OS
      • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
        Linux (support x86, x64 & ARM architecture)
      • Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
      • CentOS 6.5/7 (x86 & x64)
      • Fedora 25/26/27 (x86 & x64)
      • Red hat 6.5 and above (x86 & x64)
      • Other Linux OS with kernel version 2.6.35 and above
      • OS X 10.9/10.10/10.11
      • macOS 10.12/10.13
        Chrome OS

        Supported APIs
      • DirectShow
      • Wave API/DirectSound/WASAPI
      • V4L2
      • ALSA
        OS X/macOS
      • QuickTime
      • AV Foundation

        Supported Software
      • VLC
      • VirtualDub
      • OBS
      • XSplit
      • vMix
      • VidBlaster
      • Wirecast
      • Microsoft Media Encoder
      • Adobe Flash Media Encoder
      • Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software

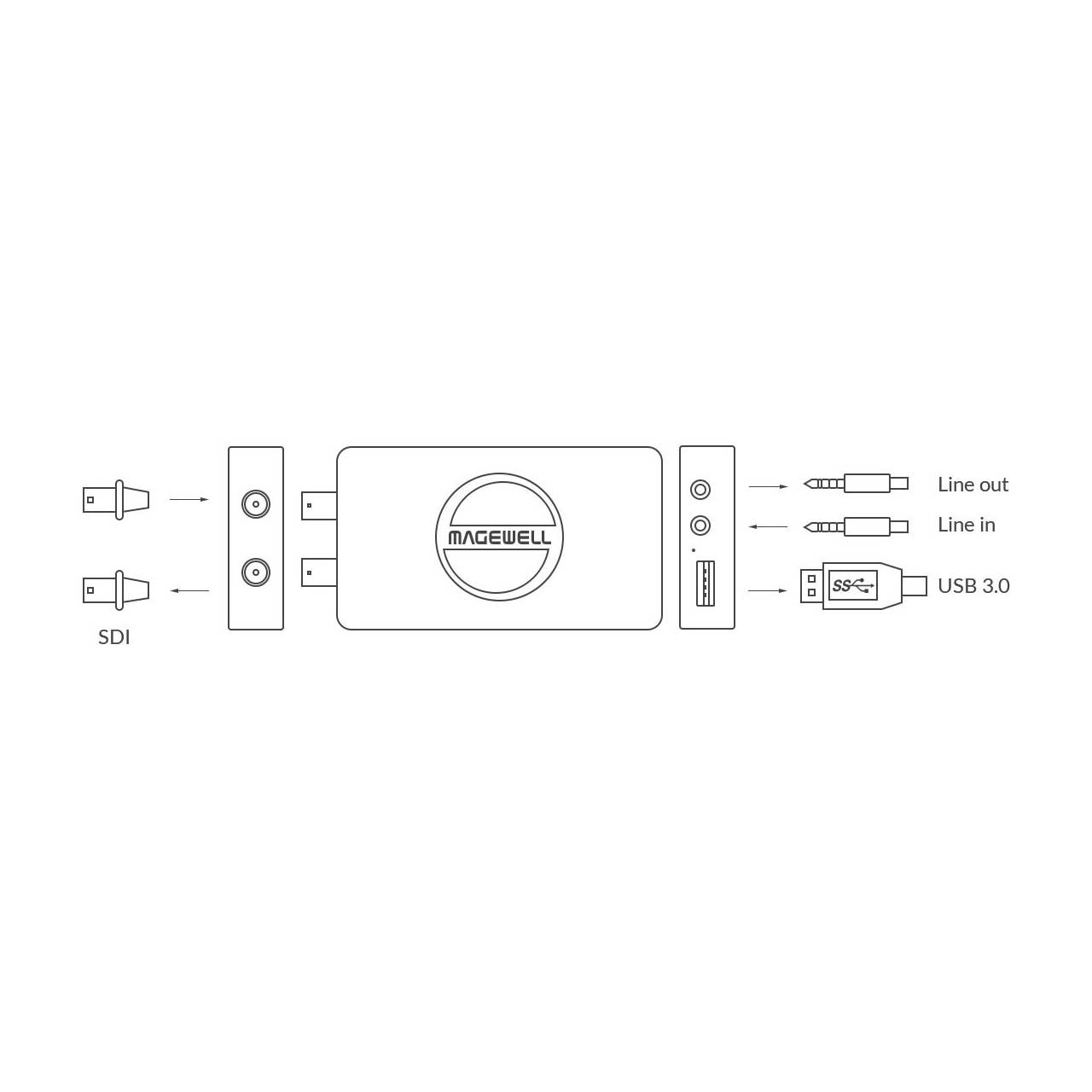

        Input Interfaces
      • BNC: SD/HD/3G/6G SDI

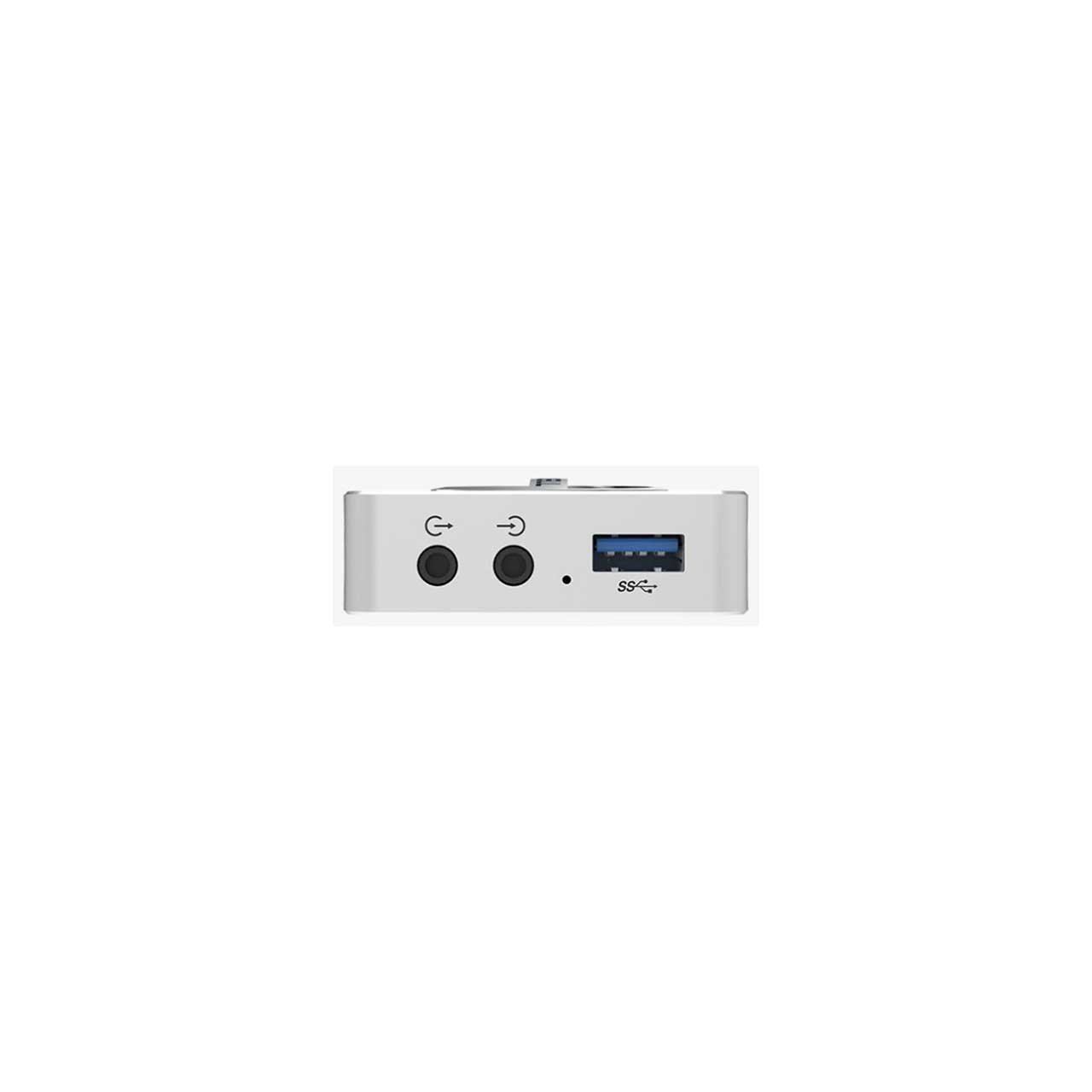

      • 3.5mm Audio Jack: Unbalanced Line In interface
      • Host Interface: USB-A to USB-C adapter, USB 3.0, compatible with USB 2.0 and USB 3.1 Gen 1

        Output Interface
      • 3.5mm Audio Jack: Unbalanced Line Out interface

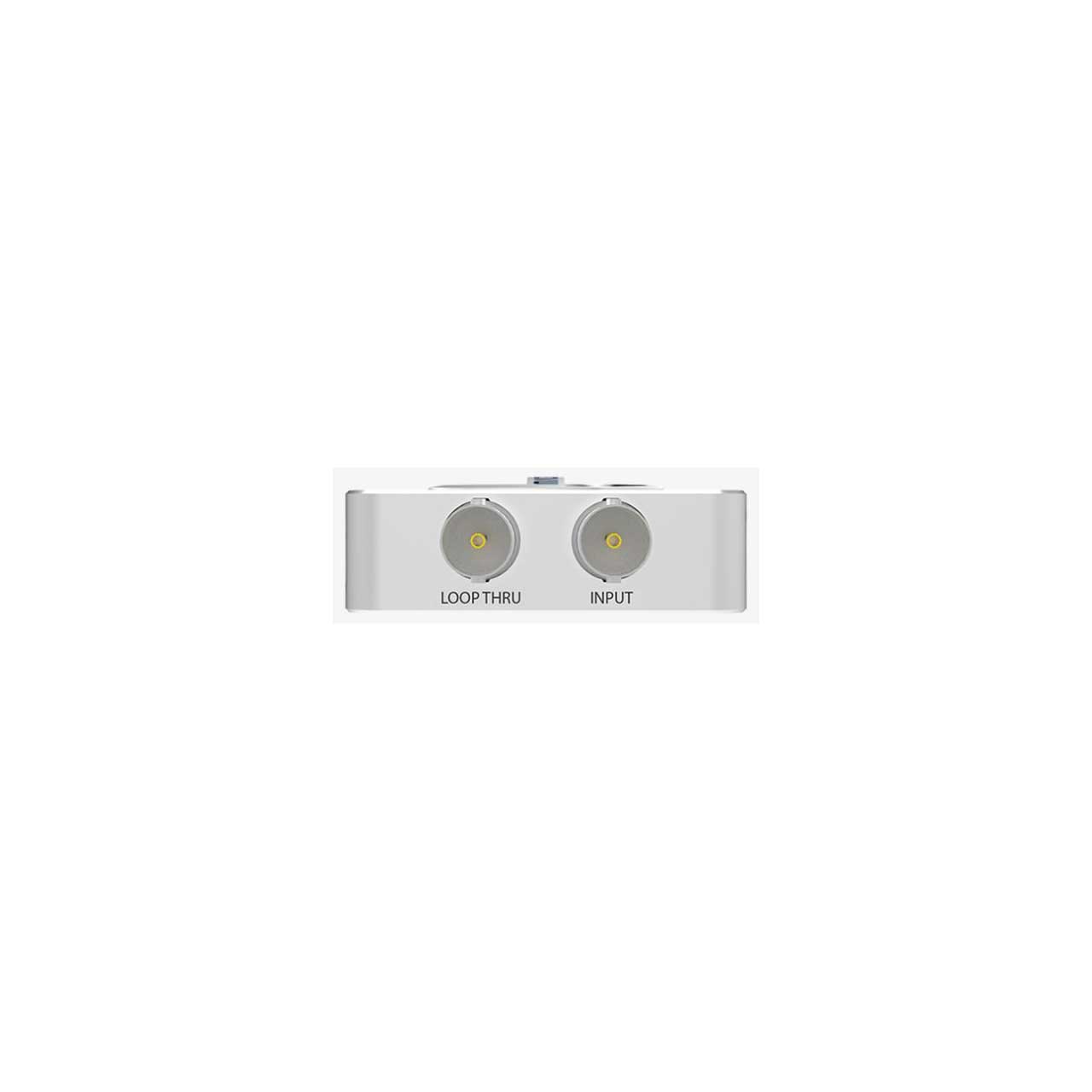

        Loop-through Interface
      • BNC: SD/HD/3G/6G SDI

        Video Engine
      • 8-bit video processing
      • Deinterlace
      • Cropping
      • Color Adjustment
      • Color Space Conversion
      • Up/down Conversion
      • Aspect Ratio Conversion
      • Mirror and Flip

        Video Capture Format
      • Support for capture resolutions up to 4096 x 2160
      • Support for capture frame rates up to 120fps; Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows: 1920 x 1080 YUY2 (up to 90fps); 3840 x 2160 NV12 (up to 30fps)
      • Support for NV12 & l420 4:2:0 8-bit (up to 4096 x 2160)
      • Support for YUY2 & UYVY 4:2:2 8-bit (up to 4096 x 2160)
      • Support for RGB24 & RGB32 4:4:4 8-bit (up to 2048 x 2160)
      • The default capture formats are YUY2 & NV12 and more capture formats can be set using USB Capture Utility

      • The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.

        Physical & Power
      • Form Factor: 110.7mm (L) x 56.8mm (W) x 17mm (H)
      • 5V Max Current: ~0.86A
      • Max Power Consumption: ~ 4.3W
      • Operating Temperature: 32°F - 104°F
      • Storage Temperature: -4°F - 158°F
      • Relative Humidity: 5% to 90% non-condensing
    • Item Includes:

      • 1x Magewell USB Capture SDI 4K Plus dongle

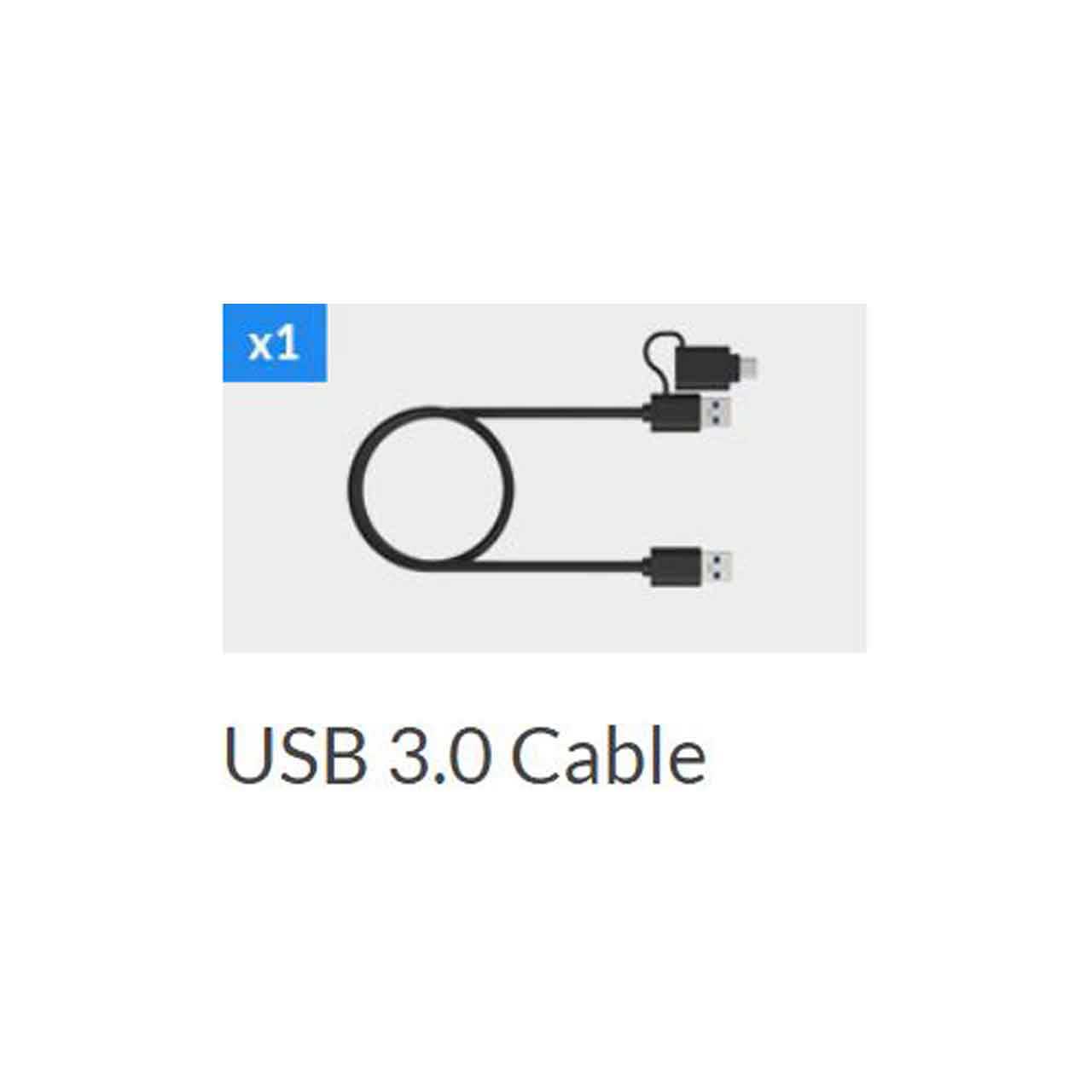

      • 1x USB 3.1/3.0 cable
      • 1x USB-A to USB-C Adapter
    • Warranty:

      • 3 year
    • GTIN:
