Marshall VS-M2812-2 3MP CS Mount 2.8-12mm Lens

ITEM #: MAR-VS-M2812-2 MFG #: VS-M2812-2

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MAR-VS-M2812-2

VS-M2812-2 - Overview

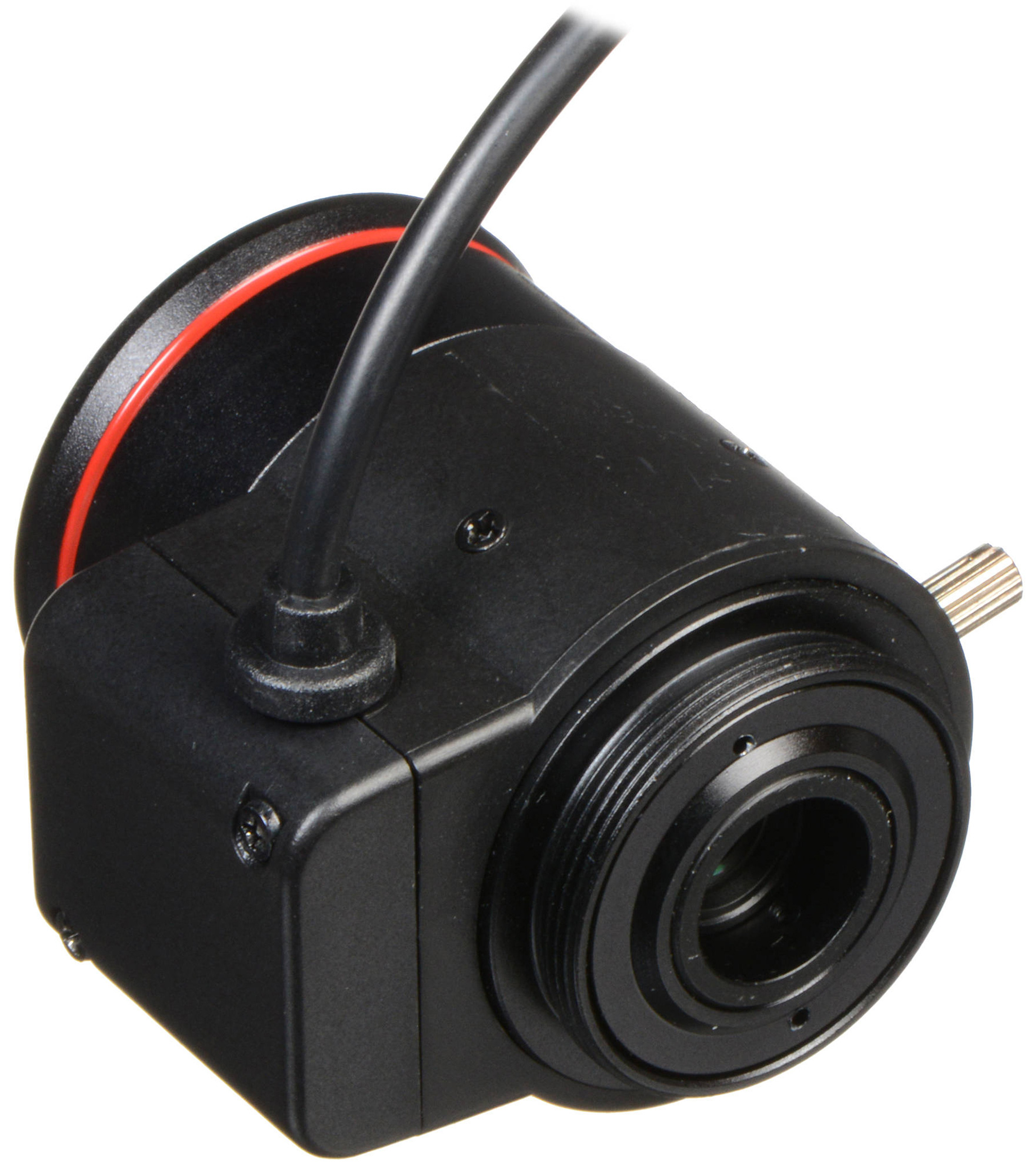

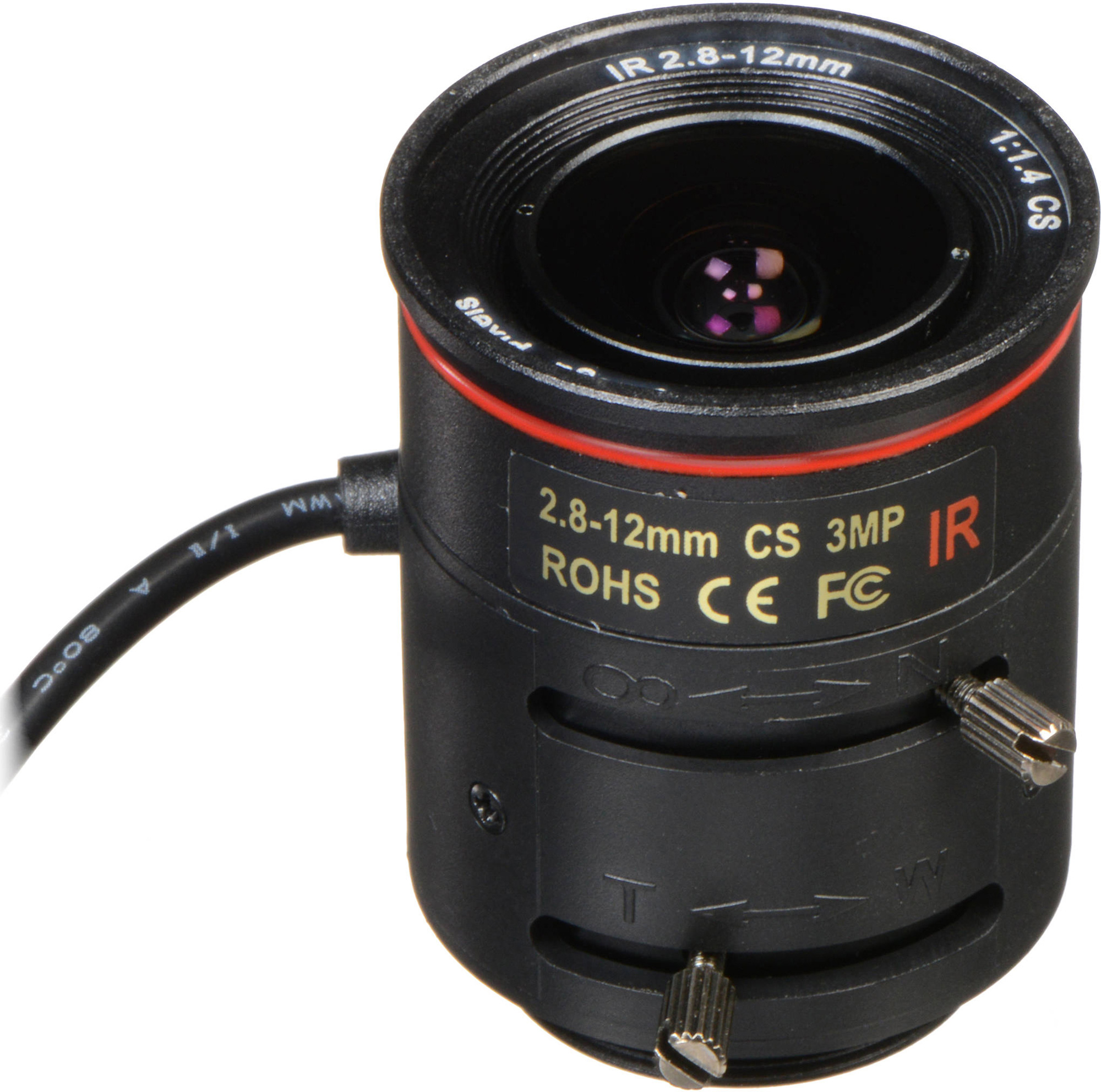

The Marshall Electronics VS-M2812-2 3MP CS Mount 2.8-12mm Lens is a manual focus lens designed for the 1/2.7" and 1/3" sensor CS-mount surveillance cameras, including the Marshall CV343, CV345, and CV365 models. Built with high-accuracy aspherical lens elements, high refractive-index glass, and featuring low dispersion, it's particularly suited for high-performance color 1/3" HD sensors.

  • Features:

    • Designed for Advanced 1/3" Color Sensors
    • Also Compatible with 1/2.7" Sensors
    • High-Accuracy Aspherical Lens Elements
    • High Refractive-Index Glass
    • Low Dispersion
    • Aperture of f/1.4
    • 98-25° Wide Angle of View
    • Up to 11.8" Focus Range from Front
    • DC Auto Iris (4-Pin Connection)


  • Specifications:

    • Mount: CS-mount
    • Focal Length: 2.8 - 12 mm
    • Aperture: f/1.4
    • Iris: DC auto iris, 4-pin plug
    • Focusing Range: Infinity to 11.8" (0.3 m) from front of lens
    • Field of View: Horizontal: 98-25°


  • GTIN:

    0801813188912
