Tripp Lite B165-101 Serial over Cat5/Cat6 RS232 Extender Transmitter and Receiver Up to 3280 Feet (1000m)

ITEM #: TRL-B165-101 MFG #: B165-101

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$120.00

Our Price:

$86.48

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    B165-101 - Overview

    Tripp Lites B165-101 RS232 Serial over Cat5 Extender Kit is a low cost solution that provides remote access and control of any RS232 protocol device. The B165-101 extends control of a serial device to over 1,000 meters ( 3280ft ). Supports full-duplex, 3 pin, data communication (signal ground, transmit data line, and receive data line). Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

    • Features:

      • Locates an RS-232 Serial device up to 1,000 Meters from your system
      • Supports full-duplex, 3 pin, data communication (signal ground, transmit data line, and receive data line)
      • No software or drivers required...Plug-n-Play
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
      • Supported Baud Rates: 110, 1200, 9600, 38400, 57600, 115200 (max)

    • Specifications:

      • AC Adapter: (x2) Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A
      • Ports: 1
      • Side A - Connector 1: DB9 (FEMALE)
      • Side A - Connector 2: RJ45 (FEMALE)
      • Side B - Connector 1: DB9 (FEMALE)
      • Side B - Connector 2: RJ45 (FEMALE)
      • Product Warranty Period (Worldwide): 1-year limited warranty

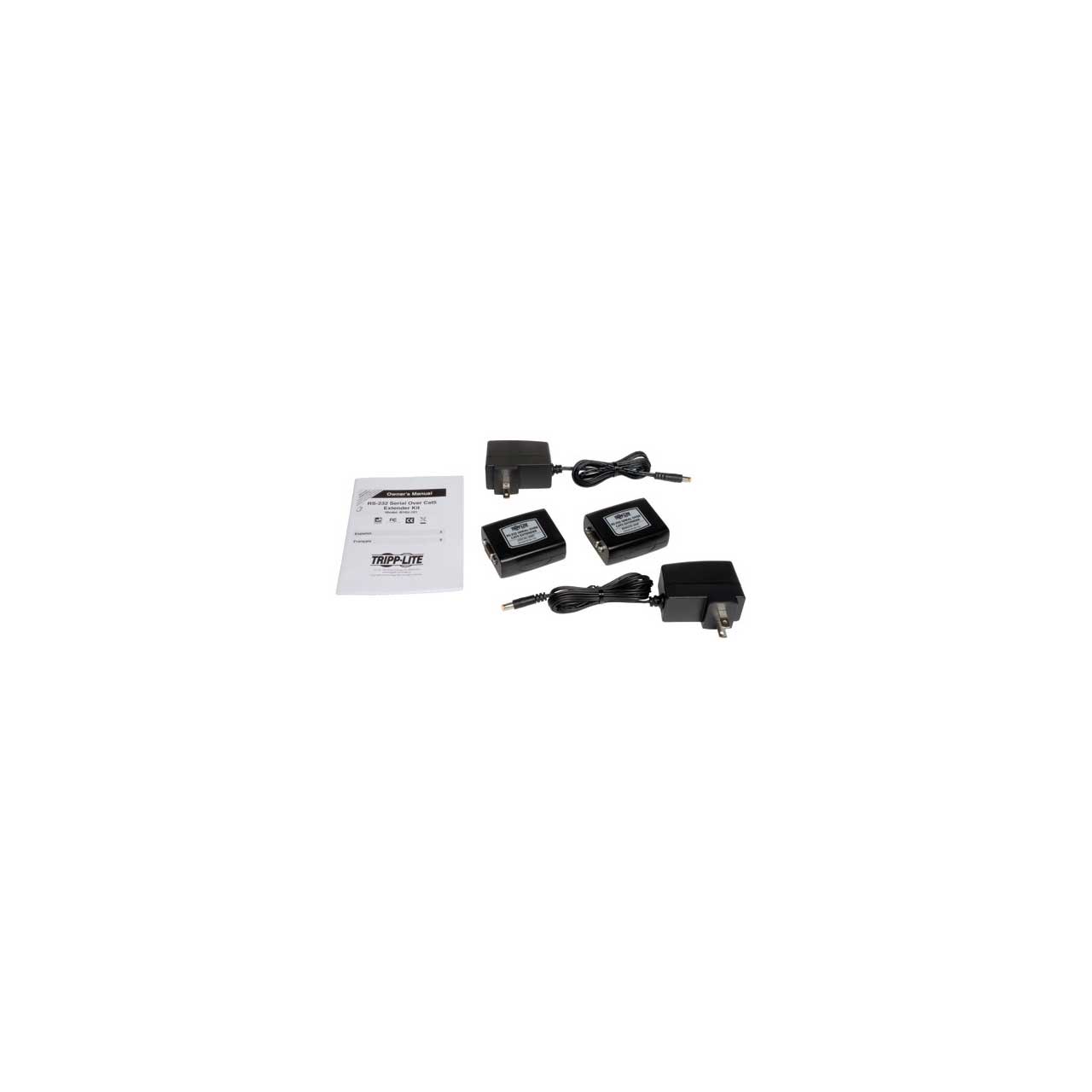

    • Item Includes:

      • B165-101 Local Transmitter Unit
      • B165-101 Remote Receiver Unit
      • 2 External Power Supplies with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)
      • Owner's Manual

    • Warranty:

      • 1 Year

    • GTIN:

      0037332155474
