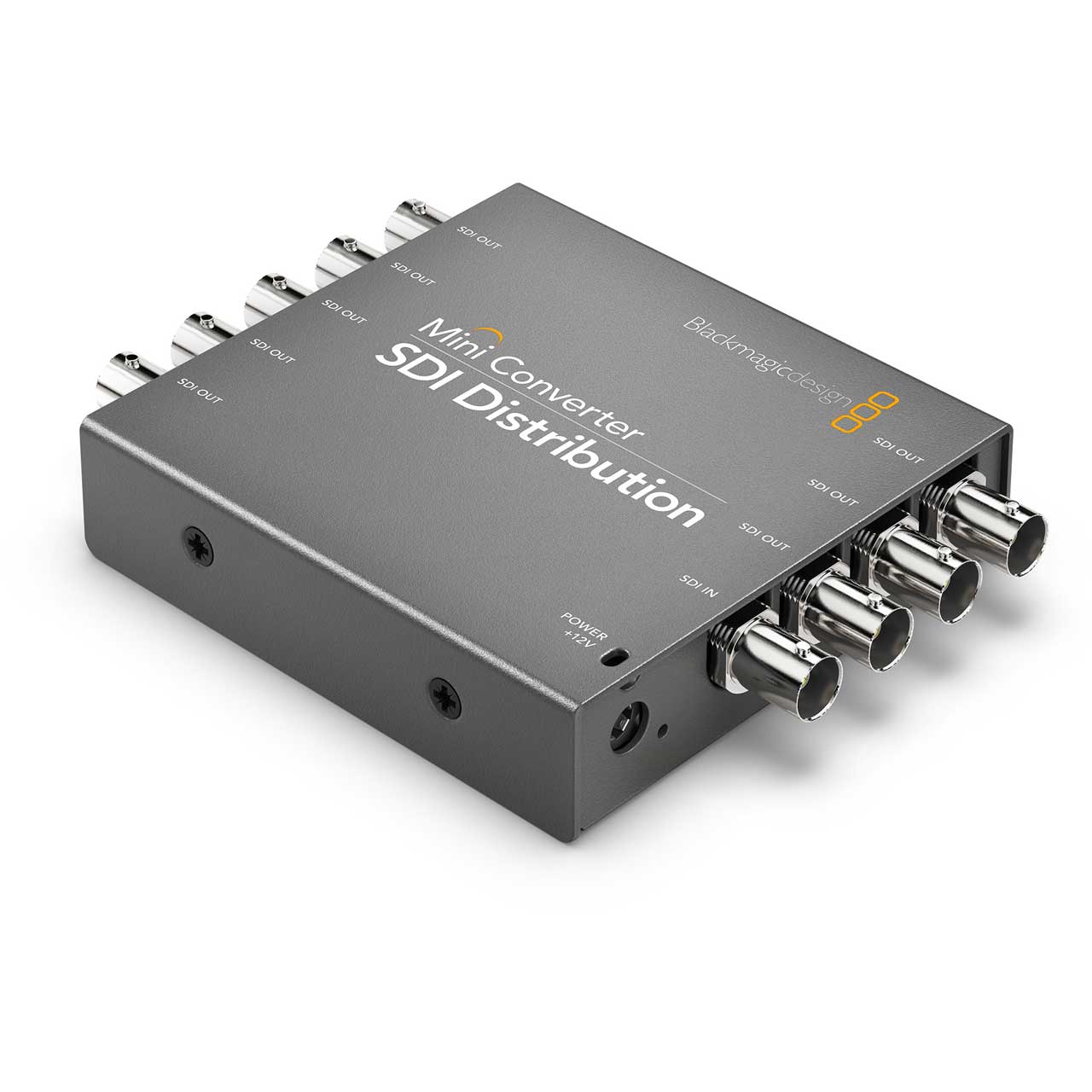

Blackmagic Design CONVMSDIDA Mini Converter 1x8 3G-SDI Distribution Amplifier

ITEM #: BMD-CONVMSDIDA MFG #: CONVMSDIDA

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$165.00

Availability: In Stock
iAvailability Description Popup


    CONVMSDIDA - Overview

    Now with the BlackMagic Design BMD-CONVMSDIDA you can distribute a single SD or HD-SDI connection to up to 8 different SDI outputs at the same time! You get a true 3G-SDI design with fully re-clocked outputs and automatic switching between all SD and HD formats up to 1080p60. You also get support for all ASI, ancillary and embedded audio formats. Mini Converter SDI Distribution is the perfect SD/HD SDI distribution converter for when you don't need the cost of the Ultra HD model!

    • Features:

      • (1) SDI Input
      • (8) SDI Outputs
      • 3G/HD/SD-SDI Auto-Switching Input
      • Re-Clocked Outputs
      • Ancillary Data & Embedded Audio
      • 1080p & 2K Distribution
      • Supports ASI Signals

    • Specifications:

      • Inputs:1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI.
      • Outputs:8x SDI: Automatically match the SDI video input.
      • Re-clocking:Yes.
      • Supported Formats:NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF. SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M.
      • Video Sampling:4:2:2 and 4:4:4
      • Audio Sampling:Television standard sample rate of 48 kHz and 24-bit.
      • Color Precision:4:2:2 and 4:4:4.
      • Color Space:YUV and RGB.
      • ASI Support:Yes.
      • Power Supply:12V universal power supply included.
      • Power Consumption:110V: 40mA, 220V: 20mA.
      • Voltage Range:12-30V.

    • Item Includes:

      • Blackmagic Design Mini Converter SDI Distribution
      • 12V Universal Power Supply with International Socket Adapters for All Countries
      • 3 Year Limited Warranty

    • GTIN:

      9338716001235
