Mackie DL32SE 32-Channel Digital Rack Mixer with Wireless Control

DL32SE - Overview

• Features:

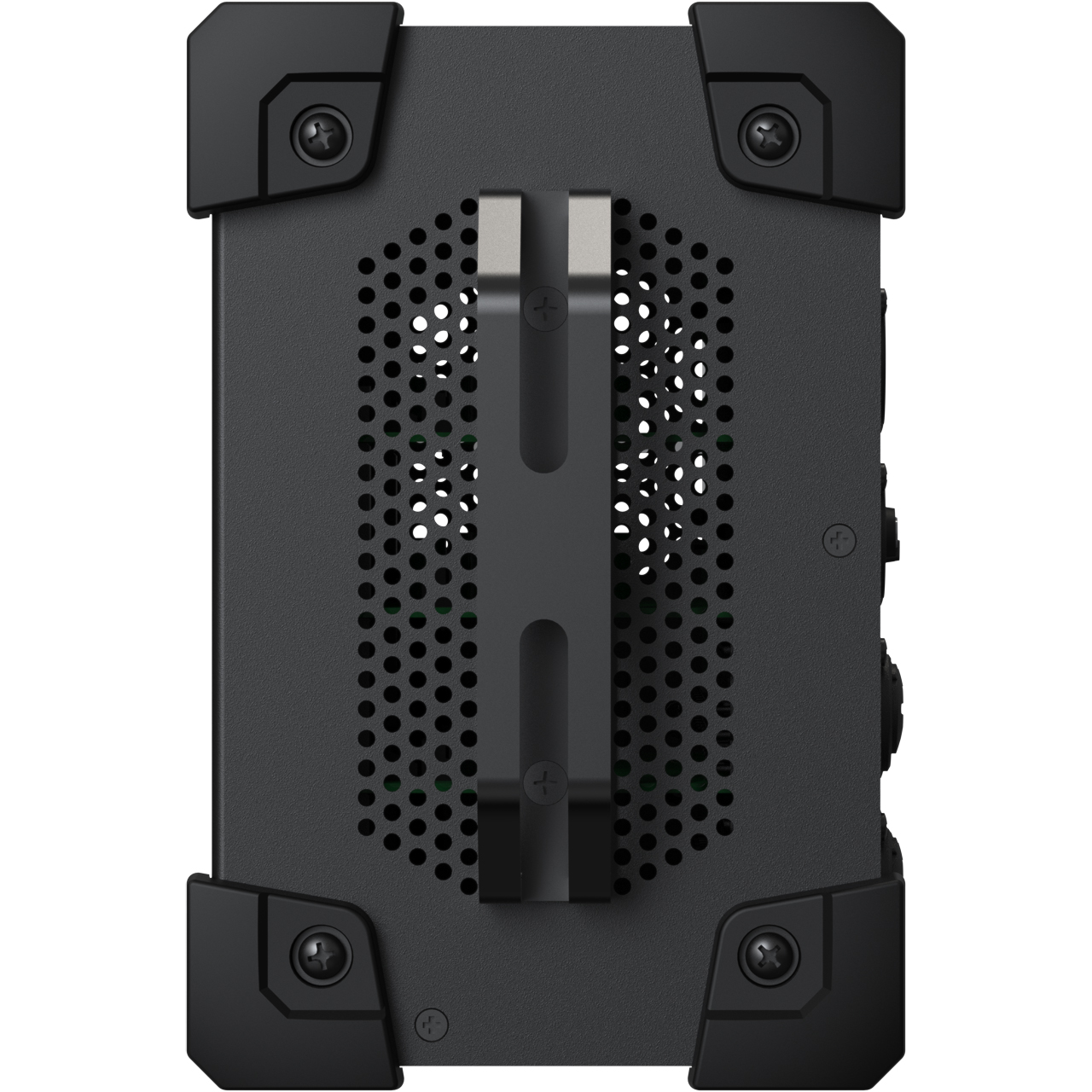

  • Convenient stagebox/rack design w/ built-in handle
  • 32 input channels w/ Onyx+ preamps (16 XLR, 16 XLR/TRS combo w/ 2 Hi-Z)
  • 10 fully assignable XLR outputs plus headphone output
  • Connect to your wireless router & control w/ Master Fader SE app
  • Per-channel EQ, filters, gate, compression & RTA/Spectrograph
  • 4 stereo FX busses w/ studio-quality reverbs, delays, chorus & more
  • Multitrack 32x32 USB audio interface for recording & playback
  • Waveform OEM professional software & plugins included

    Multitrack Recording & Playback
  • 32x32 USB 2.0 audio interface for Mac or PC
  • Record the show for later mixdown
  • Perform a virtual sound check
  • Play intermission music, backing tracks & more directly into a dedicated stereo return channel
  • Flexible, low-cost studio recording solution
  • Utilize Mac or PC audio plug-ins in a live environment

    Record & Produce Like a Pro
  • Waveform™ OEM professional software & plugin packages included
  • The DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plugins like Equalizer, Compressor, Reverber8 & Limiter


• Specifications:

  General
  • Sample Rate: 48kHz
  • A/D/A Bit Depth: 24-bit
  • System Latency (Analog Input > Main Bus > Analog Output): 1.5ms
  • 0dBFS Reference: +22dBu

    Frequency Response
  • XLR Inputs & Outputs: ±0, -1dB, 20Hz - 20kHz
  • 1/4" Inputs: ±0, -3dB, 20Hz - 20kHz

    Distortion
  • THD+N, XLR Mic Input to XLR Output, Unity Gain (1kHz, +21dBu signal; 30kHz bandwidth): <0.005%

    Noise/Dynamic Range/Signal-to-Noise Ratio
  • EIN (150Ω termination): -127dBu, A-Weighted
  • Crosstalk:
    - Analog XLR Adjacent Inputs: <-105dB @ 1kHz (unity gain), <-65dB @ 1kHz (max gain)
    - Analog XLR Adjacent Outputs: <-95dB @ 1kHz
  • Signal-to-Noise Ratio (ref +4dBu, 1kHz. Mic Input > Main Bus > XLR Output, Unity Gain): >92dB, un-weighted
  • Output Noise, XLR output (DSP muted): <-90dBu RMS
  • Dynamic Range:
    - Mic Input > Main Bus > XLR Output, Unity Gain: >110dB, A-Weighted
    - XLR Mic Input to USB Output: >113dB, A-Weighted
    - XLR Output from DSP (Oscillator): >113dB, A-Weighted
  • CMRR - XLR Mic Input (ref +20dBu, +45dB Gain): >75dB @1kHz

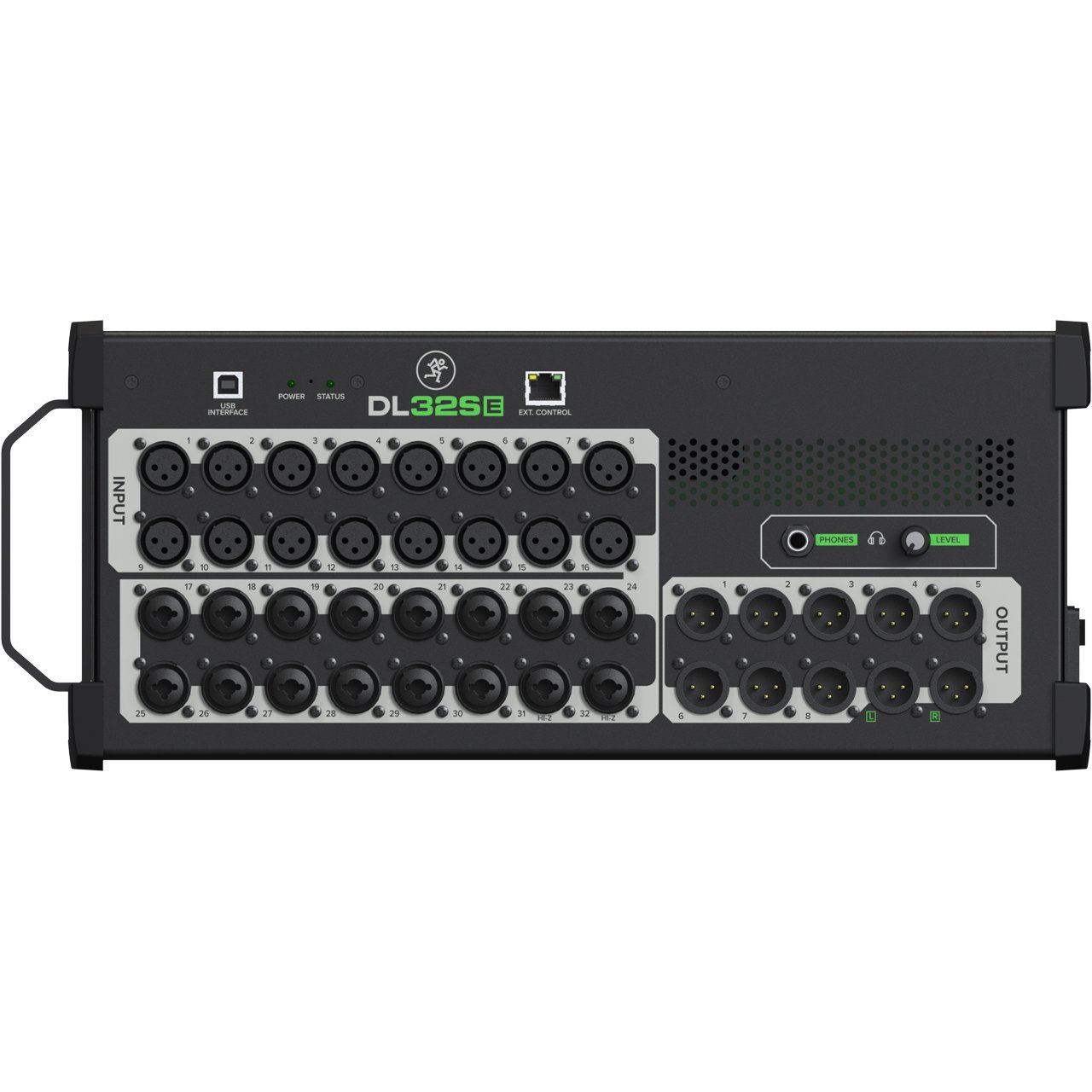

    Analog Inputs
  • Connectors:
    - 1-16: XLR Balanced
    - 17-32: Combo XLR/TRS Bal-Unbal (plus Hi-Z via unbalanced instrument cable on inputs 31-32)
  • XLR Mic Pre: Onyx+
  • Input Impedance:
    - XLR, Channels 1-32: 3kΩ, balanced
    - 1/4" TRS Line, Channels 15-30: 30kΩ, balanced
    - 1/4" TS Hi-Z, Channels 31-32: 1MΩ, unbalanced
  • Max Input Level:
    - XLR: +22dBu
    - 1/4": +30dBu
  • 48V Phantom Power (XLR):
    - 48V DC nominal voltage, unloaded
    - 14mA maximum current supplied to any single input
    - 5mA minimum current supplied to all inputs simultaneously
    - Digital on/off control for each individual input

    Analog Outputs
  • Connectors: XLR Balanced
  • Output Impedance: 300Ω
  • Max Output Level: +22dBu

    Analog Headphone Out
  • Connector: 1/4" TRS Stereo
  • Max Output Level:
    - +20dBu into 600Ω, each channel
    - +22dBu max into 100kΩ, each channel

    USB
  • Connection: USB 2.0 High Speed (as a device)
  • Connector: USB-B
  • Supported MS Windows (Driver installation required): Windows 10 or 11
  • Supported Mac OS (Audio Class 2.0 Compliant, no driver required): macOS 10.15+ required
  • Audio: 32 in/32 out, 48kHz, 16/24-bit

    Networking
  • Connection: 100Mb Ethernet
  • Control: Complete
  • Simultaneous Control: 20 Devices
  • Antenna: External, SMA Connector, 50Ω
  • Access Point, Number of Clients: Max 20 (Wired or Wireless)
  • IEEE 802.11 b/g Standard: 2.4GHz
  • WLAN Channels: 1 - 11 (w/ auto-channel select option)
  • Access Point Security: WPA2

    Devices & Operating Systems
  • System Requirements:
    - Android: v7.0 or higher required
    - iOS: v13.0 or higher required
  • Control Application: Master Fader App

    DSP
  • 32 input channels with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph
    - 32 stereo-linkable input channels
  • 15 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph:
    - 8 stereo-linkable aux sends
    - 6 stereo-linkable subgroups
    - Main L/R bus
  • 6 VCAs and 6 mute groups
  • 4 stereo FX processors featuring great built-in FX like reverbs, delays, choruses, flangers, and many more with dedicated sends and returns
  • Full I/O routing with A/B sources per channel
  • Assignable oscillator including pink/white noise and sine waves
  • Modern and Vintage options for comp/gate and EQ

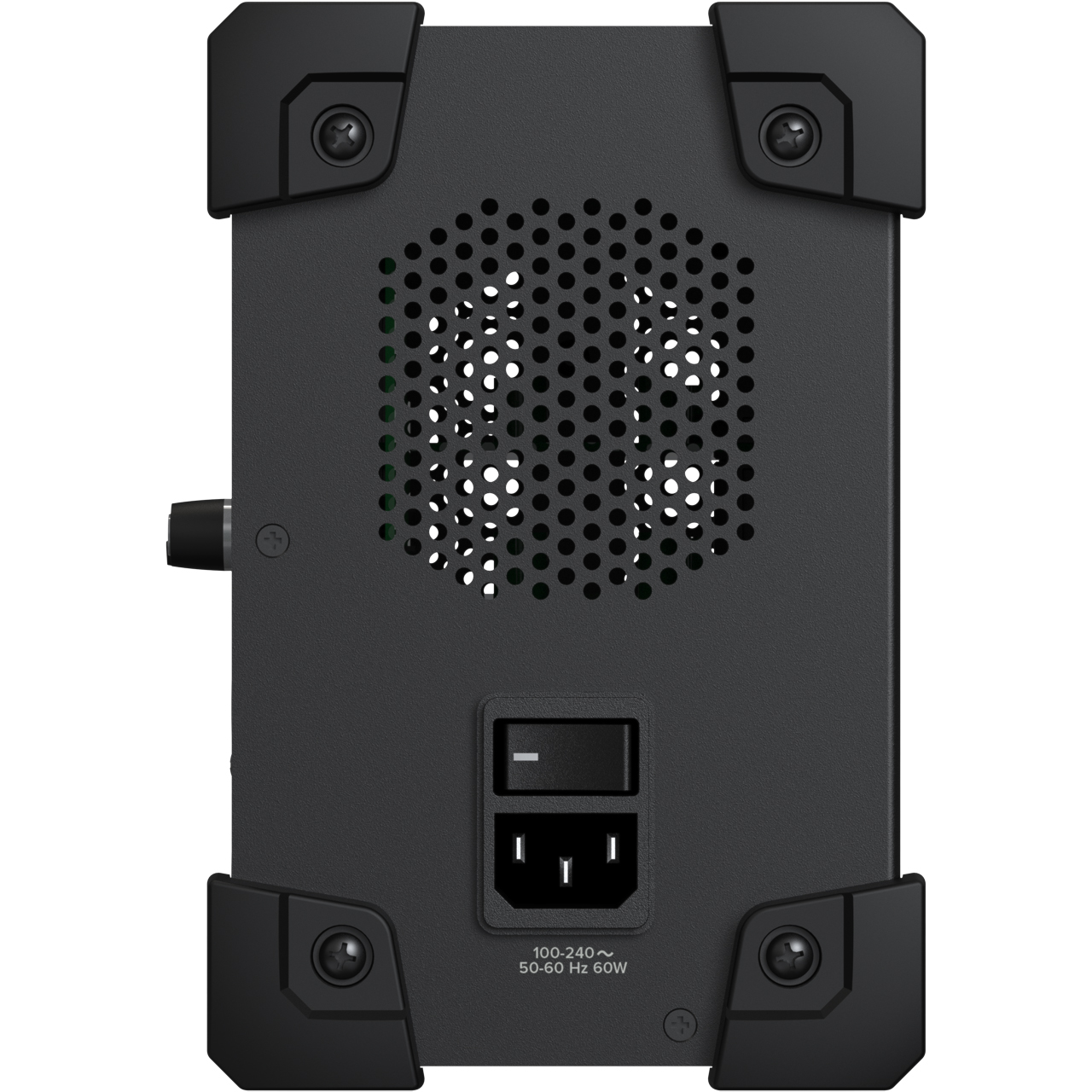

    Power
  • Power Requirements: 100V AC - 240V AC, 50 - 60Hz, Universal Supply
  • Line Cord: User-replaceable IEC
  • Power Consumption: 60W
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)

    Physical
  • Height: 7.3" (185mm)
  • Width: 16.3" (414mm)
  • Depth: 5.8" (147mm)
  • Weight: 8.8lbs (4.0kg)
  • Rack: 4U Rack Spaces

    Packaging
  • Height: 9.8" (249mm)
  • Width: 20.5" (521mm)
  • Depth: 11.3" (287mm)
  • Weight: 13.8lbs (6.3kg)
  • Rack: 4U Rack Spaces


• GTIN:

  0810128261227
