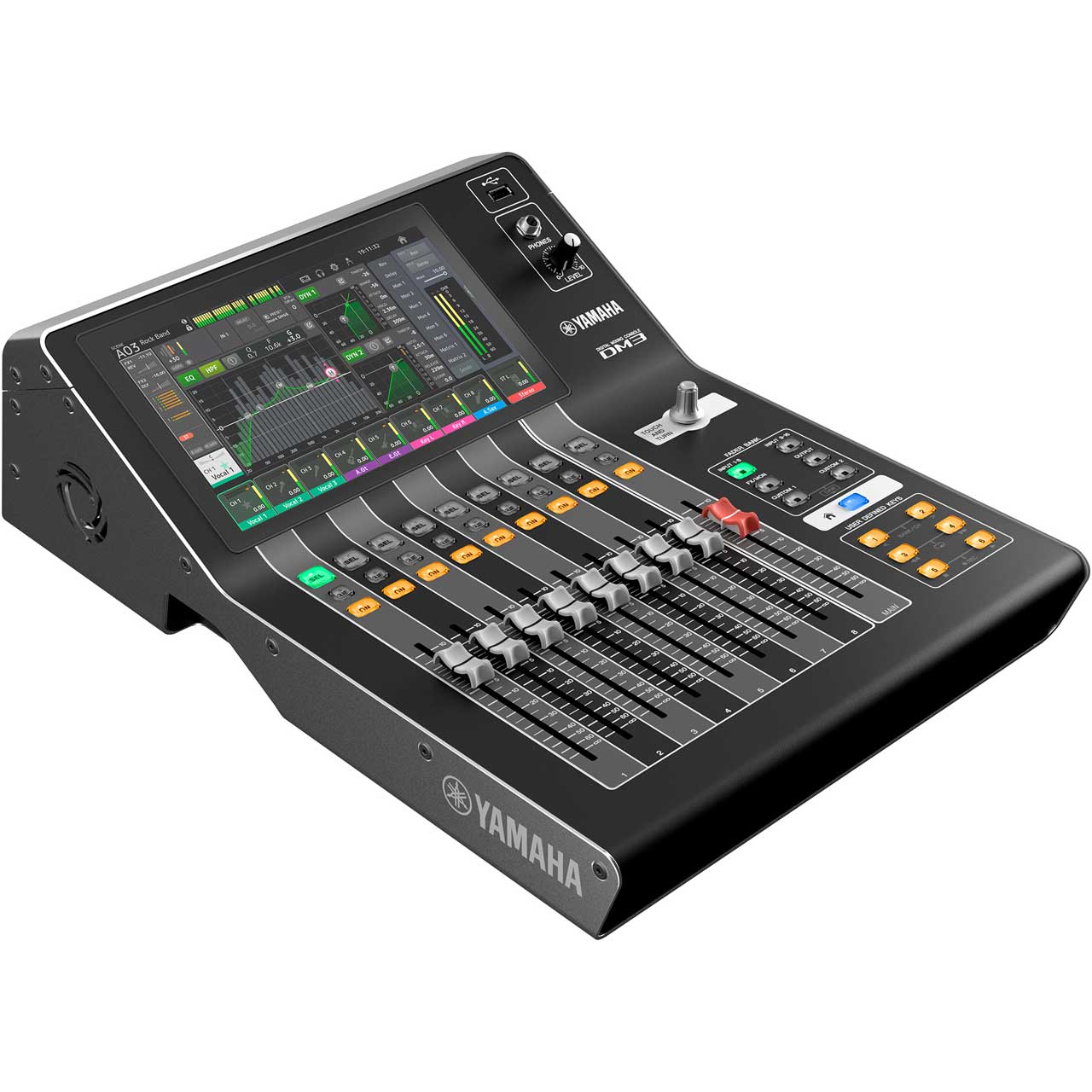

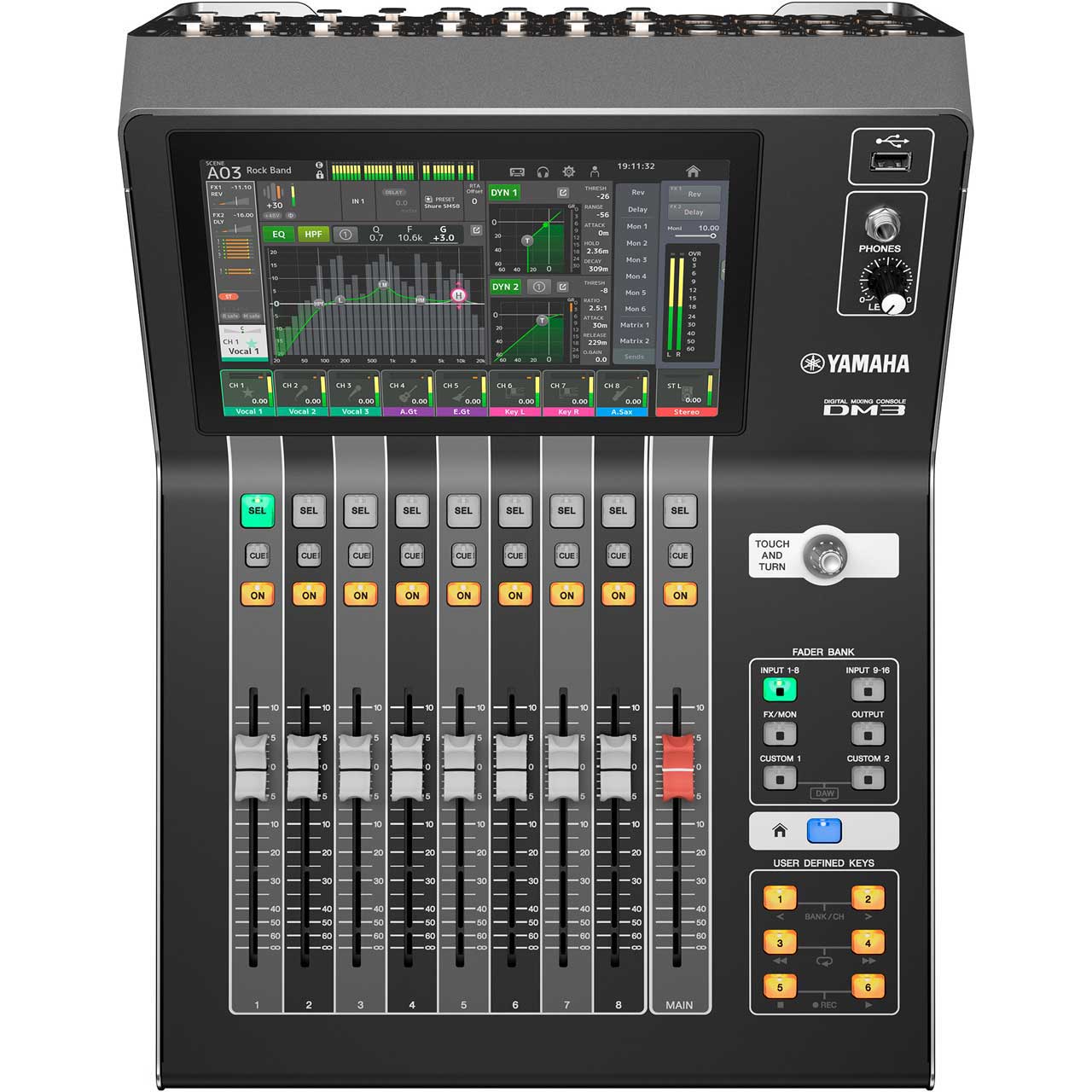

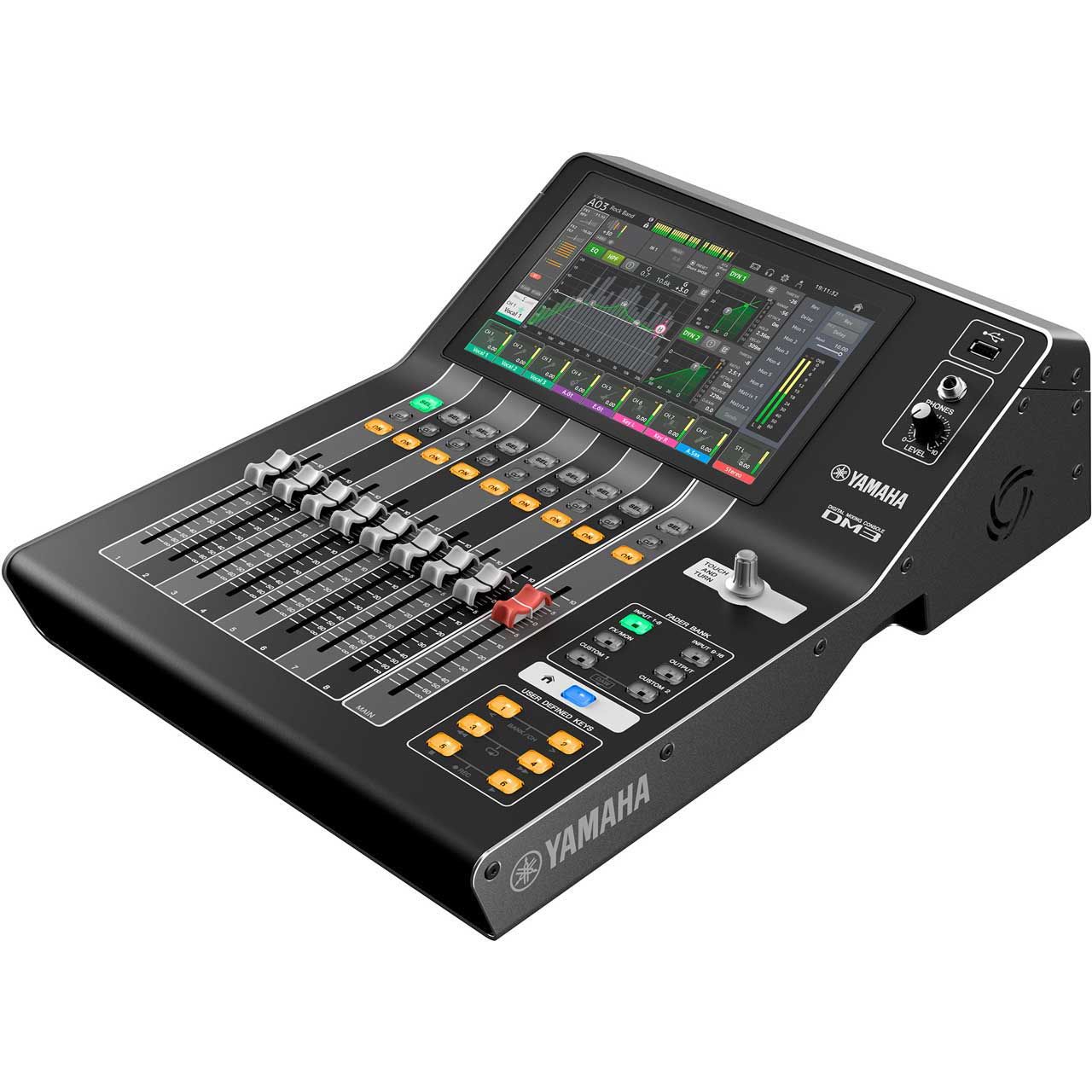

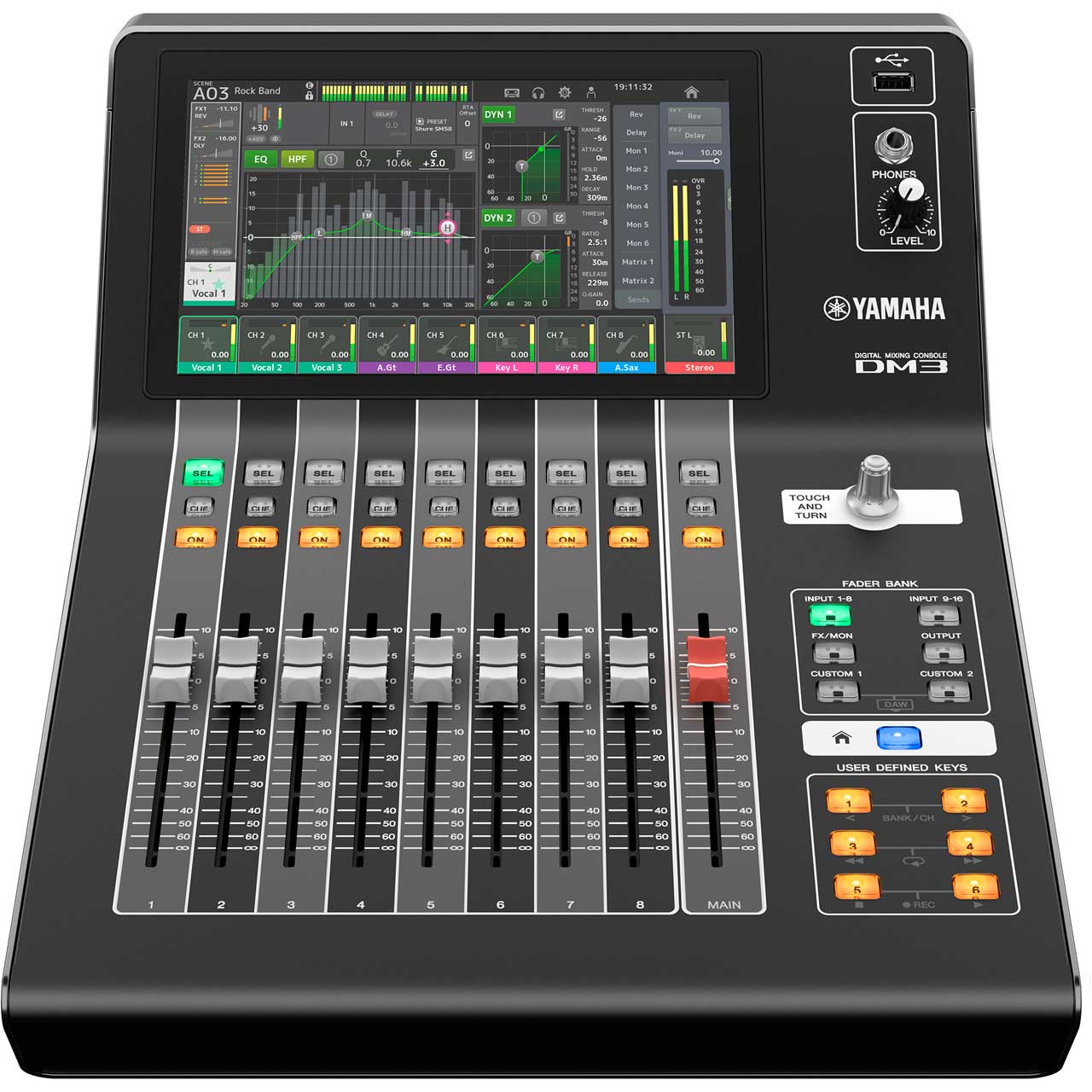

Yamaha DM3-D Professional 22 Channel Ultra-compact Digital Mixer with Dante

ITEM #: YMH-DM3-D MFG #: DM3-D

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,915.00

Our Price:

$2,099.99

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    DM3-D - Overview

    The Yamaha DM3-D is an ultra-compact 22 Channel digital mixer sure to get you your next gig. Capable of 96kHz sample rates, the DM3 Series continues the Yamaha legacy of sonic purity, offering you the perfect canvas for mixing, recording, and streaming from a company that knows how to create music. When not on stage, DM3-D can be used as a DAW controller in the home studio. Built to make mixing easy the console encourages the engineer to focus on the music, utilizing a best in class, 9" touchscreen and a single Touch & Turn knob for managing most of the operation.

    • Features:

      • Renowned Yamaha sound quality with 96kHz sample rate
      • 22 Channels (16 Mono / 1 ST / 2 ST FX RTNs)
      • 6 Mono or 3 ST Mixes / 2 Matrixes / 1 ST Bus
      • 16 Professional Yamaha Pre-Amps (12x XLR + 4x Como Jack)
      • 8 Analog Outpus (XLR)
      • 16x16 Dante Interface
      • 18x18 USB Audio Interface for playback and recording and 2x2 USB recorder
      • Best in Class 9" Touch Screen
      • DAW Remote Mode including transport control
      • Custom control via OSC, USB-MIDI and Provisionaire
      • Bundled with Cubase Al

    • Specifications:

      • Mixing Capacity
      • Input Channels: 16 Mono, 1 Stereo, 2 FX Return
      • Buses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Input to Matrix supported)

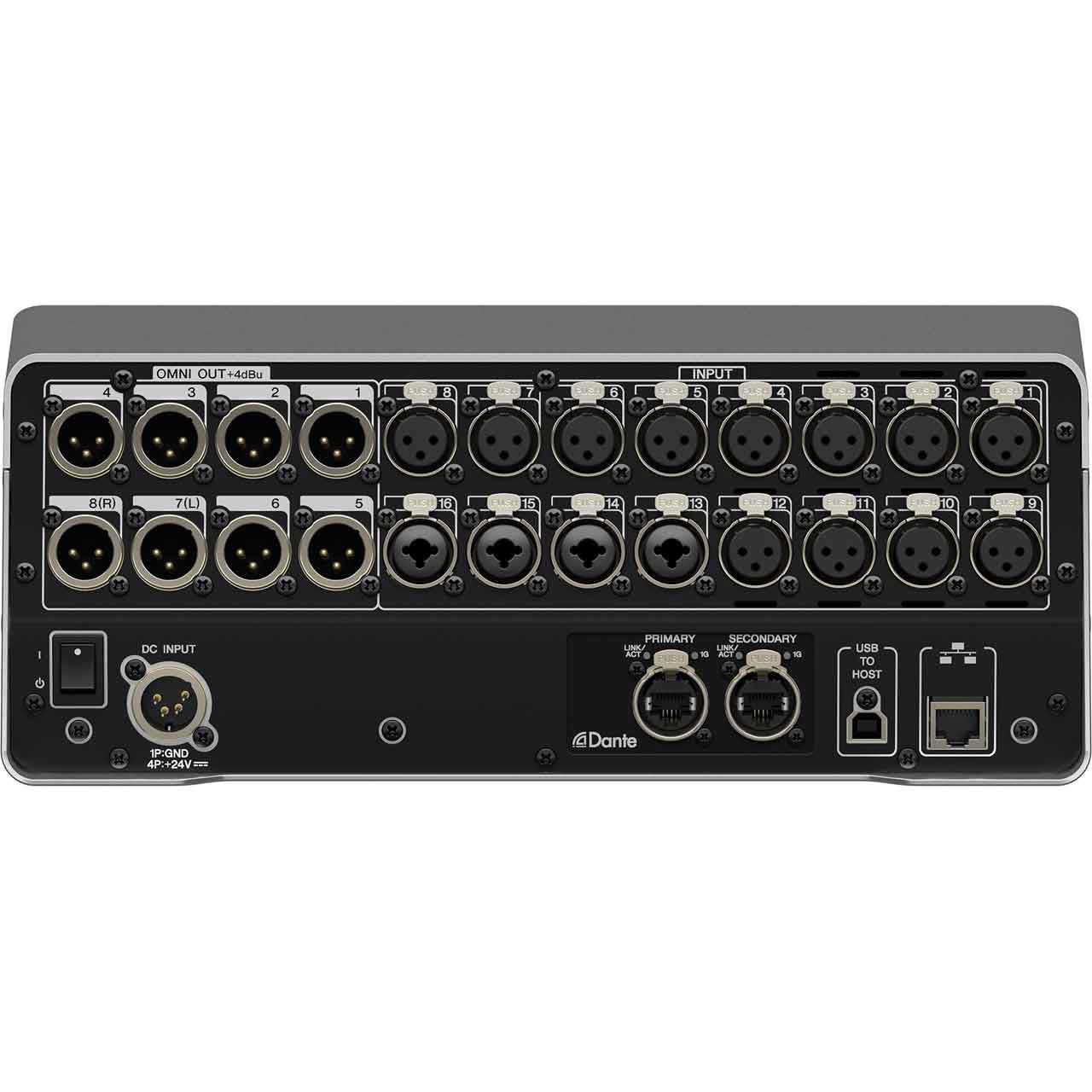

        Local Connectors
      • Analog In: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
      • Analog Out: 8 (XLR)
      • Dante I/O ): 2 (etherCON : Primary/Secondary, 16 In/Out)
      • Ethernet: 1 (RJ-45)
      • USB to Host: 1 (USB Type-B)
      • USB to Device: 1 (USB Type-A)
      • Phones: 1 (TRS Phones)
      • DC IN: 1 (XLR 4pin)

        User Interface
      • 9-inch multi-touch screen
      • 9 x 100mm Motorized fader (8 channels + 1 master)
      • 1 x Rotary Encoder (Touch and Turn)

        Recording & Playback
      • PC (via USB to Host) (USB 2.0): 18 track recording/playback
      • USB Storage Device: 2 track recording/playback

      • Sampling Rate: 96 kHz/48 kHz
      • Power Requirements: DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
      • Power Consumption: 45W
      • Operating Temperature Range: 0 to 104°F
      • Storage Temperature Range: -4°F to 140°F
      • Dimensions (W x H x D) Inches: 12.6 x 17.9 x 5.5
      • Weight: 14.33 lbs

    • Item Includes:

      • 1x DM3 Ultra-compact 22 Channel Mixer with Dante
      • 1x Power Adapter (PA-L500)
      • 1x Owner's Manual
      • 1x Cubase AI Download Information

    • GTIN:

      0889025137591
