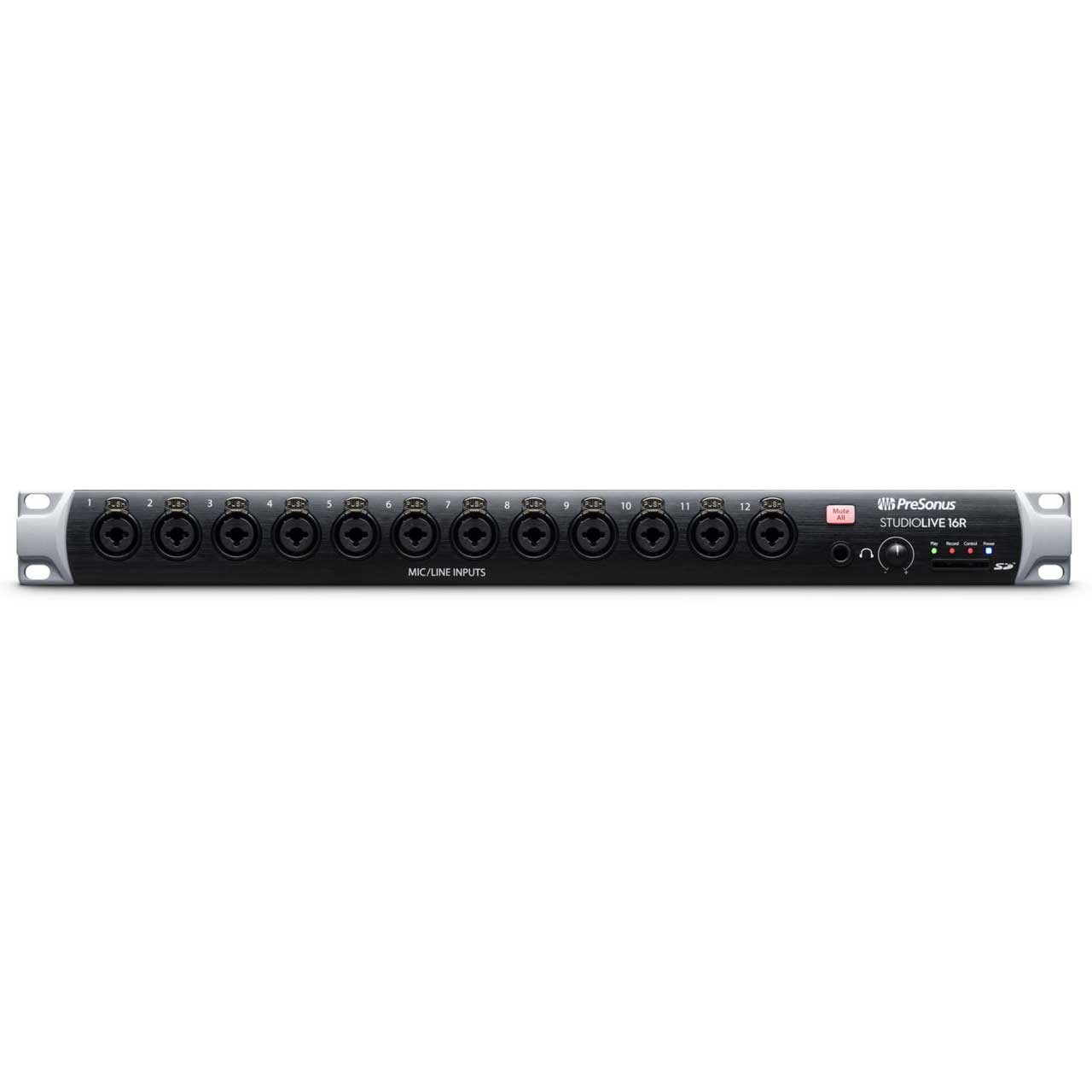

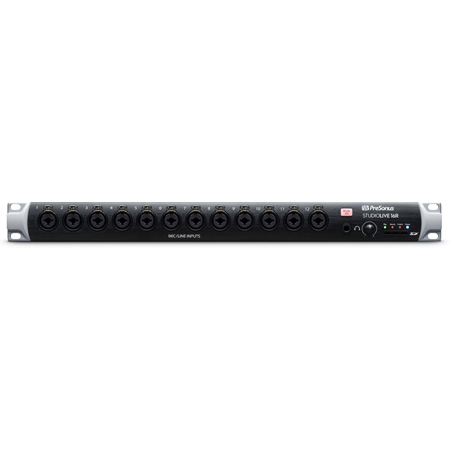

PreSonus StudioLive 16R 16x8 Digital Rack Mixer with 16 Recallable XMAX Preamps

ITEM #: PRE-SL-16R MFG #: STUDIOLIVE 16R

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,299.99

Our Price:

$999.99

Availability: In Stock
iAvailability Description Popup


    STUDIOLIVE 16R - Overview

    The StudioLive 16R Series III rack mixer is a perfect partner for your StudioLive Series III console/recorder, serving as either a simple stage box or a combination stage box and monitor mixer. Since Series III rack mixers and consoles can network using AVB, you can connect your StudioLive 16R to a Series III front-of-house console with one lightweight CAT5e or CAT6 Ethernet cable, eliminating the need for a heavy, expensive copper snake-and the signal degradation that goes with long analog cable runs. You can even remote control the StudioLive 16R's preamps and phantom power from your networked Series III console. In stage box + monitor mixer mode, the StudioLive 16R not only serves as an excellent networked stage box, it is a full blown monitor mixer with far more processing and mixing power than any mixer in its class-all packed into just one rackspace. (1U).

    Networking isn't the future of professional audio systems; it's here now. StudioLive 16R Series III rack mixers come equipped with an AVB Ethernet connection that enables you to network multiple StudioLive Series III mixers and compatible computers and stream up to 32 channels of audio to and from a Mac or Windows PC. You also get 18x18 recording via USB 2.0, giving you a choice of computer recording methods. Each channel can independently access its analog input or its dedicated digital return from your computer. Alternatively, quickly and easily record the main mix-or any other stereo mix-to the built-in SD Card recorder.

    In addition to the AVB recording connection, StudioLive Series III rack mixers sport a 1 Gb Ethernet port that can connect to a wireless router or directly to a computer, providing remote control of virtually all features. Mix wirelessly or over a wired network from anywhere using UC Surface for Mac, Windows, iPad, and Android tablet. Even add a second-or third, or even fourth!-screen for fast workflow. Musicians can control their monitor mixes onstage with QMix-UC for iPhone, iPod touch, or Android device without the need for large monitor networks. Go wireless, wired, or both.

    Now includes Studio Magic Plug-in Suite!
    This suite of plug-ins adds a wealth of fresh sounds and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies - these are real-deal workhorses that you'll rely on for countless mixes.

    PreSonus Metro
    PreSonus Metro is the latest innovation for Studio Live Series III mixers, delivering a first-to-market solution for live remote mixing overthe Internet with high-quality, low-latency audio streaming. With Metro, anyone, anywhere in the world, can connect to a StudioLive Series III mixer over the Internet and begin remotely controlling the mixer using UC Surface while listening in real-time with their local audio device.

    The first solution for live remote mixing with high-quality, low-latency audio over the Internet. MyPresonus account integration establishes a secure peer-to-peer connection between users to facilitate broadcast mixing, troubleshooting, podcast production, and more.

    -Live Stream and Podcast Production - Produce a livestream or podcast from anywhere in the world.
    -Troubleshooting - Troubleshoot StudioLive Series III mixers quickly and conveniently from your home or office.
    -Remote Recording - Ensure that a remote recording session is properly gain staged.
    -Corporate conference - Remotely mix an all-day conference panel from the comfort of your couch.
    -Professional assistance - Dial in a scratch mix remotely for a less experienced on site FOH or monitor engineer to use as a starting point.

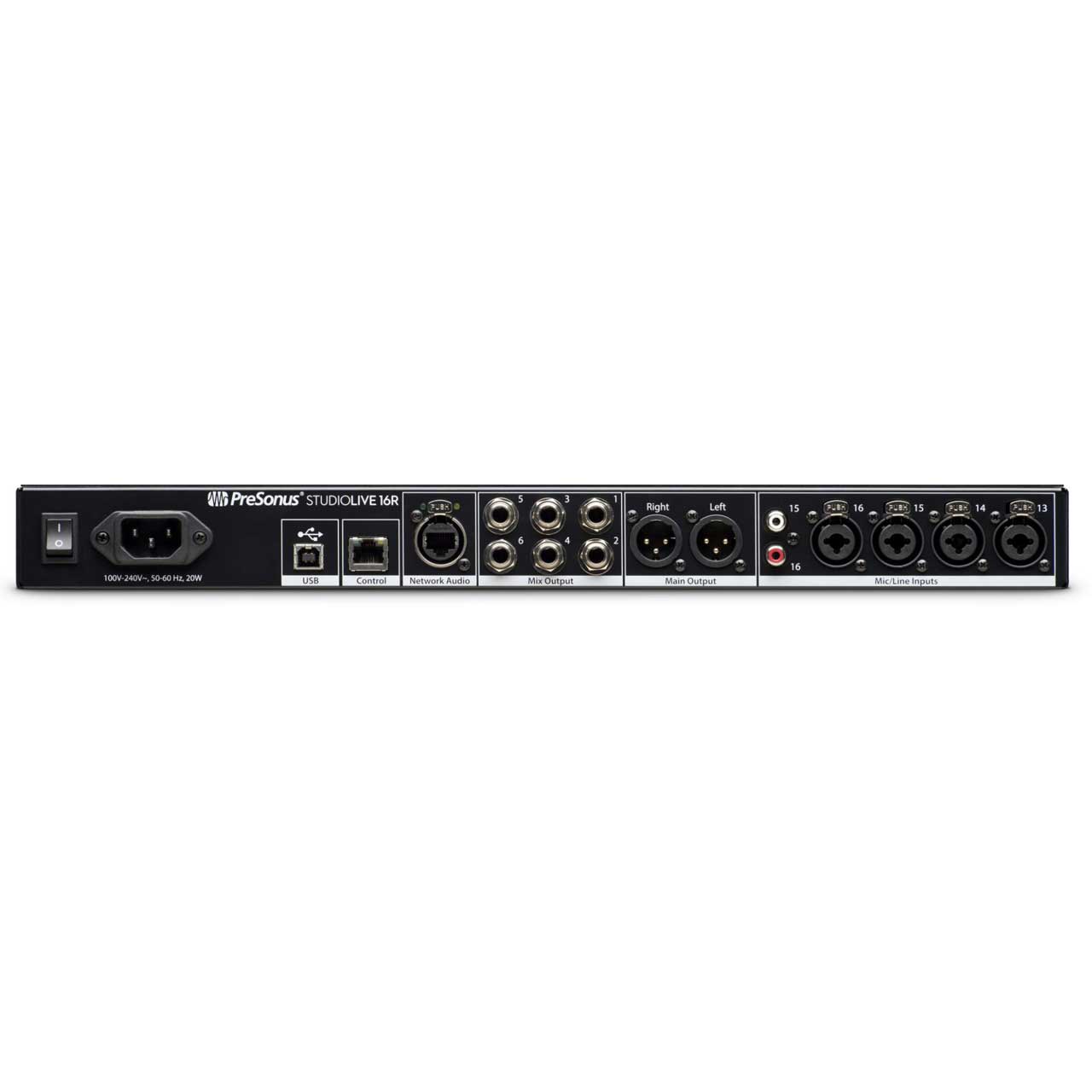

    • Features:

      • 16 mic/line channel inputs + 2 RCA inputs
      • 6 1/4-inch TRS FlexMix outputs
      • 2 XLR (L/R) Main outputs
      • Stereo headphone output
      • 1 stereo digital return (SD Card, AVB, or USB)
      • 10 buses: 6 FlexMixes (can be designated as aux, subgroup, or matrix mixes), 2 internal effects sends
      • 6 Filter DCAs for easily and flexibly controlling groups of channels
      • 1 Ethernet control network port; Dynamic, Self Assigned, and Manual IP address modes
      • 1 Locking XLR Ethernet AVB audio network port
      • Onboard stereo SD recorder
      • 18x18 USB recording interface
      • 32x32 AVB recording interface
      • Intuitive Fat Channel signal processing on every channel
      • Vintage EQ and compressor models available on every input
      • 8 31-band graphic EQs
      • 2 internal effects buses: combination of reverbs and delays with modern and vintage options
      • Built-in real-time analyzer
      • Create, save, and edit up to 100 scenes
      • Scene management with Scene Safe-prevents a scene change from affecting designated "safe" channels

    • Specifications:

      • Mic Preamp
      • Input Type: Combo locking XLR mic-1/4" TRS line
      • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
      • Input Impedance: 1 kΩ
      • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
      • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
      • Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
      • Gain Control Range (±1 dB): 0 dB to +60 dB
      • Maximum Input Level (unity gain): +12 dBu
      • Phantom Power (±2 VDC): 48 VDC, switchable per channel

        Unbalanced Inputs (Ch. 15-16)
      • Type: RCA Female, unbalanced (stereo pair)
      • Maximum Input Level: +12 dBu, ±0.5 dBu

        Main Outputs
      • Type: XLR Male, balanced
      • Maximum Output Level: +24 dBu, ±0.5 dBu
      • Output Impedance: 100Ω

        Mix Outputs
      • Type: 1/4" TRS Female, balanced
      • Maximum Output Level: +18 dBu, ±0.5 dBu
      • Output Impedance: 100Ω

        Headphone Output
      • Type: 1/4" TRS Female, active stereo
      • Maximum Output: 100 mW/ch. @ 60Ω load
      • Frequency Response: 20 Hz - 20 kHz (± 0.5 dB)
      • THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
      • S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

        Digital Audio and Control
      • ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
      • DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
      • USB Recording Port: USB 2.0, Type-B
      • Network Control Port: RJ-45
      • AVB Audio Network Port: Locking XLR Ethernet
      • Internal Processing: 32-bit, floating point
      • Sampling Rate: 48 kHz
      • A/D/A Bit Depth: 24
      • Reference Level for 0 dBFS: +18 dBu
      • Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)

        Physical
      • Connector: IEC
      • Input-Voltage Range: 90 to 230 VAC (±10%)
      • Power Requirements (continuous): 85W
      • Recommended Ambient Operating Temperature: 32° to 104° F
      • Dimensions (H x W x D): 1.75" x 19" x 12"
      • Weight: 8.6 lbs.

    • GTIN:

      0673454005961
