Mogami W2814 6 Conductor - 26AWG Superflex Miniature Cable - Per Foot

ITEM #: MG-W2814 MFG #: W2814 PER FOOT

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1.40

Our Price:

$1.19

Availability: In Stock
iAvailability Description Popup


    W2814 PER FOOT - Overview

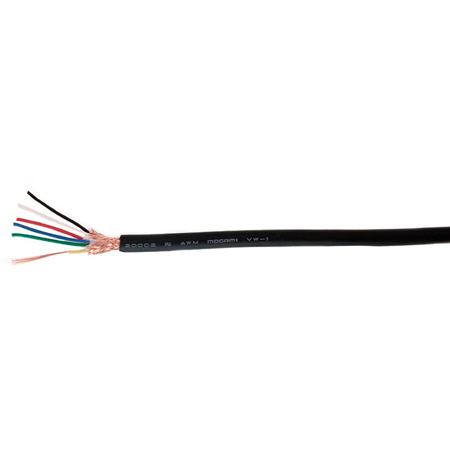

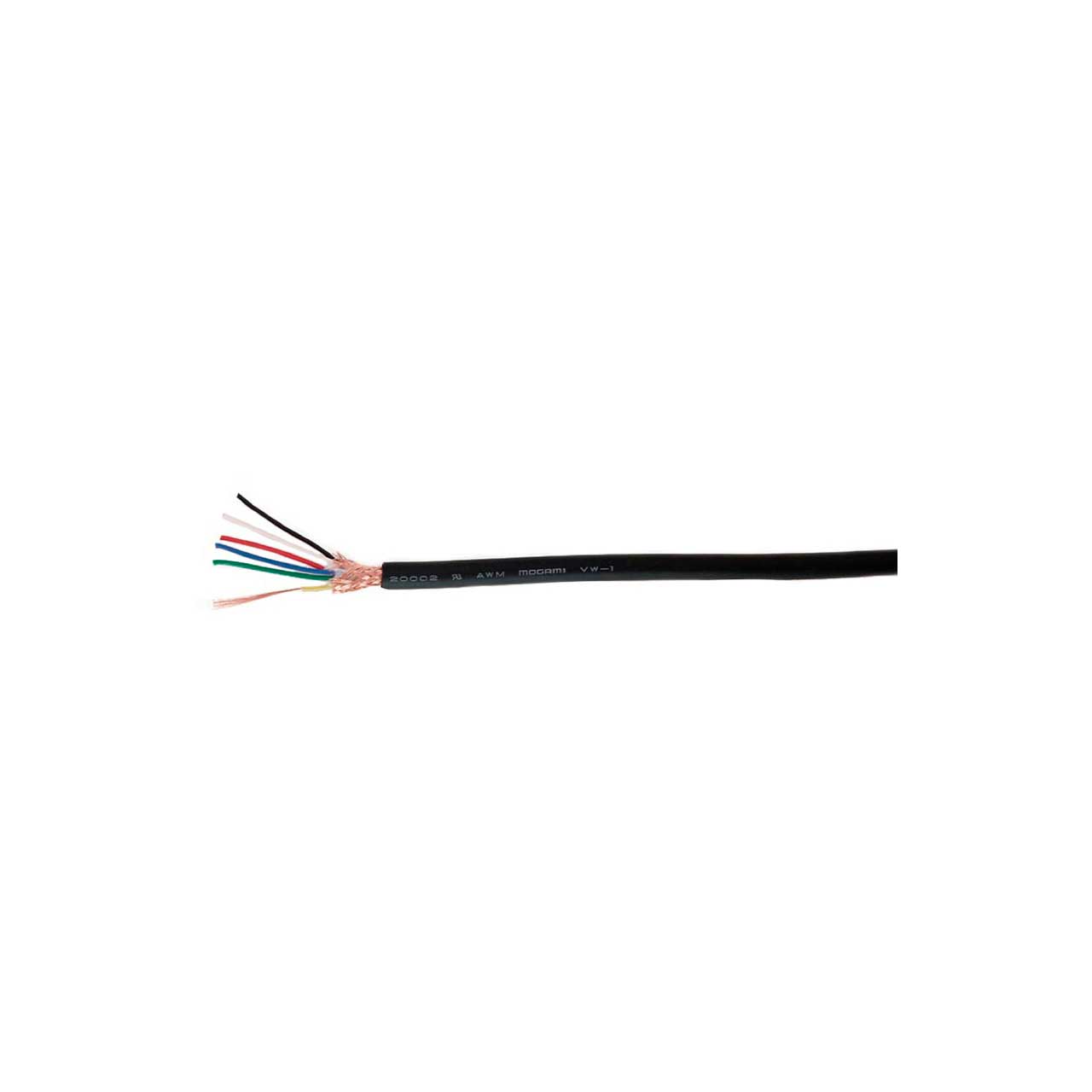

    Mogami W2814 is a 6 Conductor - 26AWG Superflex Miniature Cable - Per Foot 0.15mm² (#26AWG) conductor overall shield cable series is comprised of about two times larger conductor size as mechatro overall shield cable series. There is no community in design policy, as they were originally custom-made cables and remained as standard items one by one, however, they are suitable where larger conductor size, flexibility and compactness are all required. Available from five up to nine conductor, not in twisted pair configuration.

    • Specifications:

      • Conductor: Details: 30/0.08A (40x#40AWG)
      • Size(mm²): 0.150mm² (#26AWG)
      • Insulation: Ov. Dia.(mm): 1.0Ø (0.0394")
      • Material: PVC
      • Overall Shield: Type: See Each Spec.
      • Coverage: 85% (Braid) - 100% (Served)
      • Ov. Jacket: Material: Flexible PVC
      • Color: Dark Gray or Black
