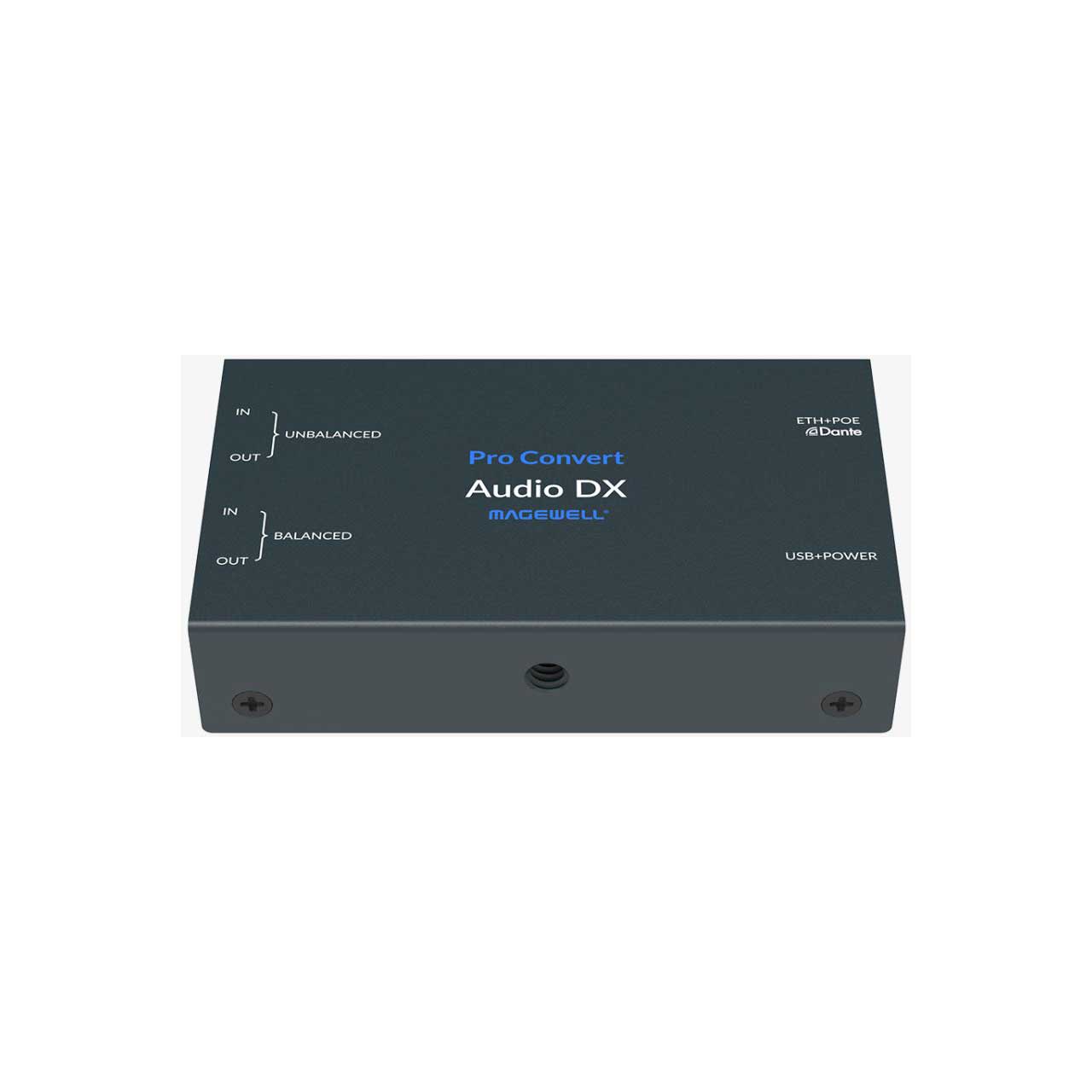

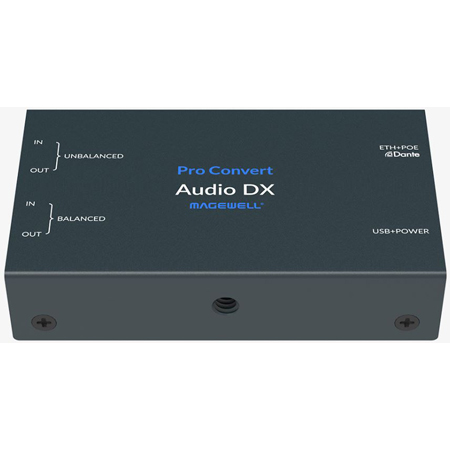

Magewell 64260 Pro Convert Audio DX - Multi-Format Bi-Directional IP Audio Converter/Capture w/ PoE/Dante/SRT Support

64260 - Overview

Bi-Directional Analog Audio Encoder - Decoder - Converter & Capture Device.... all in one palm-sized unit!

• Features:

  • Offers a seamless bridge between analog audio, software and IP standards including Dante®, NDI®, SRT and more
  • Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
  • Enables mixed-technology local and remote production workflows and ProAV installations
  • USB Port for Analog Audio Capture


• Specifications:

  • Receiving/Input Features
  • Support for sample rates of 96/48/88.2/44.1 KHz, and 16/24bit sample depth
  • 1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)
  • 1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)
  • 1 x 4-channel 24-bit/48k USB Audio Class in
  • Receiving 8-channel 24-bit Dante flows in unicast or multicast
  • Receiving 2 x 4-channel 16-bit network audio streams of SRT and/or NDI simultaneously
  • Support for PTP master/slave
  • Total harmonic distortion < 0.01% @ +4dBu
  • Frequency Response: 20Hz ~ 20kHz (-/+0.5dB)
  • Signal to noise ratio > 100dB
  • Dynamic range > 100dB
  • Max signal level: unbalanced at 12dBu, balanced at 24dBu

    Transmitting/Output Features
  • Support for sample rates of 96/48/88.2/44.1 KHz, and 16/24bit sample depth
  • 1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)
  • 1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)
  • 1 x 4-channel 24-bit/48k UAC out
  • Encoding 8-channel 24-bit Dante flows in unicast or multicast
  • Encoding 2 x 4-channel 16-bit network audio streams of RTSP, SRT, NDI protocols simultaneously
  • Support for PTP master/slave
  • Total harmonic distortion < 0.01% @ +4dBu
  • Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
  • Dynamic range > 100dB
  • Signal to noise ratio > 100dB
  • Max signal level: unbalanced at 12dBu, balanced at 18dBu

    Configuration Management
  • Support for Dante Domain Manager and Dante Controller, providing signal routing and configuration
  • Registration with Magewell Cloud
  • Remote control via WebUI and Magewell Cloud
  • Provision of comprehensive information regarding the device and signals in real-time
  • Configuration of how an input is processed and codec, including volume setting, audio matrix, buffer, as well as the network connection
  • Support for updating firmware
  • Support for USB NET
  • Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provision of HTTP APIs

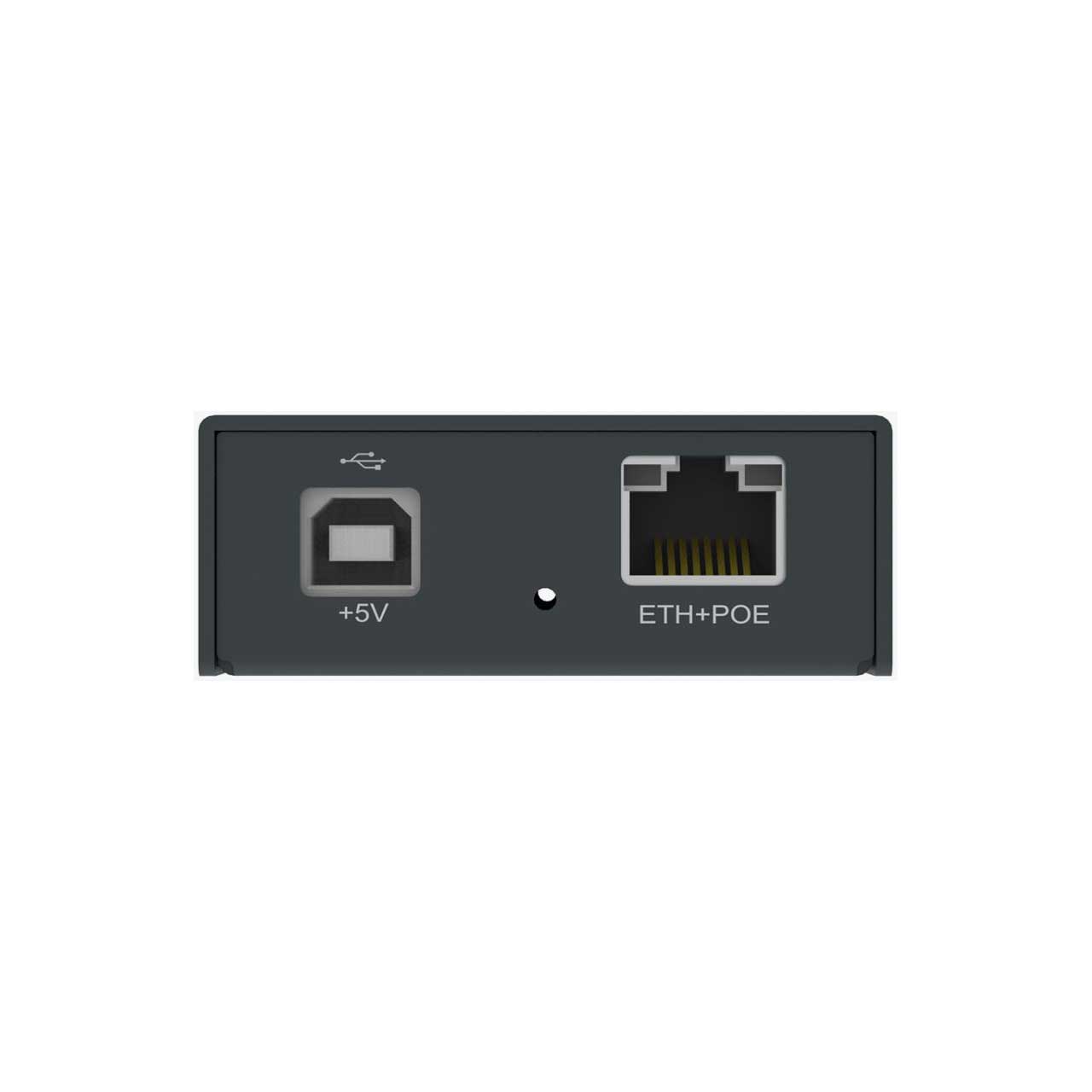

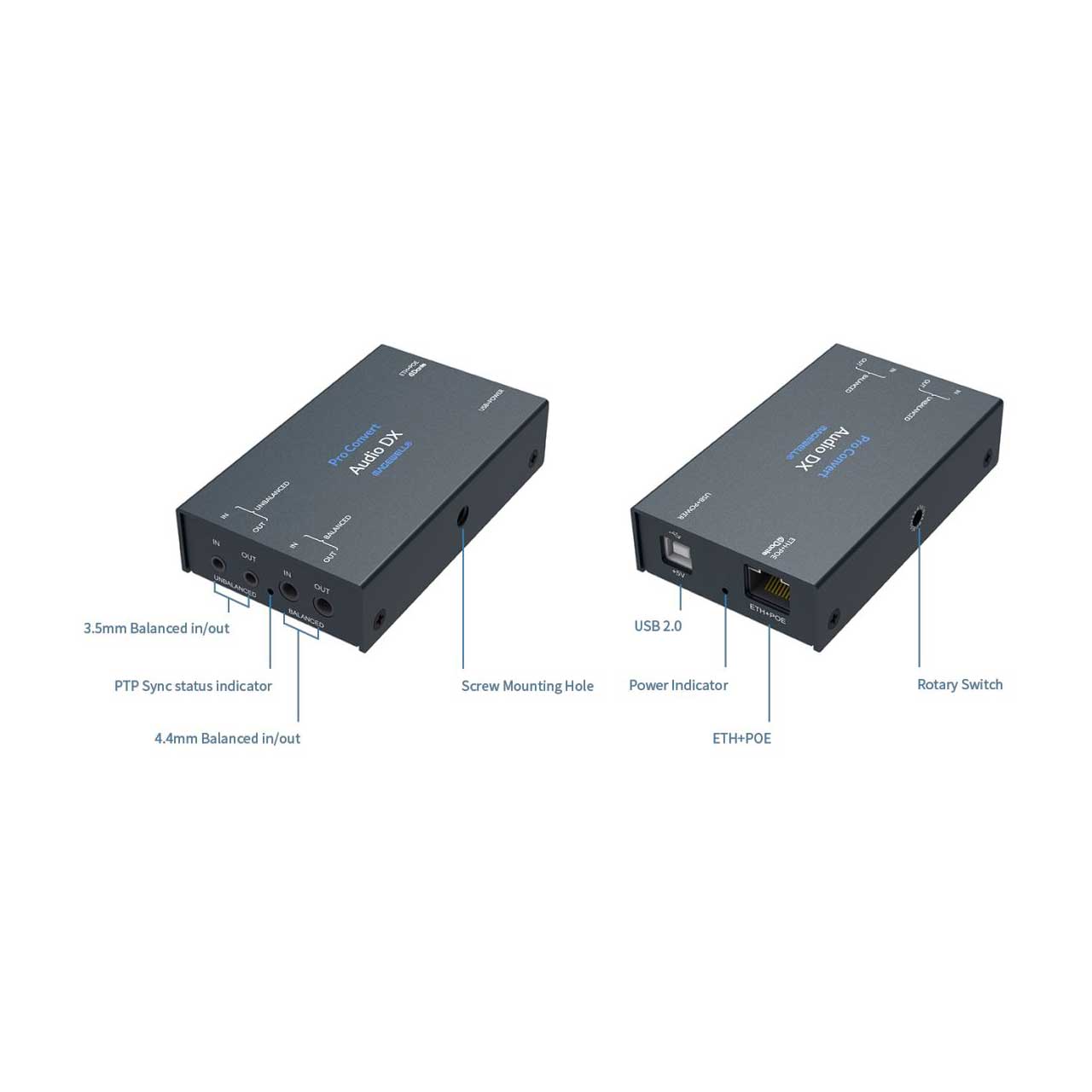

    Interfaces
  • 10/100/1000Mbps with PoE (IEEE 802.3af)
  • USB2.0 Type B
  • 5V/2.1A power supply
  • USB NET

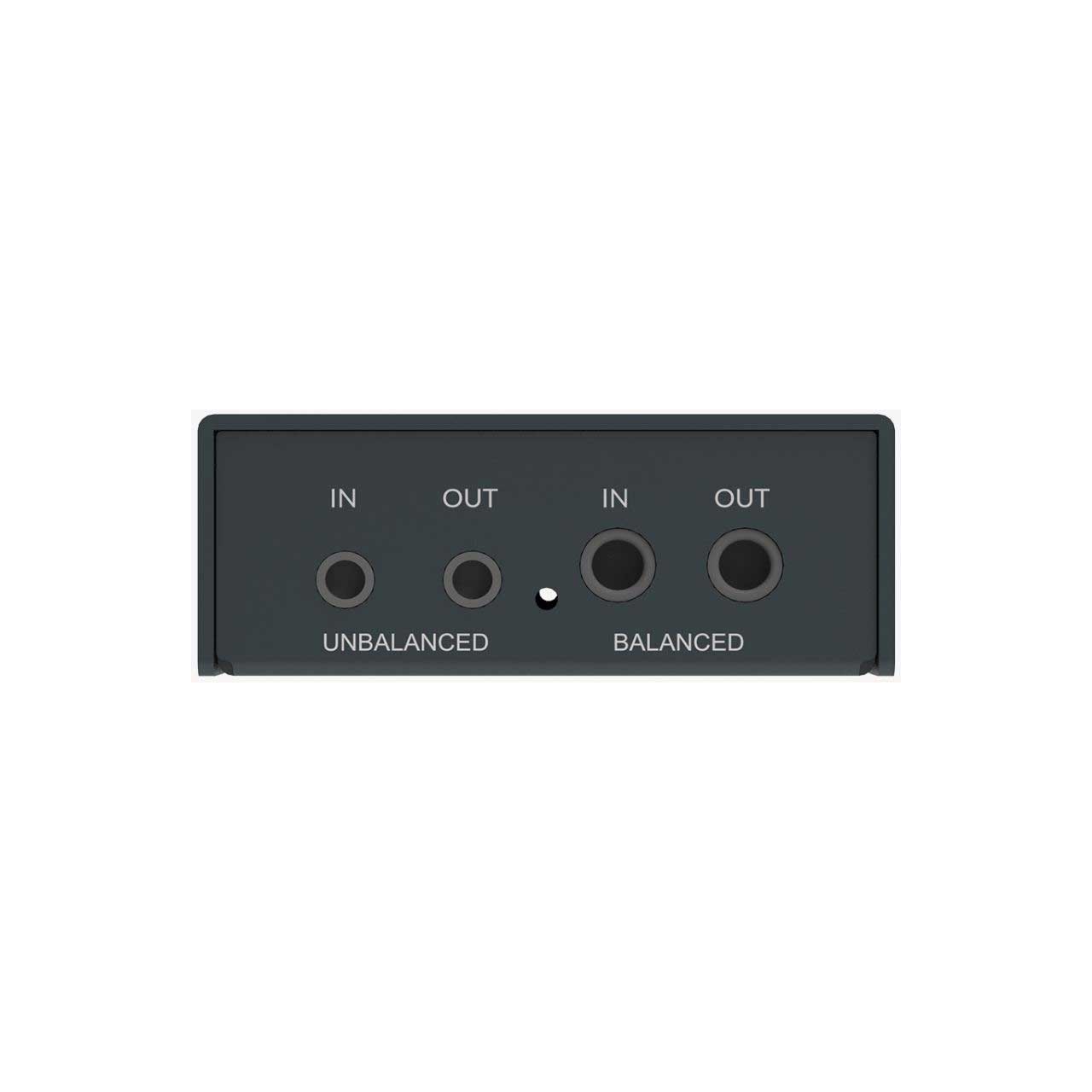

  • 3.5mm TRS unbalanced IN/OUT
  • 4.4mm TRRRS balanced IN/OUT

    On-board Control Buttons
  • 16 Position Rotary DIP Switch: set board-index from 0 to F

    Power Consumption
  • 5V max current: ~ 1 A
  • Max power consumption: ~ 5 W

    Working Environment
  • Operating temperature: 0 to 40 deg C
  • Storage temperature: -20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing

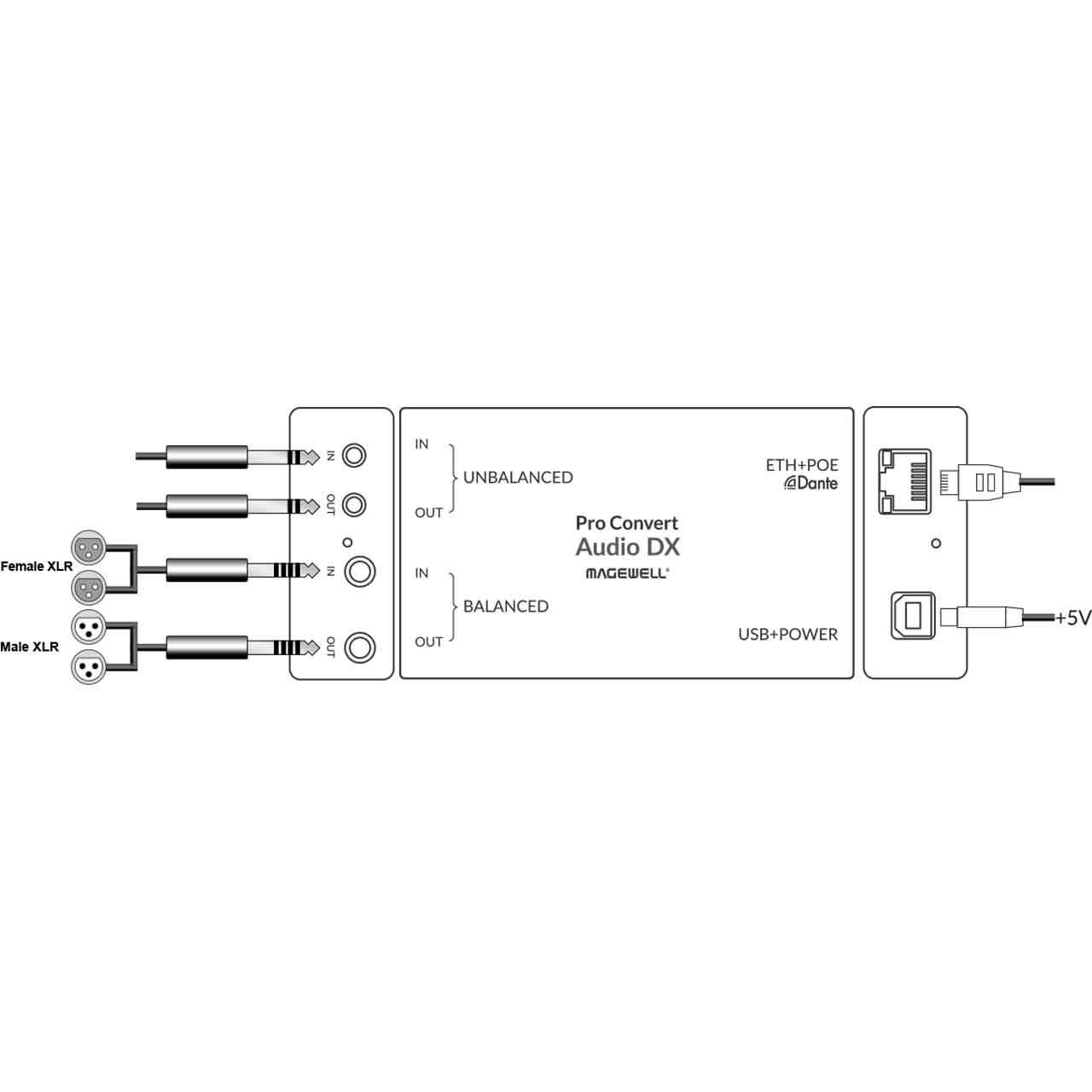

• Item Includes:

  • 1x 4.4mm (1/4" TRRRS) to Dual XLR Male Cable
  • 1x 4.4mm (1/4" TRRRS) to Dual XLR Female Cable
  • 1x USB 2.0 cable (Type A to Type B)
  • 1x Universal power adapter
  • 1x L bracket
