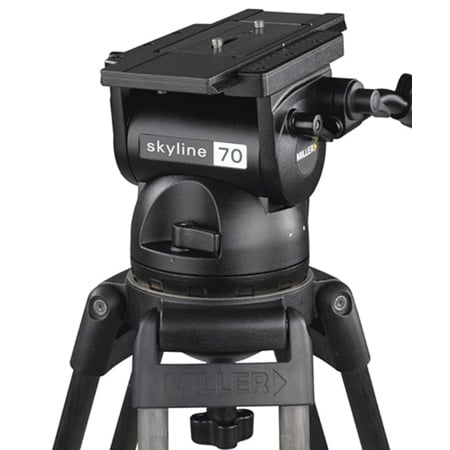

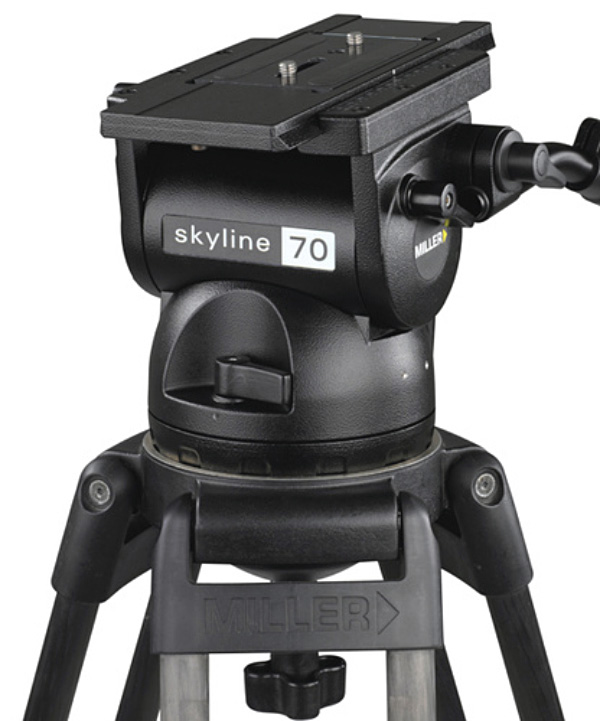

Miller 1050 Skyline 70 Fluid Head

ITEM #: MIL-1050 MFG #: 1050

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MIL-1050

1050 - Overview

Robust support for Sport, Studio, EFP and Outside Broadcast

Skyline 70 fluid head provides robust, reliable and versatile 150mm ball levelling support for lighter weight sports, studio, EFP and outside broadcast productions. A new counterbalance system and quick release 120mm sliding plate offer easy balancing for wide payloads from 4.5 to 37.5 kg. An extended drag range from ultra light to heavy supplies true fluid action, soft take offs, smooth stops with no over runs plus safety tilt lock ensuring payload protection.

  • Features:

    • Payload range from 4.5-37.5 kg / 9.9-82.5 lbs
    • Quick release, 120mm sliding camera platform with large Euro camera plate
    • 7 (plus zero) positions of selectable fluid pan and tilt drag
    • 8 positions of selectable counterbalance
    • 150mm ball levelling
    • Easy to operate rear facing illuminated controls
    • Dual side mounts for viewfinders and accessories

  • Specifications:

    • Weight: 6.0 kg (13.2 lbs)
    • Payload range: 4.5-37.5 kg (9.9-82.5 lbs)
    • Pan drag: 7 selectable fluid drag positions + 0
    • Pan range: 360 deg
    • Pan lock: Calliper disc brake system
    • Tilt drag: 7 selectable fluid drag positions + 0
    • Tilt angle: +90 deg/-75 deg
    • Tilt lock: Calliper disc brake system
    • Counterbalance: 8 selectable positions
    • Camera platform: Quick release camera plate with 2 x 3/8" screws
    • Sliding range: 120 mm (4.7")
    • Height above bowl: 190 mm (7.5")
    • Mounting base: 150 mm (5.9") ball levelling
    • Illuminated controls: Bubble level
    • Safety lock: Quick release tilt lock pin
    • Temperature range: -40° to +65 deg C (-40 deg to +149 deg F)
    • Pan handle: Telescopic x 2, 390 to 590 mm (15.4 to 23.2")

  • GTIN:

    9354041000538
