Mipro AT-90W Wideband Extension Antenna
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

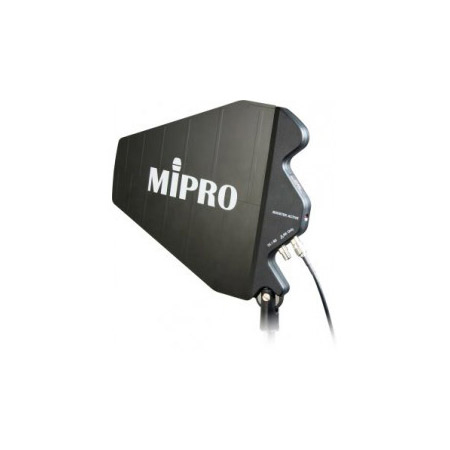

    Mipro AT-90W Wideband Extension Antenna

    Manufacturer: Mipro Electronics

    Item #: MIP-AT-90W   •   MFG #: AT-90W


    List Price:$790.00
    Our Price:$579.40

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • Special Order Item: non-cancelable, non-returnable, non-refundable.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    The AT-90W is a bi-functional log wideband antenna for professional receiving and transmitting. It enhances signal pickup and transmission for MIPRO UHF wireless receivers operating in the 480MHz to 1GHz frequency range and is compatible with US FCC regulations. It has a 4 - 6dBi highly directional pattern which is ideal for tough RF environments requiring strong off axis rejection.

    The AT-90W has two input connectors which can be connected to transmitters and receivers directly. The RX connector has a built in 12dB high gain booster, enabling extended operating ranges and reliability. The TX connector is passive. These two functions offer users a performance option tailored for their actual system requirements.
    The 9 volt excitation for the booster is derived from the coaxial cable connected to MIPRO AD-707 and AD-707a antenna dividers or ACT-Series receivers or IEM transmitters.
    The AT-90W comes with MS-10 mounting brackets, is water-proof and is ideal for both indoor and outdoor professional wireless applications.

    • Features

      • Passive or Active operation
      • Operates in the 480MHz to 1GHz frequency range
      • 1 pair
      • Waterproof
      • Shipped with MS-10 mounts
    • Specifications

      • Frequency Range: UHF 480~1000MHz
      • Antenna Gain: 4 - 6 dBi
      • Booster Gain: 12 dB ±1dB (RX Connector), 0 dB (TX Connector)
      • VSWR (voltage standing wave ratio): =2:1 (RX Conector), =2:1 (TX Connector)
      • Coverage: 75° Vertical, 130° Horizontal
      • Connector: TNC Female - 2
      • Dimensions: 319(W) x 270(H) x 25(D) mm / 12.6(W) x 10.6(H) x 1(D) inches
      • Weight: 1430g / 15.2oz.
