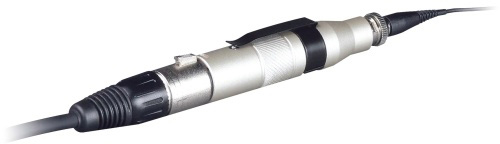

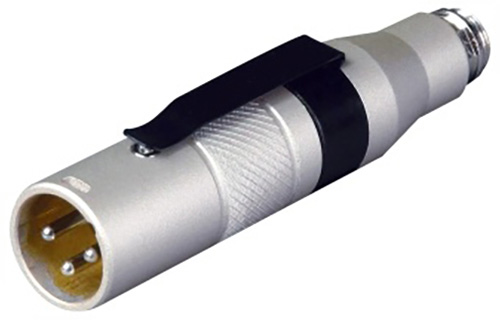

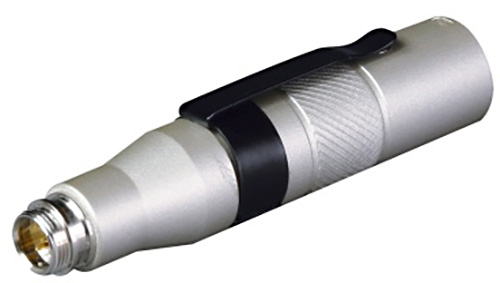

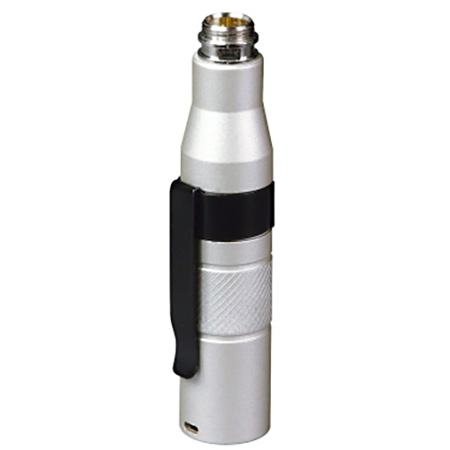

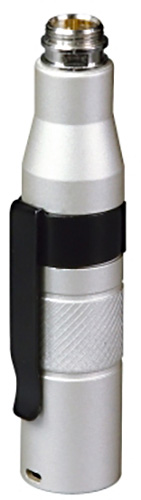

Mipro MJ-53 Mini-XLR to XLR Adaptor Convert any Mipro Mini-XLR Terminated Lavalier or Headworn into a Wired Mic

ITEM #: MIP-MJ-53 MFG #: MJ-53

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with Minimum Order Banner

List Price:

$48.00

Our Price:

$34.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    MJ-53 - Overview

    The Mipro MJ-53 enables a condenser microphone with mini XLR plug to connect directly to the XLR jack input of a mixer which provides 12 ~ 48 V DC phantom power. The high output impedance of a condenser microphone will be transformed to low output impedance at about 200 Ohms.

    • Features:

      • Balanced output for wide frequency response
      • Suitable for any mixer input due to constant output impedance
      • High S/N ratio prevents noise interference in long distance transmission
      • High dynamic range ensures accurate output level
      • No overload distortion under high SPL input
      • Mini XLR connector for input and XLR connector for output
      • Belt clip for easy wearing
      • Rugged metal housing ensures a long operating life

    • Specifications:

      • Frequency Response: 80 Hz (-3 dB) ~ 20 kHz (0 dB) @ 94 dB SPL
      • Output Impedance (Balanced): 200 Ω @ 1V / 1 kHz
      • Max. Output Voltage: 2.52 V @ 1% T.H.D. 1 kHz
      • Dynamic Range: 120 dB (A-weighting)
      • Power Supply: Phantom Power: 12 ~ 48 V DC | Current Drain: 2.0 mA
      • Current Drain: 2.0 mA
      • Dimensions (ø × L): 0.7 × 3.6 inch / 19 × 92 mm
