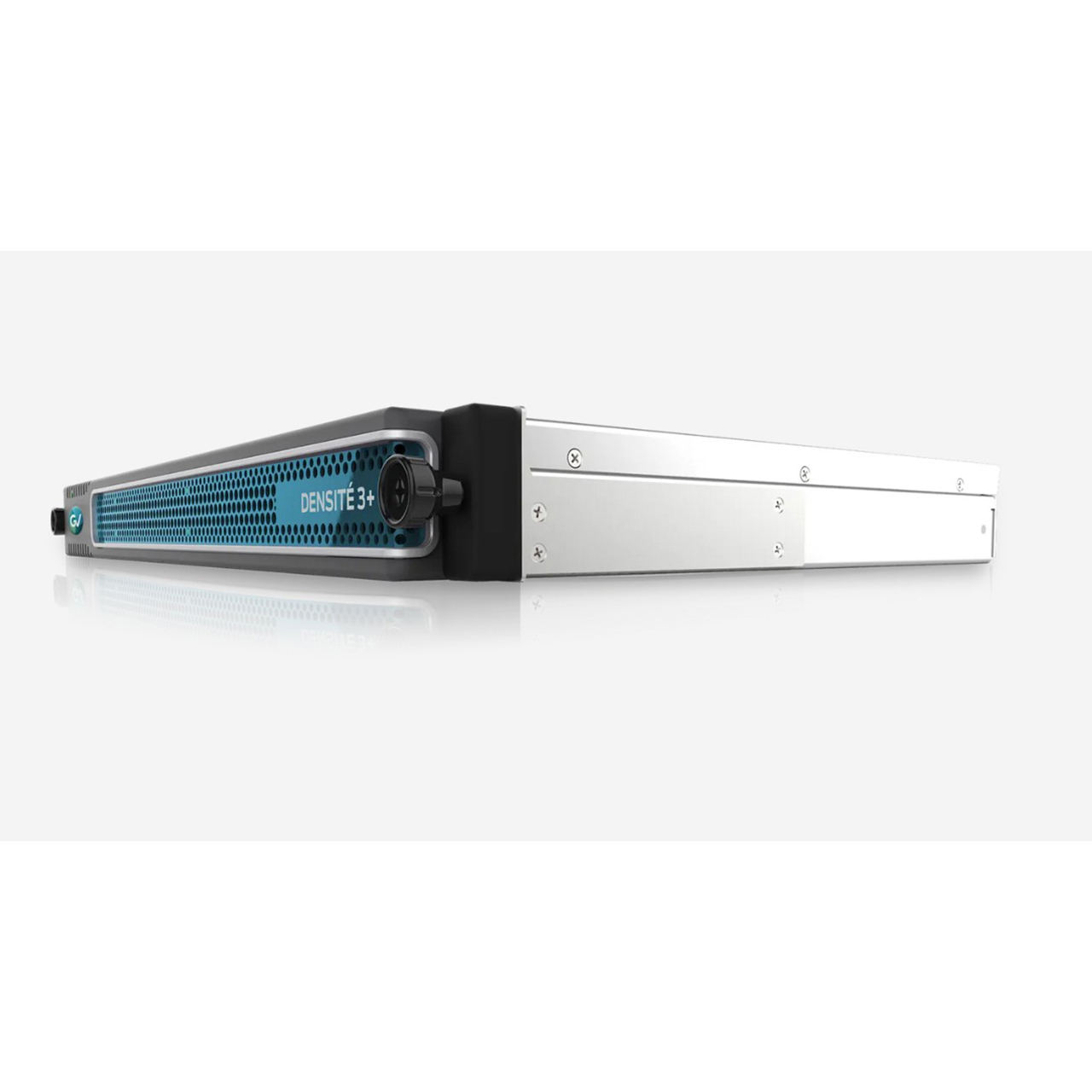

1RU Modular Frame, 4 slots, 2 Power Supplies, Controller card with redundant Ethernet ports and front control panel, blank rear panels.
The 1RU Densit 3+ FR1 Frame offers true multiformat operation, with the ability to process simultaneously 3Gbps, D, SD, and analog video, as well as AES and analog audio. The frame provides advanced monitoring and backup capabilities. It can be fitted with 3RU and 2RU Densit‚ modules (using card extenders). The frame features dual hot swappable power supplies and fans. The modules for the frame are also hot swappable. The frame is air-cooled and all modules, redundant PSUs and fans are monitored to provide status via GPI or the Ethernet port. The basic frame configuration includes twoPSU's and a CPU-ETH2 controller card, which allows card adjustments by the front panel. Front panel multi-color LEDs provide status reporting.
-
- Multiple video and audio formats can be fitted in a single chassis
- Up to 4 cards in a single 1RU frame, including an additional system slot
- Low noise operation
- Backwards compatible with Densit‚ 2 or Densit‚ 3 modules
- Easy configuration by front panel or remotely via Ethernet
- Remote control by RCP-200 advanced control panel, and by PC-based iControl
- Hot swappable power supply, with optional redundant power supply
- Supports full range of interfacing, distribution and monitoring modules
- Can be stacked without additional cooling spaces
- Redundant Ethernet connection
-
Mechanical- Dimensions: 1RU x 19" x 11.25" with connectors
- Weight: 7.2lbs with 1 PSU and controller card install
Power - Input Range: AC 50/60Hz, 100V - 240V
- Rating: 150W max
- Operating Temp. Range: 32°F - 104°F (0°C - 40°C)
- Alarm: GPI contact
Control and Monitoring - Communication Ports: 2x Ethernet 10/100 BASE-T
Cooling - Fans 2 on frame, serviceable with 1 on each PSU
- All technical and compliance specifications are subject to change without notice
-
- Densit‚ 3+ FR1 frame, including 1 Power Supply unit (AC in) with power cord
- CPU-ETH2 controller card
- Power cord retaining clips (2)
- A second power supply
