Jackreel Deluxe MKR-1-1694F-100 Single Channel Belden 1694F BNC Cable Reel - 100 Foot

ITEM #: MKR-1-1694F-100 MFG #: MKR-1-1694F-100

Primary Image

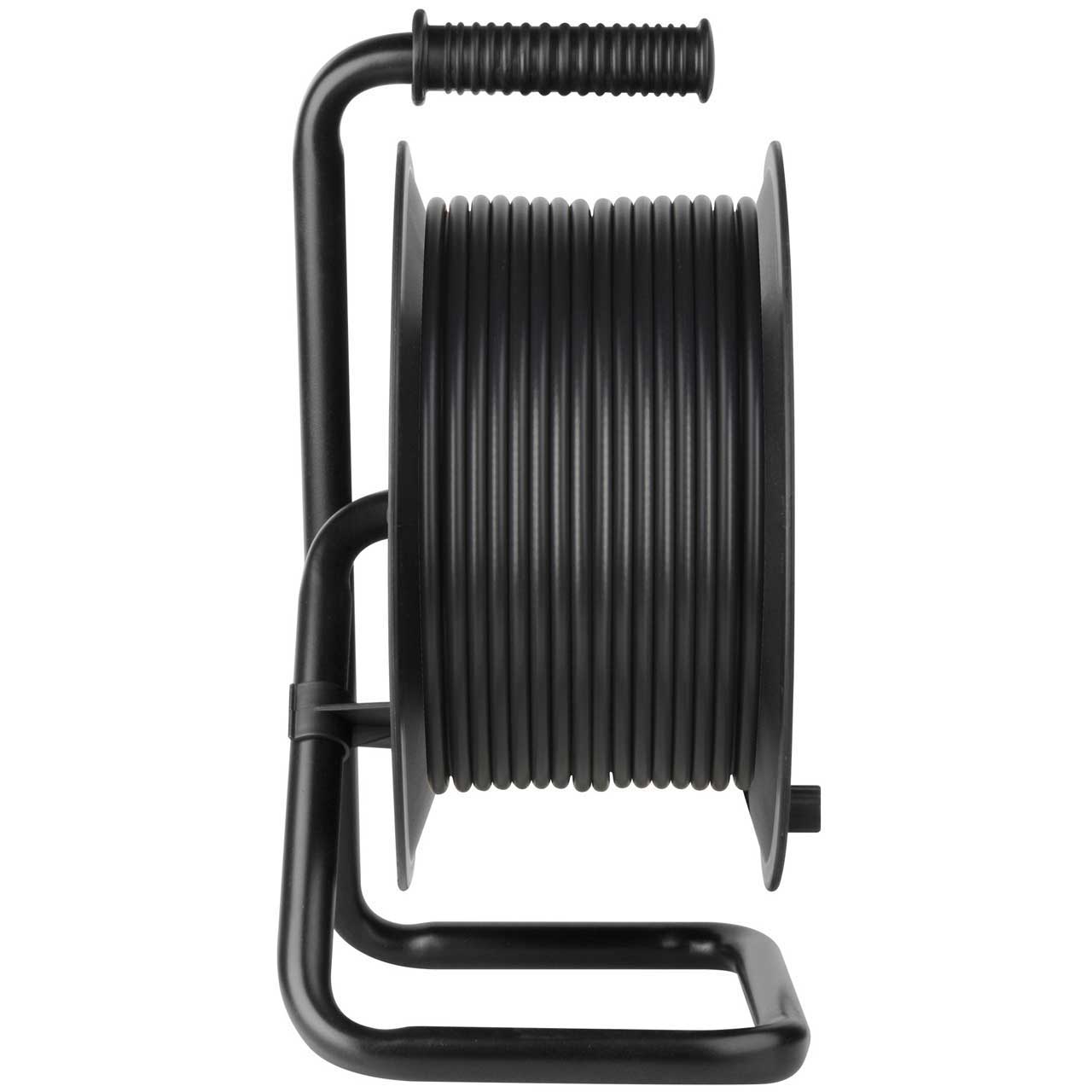

  • Product Image Thumbnail 1 of 5

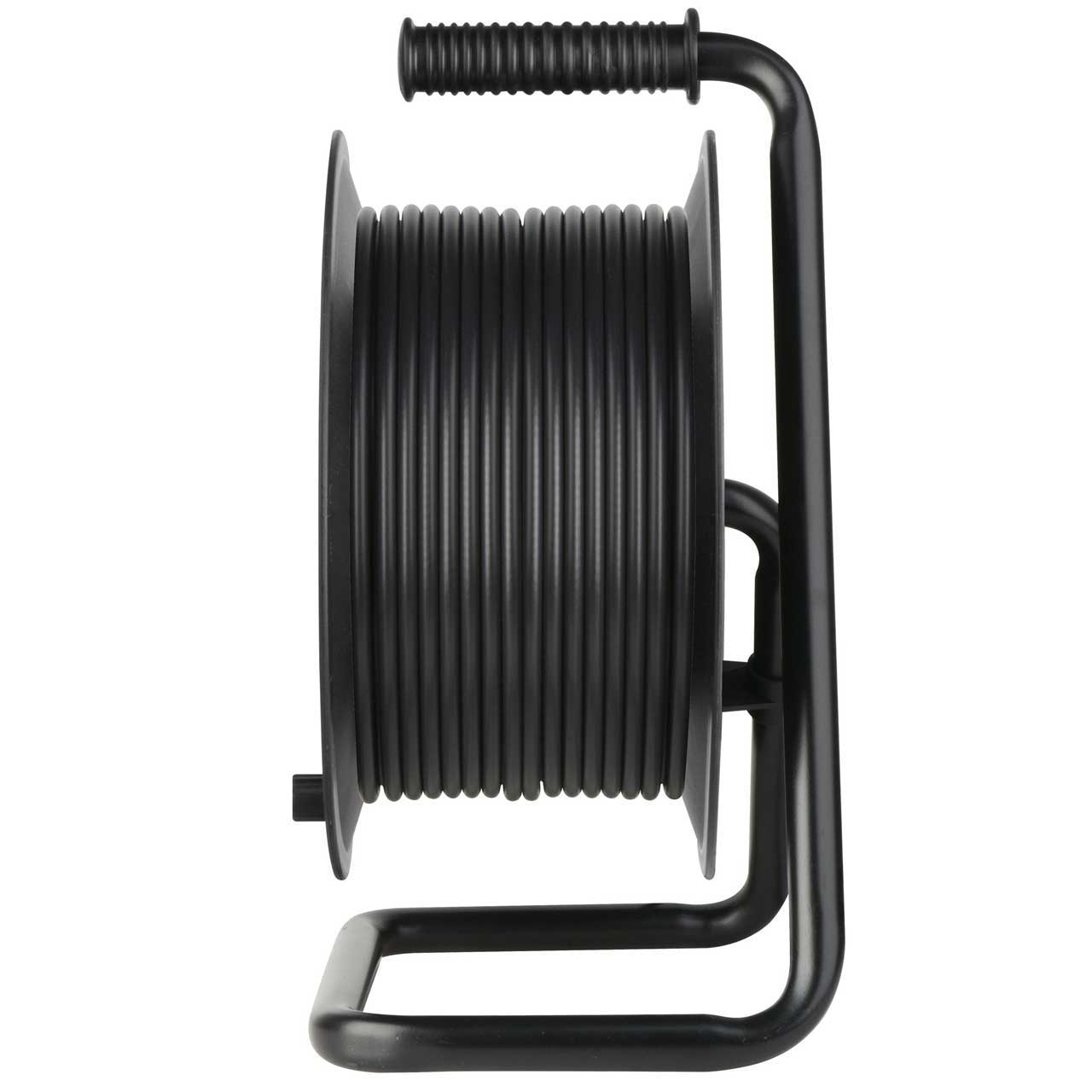

  • Product Image Thumbnail 2 of 5

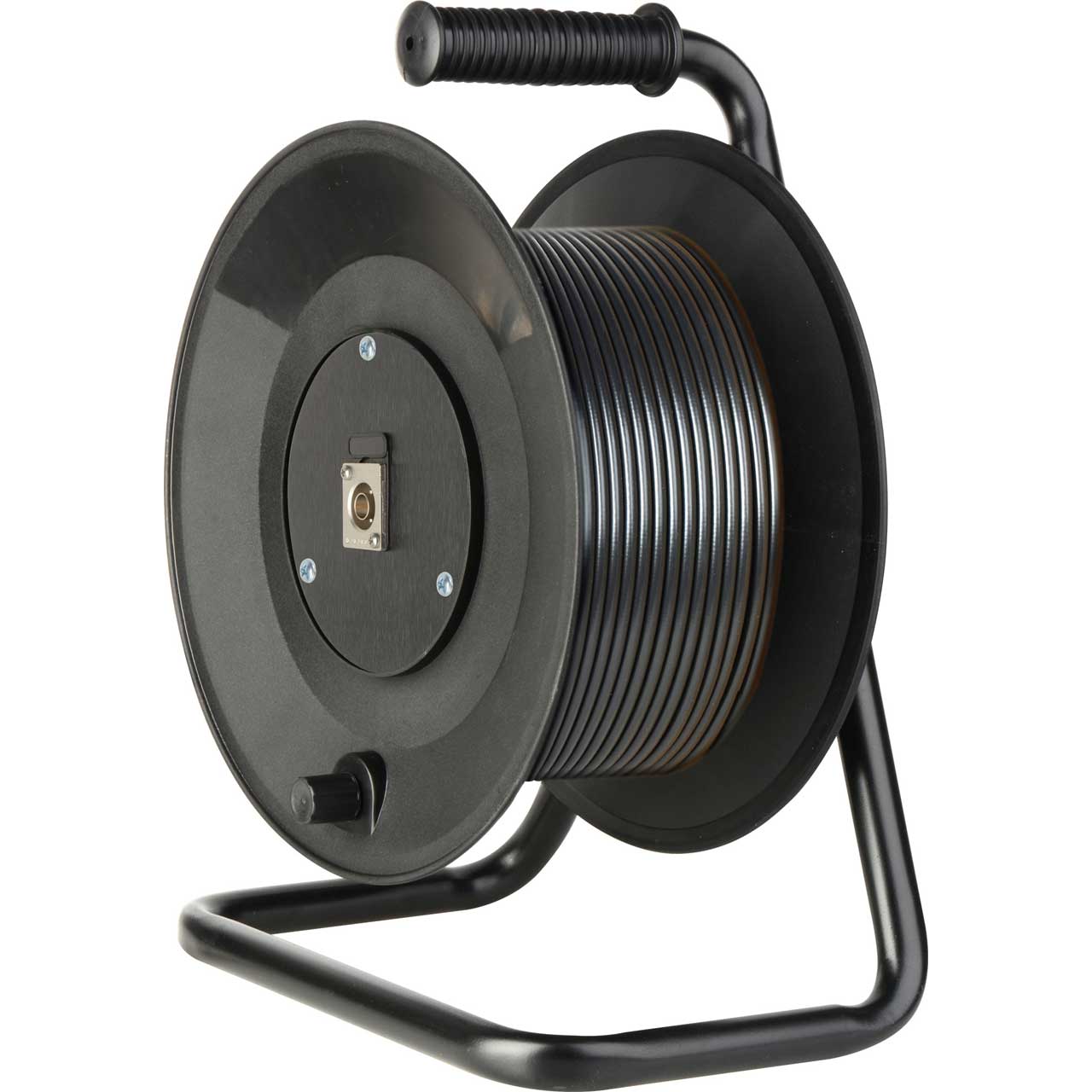

  • Product Image Thumbnail 3 of 5

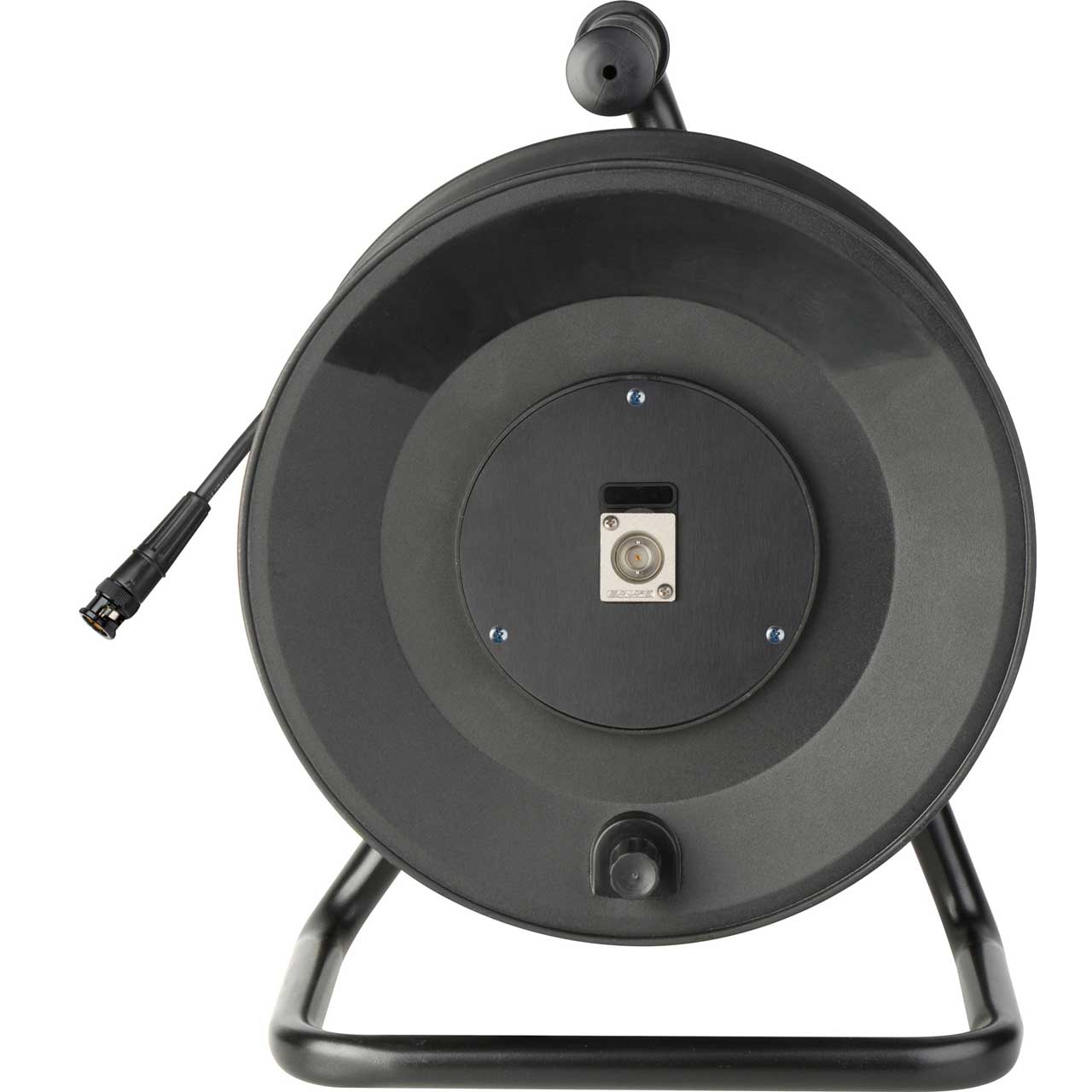

  • Product Image Thumbnail 4 of 5

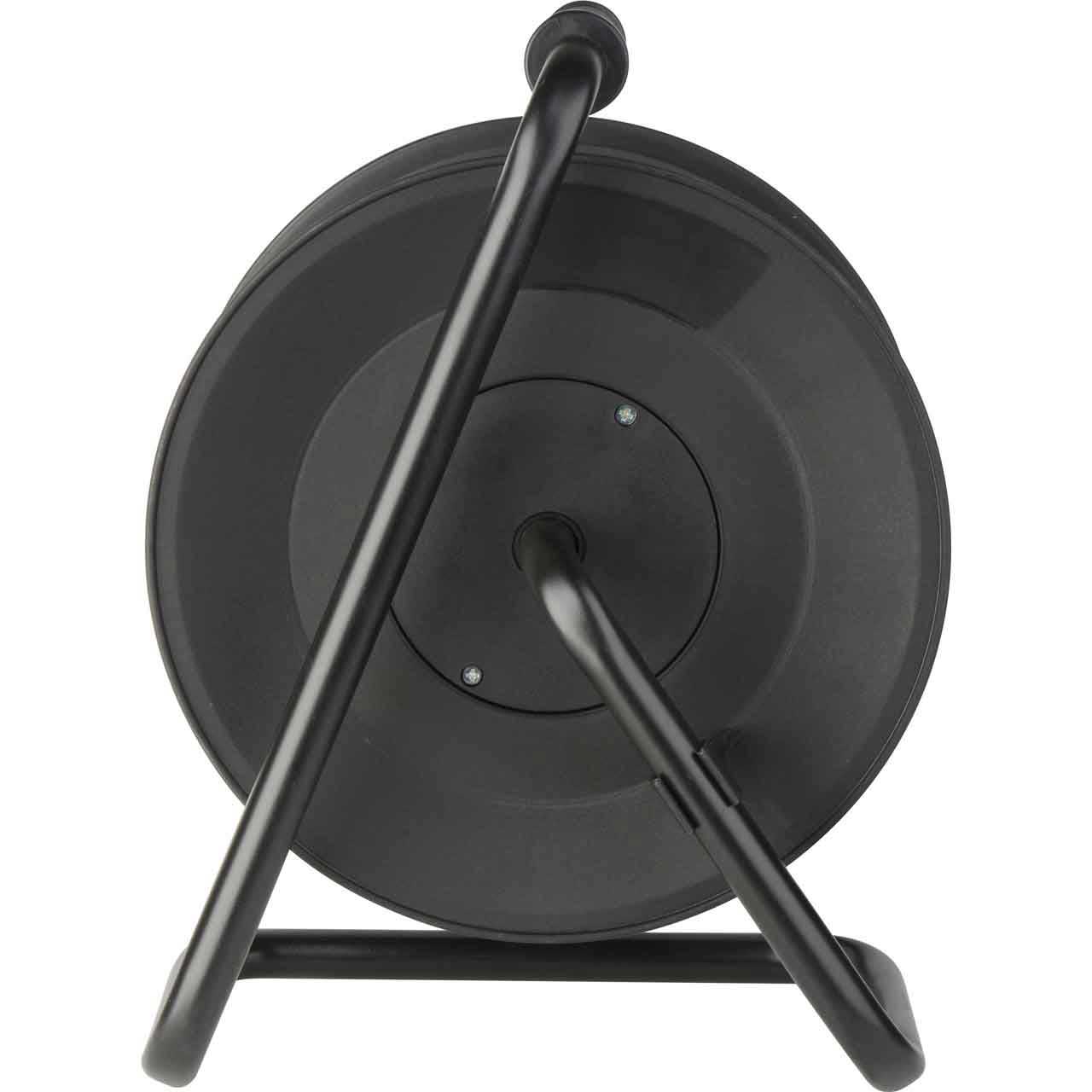

  • Product Image Thumbnail 5 of 5
JackReel Cable Reels
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$249.95

Our Price:

$229.95

Add to Wish ListLeasing Options
Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    MKR-1-1694F-100 - Overview

    Built on JackReel infrastructure, the MKR-1-1694F series delivers instant deployment of the flexible Belden 1694F RG6/U BNC video cable in studios, trucks, and especially in the field. Use the handy rewind knob to instantly coil up the cable when you're done. The cable keeps its natural shape without bending or crimping, thus extending its life.

    Industry standard Belden Precision Digital Coax Cable is paired with premium Trompeter BNC connectors. The MKR-1-1694F is lightweight yet extremely rugged with an injection molded structural plastic that can withstand years of field use!
    Please Note: Customized JackReels for various lengths are never a problem. To exceed the cable capacity distance shown, a larger capacity cable reel may be required. Please contact us for a quotation.

    • Features:

      • Belden 1694F RG-6/U Flexible Precision Digital Coax Cable
      • JackReel-3 High-Capacity Cable Reel
      • 75 Ohm Trompeter BNC Connectors


    • Specifications:

      • Belden 1694F:
      • AWG: 19
      • Stranding: Stranded
      • Material: BC - Bare Copper
      • Nominal Diameter: 0.04 in
      • No. of Coax: 1
      • Nominal Conductor DCR: 8.5 Ohm/1000ft
      • R Nominal Outer Shield DCR: 1.7 Ohm/1000ft
      • Outer Conductor DCR: 1.7 Ohm/1000ft
      • Nom. Capacitance Conductor to Shield: 7.0 pF/ft
      • Nominal Inductance: 0.106 æH/ft
      • Nominal Characteristic Impedance: 75 Ohm
      • UL Temp Rating: 75°C
      • Operating Temp Range: -30°C To 75°C
      • Max Recommended Pulling Tension: 90 lbs
      • Min Bend Radius/Minor Axis: 2.75 in
        Jackreel-3:
      • Center Hub Diameter: 4.75"
      • Center Hub Depth: 5"
      • Outer Hub Diameter: 10.75"
      • Overall Reel Height: 15"
      • Feed-Through Hole Diameter: 0.469"
