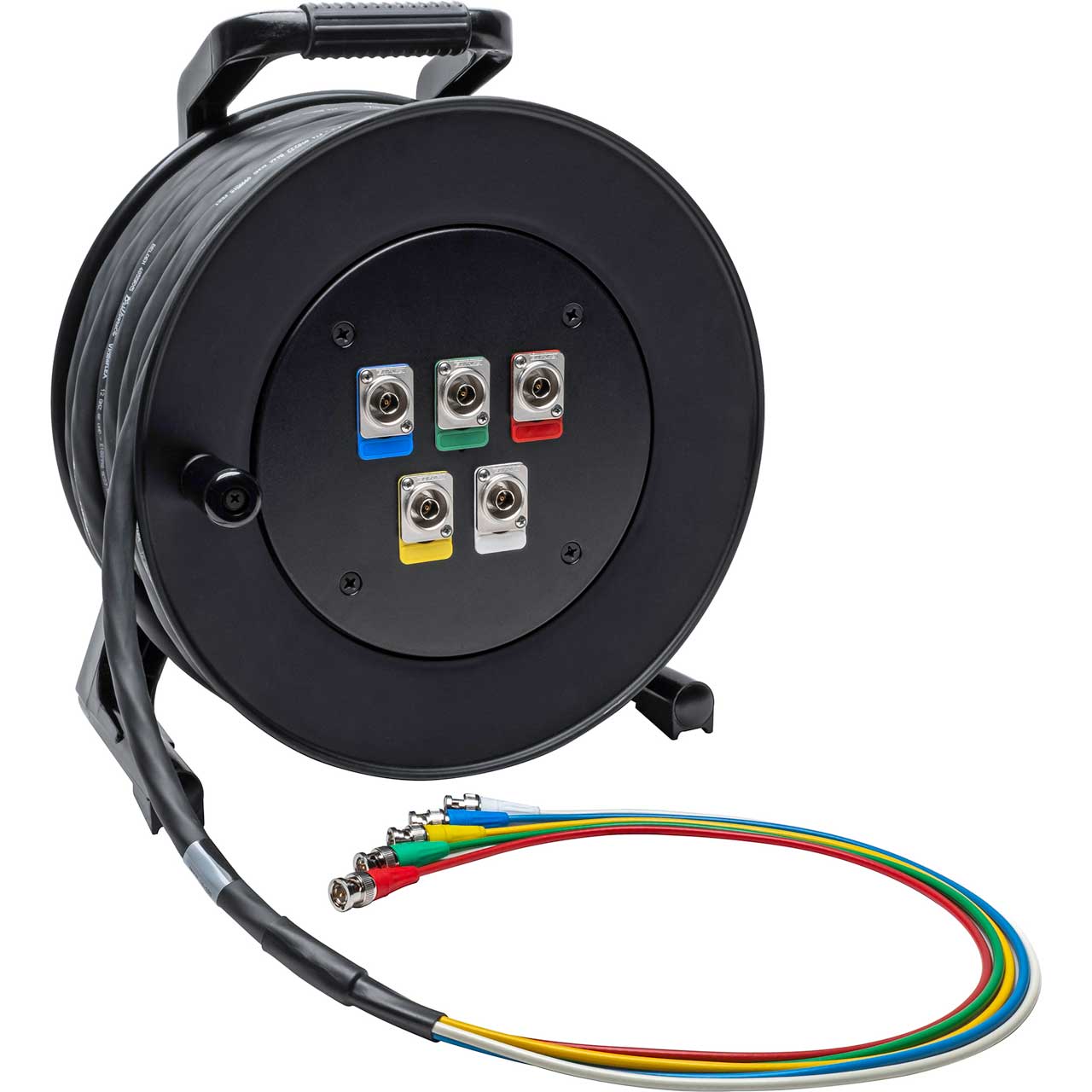

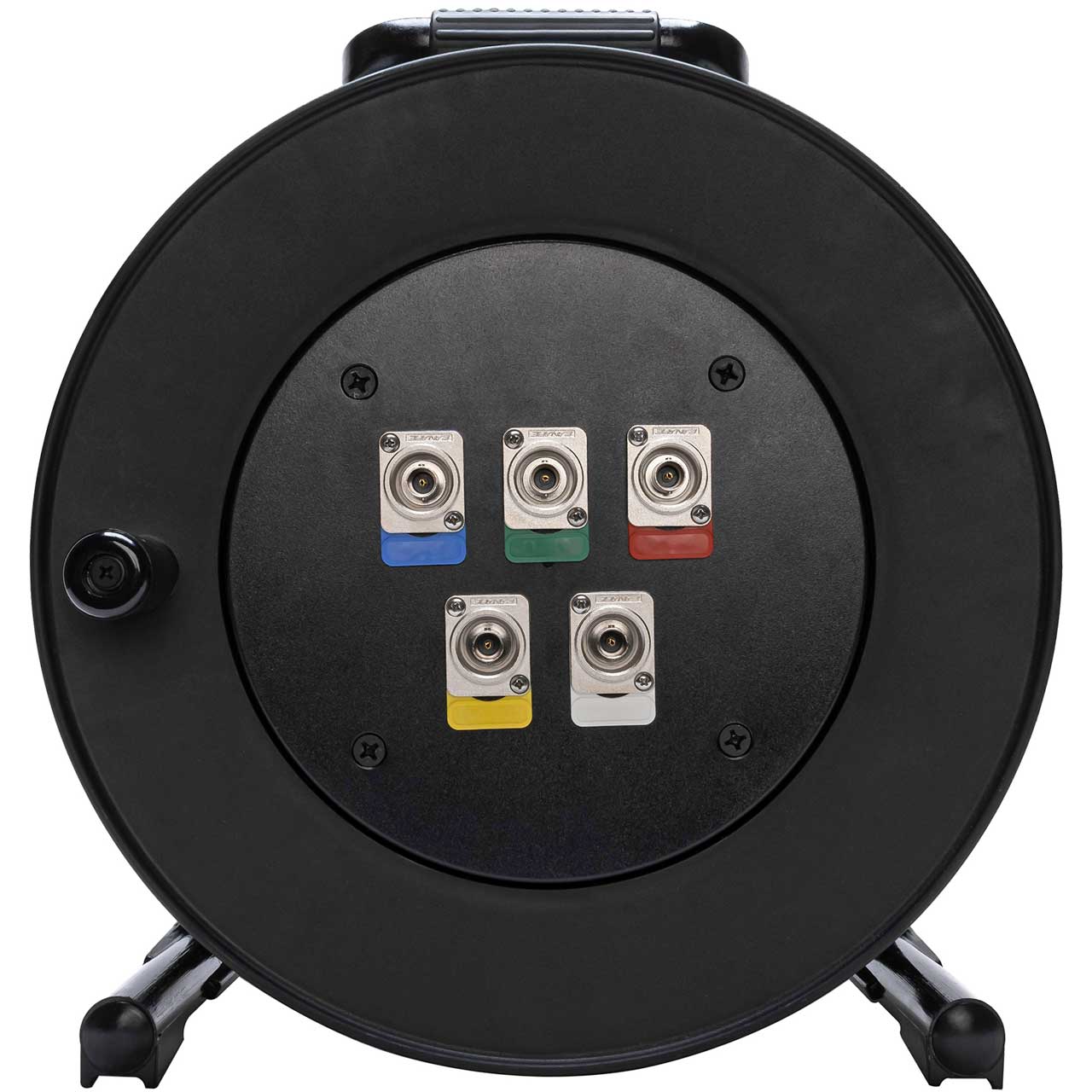

MKR-15-100 RG59 12G-SDI/4K UHD 5-Channel BNC Male Snake Reel - Black - 100 Foot

ITEM #: MKR-15-100 MFG #: MKR-15-100

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,255.49

Our Price:

$1,129.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    MKR-15-100 - Overview

    Built on a JackReel infrastructure, the MKR-15-100 delivers instant deployment of a Belden 4855RX5 12 GHz 5 coax 4K UHD precision video cable in studios, trucks and especially in the field. Use the handy rewind knob to instantly coil up the cable when you're done. Cable keeps its natural shape without bending or crimping, thus extending its life.

    The finest Canare and Belden audio and video cable is utilized with premium connectors. Integrated recessed Neutrik and Canare panel mount connectors built into the center of the reel make interfacing a snap. The reel is a lightweight yet extremely rugged injection molded structural plastic that will take years of abuse. Perfect for rental houses!

    Please Note: Customized Jackreels for various lengths are never a problem. To exceed the cable capacity distance shown, a larger capacity cable reel may be required. Please contact us for a quotation.

    • Features:

      • Laird 4855RX5-BB-100 on a JACKREEL-F4
      • Each Channel Rated 12G-SDI
      • Flexible Cable Suitable for Studio or Field Applications
      • Color-Coded Strain Relief Boots for Fast Identification
      • Quick Connect/Disconnect with Bayonet Coupling
      • Meets 2082-1, 2081-1, and 424M Standards

    • Specifications:

      • Laird 4855RX5-BB-100
      • 23 AWG Mini Coax CMR Cable with PVC Jacket
      • Silver-Plated Copper Stranding
      • Tinned Copper Braid
      • Gas Injected FHDPE Insulation
      • Impedance 75Ω
      • Capacitance: 16.3 pF/ft
      • Nominal Inductance: 0.107 ΜH/ft
      • Overall Min Bend Radius: 5.4 in / Each Coax Min Bend Radius: 1.6 in
      • Nickel Plated BNC Connectors
        JackReel F4:
      • Cable Drum Hub Optimized for Critical Bend Radius of Fiber Optic Cables
      • Holds up to 1,500 Feet of 0.118 O.D. Cable
      • Rear Thumb-Wheel Hub Lock
      • Ergonomic Cushion Grip Carry Handle
      • Physical Weight: 4.85 pounds
      • Hub Diameter: 6.5"
      • Outside Hub: 12.5"
      • Foot Base Width: 10.6"'
      • Overall Height: 14.3"


    MKR-15-100 - Required Accessories
