Motu STAGE-B16 16 Channel Stagebox and Audio Interface

Manufacturer: Motu

Item #: MOTU-STAGE-B16   •   MFG #: STAGE-B16




Our Price:$1,695.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    16-input stage box and audio interface with DSP, mixing, Wi-Fi control, and studio-quality analog performance

    From the most critical and demanding studio environments to the world's biggest stages, the Stage-B16 delivers the same superb analog quality as MOTU's new line of award-winning audio interfaces, in a rugged stage box form factor with powerful, flexible AVB networking

    Three products in one

    Stage box
    16-input stage box with AVB Ethernet "digital snake" connectivity.

    Rackmount Mixer
    DSP-equipped 48-input 12-bus digital mixer with wireless control.

    Audio interface
    Universally compatible USB audio interface for Mac and Windows.

    The Stage-B16 sets a new standard for analog audio performance in a stage box. The 8 XLR analog outputs deliver a stunning 123 dB DR, a level of measured performance normally found only in products costing thousands.

    Digitally controlled analog preamp gain provides accurate adjustments in 1 dB increments from web app software running on your laptop, tablet or smartphone, with the ability to save gain settings.

    The 16 individual mic preamps deliver 117 dB dynamic range (DR), with -110 dB THD+N (-1 dBFS, unweighted, 1kHz). Each input is equipped with 63 dB of preamp gain, individual 48V phantom power and -20dB pad.

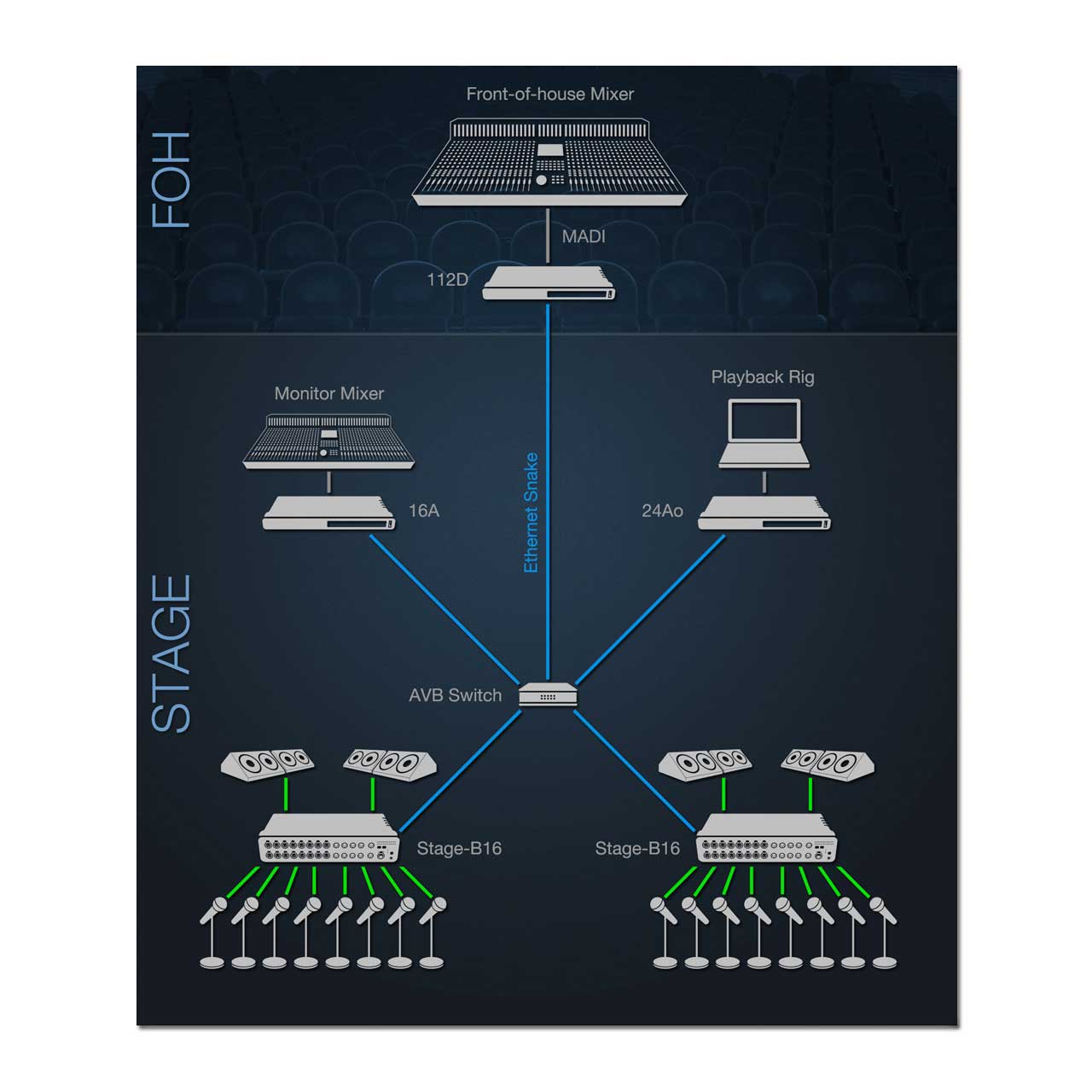

    The Stage-B16 sets a new standard for what it means to be a stage box. With AVB networking technology, you can run mic signals over standard Ethernet cabling to a front-of-house mixing console up to 100 meters away, plus any other destinations on the network, such as the monitor mix console or a computer-based recording rig. For small- to mid-sized applications, the Stage-B16 takes care of all live sound mixing duties, controlled wirelessly from your laptop, tablet or smartphone - all with audio quality that's so good, it belongs in a world-class recording studio.

    The mixer in the Stage-B16 is identical to the mixer found in MOTU's flagship 1248 and 16A interfaces. If you know your way around a large-format mixing console, you'll feel right at home. If you've ever wished to mix on a large console, the driver's seat is now yours.


    • Features

      • Three products in one: 1) DSP-equipped stage box with AVB Ethernet "digital snake" connectivity, 2) 12-bus digital mixer with wireless control and 3) universally compatible audio interface for Mac and Windows.
      • Studio-quality analog performance up to 192 kHz: For example, the XLR analog outputs produce 123 dB dynamic range.
      • 16 studio-grade mic inputs: Each equipped with individual preamps, 48V phantom power and -20dB pad. Also includes eight analog outs on XLRs, 4 channels of AES/EBU output and phones.
      • Precision Digital Trim: Digitally controlled analog preamp gain provides accurate adjustments in 1 dB increments from web app software running on your laptop, tablet or smartphone, with the ability to save gain settings.
      • On-board DSP with mixing and effects: Flexible 48-input digital mixer modeled after large format mixing consoles, with 12 stereo busses and DSP effects, including reverb, 4-band EQ, gate, and compression.

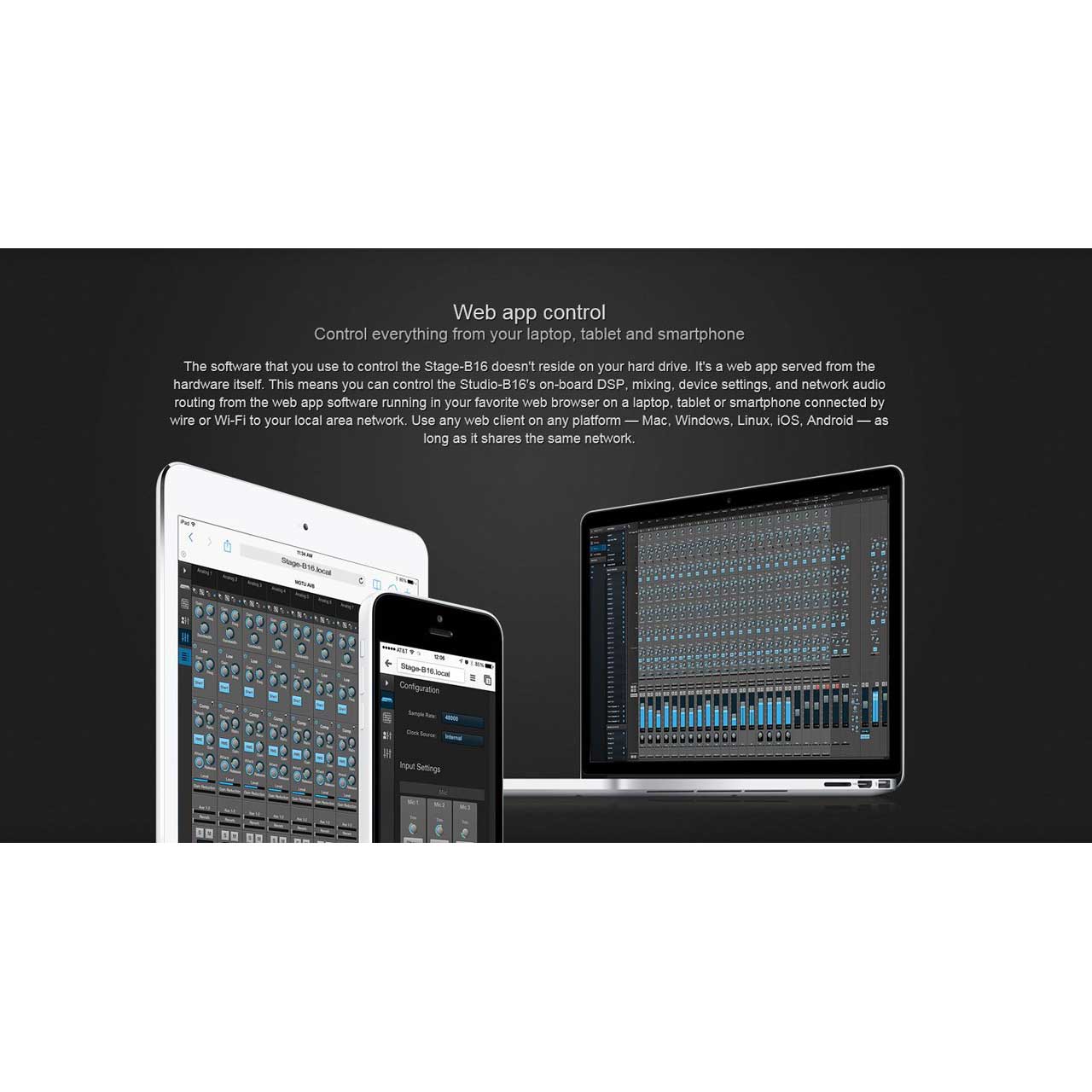

      • Web app control from any device: Control on-board DSP, mixing, device settings, and network audio routing from innovative web app software running in your favorite browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network.

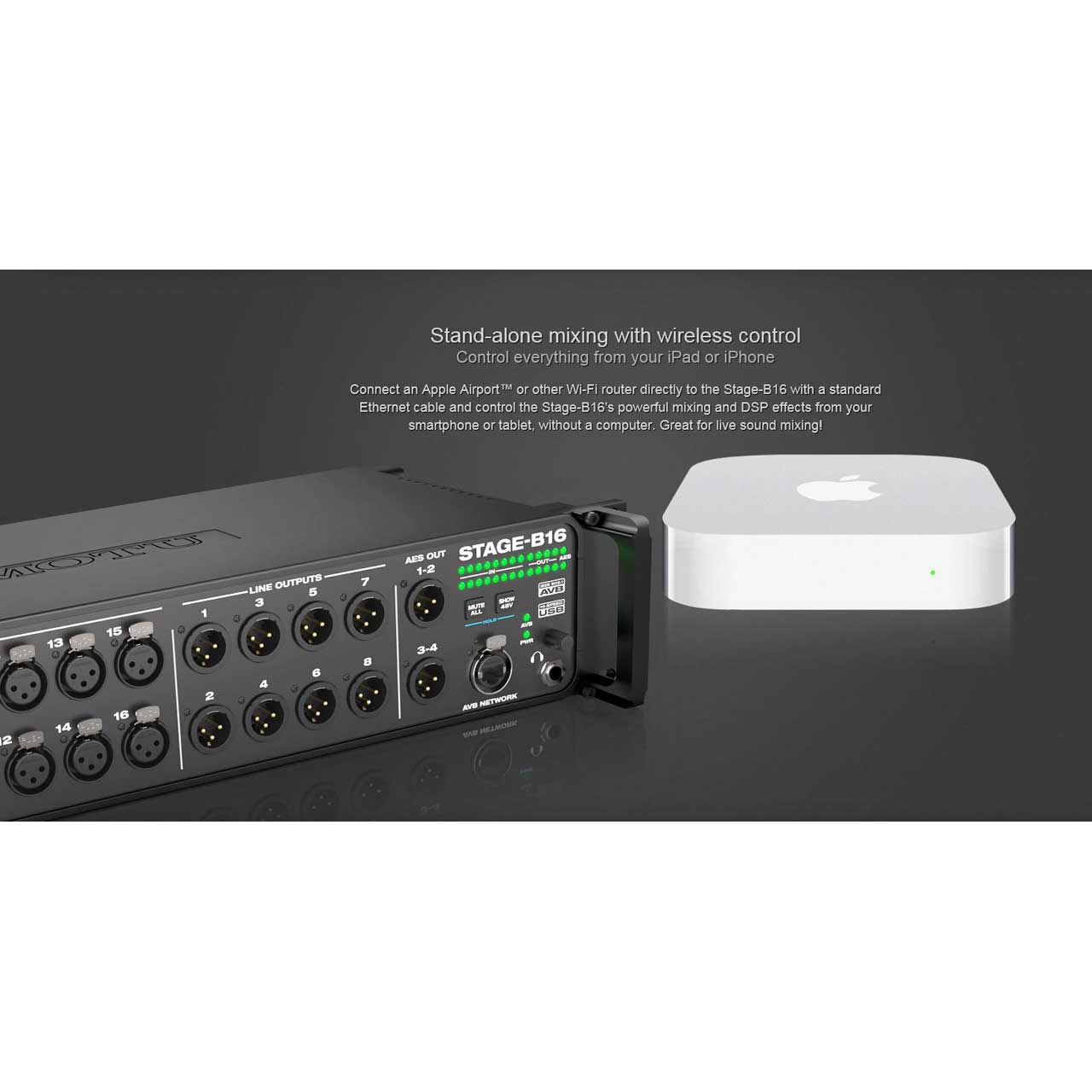

      • Stand-alone operation with wireless control: Connect an Apple Airport or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects from your smartphone or tablet, without a computer.

    • Specifications

      • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
      • Mic inputs: 16 x XLR mic inputs
      • Preamp gain: 0 to +63 dB (digitally controlled)
      • Analog outputs: 8 x XLR line out
      • Max level: +20 dBu (digitally adjustable -4 to +20)
      • 1 x 1/4" TRS stereo headphone
      • Digital output: 2 x XLR female AES/EBU out (4 ch) up to 96 kHz
      • Total I/O: 16 in and 12 out (28 total) at 1x sample rates
      • 16 in and 12 out (28 total) at 2x sample rates
      • 16 in and 8 out (24 total) at 4x sample rates
      • Computer I/O: 1 x USB 2.0 audio class compliant USB 3.0 and iOS compatible
      • 1 x AVB Ethernet (requires OS X Yosemite)
      • Computer I/O channels: USB 2.0 (44.1 to 48 kHz): 64 in/out
      • USB 2.0 (88.2 to 96 kHz): 32 in/out
      • USB 2.0 (176.4 to 192 kHz): 24 in/out
      • AVB Ethernet: 16 to 128 in/out, depending on host computer speed
      • MIDI I/O: 1 x MIDI IN
      • 1 x MIDI OUT
      • 16 MIDI channels to/from computer host
      • Headphone: 1 x 1/4" TRS stereo phone (assignable)
      • Phantom power: 16 x individual +48V
      • Front panel: 1 x 1/4" TRS headphone output
      • 1 x digital rotary encoder - phone volume
      • 2 x switches (1) Mute All and (1) Show 48V
      • 16 x activity LEDs - (16) input, (8) output, (2) AES
      • 1 x female Ethernet 'EtherCon' port
      • 2 x male XLR AES/EBU outputs (4 channels)
      • 8 x male XLR analog outputs
      • 16 x female XLR mic inputs with indiv. 48V/pad
      • Rack-mount brackets and handles (optional)

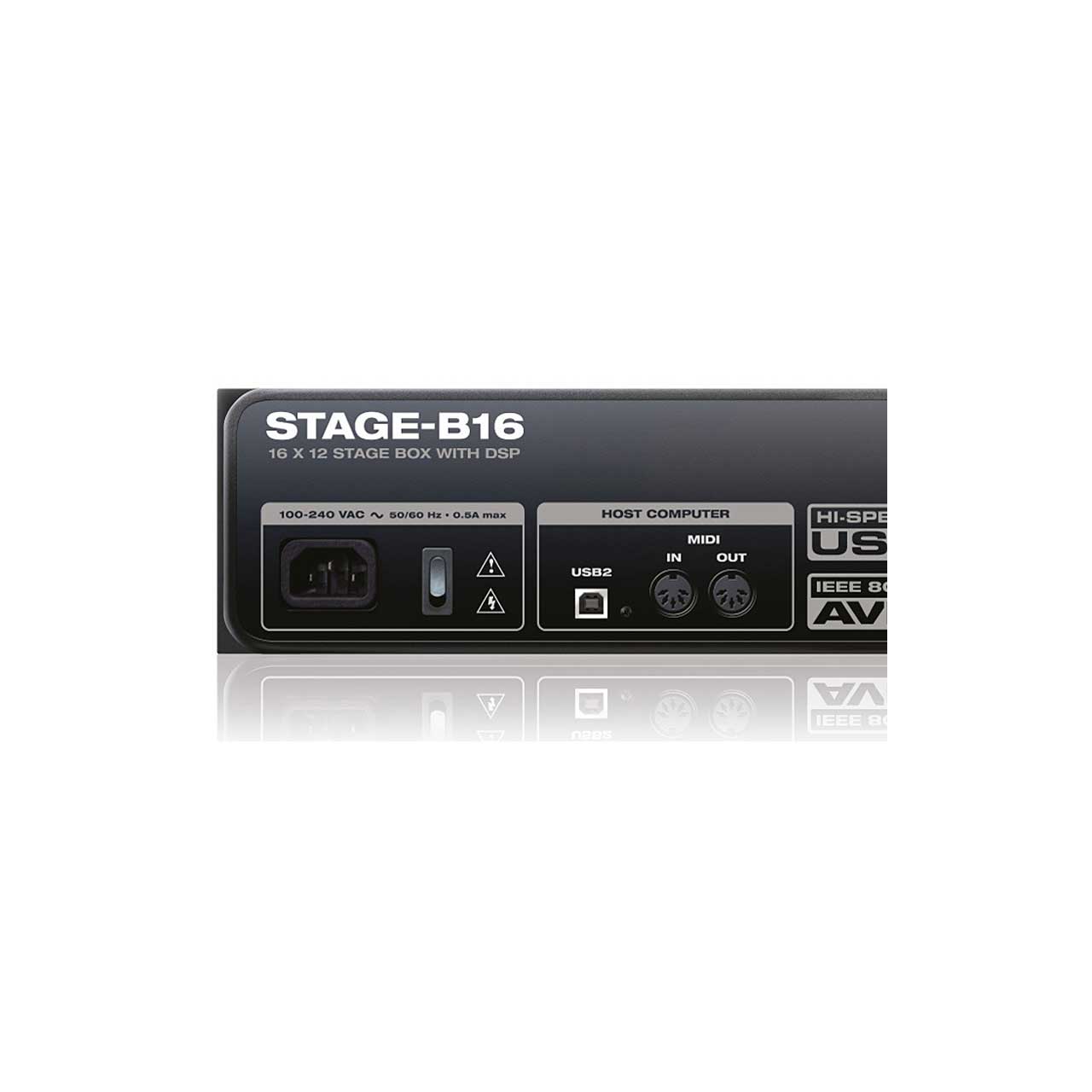

      • Power: International 100-240V autoswitching supply
      • 50-60 Hz - 0.5A max

      • Mac System Requirements
      • 1 GHz Intel-based Mac or faster
      • 2 GB RAM; 4 GB or more recommended
      • Mac OS X version 10.8 or later
      • Available high-speed USB 2.0 or AVB Ethernet port*
      • A large hard drive (at least 500 GB for recording)
      • *AVB Ethernet audio interface operation requires OS X Yosemite

      • Windows System Requirements
      • 1 GHz Pentium-based PC compatible or faster
      • 2 GB RAM; 4 GB or more recommended
      • Windows 10, 8 or 7
      • Available USB 2.0 or 3.0 port
      • Available Ethernet port for firmware updates
      • A large hard drive (at least 500 GB for recording)

      • Web App Support
      • Any web client platform: Mac, Windows, Linux, iOS, Android
      • Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
      • Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi.

      • Included Software
      • MOTU AVB Discovery App for Mac and Windows (finds connected MOTU interfaces)
      • MOTU AVB Discovery App for iOS (available from Apple App Store)
      • MOTU AVB Control web app (served from the hardware itself)
      • AudioDesk 4.0 for Mac & Windows (separate download)

      • Operating Systems
      • For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
      • For web app control: Mac, Windows, Linux, iOS, Android

    • GTIN:

      0839128005990
