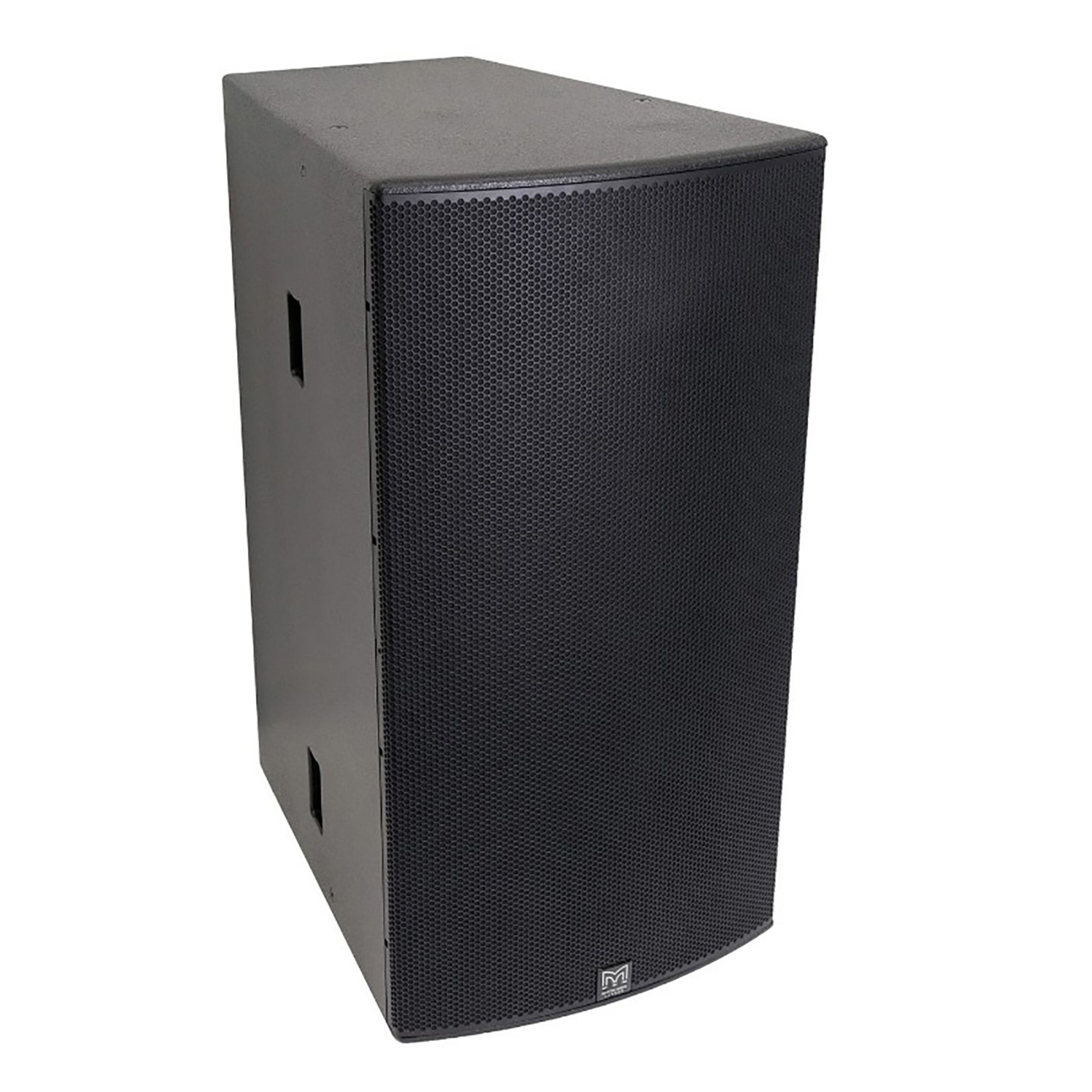

THV is a very high performance, all-horn, three-way system in a single wide-bandwidth package.
Capable of 139dB peak, The Martin Audio THV and THH are very high performance, all-horn, three-way systems. Each is configured in a single, widebandwidth trapezoid package with extended frequency response and very high output capability. They are ideally suited to larger club applications and large-scale installs. THV and THH feature a 15" LF driver, 10" midrange and 1" exit HF compression driver - all horn-loaded. Horn-loading the bass and midrange sections as well as the high frequency section maximises the efficiency of all bands, resulting in exceptional impact and output from a single enclosure. Bi-amp operation, with an internal passive network for the mid/high crossover, ensures the most effective use of available amplifier power. THV is vertically formatted system, while THH is horizontally formatted for installation in venues with low ceiling height.
The Hybrid low frequency section comprises a horn-loaded 15" (380mm)/4" (100mm) voice coil driver that is reflex loaded to extend the LF output to below the natural horn cut-off point. The LF driver features a water resistant cone and triple roll surround for increased excursion.
The mid-horn of the THV has a unique `phase-ball' loading device which maintains the constant directivity characteristics of the horn at the upper end of its range. It is driven by a 10" (250mm) midrange driver with an aluminium demodulating ring for im-proved high-mid clarity and reduced distortion when driven hard. The 70° x 40° HF section of the THV features a neodymium 1" (25mm) exit compression driver with a Kapton diaphragm for high sensitivity and extended HF performance.

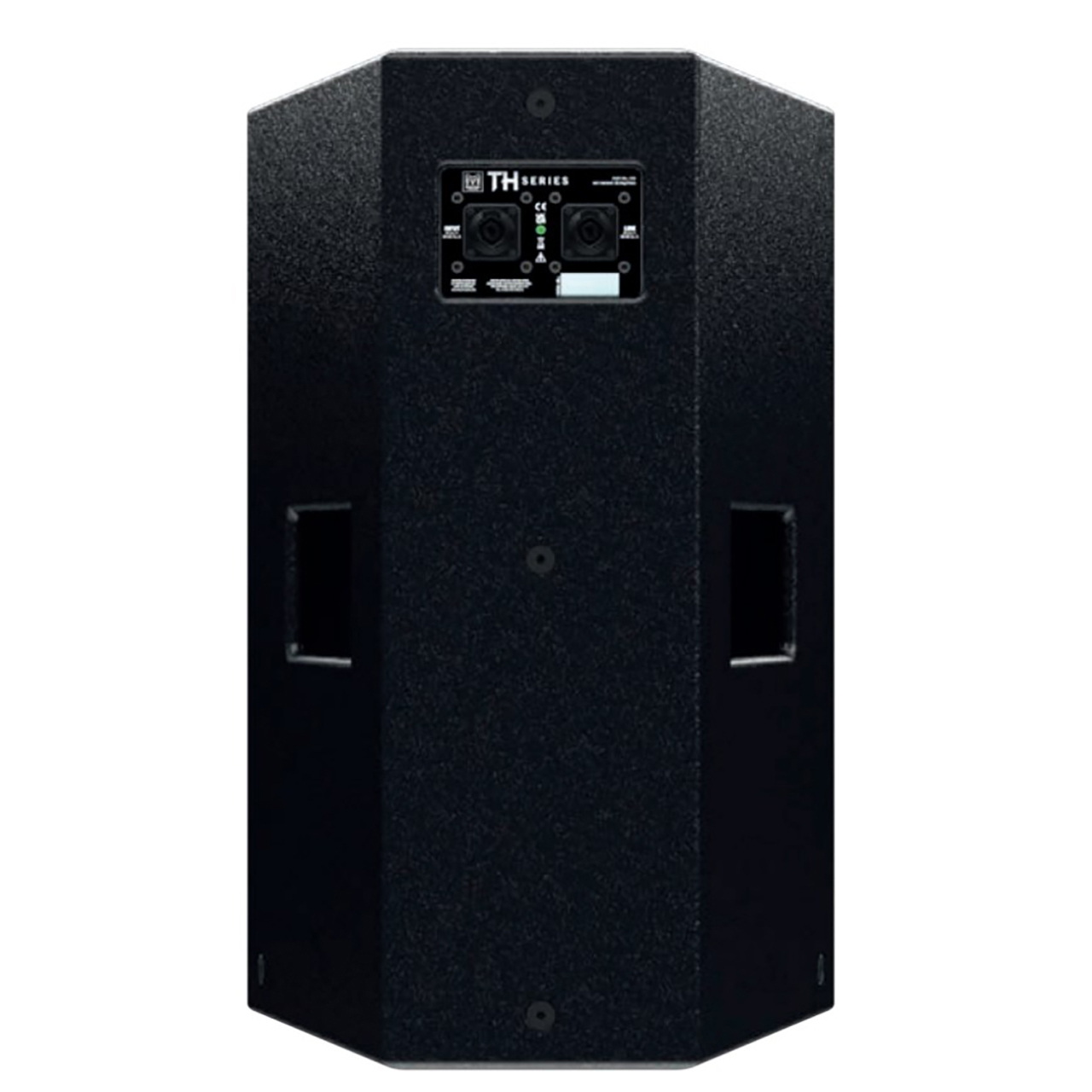

The internal mid/ high passive crossover allows this three-way system to be driven in a bi-amp configuration.
The THV is configured in a vertically formatted, trapezoidal birch ply cabinet and fitted with twelve M10 inserts to facilitate ease of mounting. The enclosure has generous pocket handles on the sides and rear castors are fitted as standard.

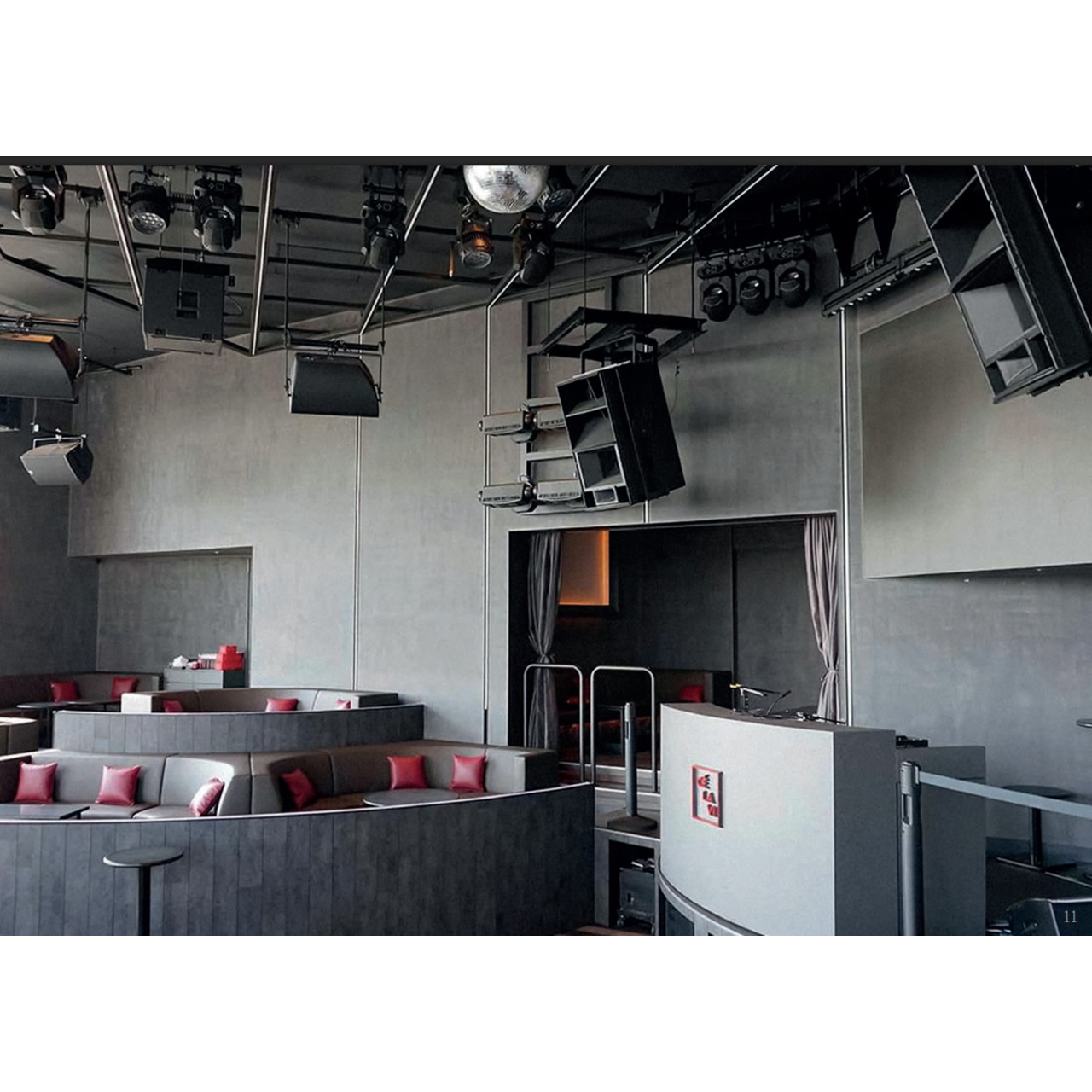

TH Series feature standalone loudspeakers engineered to achieve maximum output from relatively compact enclosures. They are very efficient, very loud and capable of delivering thumping fullfrequency performance with superb sonic characteristics. Designed to be used individually, they can offer a competitive alternative to arrayed systems in medium and large-scale clubs and installations. Comprising three models, TH Series loudspeakers are configured as bi-amped, three-way systems. The three-way design approach delivers very high output and extended frequency response with maximum fidelity, while internal passive crossovers for the mid/high sections make the most effective use of amplifier count. TH Series loudspeakers deliver the Martin Audio signature sound of warmth, clarity and smooth frequency response with ease. Enhanced extreme low frequency performance can be achieved by supplementing a TH Series loudspeaker with a Martin Audio SX Series subwoofer - creating an impressively powerful and dynamic four-way system.
