    TAN-DVS6-PR-BK - Overview

    Designed to excel in a wide variety of sound reinforcement applications, the full range Tannoy TAN-DVS6-PR-BK is an ultra-compact 240-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance.

    The DVS 6 is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.

    Superb Point-Source

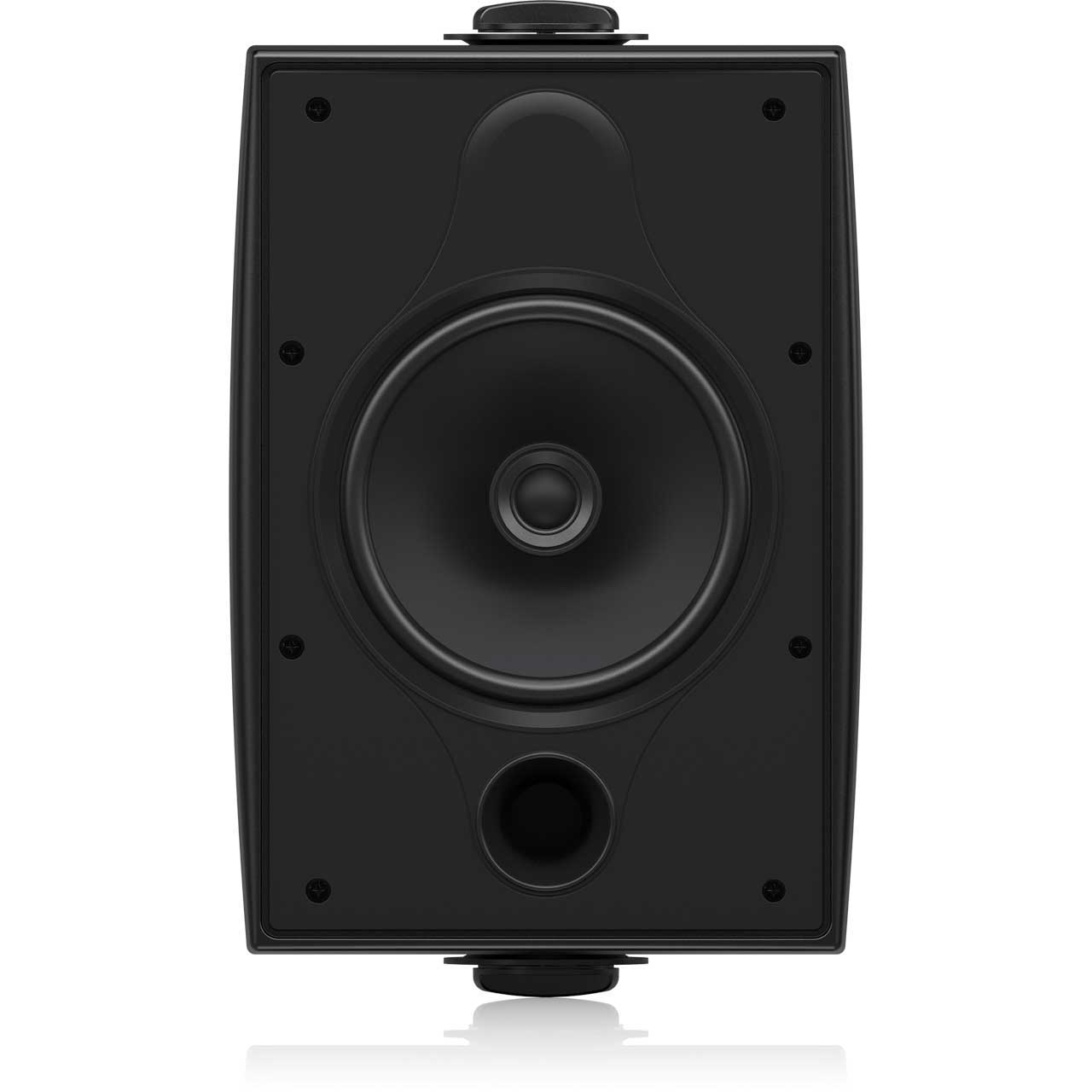

    DVS 6's point-source design comprises a 150 mm (6.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in a stylish injection molded ABS enclosure. Certified for water and dust ingress protection to IP64 standard, the DVS 6 is an exceptional choice for challenging environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

    Attractive and Easy to Install

    The highly durable and scuff resistant ABS enclosure features a black painted finish, and comes with an aesthetically pleasing aluminum grille. Installation is quick and easy, thanks to the included color matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom. Phoenix connectors for input and link output are provided for convenience.

    • Features:

      • Full-range surface-mount loudspeaker for indoor and outdoor installation applications
      • 60 Watts continuous, 240 Watts peak power
      • 6" mineral-loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
      • 0.75" ferrofluid cooled soft dome neodymium high-frequency driver
      • 90° constant directivity dispersion for optimum coverage
      • UL 1480 certified for general signalling systems
      • UV and weather-resistant UL 94 V-0 ABS enclosure
      • 6 Ohm direct input for low-impedance applications
      • All components weather resistant to IP64 for outdoor use
      • Stylish durable enclosure in a semi-matte black paint finish fits unobtrusively in any environment
      • Painted perforated aluminum mesh grille with dust protection
      • Yoke bracket included for ease of installation
      • Phoenix connectors input and link output

    • Specifications:

      • Frequency response (-3 dB)1: 80 Hz - 20 kHz
      • Frequency response (-10 dB)1: 65 Hz - 30k Hz
      • System sensitivity (1 W @ 1 m)2: 88 dB
      • Dispersion (-6 dB): 90 degrees conical
      • Transducers: Coaxial
      • Low frequency: 165mm (6.5") mineral loaded cone material
      • High frequency: 20 mm (0.79)
      • Crossover: 4.3 kHz - 2nd order LF, 2nd order HF
      • Directivity (Q): 10.6 averaged 1 kHz to 10 kHz
      • Directivity (DI): 9.6 averaged 1 kHz to 10 kHz
      • Rated maximum SPL 2:
        - 105 dB (average)
        - 111 dB (peak)
      • Maximum wire gauge for connector: 2.5 mm CSA (AWG12)
      • Safety Agency Ratings: UL-1480, CE

        Power Handling
      • Average: 60 W
      • Program: 120 W
      • Peak: 240 W
      • Recommended amplifier power: 120 W @ 6 Ohms
      • Nominal impedance: 6 Ohms

        Construction
      • Enclosure: ABS
      • Grille: Aluminum, painted
      • Connectors: Euroblock type removable locking connector with screw terminals with "loop through" facility
      • Supplied accessories: Yoke bracket
      • Packed quantity: 2
      • Dimensions (H x W x D): 13.41 x 8.36 x 8.52"

    • Item Includes:

      • Phoenix Connectors
      • Color Matched Steel Mounting bracket
      • Yoke Bracket

    • Applications

      :

      • Theme Parks
      • Hotels
      • Restaurants
      • Retail Stores
      • Coroprate AV
      • House of Worship
