ADA8V3P - Overview

8 Channel Mic/Line A/D and D/A Card for Hapi Mk III - Premium Version

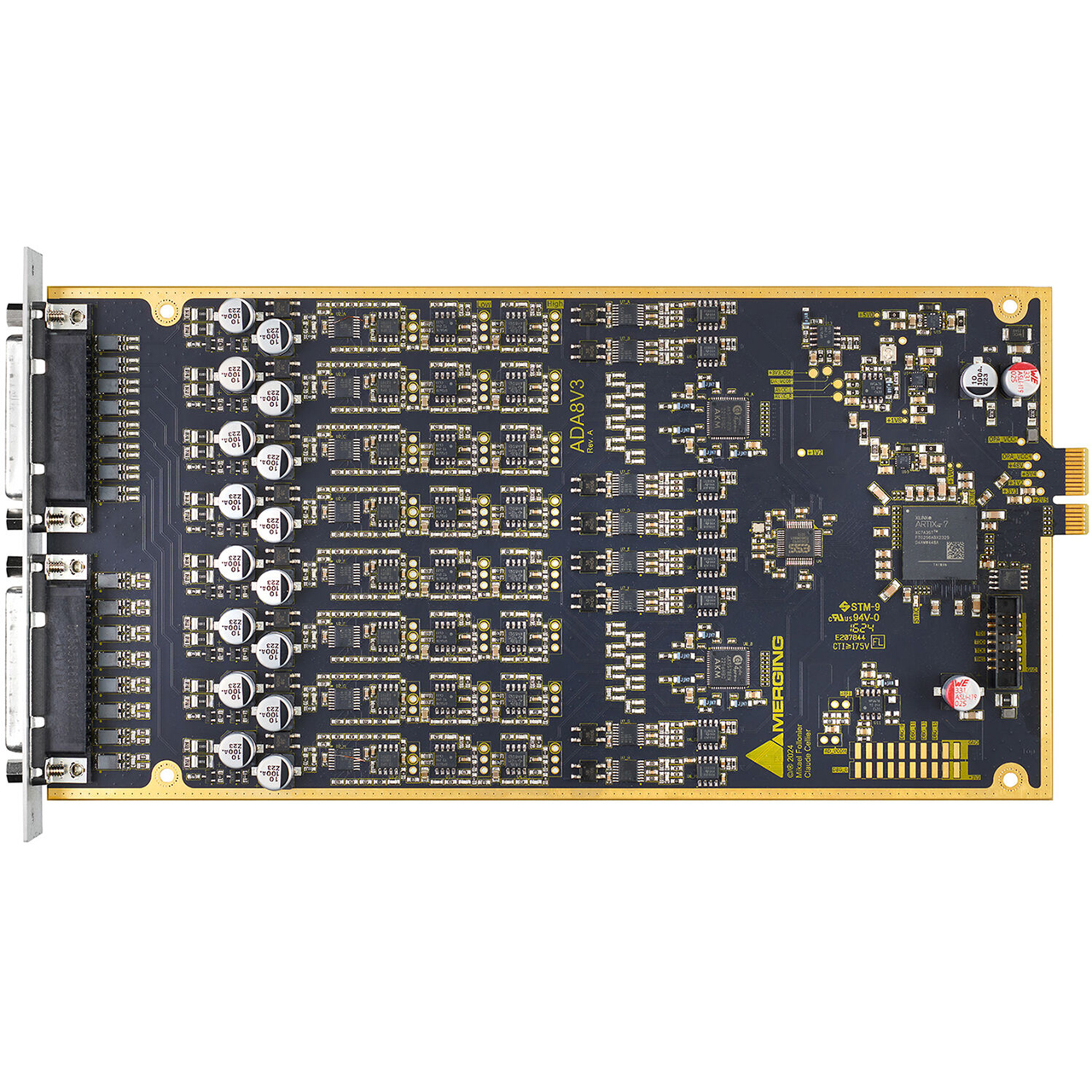

The Merging Technologies ADA8V3P is a complex input and output card for the Merging audio mainframe Hapi Mk III. With eight inputs and eight outputs, it offers two-way audio conversion: analog to digital and digital to analog.

These remote controlled Mic/Line Input and Output cards feature 3rd generation Dual Gain topology, inspired by the exceptional Anubis preamps, for highest audio quality without compromise.

With two ADA8V3P 8-channel Mic/Line In and Line Out Cards you can configure Hapi Mk III for up to 16 analog I/O channels.

The Premium card ADA8V3P has superior specifications and supports sample rates up to 352.8 kHz (DXD) and 384 kHz as well as bitstream formats up to DSD256.

  • Features:

    • 8 exceptionally transparent, Swiss designed preamplifiers plus 8 outputs
    • Dynamic range of 139 dB (A-weighted, typ.) on the line inputs
    • Preamps offer up to 78 dB of gain (with Boost)
    • Full remote access for all parameter changes
    • Dynamic range of 125 dB (A-weighted, typ.) on the line outputs
    • Phantom power/polarity invert/low cut/impedance switchable per channel
    • Switch to line level on a per channel basis via display or remotely via browser
    • Auto-mute circuitry for "no-pop" power cycling
    • Digitally controlled output trims for line-up procedures

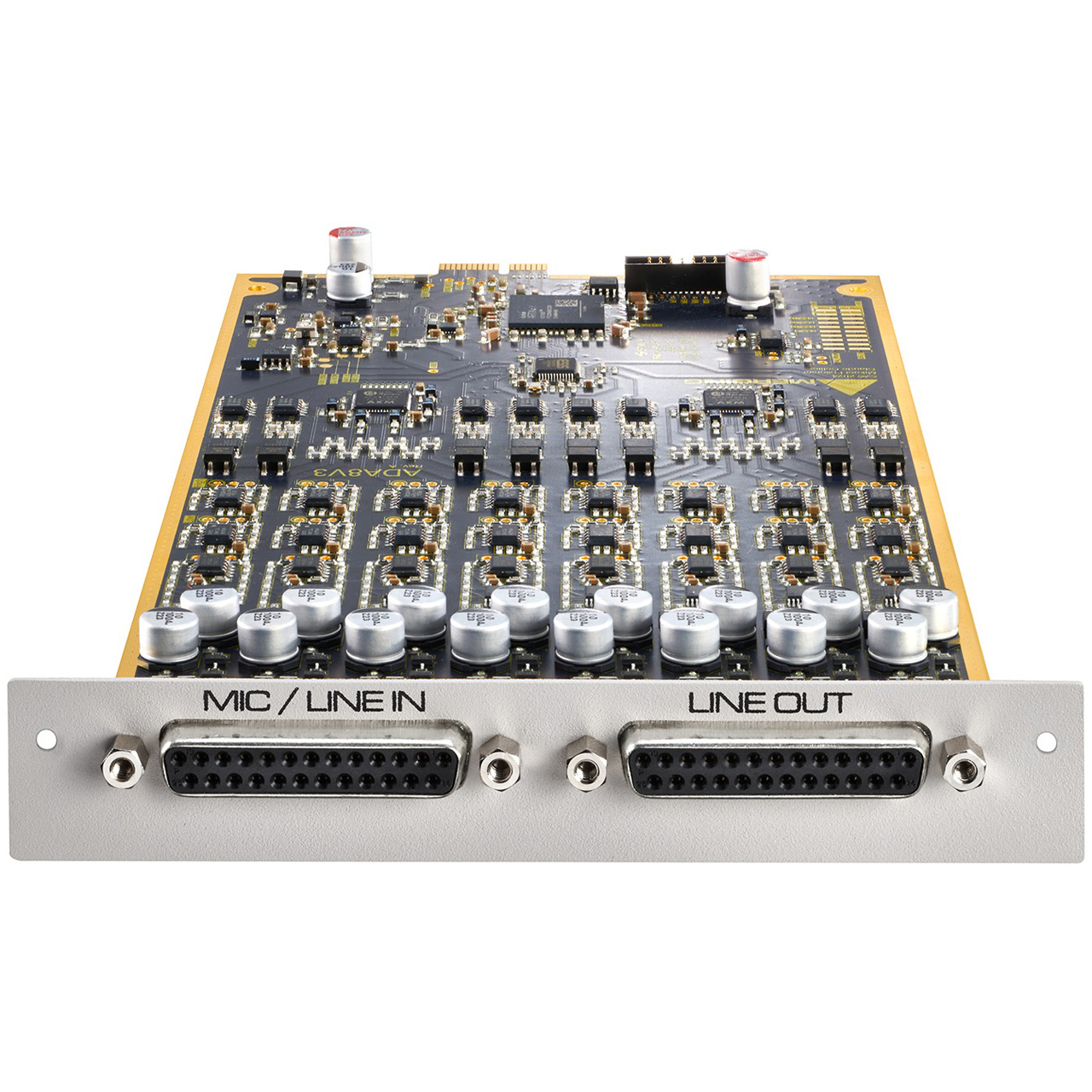

    • 2x 25-pin Sub D connector
    • Sample rates up to 352.8 kHz (DXD), 384 kHz; DSD64, DSD128 and DSD256
    • Each Premium card is measured for the highest specs and smallest tolerances!


  • Specifications:

      Mic Pre-Amp + ADC Section
    • Mic Pre Max Input (Mic+Pad / Mic / Mic Boost): +24 dBu / +12 dBu / +0 dBu
    • Input Impedance (Differential, Software Switchable Per Channel): 3 kΩ / 10.4 kΩ
    • Frequency response +0/-0.3dB @ fs = 48 kHz: 9 Hz - 22 kHz
    • Frequency response +0/-0.3dB @ fs = 96 kHz: 9 Hz - 46 kHz
    • Frequency response +0/-0.3dB @ fs = 192 kHz: 11 Hz - 94 kHz
    • Dynamic Range (A-weighted, typ.), ref +12 dBu: 137 dB
    • Dynamic Range Mic Boost (A-weighted, typ.), ref 0 dBu: 128 dB
    • Gain Range (software controlled): 0 dB to +66 dB
    • THD+N Pre + A/D (20 Hz - 20 kHz) @ -2 dBFS: < -111 dB (0.00028 %)
    • Interchannel Crosstalk @ 1kHz: < -130 dB
    • EIN @ > 40 dB Gain (150Ω Source Impedance, A-weighted): < -127 dBu
    • Common Mode Rejection Rate (20 Hz - 20 kHz): > 75 dB
    • Phantom Power (Software Switchable Per Channel): +48V
    • Polarity Invert (Software Switchable Per Channel): YES
    • Low Cut filter (Software Switchable Per Channel): -12 dB/octave, 80 Hz

      Line Input
    • Max Line Input for 0 dBFS: +24 dBu
    • Input Impedance (Differential): 10.4 kΩ
    • Dynamic Range (A-weighted, typ), ref +24 dBu: 139 dB
    • THD+N Line+A/D (20 Hz - 20 kHz) @ -2 dBFS: < -111 dB (0.00028 %)
    • Interchannel Crosstalk @ 1kHz, typ.: < -135 dB
    • Sensitivity Range for 0 dBFS (software controlled): -42 dBu to +24 dBu
    • Gain Step: 0.5 dB
    • Common Mode Rejection Rate (20 Hz - 20 kHz): > 75 dB
    • Connector Pinout: DB-25 / AES59 (Tascam Ana.)

      Line Output Section
    • Max Output level software switchable for 0 dBFS: +24 dBu / +18 dBu +0/-0.5 dB
    • Frequency response +0/-0.3dB @ fs = 48 kHz: 0 Hz - 22 kHz
    • Frequency response +0/-3dB @ fs = 96 kHz: 0 Hz - 46 kHz
    • Frequency response +0/-3dB @ fs = 192 kHz: 0 Hz - 92 kHz
    • Output Impedance (Differential): < 80 Ω
    • Dynamic Range (A-weighted, typ.): 124 dB / 126 dB
    • THD+N (1 kHz) @ 0dBFS: < -117 dB (0.00014 %)
    • Interchannel Crosstalk @ 1kHz: < -139 dB
    • Connector Pinout: DB-25 / AES59 (Tascam Ana.)

      Latencies
    • Input latency at 44.1/48kHz: 8 samples
    • Input latency at 88.2/96kHz: 8 samples
    • Input latency at 176.4/192kHz: 8 samples
    • Input latency at DXD/384kHz: 10 samples
    • Output latency at 44.1/48kHz: 9* samples
    • Output latency at 88.2/96kHz: 9* samples
    • Output latency at 176.4/192kHz: 9* samples
    • Output latency at DXD/384kHz: 9* samples

      * Filter setting
      - Slow Roll Off Filter option = 9 Samples
      - Sharp Roll Off Filter option = 38 Samples


  • Item Includes:

    • 1x Merging Technologies ADA8V3P Premium 8-Channel Mic/Line A/D and D/A Card with DSD/DXD Support


  • GTIN:

    0615104398825
