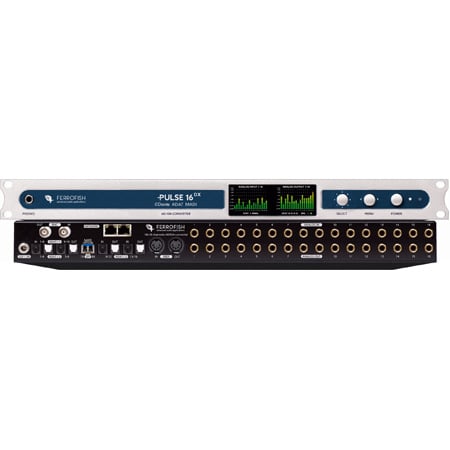

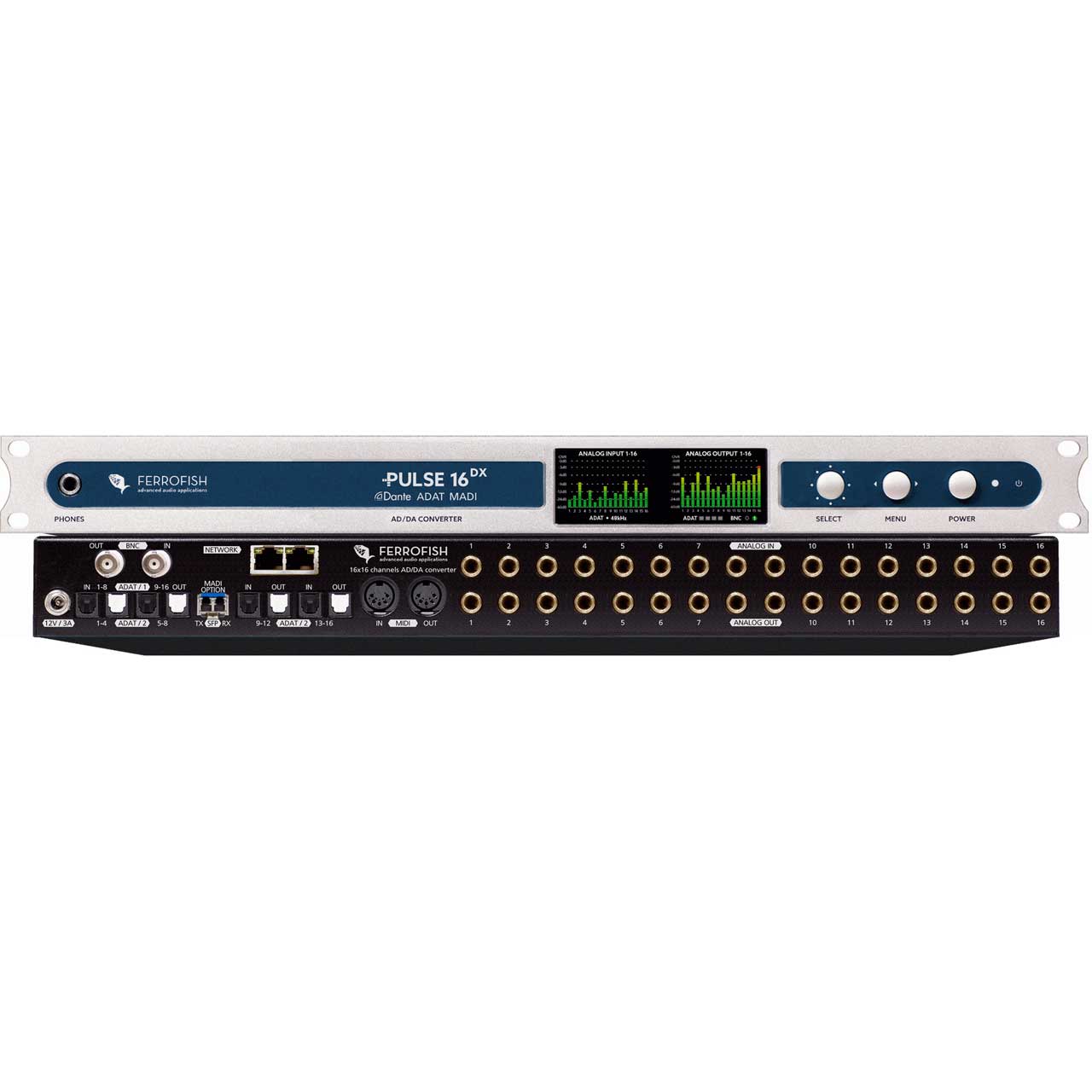

Ferrofish PULSE 16 DX 16 In / 16 Out AD/DA Converter with ADAT and Dante

ITEM #: FER-PULSE-16-DX MFG #: PULSE 16 DX

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2,299.00

Our Price:

$2,149.00

Availability: In Stock
iAvailability Description Popup


    PULSE 16 DX - Overview

    The PULSE16 DX is much more than a 16 x 16 channel AD / DA converter. In addition to studio-grade analog inputs and outputs up to 192kHz, the PULSE16 DX offers an impressive number of digital interfaces, ready for any task. All equipment, whether analog, ADAT, or MADI is brought together into the device, and can be distributed over a sophisticated routing matrix in groups of 8 channels. And that's not all: The Dante interface with 64 x 64 channels (also integrated into the routing matrix), redundantly implemented via two RJ45 sockets, connects the PULSE16 DX to the network: Dante opens up a new dimension of flexibility. No matter which analog or digital signals are to be connected: the PULSE16 DX does the job.

    Packed in a just 1HU, this highly integrated converter has 16 x 16 balanced analog TRS sockets using studio levels up to +20dBu - individually adjustable in 1dB steps. The Low Latency Cirrus Logic converters, accompanied with a a temperature-compensated clock and jitter reduction PLL guarantee best crystal clear sound.

    Besides Dante, the 4 x 4 ADAT ports deliver enough bandwidth to convert all 16 x 16 analog signals at 96kHz, or even 32 x 32 channels at 48kHz. MADI adds another 64 x 64 channels, and is implemented using a modular SFP conection to offer different MADI standards (like Singlemode). Just replace the MADI module by a different model.

    Configuring the device is a breeze thanks to the two TFT screens. No need to consult the manual, every information is displayed clearly on the screens. Remote control via MIDI and MADI is also possible.

    The headphone can be connected to any analog or digital input or output: ideal for control or monitoring.

    The fanless, compact 1HU device is the ultimate problem solver for studio, live sound, broadcast and recording - wherever high-end, multi-format conversion is needed in the Dante network.

    • Features:

      • SMUX4 with 192 kHz operation (requires installed MADI SFP)
      • Delay-compensation for MADI chain (requires installed MADI SFP)
      • MIDI over MADI Preset Management (requires installed MADI SFP)
      • Flexible Remote Control
      • Dual TFT Screens
      • Internal Routing Matrix
      • MADI Interface
      • Dante Plug & Play
      • High Quality AD/DA

    • Specifications:

      • Internal Clock
      • TCXO (temp. compensated oscillator) with high accuracy.
      • Initial accuracy: +/-1.5ppm
      • Over temperature range: +/-2.5ppm
      • Aging: +/-1ppm

        PLL
      • Digitally controlled PLL / Jitter reduction system
      • Output jitter: 50ps - 100ps typ.

        LCD Displays
      • 2 x TFT Color Screens for the complete control of all analog I/O levels and all settings of the unit
      • One Key Control provides an easy control of all functions.
      • Multi language help pages guides available (No need to study the manual.)

        Dimensions
      • 1HU
      • Depth: 19cm (7.5") (including connectors)
      • Weight: 4.4lbs
      • Ambient Temperature: 41°F up to 113°F

    • Item Includes:

      • 1x PULSE16 device
      • 1x MADI SFP Module (LC Duplex MM)
      • 1x Instructions (German & English)
      • 1x Power supply 12V
      • 1x MADI cable LC to SC Fiber (PULSE16 MX and DX only)

    • GTIN:

      4313042884108
