Merging Technologies DA8 Multichannel D/A Conversion Module for Merging Technologies Horus/HAPI MKII

ITEM #: MT-DA8 MFG #: DA8

Primary Image
Merging Technologies
Free Shipping with $49 Minimum Order

List Price:

$1,749.00

Our Price:

$1,395.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    DA8 - Overview

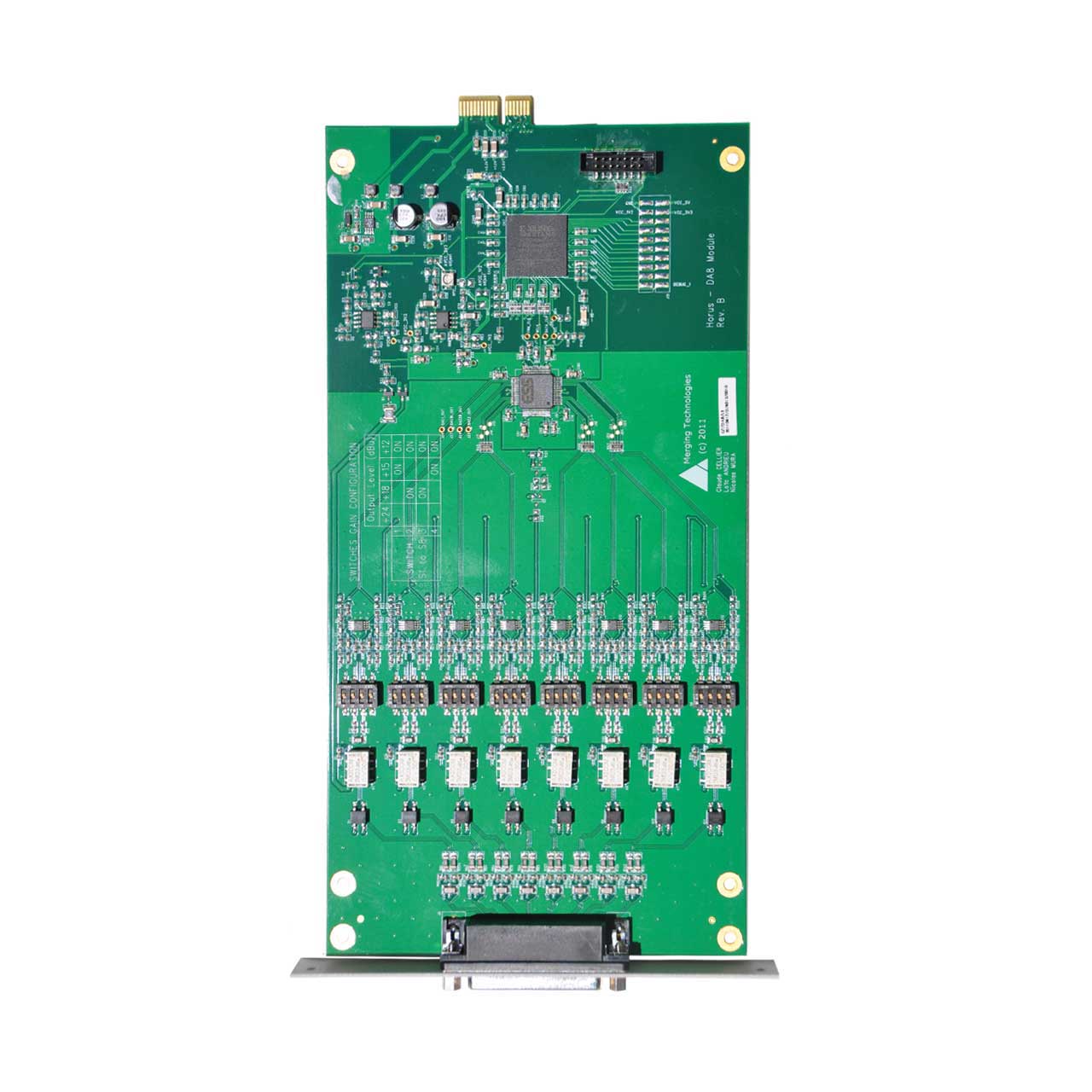

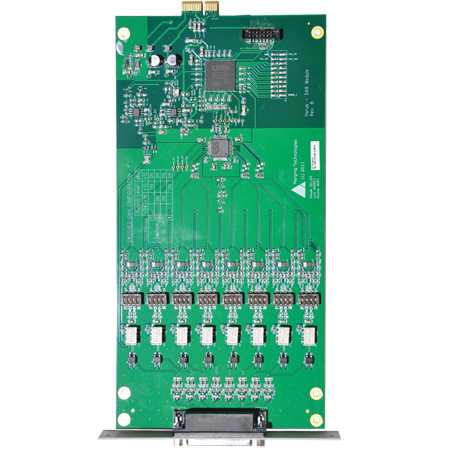

    The Merging Technologies DA8 is a multichannel D/A conversion module for the Horus/HAPI MKII and has been shown in testing to be consistently the quietest multichannel D/A conversion modules available anywhere.

    • Features:

      • Auto-mute circuitry for "no-pop" power cycling
      • Digitally controlled trims for line up procedures
      • Dynamic range of 127dB (typ.)
      • Local low phase noise oscillator circuitry


    • Specifications:

      • Max Line Output @ 0 dBFS (settings on +24 dBu): +25 dBu +0/-0.5 dB
      • Frequency response +0/-0.3dB @ fs = 48000 Hz: 6 Hz - 20 kHz
      • Frequency response +0/-0.3dB @ fs = 2.8224 MHz (DSD): NA / 6 Hz - 20 kHz
      • Frequency response +0/-3.0dB @ fs = 2.8224 MHz (DSD): NA / 2 Hz - 50 kHz
      • Line Output Impedance (Differential): 90 ω
      • Dynamic Range (A-weighted, typ): 127 dB
      • THD+N D/A (1 kHz) @ 0 dBFS: < -113dB (0.00022 %)
      • Interchannel Crosstalk @ 1kHz, typ.: -140 dB
      • Connector Pinout: DB-25 / AES59 (Tascam Ana.)


    • Item Includes:

      • 1x Merging Technologies DA8 Multichannel D/A Conversion Module


    • Warranty:

      • 2-Year Limited Warranty


    • GTIN:

      0615104391482
