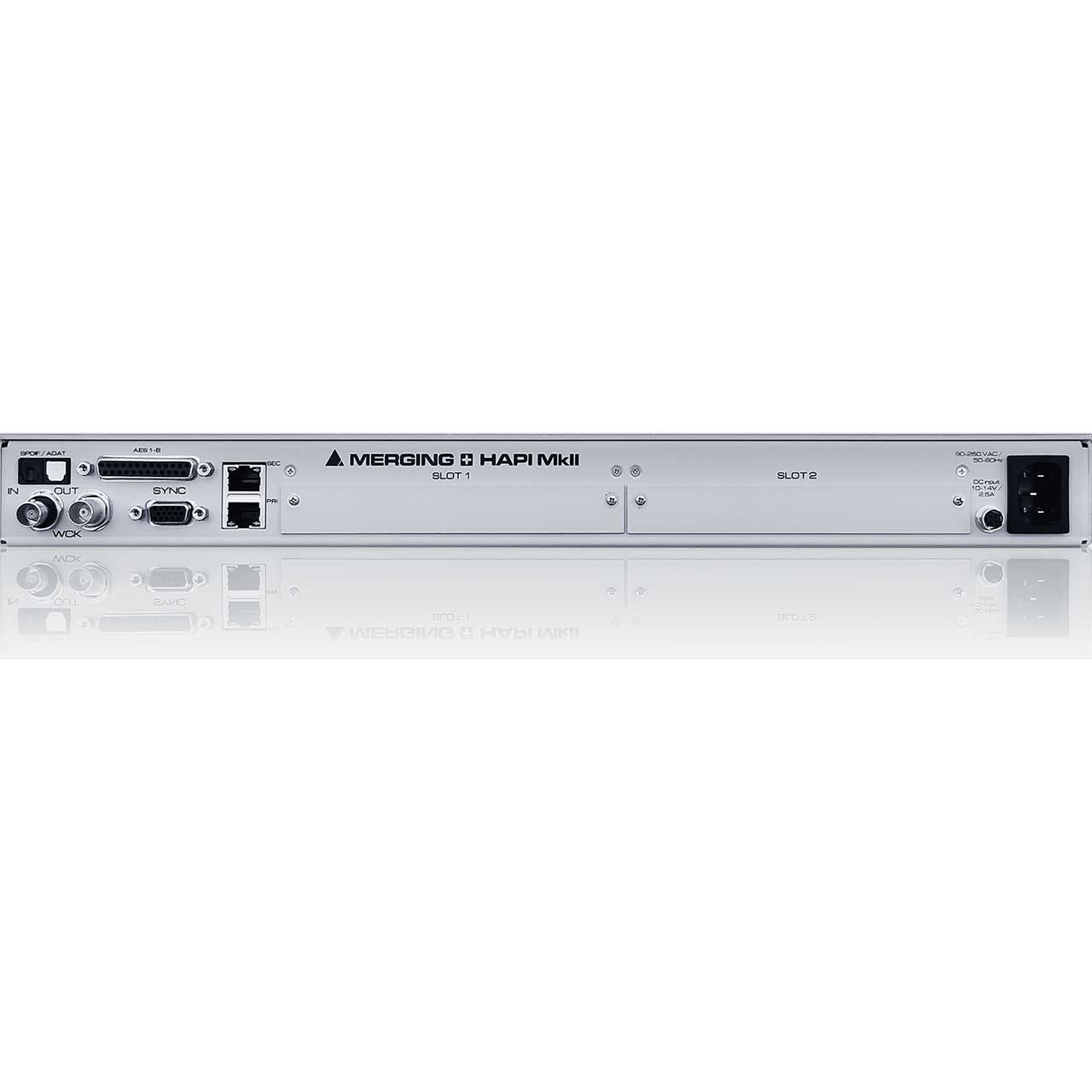

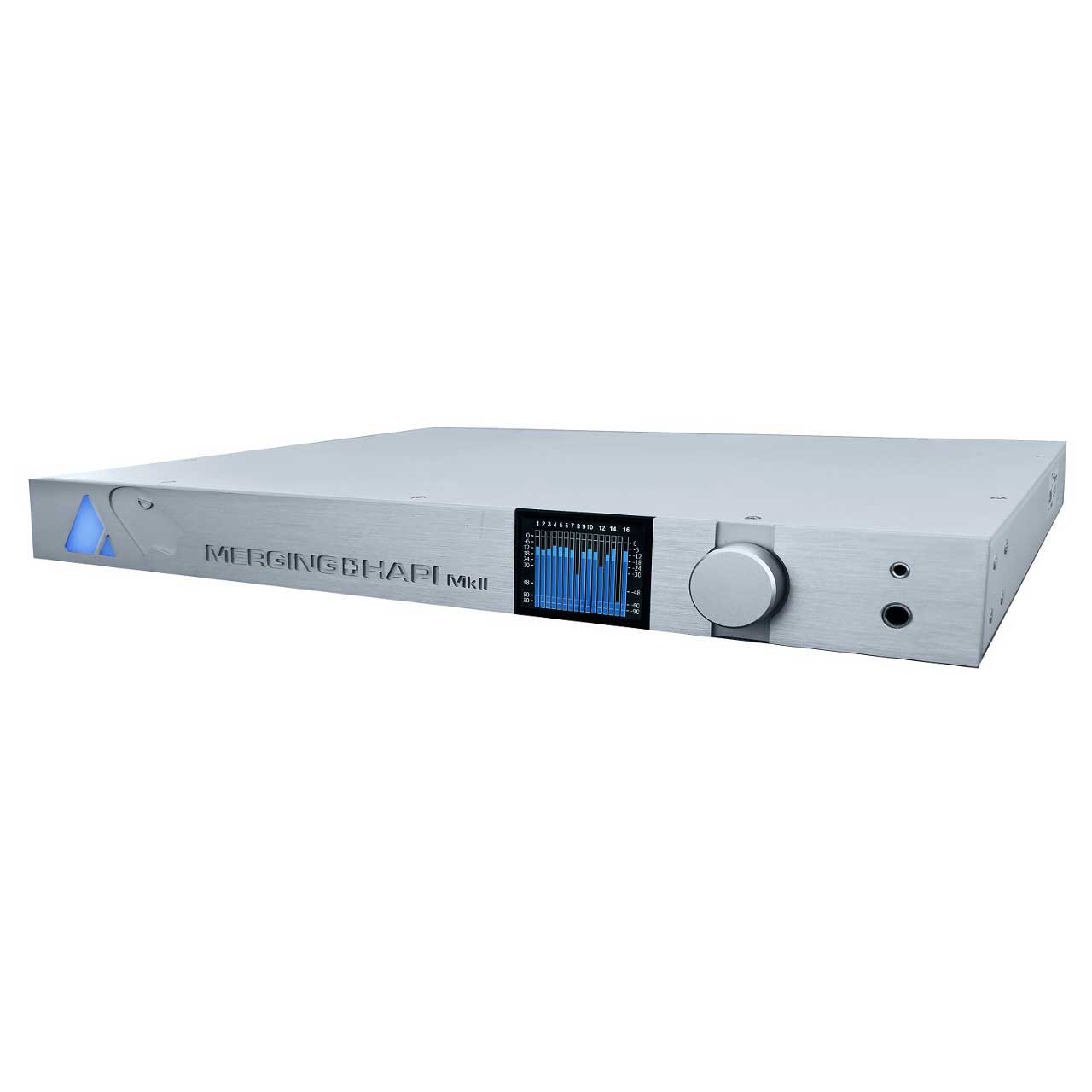

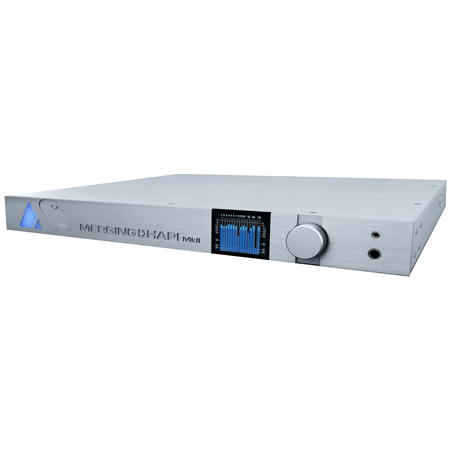

Merging Technologies HAPI MKIIR Networked Audio Converter with Redundant 12V Input - OLED Display - Ravenna/AES 67

ITEM #: MT-HAPI-MKIIR MFG #: HAPI MKIIR

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Merging Technologies
Free Shipping with $49 Minimum Order

List Price:

$3,749.00

Our Price:

$2,995.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    HAPI MKIIR - Overview

    The Merging Technologies Hapi MKIIR is the logical step up from the phenomenally successful Hapi which enjoyed record sales in 2020. HAPI is both the perfect primary interface for smaller systems as well as the ultimate accessory for a system using Horus where a smaller stagebox is required. MERGING+HAPI has been a hugely popular networked audio converter and instrumental in introducing so many to the exciting world of RAVENNA/AES67. Its economical form factor made it the ideal local stagebox or studio rack unit for any application. Now is the time to build on that success with new technology and new features that still allow full interface card compatibility with the original Hapi and Horus products.

    Modular By Design:
    Build a Hapi unit to fit your exact needs by adding from range of analog and digital option cards. Put small amount of inputs and outputs in various locations, or load 16 channels of analog I/O in a single unit. Digital I/O conversion and routing can also be managed in this compact unit. Flexibility and power in any form you need.
    Please note: Modules sold separately!

    Applications:
    HI-RES, LIVE & STUDIO RECORDING
    HI-RES, SURROUND, SACD & CD MASTERING
    LIVE BROADCAST EVENT PRODUCTION & ON-AIR PLAYOUT
    POST-PRODUCTION TV / FILM
    MUSEUMS, VENUES, THEME PARKS & VR AUDIO
    AUDIO ARCHIVING

    • Features:

      • Channel-based routing. Each channel can be routed individually to make the most efficient use of resources

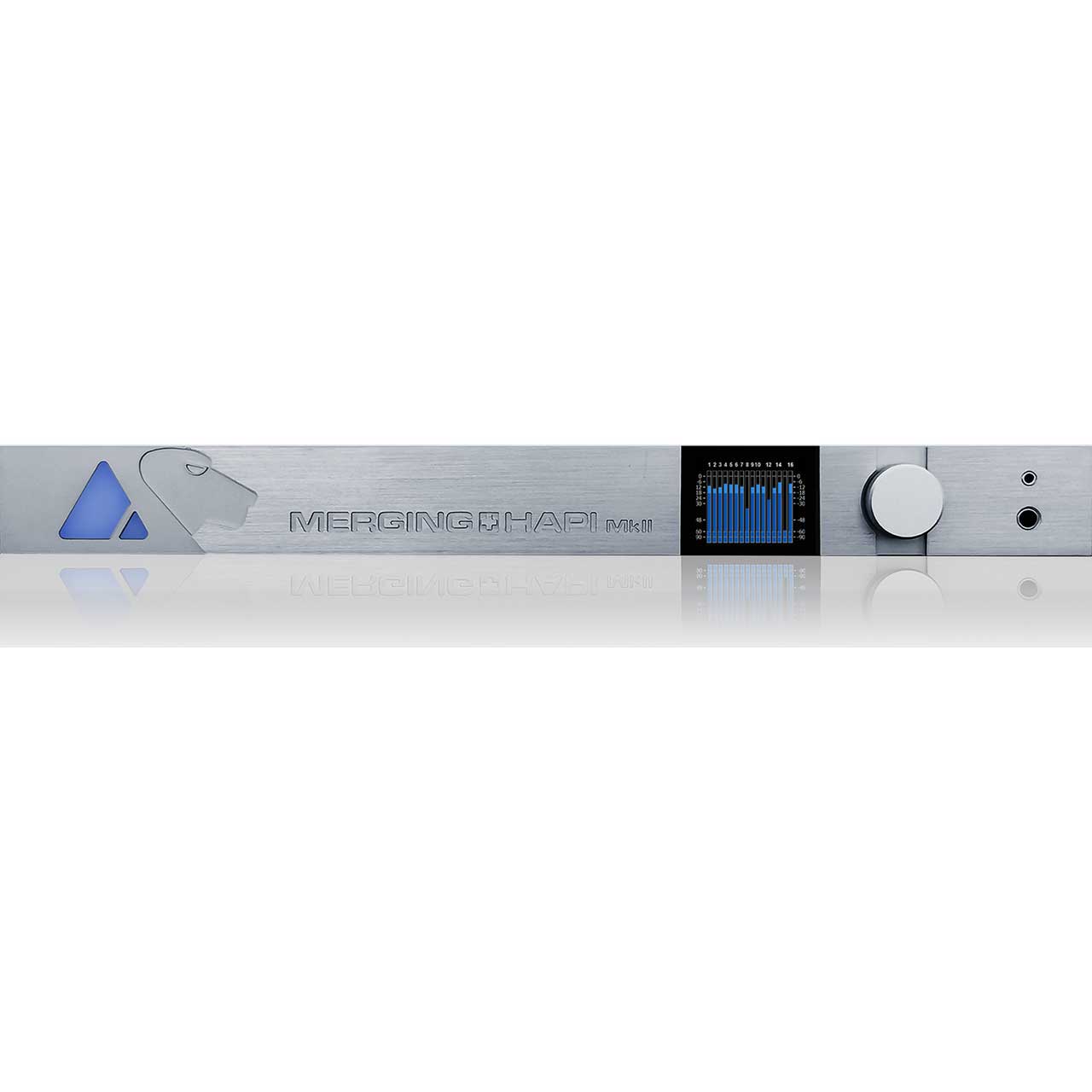

      • New front panel with improved display. Clear Plexiglas with dimming options
      • ST2022-7 Support. Perfectly complementing Anubis SPS and MAD, Hapi MKII is now fully compliant with the Seamless Protection Switching strategy
      • Switch mode support - Remove the need for an external network switch when using one additional Networked Interface
      • Additional DA Roll Off filters
      • Per channel DA Trims level and polarity support
      • 0.1 dB level precision steps on DA and all trims - Precision mastering control
      • Per channel Headphones Trims level and polarity support


    • Specifications:

      • Mic Pre-Amp + ADC
      • Mic Pre Max Input (Pad On / Pad Off): +24 dBu / +13 dBu
      • Input Impedance (Differential): 1.9 kΩ/10 kω
      • Dynamic Range (A-weighted, typ) , ref +13 dBu: 123.5 dB
      • Gain Range (software controlled): -0 dB to +66 dB
      • Gain Step/Precision: 0.5 dB / ±0.2 dB
      • Interchannel Crosstalk @ 1kHz, typ.: -125 dB
      • EIN @ >40 dB Gain (150Ω Source Impedance, A-weighted, typ): -128 dBu
      • Common Mode Rejection Rate (20Hz -20kHz).: >60 dB (up to 0 dBFS)
      • Phantom Power (Software Switchable Per Channel): +48V
      • Phase Reverse (Software Switchable Per Channel): YES
      • Low Cut filter (Software Switchable Per Channel): -12 dB/octave, 80 Hz

        Line Input
      • Max Line Input for 0 dBFS: +24 dBu
      • Input Impedance (Differential): 10 kω
      • Dynamic Range (A-weighted, typ), ref +24 dBu: 124 dB
      • Interchannel Crosstalk @ 1kHz, typ.: -130 dB
      • Sensitivity Range for 0 dBFS (software controlled): -42 dBu to +24 dBu
      • Gain Step/Precision: 0.5 dB / ±0.2 dB
      • Common Mode Rejection Rate (20Hz - 20kHz): >60 dB/>65 dB (both up to 0 dBFS)
      • Connector Pinout: DB-25/AES59 (Tascam Ana.)


    • Item Includes:

      • 1x HAPI MKIIR Networked Audio Converter


    • Warranty:

      • 2-Year Limited Warranty


    • GTIN:

      0615104391390
