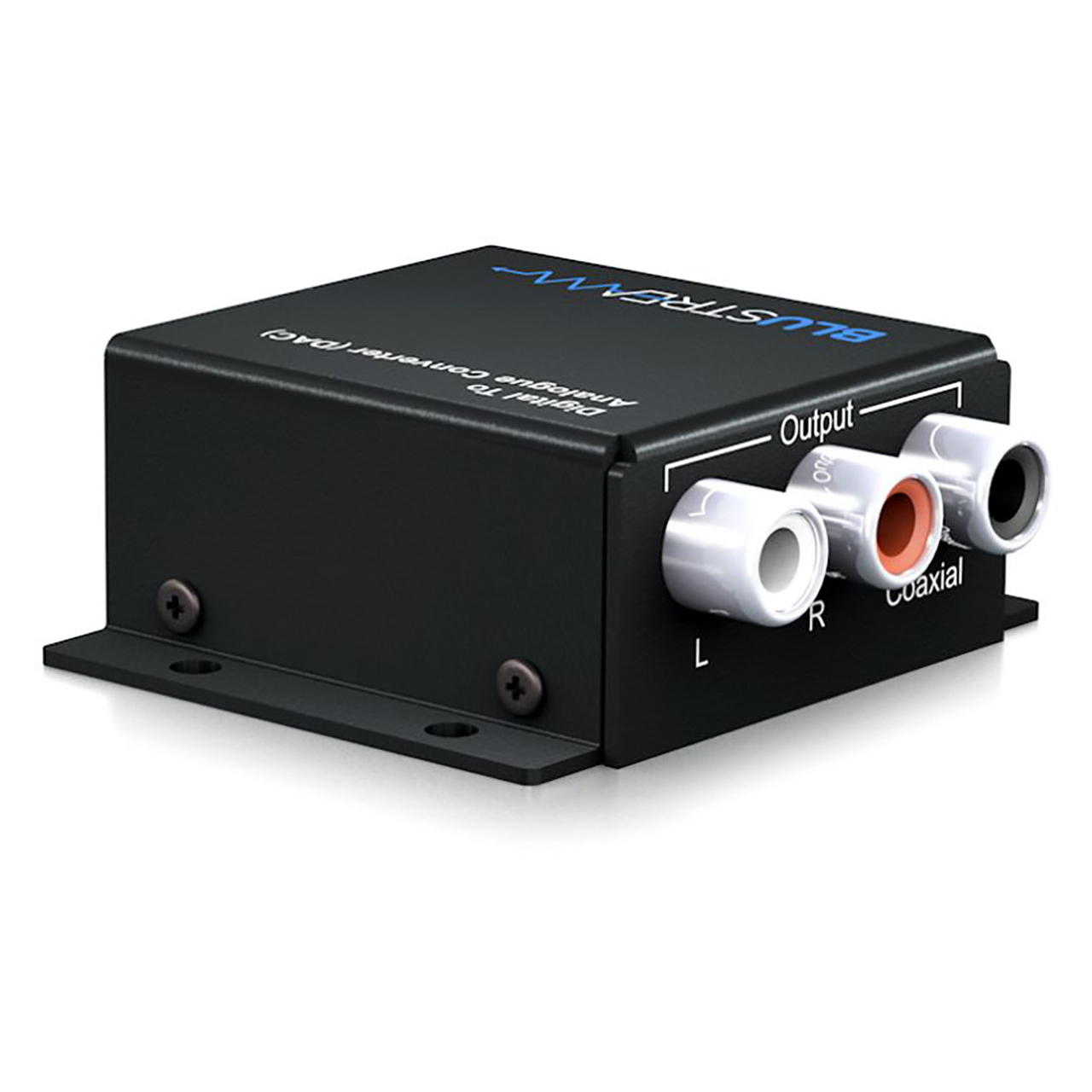

Blustream DAC12AU Digital to Analog Converter (DAC) - Simultaneous Analog and Digital Output

DAC12AU - Overview

• Features:

  • DAC (Digital to Analog audio Converter) converts either optical or coaxial digital to analog stereo L/R audio output
  • Converts optical digital audio input to coaxial digital audio output
  • Auto-detects digital connection in use
  • Optical digital input has priority over coaxial digital input
  • Outputs coaxial digital and analog L/R audio concurrently**
  • Supports sample rates 32 kHz, 44.1kHz, 48 kHz, 96 kHz & 192 kHz up to 24-bit resolution
  • Plug-and-play
    **DAC12AU does not downmix Dolby / DTS / multi-channel audio signals


• Specifications:

  • Audio Input Connectors: 1x Optical digital & 1x Coaxial RCA (S/PDIF)
  • Audio Output Connectors: 2x Analog stereo left / right & 1x Coaxial RCA (S/PDIF)
  • Dimensions (W x H x D): 50mm x 26mm x 42mm
  • Dimensions including connections (W x H x D): 68mm x 26mm x 42mm
  • Shipping Weight: 0.4kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/1A DC


• Item Includes:

  • 1x DAC12AU
  • 1x 5V/1A DC power supply
  • 1x Mounting kit
  • 1x User manual


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242001535
