Blustream DAC13DB Digital Audio Converter with Dolby Down-mixing

DAC13DB - Overview

• Features:

  • Downmixes 5.1ch Dolby Audio and DTS Audio from optical TOSLINK or coaxial digital audio input signals from a compatible source device to 2ch stereo audio
  • Simultaneously outputs downmixed 2ch audio via analog, optical TOSLINK or coaxial digital audio outputs
  • Dolby Audio and DTS Audio formats supported:
  • - PCM 2ch
  • - Dolby Digital 2ch
  • - Dolby Digital 5.1ch
  • - DTS 2ch
  • - DTS 5.1ch
  • Supports audio signals up to 24-bit with sampling rates up to 96kHz


• Specifications:

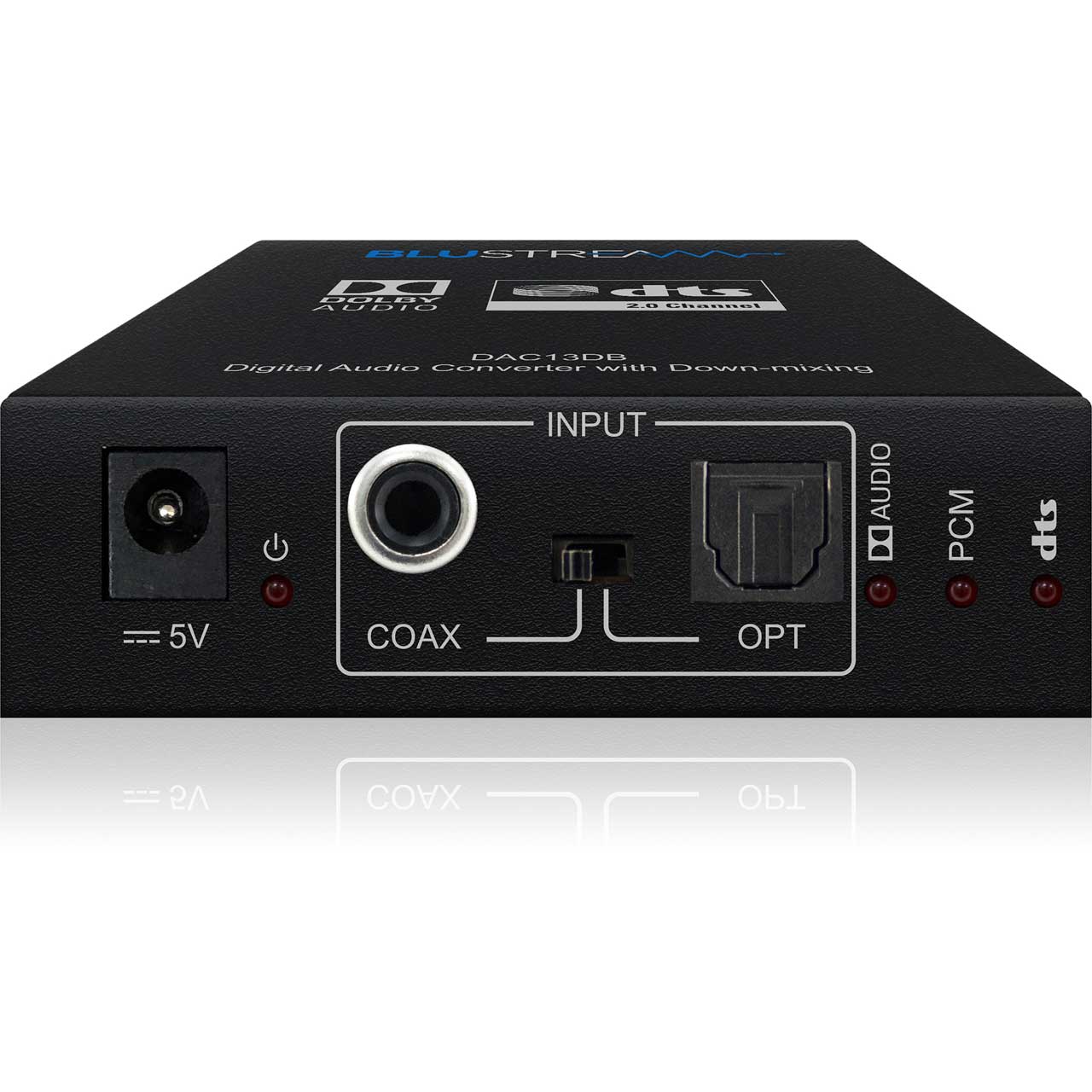

  • Audio Input Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical TOSLINK Digital

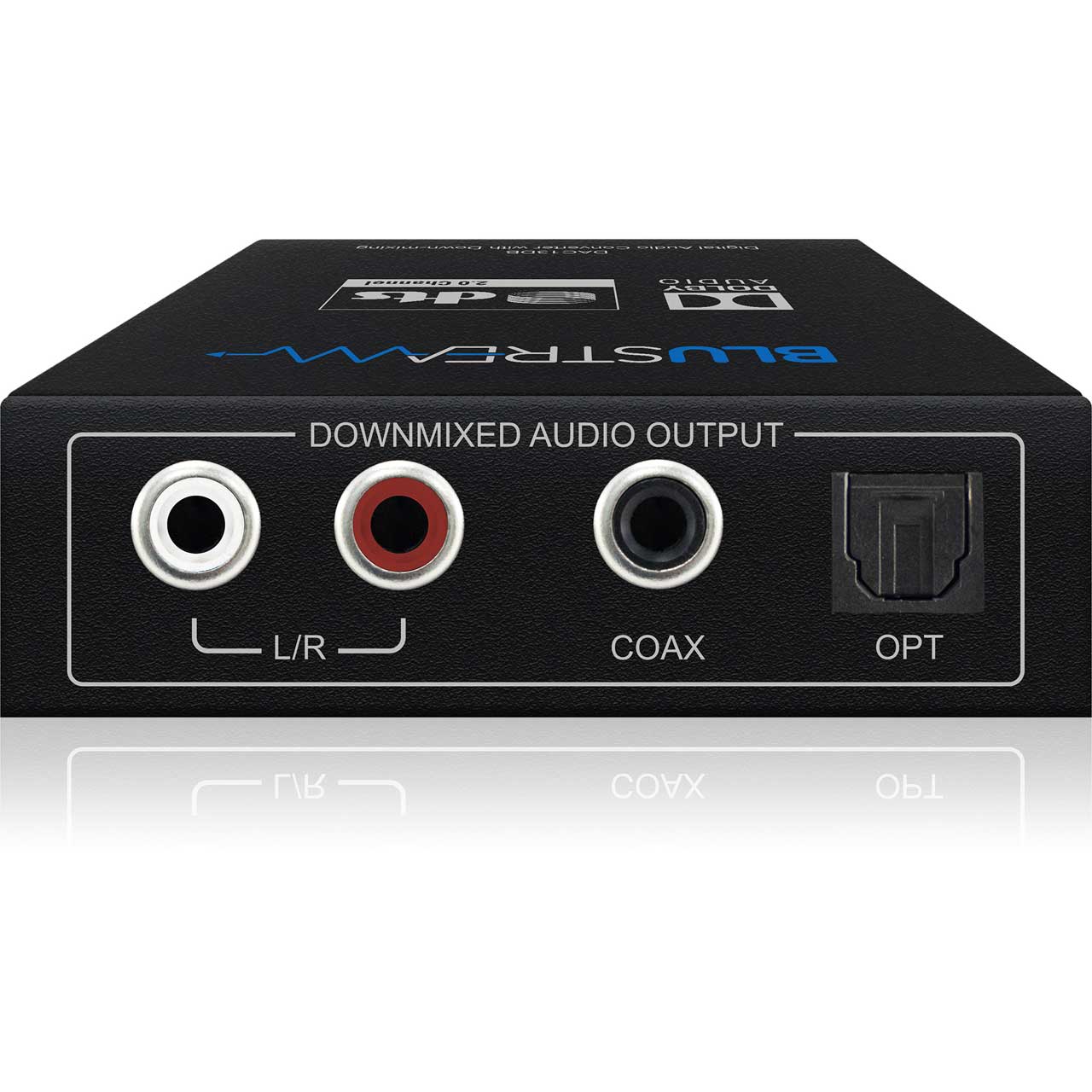

  • Audio Output Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical TOSLINK Digital, 2 x RCA
    Stereo Analog (L/R)
  • Casing Dimensions (W x D x H): 80mm x 76mm x 24mm (without connections)
  • Dimensions (W x D x H): 80mm x 91mm x 24mm
  • Shipping Weight: 0.2kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 5V/1A DC


• Item Includes:

  • 1x DAC13DB
  • 1x Mounting Kit
  • 1x 5V/1A DC Power Supply
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242003430
