ZOOM L-8 LiveTrak 8-Channel Digital Mixer Kit with ZOOM ZDM-1 Podcast Mic Pack

ITEM #: MTK-ZMPODKIT-L8 MFG #: MTK-ZMPODKIT-L8

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$459.00

Our Price:

$419.00

Availability: In Stock
iAvailability Description Popup


    MTK-ZMPODKIT-L8 - Overview

    Save $20 On This Podcast Bundle!

    The Board For Creators

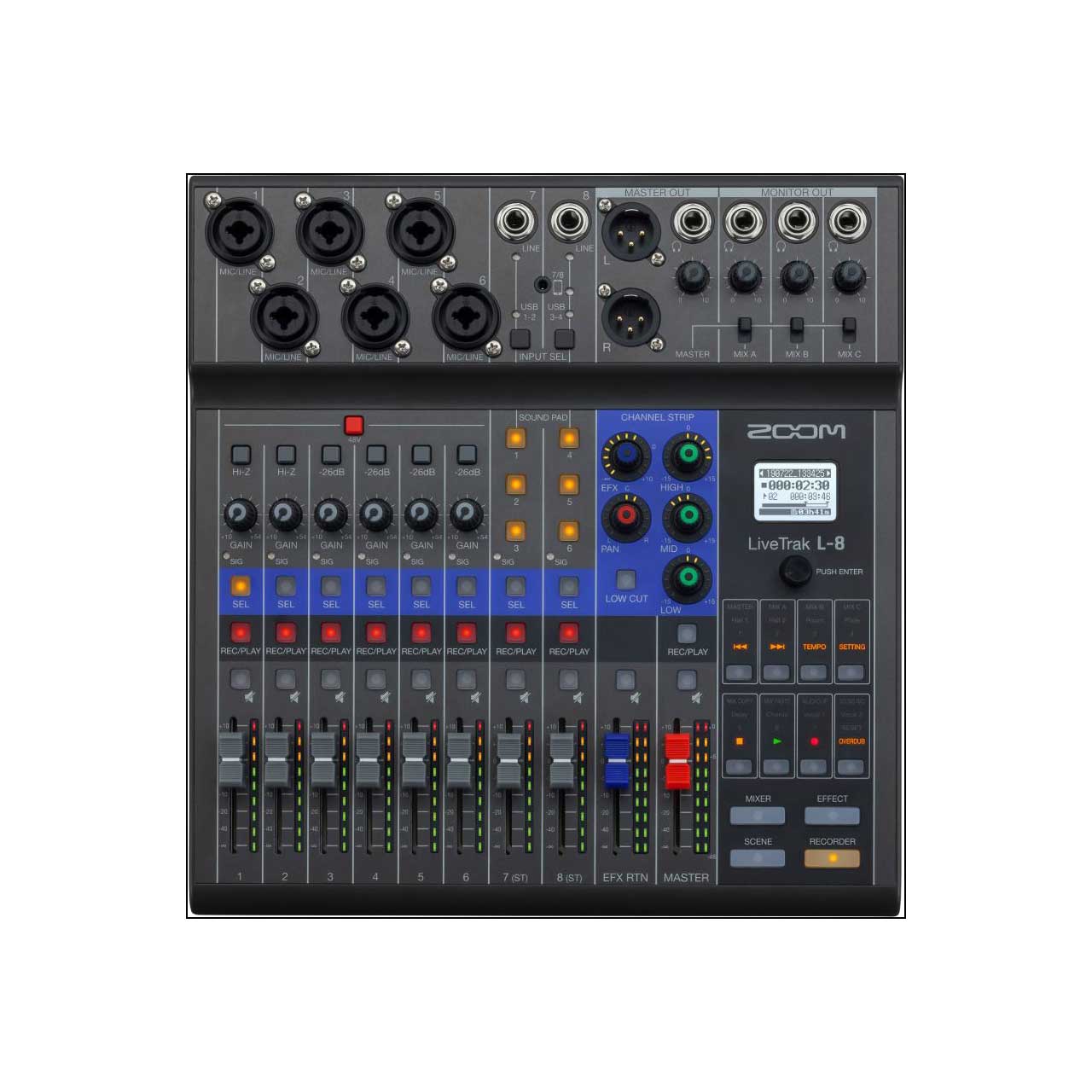

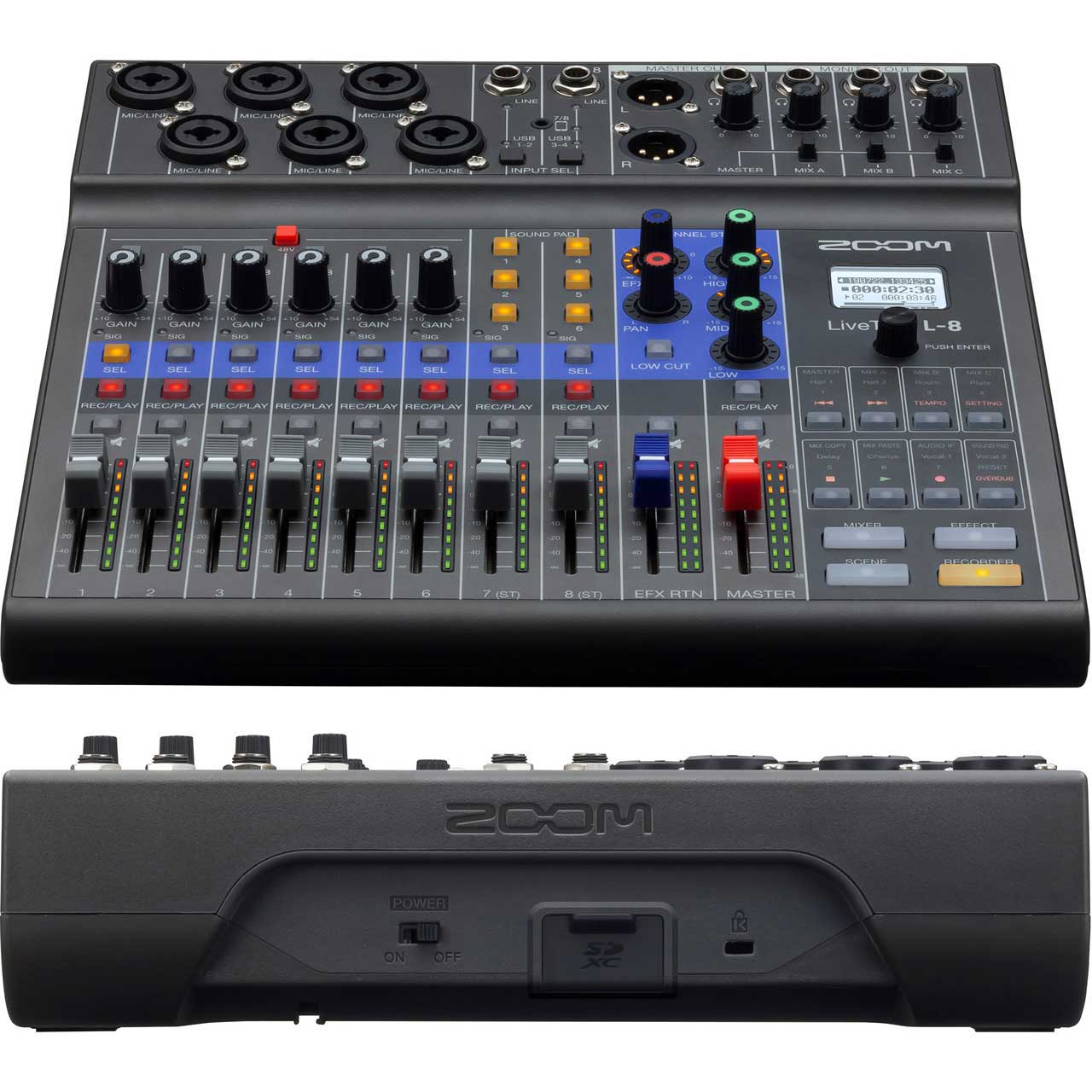

    Creators are evolving-and so are we. The ZOOM LiveTrak L-8 makes it easier than ever to mix, monitor and record professional-sounding podcasts and music performances in one portable, affordable package.

    Power To The Podcast
    Podcast creators are a special breed. They require a unique set of audio features, along with the flexibility of a proper mixing console. The LiveTrak L-8 combines Zoom's famous audio performance with features made for podcasters.

    Sound Pad Magic
    Just press a button to play intros, outros, jingles, ads and sound effects. With 6 easily-assignable Sound Pads, the right sound is at your fingertips.

    First-Time Caller, Long-Time Listener
    Remote interviews are a snap with the L-8; just connect your phone via the provided TRRS cable. The Mix-Minus function automatically prevents echo and feedback to and from the caller. Or use the USB connection to route audio from Skype, Facetime, Hangouts, Slack and more.

    Freedom Of Speech
    Zoom's preamps are famous for a good reason: they're transparent, powerful and ultra-reliable. The L-8 features six independent Zoom preamps, built to handle anything from a whisper to a raucous debate; Each with phantom power, a low noise floor (-121dBU EIN), and maximum input gain of +54dB.

    Additionally there are two each Hi-Z, line-level and USB inputs. You can also fine-tune each channel with EQ and onboard effects.

    A Track For Everyone
    The pros know that when you record everyone on their own separate track it just sounds better and provides more flexibility in the edit. The L-8 records separate tracks directly to your SD card, enabling you to edit them later.

    The Perfect Podcast Pack

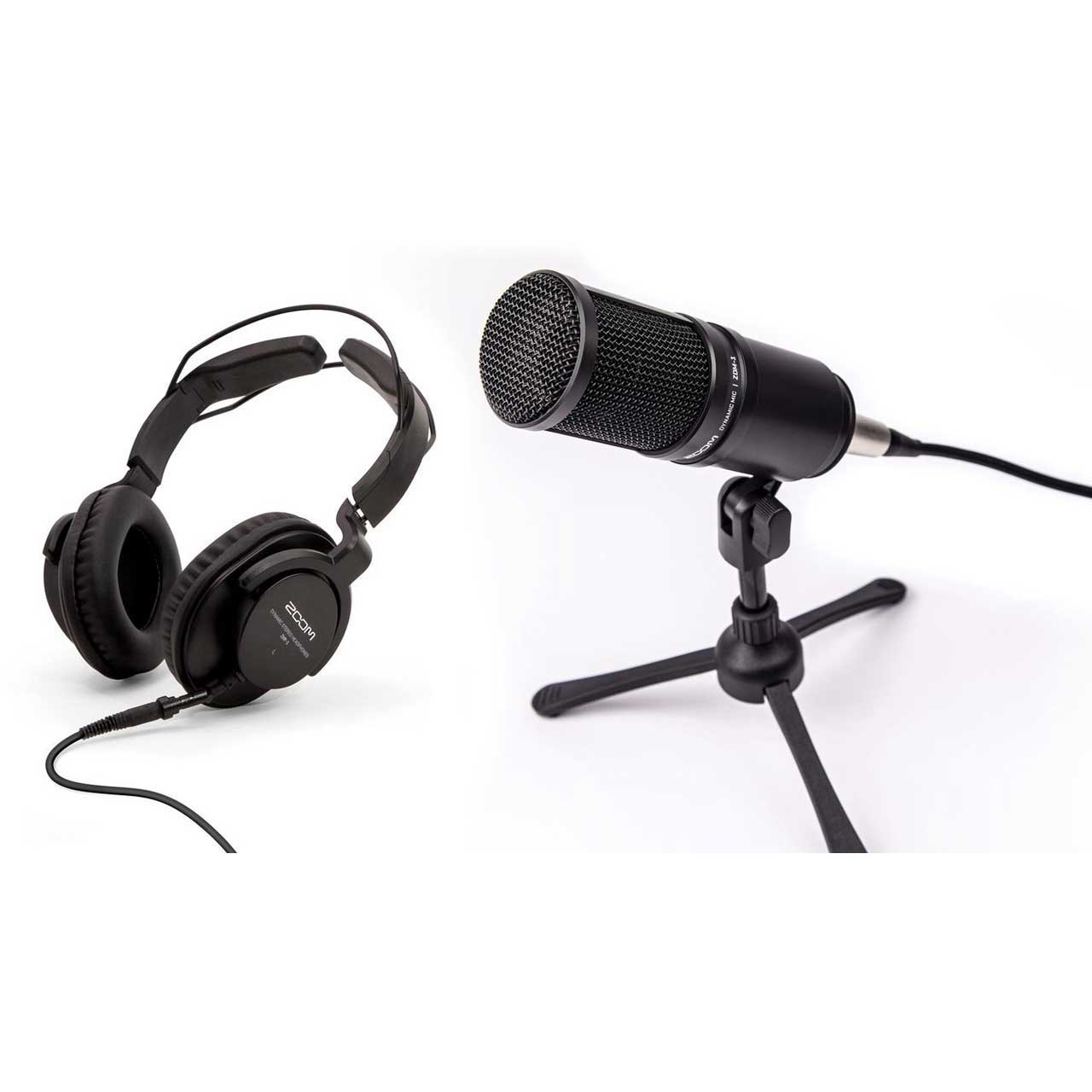

    Whether you're taking your first step into podcasting or upgrading your setup, the ZDM-1 Podcast Mic Pack includes everything you need to create professional-quality podcasts; ZDM-1 broadcast-style dynamic mic, ZHP-1 professional closed-back headphones, ZTPS-4 adjustable tabletop mic stand, ZDM-1 windscreen, and a 2 meter mic cable.

    • Features:

      • L-8
      • 8-channel mixer (6 combo, plus 2 TS)
      • 12-Track simultaneous recording, 10-track playback
      • Mix-Minus function preventing audio feedback from dial-in guests
      • TRRS connection and included TRRS cable for phone connectivity
      • 6 assignable Sound Pads, with 13 preset sounds
      • 4 headphone outputs, consisting of 3 custom monitor mixes, plus one main mix
      • 3-band EQ and a low-cut function
      • 7 scene memories for storing mixes
      • 12-in/4-out USB audio interface
      • Class-compliant mode (for iOS compatibility)
      • Battery operated with four AA batteries or a USB power supply
      • Record up to 24-bit/96kHz, record up to 48kHZ to computer and SD Card simultaneously

        ZDM-1PMP
      • ZDM-1 large-diaphragm dynamic microphone captures smooth, broadcast-quality sound
      • ZHP-1 professional closed-back headphones let you hear every detail
      • The compact and sturdy ZTPS-4 Tabletop Tripod makes setup easy anywhere
      • Custom windscreen for ZDM-1 delivers clean recordings every time
      • Included 2 meter XLR microphone cable lets you get started right away
      • All components feature premium build quality for lasting use

    • Specifications:

      • L-8
        Mic/Line Inputs
      • Number of Inputs: 6
      • Type: XLR/TRS combo jacks
      • Input Gain: 10dB - 54dB
      • Input Impendance:
        XLR: 3kΩ
        TRS: 3kΩ/510kΩ (when Hi-Z ON)
      • Max Input Level:
        -2dBu when -26dB switch OFF (@ 0 dBFS)
        +24dBu when -26dB switch ON (@ 0 dBFS)
      • Phantom Power: 48V

        Line Inputs
      • Number of Inputs: 2
      • Specifications: TS phone jack/TRRS mini jack
      • Input Impendance: 3kΩ
      • Max Input Level: 4dBu

        Outputs
      • Master Out: 1
        Type: XLR Jacks (Balanced)
        Maximum Output Level: 14.5dBu
        Output Impedance: 100Ω
      • Master Out (Phones): 1
        Type: Standard stereo phone jack
        Maximum Output Level: 10mW + 10mW (60Ω load)
        Output impedance: 10Ω
      • Monitor Out (Phones): 3
        Type: Standard stereo phone jack
        Maximum Output Level: 10mW + 10mW (60Ω load)
        Output Impedance: 10Ω

        Buses
      • Master: 1
      • Monitor: 3
      • Send EFX: 1

        Channel Strip
      • Low Cut: 75Hz, 12dB/OCT
      • EQ:
        HIGH: 10kHz, ±15dB, shelving
        MID: 2.5kHz, ±15dB, peaking
        LOW: 100Hz, ±15 dB, shelving
      • Level Meter: 9 segments
      • Send Effects: 8 types

        Recorder
      • Maximum Simultaneous Recording Tracks: 12 @ 44.1/48/96kHz
      • Maximum Simultaneous Playback Tracks: 10
      • Recording Format: WAV 44.1/48/96kHz, 16/24-bit, mono/stereo
      • Recording Media: 4GB - 32GB SDHC-compliant cards (Class 10 or higher) 64GB - 512GB SDXC-compliant cards (Class 10 or higher)

        Audio Interface
      • 44.1/48kHz: Recording: 12 channels Playback: 4 channels
      • Bit depth: 24-bit
      • Interface: USB 2.0

        Other
      • Card Reader Class: Mass storage USB 2.0 High Speed
      • Sampling Frequency: 44.1/48/96kHz
      • Frequency Response:
        20Hz - 20kHz: -1dB @ 44.1kHz
        20Hz - 40kHz: -3dB @ 96kHz (when +48dB)
      • Equivalent Input Noise: Actual measurements: 121dB EIN (IHF-A) at +54dB/150Ω input
      • Display: LCD with backlight (96x64 resolution)
      • Power:
        4x AA batteries (alkaline, NiMH or lithium)
        AC adapter (ZOOM AD-17): DC 5V/1A
        USB bus power
      • Estimated Continuous Operation Times Using Batteries: 2 hours for alkaline or 3 hours for NiMH when battery saving mode on/48V off
      • Power Consumption: 5W
      • Dimensions (HxWxD): 2.91" x 10.55" x 11.10" (74mm x 268mm x 282mm)
      • Weight: 3.44lbs (1.56kg)

        ZDM-1
      • Type: Dynamic
      • Polar Pattern: Supercardioid
      • Frequency Response: 50-18,000Hz
      • Sensitivity: -54 dBV.Pa (2.0mV)
      • Output Impedance: 200Ω
      • Min. Load Impedance: 200Ω
      • Max. Spl: 135dB
      • Connector: XLRM
      • Dimensions: 5.9" x 2.12" (150 mm x 54mm)
      • Weight: 3lbs (1.36kg)

        ZHP-1
      • Acoustic Design: Dynamic, closed-back
      • Driver: 40mm, neodymium
      • Sensitivity: 102dB SPL (1mW) at 1kHz
      • Frequency Response: 10-20,000Hz
      • Maximum Input Power: 200mW
      • Rated Impedance: 68Ω at 1 kHz
      • Earpad: Leatherette
      • Head Band Pressure: Approx. 4.5 N
      • Cable: 9.9ft (3m) straight cable, single-sided
      • Connector: Stereo mini jack
      • Net Weight: 6.7oz (190g)

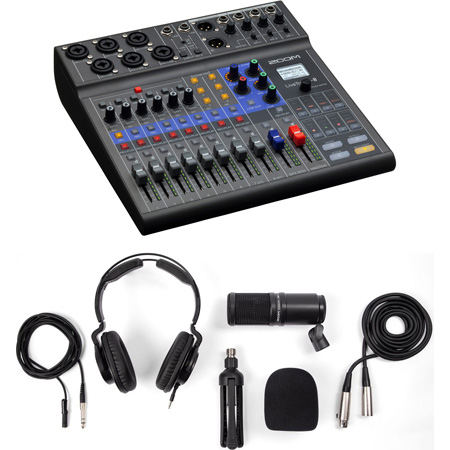

    • Item Includes:

      • 1x LiveTrak L-8 Mixer/Recorder
      • 1x TRRS Cable
      • 1x USB Cable
      • 1x AD-17 AC Adapter
      • 1x Quick Start Guide
      • 1x ZDM-1 Large-Diaphragm Dynamic Microphone
      • 1x ZHP-1 Professional Closed-Back Headphones
      • 1x ZTPS-4 Tabletop Tripod
      • 1x Custom windscreen for ZDM-1
      • 1x 2m (6.56ft) XLR microphone cable
      • 1x Steinberg's WaveLab Cast software

    • GTIN:

      0884354021146
