Murideo MU-FXHD-KIT-8K 8K Fox & Hound Testing and Troubleshooting Kit - HDR Generator and Analyzer

ITEM #: MUR-MU-FXHDKIT8K MFG #: MU-FXHD-KIT-8K

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,495.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    MU-FXHD-KIT-8K - Overview

    The 8K Fox & Hound Testing and Troubleshooting Kit
    This 40Gbps Generator and Analyzer Testing Kit from Murideo was built as the ideal testing unit for all custom and commercial integrators. The Fox & Hound comes with a 40Gbps Generator and 40Gbps Analyzer. These tools allow you to confirm correct bandwidth, HDCP, resolution, timing, HDR metadata and many more options that could cause system hiccups if not treated correctly.

    With devices like 8k displays and sources becoming normal for all video distribution systems, tons of new video formats are coming with it. How are you going to test those new signals? That is why we set out to develop a simple, affordable solution to troubleshoot system issues for today's integrator. The 8K Fox & Hound: A/V Testing and Troubleshooting Kit is a product that can produce and analyze the newest and highest resolutions - 8k resolutions and refresh rates up to 120hz at 40Gbps. It's also affordable enough for every integrator to have on any install/service call!

    How it works
    Place the generator in place of your source and set the analyzer in place of your sink. These units will then read the data being sent throughout the system. The Fox & Hound's generator can alter its signal type to produce any signal found from today's modern sources. This gives the integrator the ability to test new or existing HDMI infrastructure (cabling, extenders, amplifiers) against the types of signals it will receive in the real world. This will diminish calls to support and replacement of products! Troubleshooting is a breeze-never worry if a cable or extender is bad again! Not to mention, it's fast-have your a-have your answer to a potential problem in less than a minute.

    • Features:

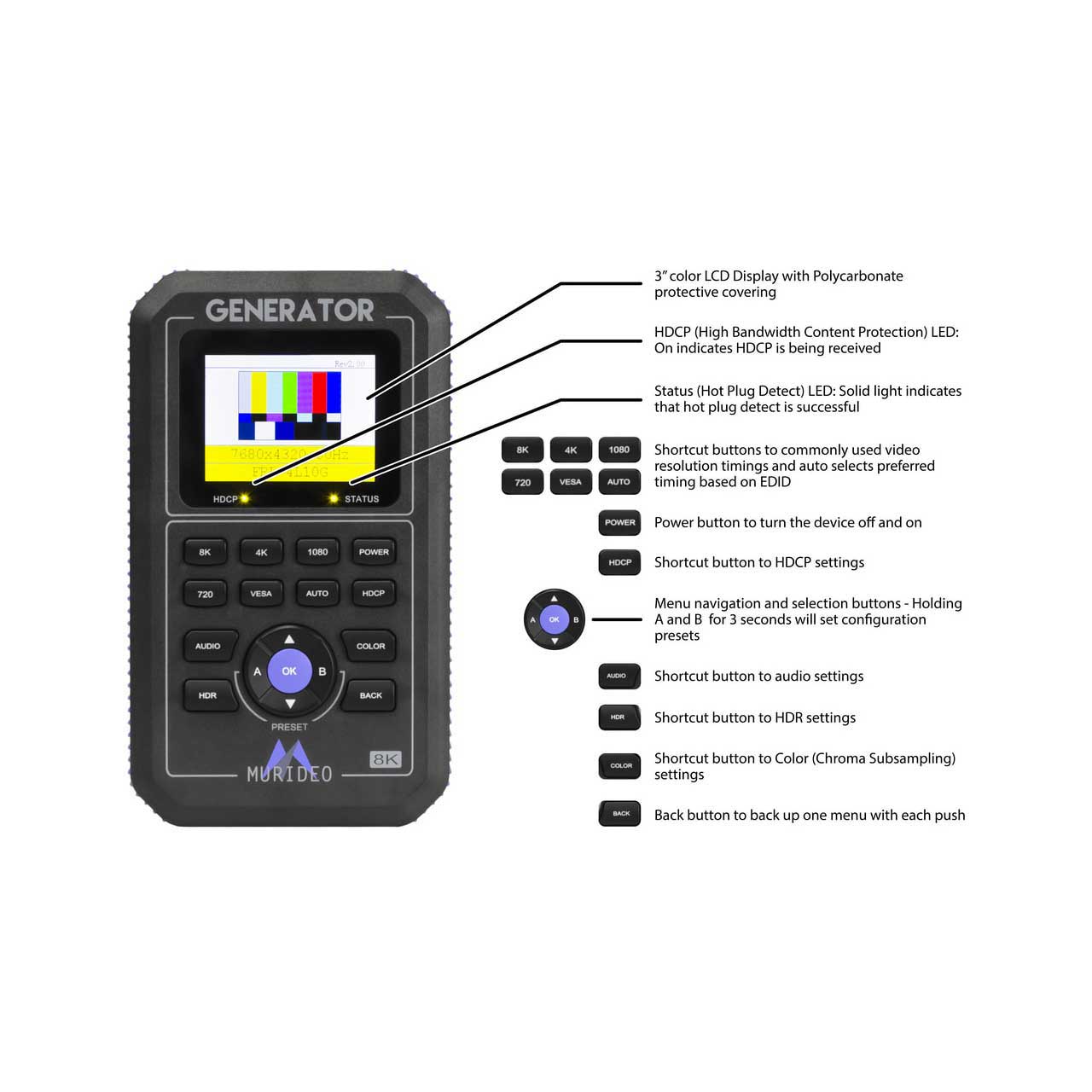

      • Generator
      • HDCP select-able - 2.3, 2.2, 1.4, none - confirms if the system will work or not
      • Hot plug detect & HDCP lights
      • Portable/battery operated
      • EDID read functionality
      • Audio confidence tests
      • Optimized ergonomics - 2" color display
      • RS-232 or USB controllable
      • HDMI 2.1
      • HDR (high dynamic range) injector, and management
      • Video bandwidth - 40 Gbps
      • 4K 10, 12, 16 bit support
      • HDCP 2.3 compatible
      • 16 bit per pixel deep color depth available (48 bit)
      • Battery: 7.4v li-ion 2600mah internal rechargeable battery
      • DC 5v power

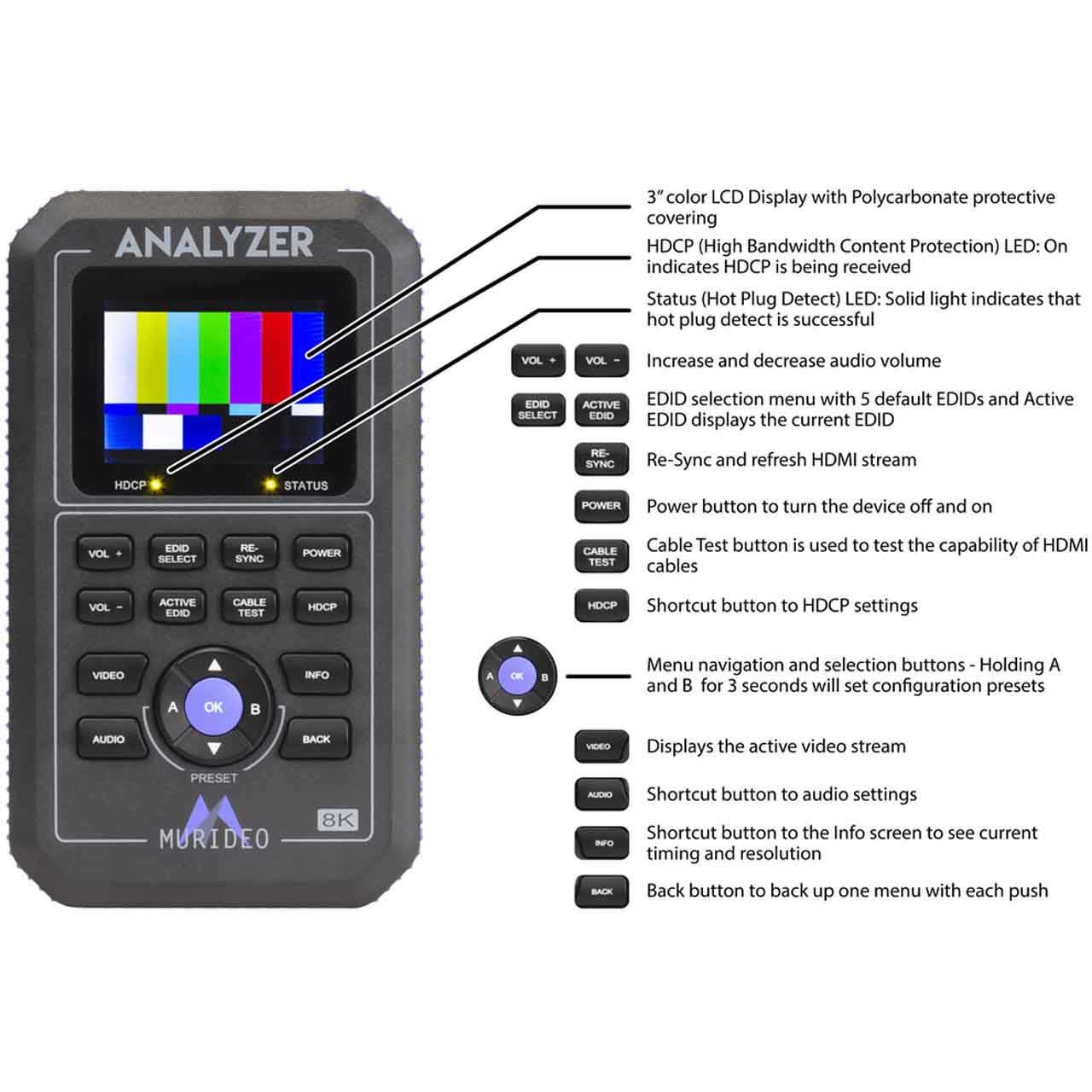

        Analyzer
      • Analyze any HDMI/DVI signals up to 40Gbps
      • Test HDMI/DVI cables up to 40Gbps
      • View up to 40Gbps video content & format info anywhere
      • Audio confidence tests, 2-channel & multichannel
      • Advanced EDID analysis & tools - read, write, EDID
      • Analyze HDR signals & metadata
      • HDCP tester - 2.3, 2.2, 1.4, none
      • Portable, battery operated
      • HDMI 2.1
      • HDR (high dynamic range) metadata info frame reading and management
      • Video bandwidth - 40Gbps
      • 10, 12, 16 bit support
      • HDCP 2.3 compatible
      • 16 bit per pixel deep color depth available (48 bit)
      • Battery: 7.4v li-ion 2600mah internal rechargeable battery
      • DC 5v power

    • Specifications:

      • Video
      • HDMI Version: HDMI 2.1 (FRL5 40GBPS)
      • HDCP Version: Up to HDCP 2.3
      • HDCP On/Off: yes
      • Max Clock Rate: 600MCSC (504 MHz)
      • Max Throughput Per Channel: 10.0 GBPS (40 GBPS total)
      • Resolution Timings: 8K: 24Hz, 25Hz, 30Hz, 50Hz, and 60Hz - 4K: 24Hz, 30Hz, and 60Hz - 1080 (HD): 24Hz, 30Hz, 50Hz, and 60Hz - 720: 50Hz and 60Hz - VESA: 60Hz (Auto read/output based on EDID)
      • Video Encoding: RGB- YCBCR

        Audio
      • Audio Channels: Up to 8 (7.1)
      • Audio Output: 2ch LPCM and 8ch LPCM
      • VU Meter Channels: Up to 8 (7.1)

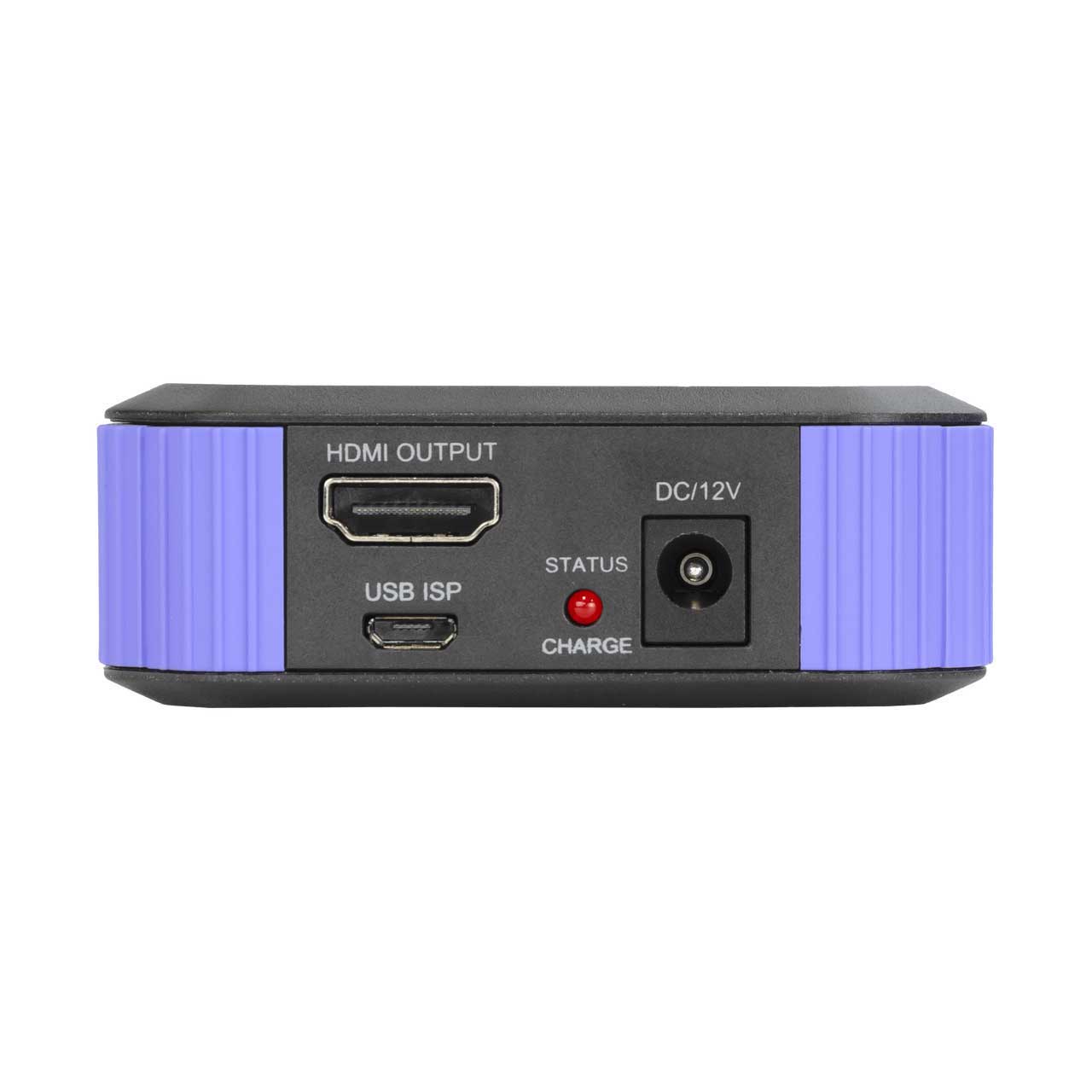

        Ports
      • HDMI: Type Audio
      • Firmware: Micro USB

        Environmental
      • Operating Temp: 23 - 125°F
      • Storage Temp: -4 - 140°F
      • Humidity Range: 5-90% RH (no condensation)

        Power
      • Power (Single Unit): 7.4V 2600mAh internal battery or wall adapter
      • Power Consumption (total for single unit): 7.5 watts max
      • Power Supply (x2): Input - AC 100-240V ~ 50/60Hz, Output - DC 12V 2A

        Physical
      • Dimensions (unit only): 1.19 x 3.09 x 1.19 inch
      • Dimensions (case): 5 x 11 x 13.13 inch
      • Weight (unit only): 0.58lbs
      • Weight (case & accessories): 6lbs

    • Item Includes:

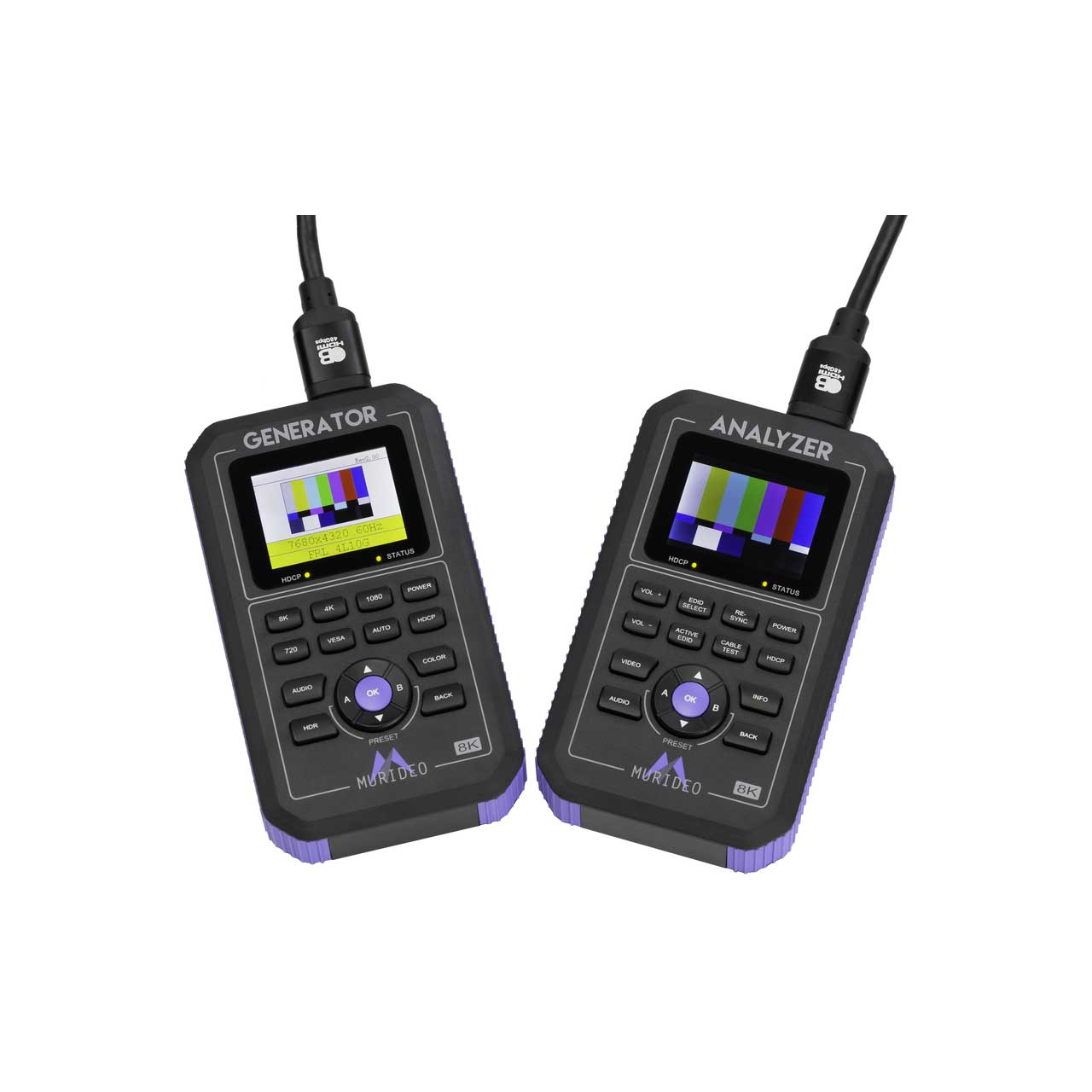

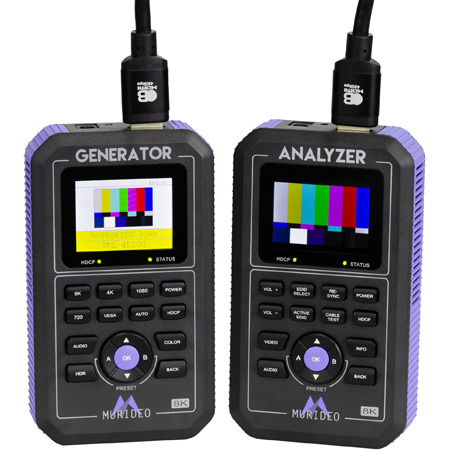

      • 1x Fox - Generator
      • 1x Hound - Analyzer
      • 1x Hard case
      • 2x 12V 2A power supplies
      • 2x Micro USB cables
      • 2x Bullet Train HDMI cables
