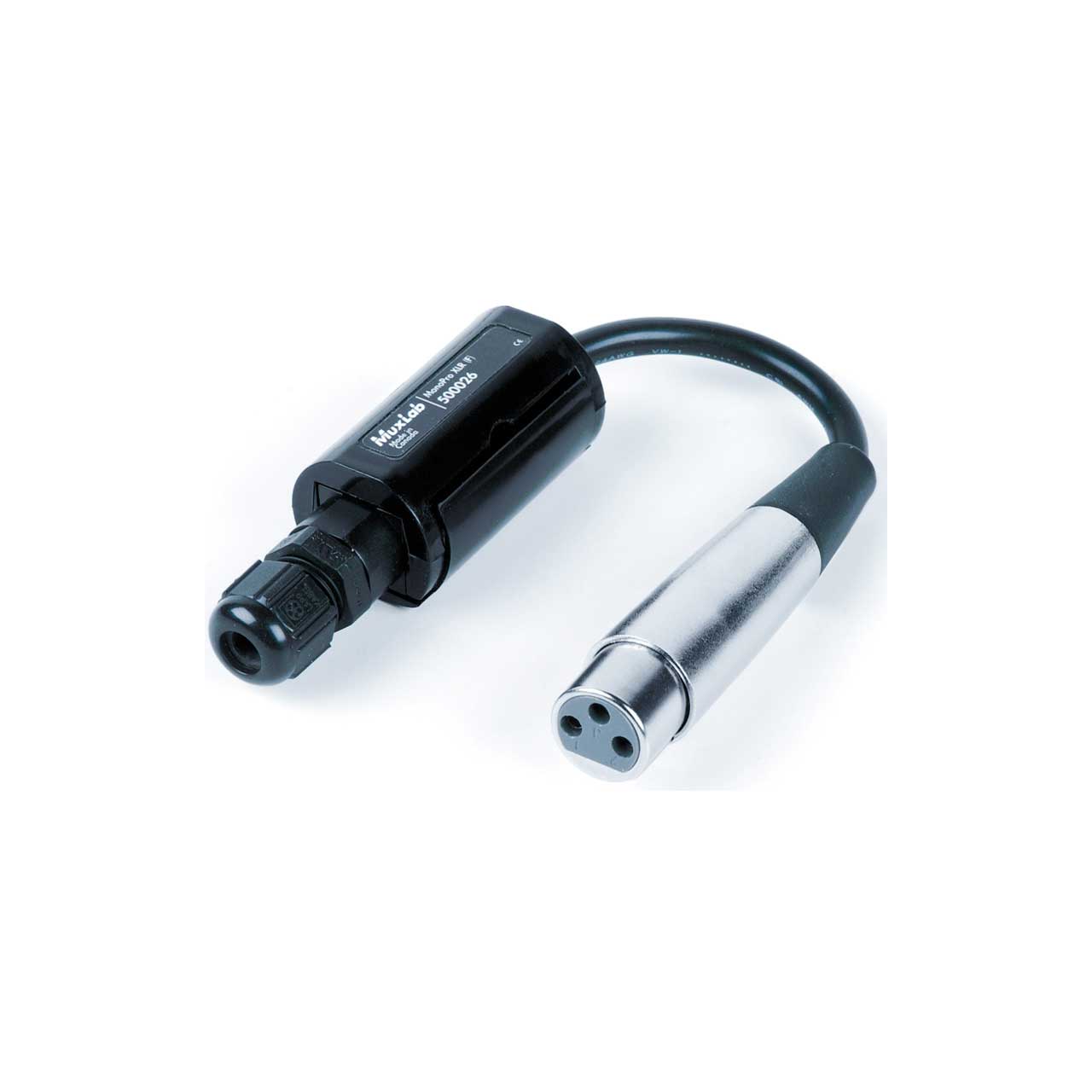

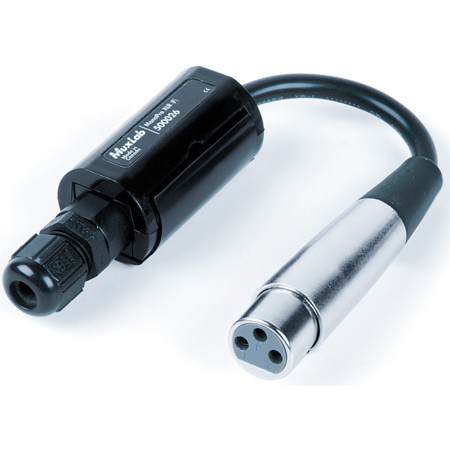

MuxLab 500026 MonoPro XLR Female to Cat5

ITEM #: MUX-500026 MFG #: 500026

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$34.00

Our Price:

$23.00

Availability: In Stock
iAvailability Description Popup


    500026 - Overview

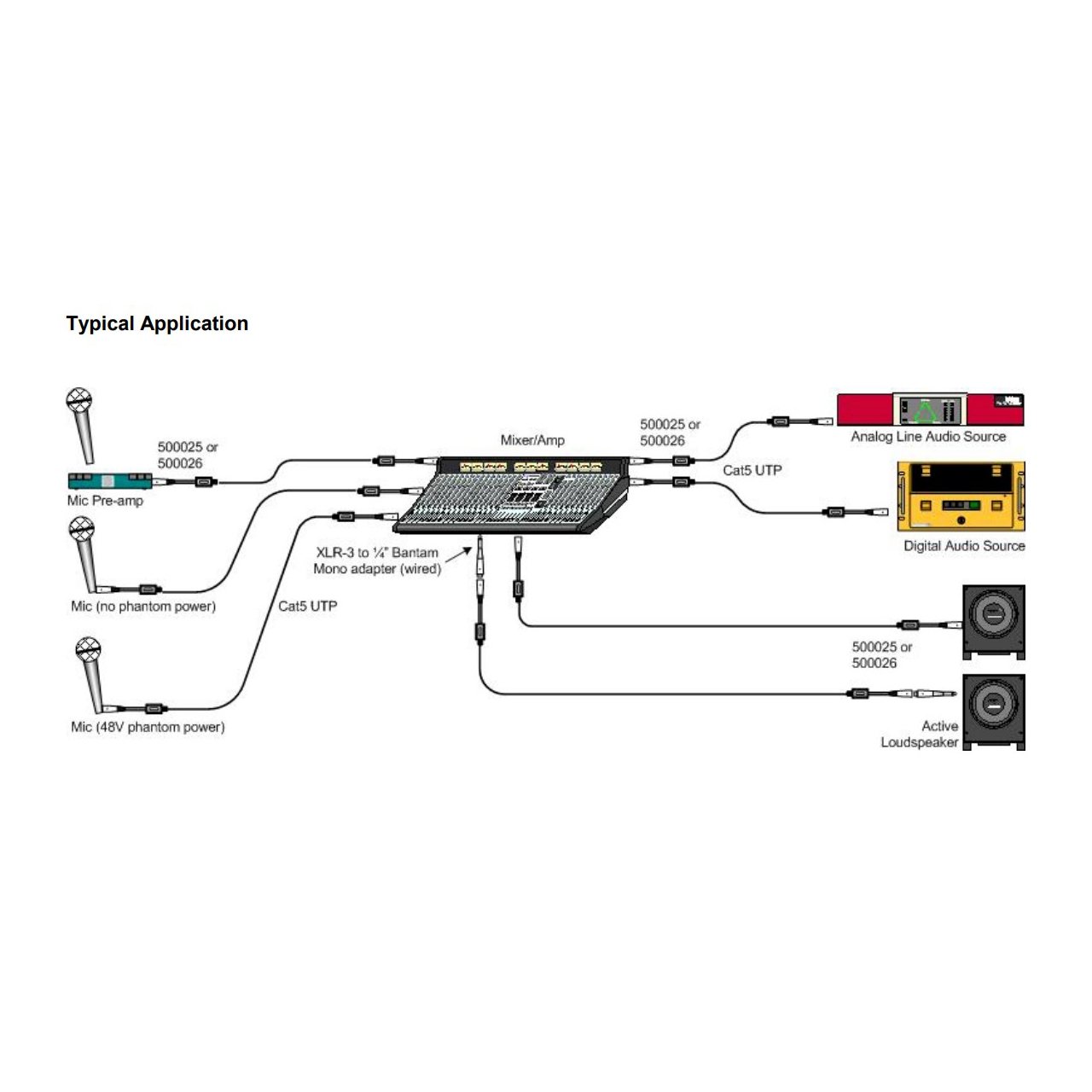

    The MuxLab MonoPro™ XLR (500025, 500026) allows a standard AES analog or digital audio channel to be connected via Category 5 unshielded twisted pair cable (UTP) in the professional audio environment. The product features rugged cable strain relief and comes with locking XLR3 connectors for added cabling versatility. The 500025 and 500026 feature XLR3 plug and XLR3 receptacle respectively.

    • Features:

      • Cost efficient cabling via UTP
      • Rugged cable strain relief
      • Line analog audio up to 5,000ft (1.5km) via Cat 5
      • Digital audio up to 1,400ft (426m) via Cat5
      • Wires terminate inside product
      • Locking XLR3 connector
      • Optional wire terminal for ground/shield

    • Specifications:

      • Analog Audio
      • Environment: Balanced line level or microphone analog audio
      • Signal Amplitude: 2.3 Vp-p
      • Polarity Sensitivity: Phase polarity sensitive
      • Impedance:
        - Output: 600Ω
        - Input: 600Ω - 20kΩ
      • Signal Type: Professional balanced analog line level or microphone
      • Maximum Distance via Cat5e/6 UTP:
        - Line Level: 5,000ft (1.5km)
        - Mic Level: 3,000ft (914m)

        Digital Audio
      • Environment: Balanced line level or microphone digital audio
      • Signal Amplitude: 2-7 Vp-p
      • Polarity Sensitivity: Not polarity sensitive
      • Impedance: 110Ω
      • Signal Type: Professional balanced digital line level
      • Maximum Distance via Cat5e/6 UTP:
        - 32 kHz: 1,400ft (426m)
        - 44.1 kHz: 1,300ft (396m)
        - 48 kHz: 1,250ft (381m)
        - 96 kHz: unspecified

      • Frequency Response: DC to 6 MHz
      • Insertion Loss (per balun pair): Less than 1 dB /pair from DC to 6 MHz
      • Return Loss: Less than 15dB from DC to 6 MHz
      • Common Mode Rejection (CMMR): Greater than 45 dB
      • Cable - UTP:
        - 24 gauge or lower solid copper twisted pair wire
        - Impedance: 100 Ω at 1 MHz
        - Maximum capacitance: 20 pf/foot
        - Attenuation: 6.6 dB/1000 ft at 1 MHz
      • Connectors:
        - XLR3-M or XLR3-F depending on model
        - 2x screw terminals for signal
        - 1x screw terminal for optional shield (ground)
      • Cable Strain Relief: Threaded and tapered cable grip mechanism.
      • Temperature:
        - Operating: 32°F - 131°F (0°C - 55°C)
        - Storage: -4°F - 185°F (-20°C - 85°C)
        - Humidity: 95% non-condensing
      • Enclosure: Fire retardant plastic. UL94-V0
      • Dimensions: 1.875" x 1" diam (4.76cm x 2.54cm diam) plus 5" (12.7cm) XLR3 lead
      • Weight: 2.64oz (75g)

    • Warranty:

      • Lifetime Warranty

    • GTIN:

      0627699000267
