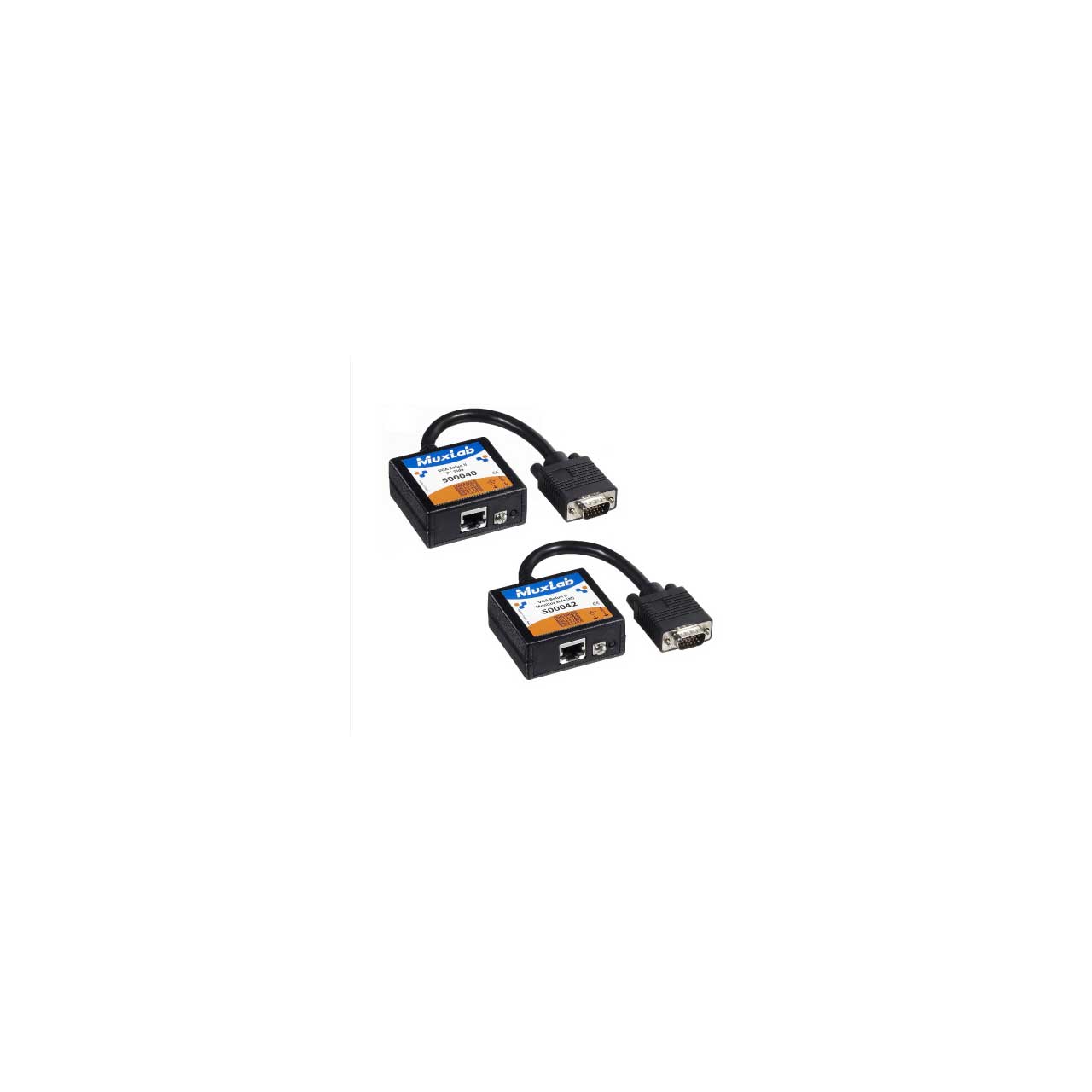

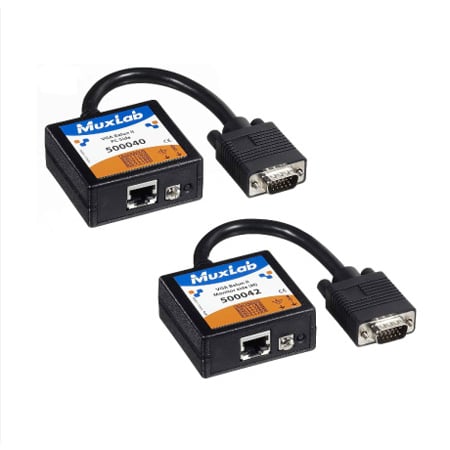

MuxLab 500040-42-PK VGA Balun II Kit
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    MuxLab 500040-42-PK VGA Balun II Kit

    Manufacturer: MuxLab Inc

    Item #: MUX-500040-42PK   •   MFG #: 500040-42PK


    List Price:$162.00
    Our Price:$110.00

    free ship
    Availability: In Stock
    Item is Available for immediate shipping from our warehouse.


      California Residents:
      Cancer and Reproductive Harm -


      The VGA Balun II eliminates costly and bulky VGA cable, allowing a VGA source to be connected to a VGA monitor via one 4-pair Cat 5 unshielded twisted pair UTP cable.Used in pairs, the VGA Balun II allows VGA video to be transmitted up to 350ft via Cat 5 at 800 x 600 resolution. The products feature a reset button that may be required when using certain displays, Doesn't support DDC handshake.The VGA Balun II works in conjunction with laptops, PCs, plasmas, CRT, LCD monitors and DLP projectors. Typical applications include digital signage, boardroom systems, classroom video instruction and custom audio-video systems.

      • Features

        • Fully supports Cat5e/6 UTP
        • Cost efficient versus VGA cable
        • Use existing structured cabling system
        • Save conduit space
      • Specifications

        • Environment;VGA. VESA VP&D 1.0, VIP ver 2.0.
        • Devices;CRT & LCD monitors, plasma screens, PCs, laptops and multimedia projectors.
        • Transmission;Transparent to the user.
        • Bandwidth;DC to 60MHz
        • Input Signals;Video:1.1Vp-p
        • Horizontal sync;TTL standard. 300kHz max. bandwidth
        • Vertical sync;TTL standard. 300kHz max. bandwidth
        • Insertion Loss;Less than 3 dB per pair over the frequency range.
        • Common Mode Rejection;15kHz -60dB typ.
        • 100kHz to 10MHz -40dB typ. 200MHz -20dB typ.
        • Return Loss;-15dB max from DC to 60MHz
        • Connectors;500040/500042: HD15 Plug, RJ45S
        • Max. Distance via Cat5E/6 Twisted Pair;
        • VGA: 640x480 pixels (15MHz) 450ft (137m)
        • SVGA: 800x600 pixels (30MHz) 350ft (107m)
        • XGA: 1024x768 pixels (60MHz) 250ft (76m)
        • SXGA: 1280x1024 pixels (100MHz) 200ft (61m)
        • WXGA:1366x768 pixels 180ft (55m)
        • RJ45 Pin Configuration;EIA 568 (A or B)
        • Reverse Polarity Sensitive;Pin 1 (R) Pin 2 (T) Balanced - Red
        • Pin 4 (R) Pin 5 (T) Balanced - Green Pin 7 (T) Pin 8 (R) Unbalanced - Blue (7 - Signal, 8 - Ground) Pin 3 (R) Pin 6 (T) Unbalanced-H & V Sync;Reset button may be required when used with sync-sensitive displays.
        • Grounding screw;Grounding screw for optional use.
        • Cable Cat5E/6 or better unshielded twisted pair (UTP)
        • Horizontal and vertical sync: Balanced.
        • Impedance Input;RGB 75 ohms (HD15) Unbalanced
        • Output;RGB 100 ohms (RJ45 shielded) Balanced
        • Please note:The VGA Balun II does not support VGA handshaking and control signals. Therefore it is necessary to set the monitor attributes prior to installing the VGA baluns. In order to do this,first connect the standard VGA cable directly from the PC to the monitor and then set the monitor attributes to the required settings (i.e., resolution, color, etc.). Also, in order to achieve optimum results via twisted pair, set the contrast and brightness levels to maximum.
      • Item Includes

        • Includes one 500040 VGA Balun II, HD15 HD Plug, PC Side and one 500042 VGA Balun II, HD15 HD Plug, Monitor Side.
