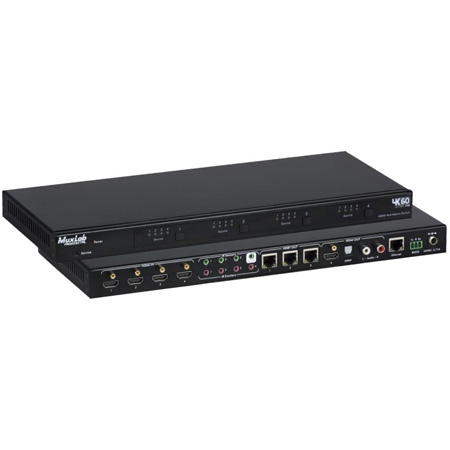

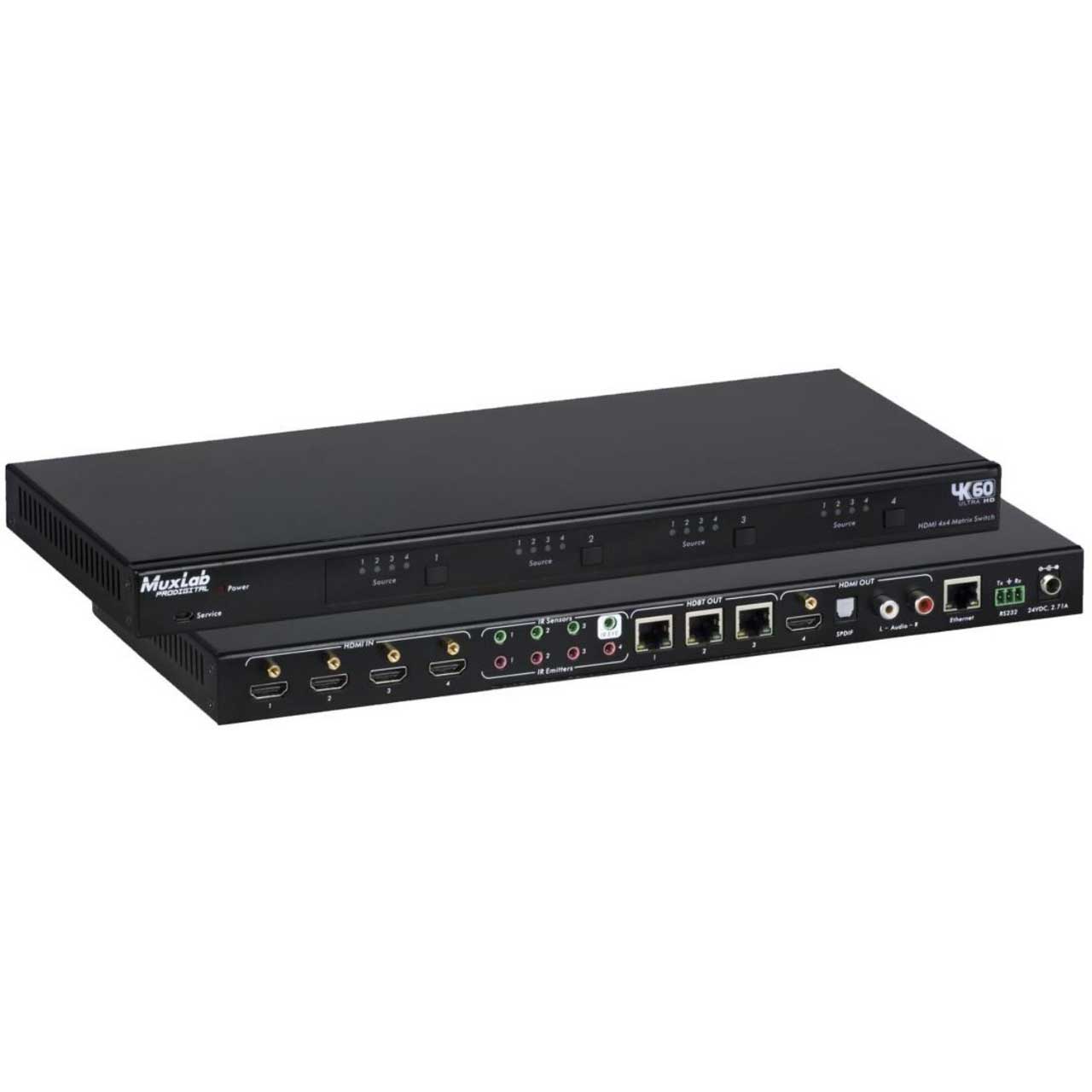

Muxlab 500412 HDMI 4x4 Matrix Switch Kit HDBT PoC 4K/60 with 3 Receivers

ITEM #: MUX-500412-US MFG #: 500412-US

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$2,077.00

Our Price:

$1,423.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    500412-US - Overview

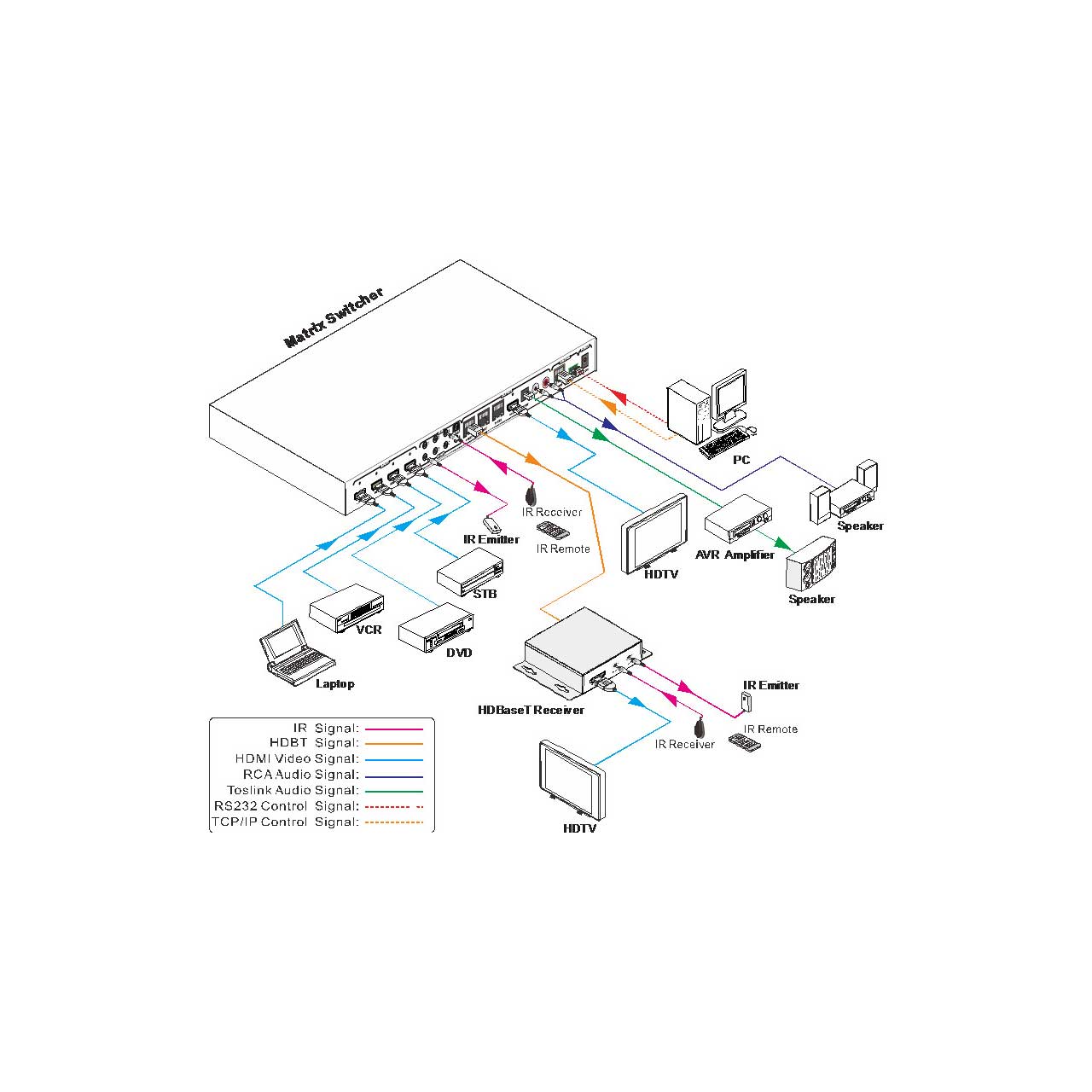

    The HDMI 4x4 Matrix Switch Kit, HDBT, PoC, 4K/60 (4:2:0) allows up to four (4) different HDMI sources to be connected and/or distributed to up to four (4) HDMI displays. The unit supports three (3) HDBT outputs for long distance connectivity and one (1) HDMI output for local connectivity. The Kit includes three (3) HDBT PoC Receivers which are powered by the Matrix Switch, and support distances up to 70m at 1080p and 40m at 4K via Cat5e cable. Management functions include front panel pushbutton, IR, RS232 and webserver interface. Software updated are supported via a USB port.

    Applications:
    Commercial and residential AV systems
    Classroom training systems
    Digital signage
    Boardroom systems
    Collaborative PC systems
    Medical information systems

    • Features:

      • Supports HDMI 2.0 (4K/60 4:2:0) & HDCP 2.2
      • 3 HDBT outputs, support distances up to 70m at 1080p and 40m at 4K
      • Kit includes 3 HDBT Receivers which are powered by the matrix switch via 24VDC PoC
      • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
      • RCA L/R audio out and TosLink optical audio out
      • Supports 2-way IR to manage end devices
      • Powerful EDID management
      • Controllable via front panel, RS232, IR and TCP/IP
      • Built-in GUI web interface

    • Specifications:

      • Matrix Switch
      • Environment: HDMI 2.0 (4K/60 4:2:0), HDCP 1.4 & 2.2
      • Devices: DVD, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI
      • Transmission: Transparent to the user
      • Video Bandwidth: 10.2Gbps
      • Maximum Pixel Clock: 297Mhz
      • Video Resolution: VESA and SMPTE 480p to 2160p (4K) With 3D / Bit depth: 16, 20, 24
      • Signal: HDMI 2.0 (4K/60 4:2:0) protocol and HDCP 1.4 & 2.2
      • Switching Speed: 200ns (Max.)
      • Audio: Analog Audio: 2CH PCM / Digital Audio: PCM, Dolby TrueHD, DTS-HD Master Audio
      • Maximum Distance: Cat 5e/6: Up to 230ft (70 m) @ 1080p, Up to 131ft (40m) @ 4K/30 (4:4:4), or 4K/60 (4:2:0)
      • Cable: One Cat 5e/6 or better twisted pair cable required.
      • Control-
      • Ethernet (TCP/IP & WEB)
      • Serial Port
      • Front Panel Buttons
      • 4 IR Emitters, 3 IR Sensors & IR Sensor Extender
      • Connectors-
      • 5 HDMI connectors for HDMI Input (x4) & Output (x1)
      • 3 RJ45 shielded connectors for HDBT
      • 8 3.5mm Jacks; for IR Sensor & Emitters
      • 1 3-pin phoenix/terminal block (3.81 mm) for RS232
      • 1 TOSLink fo r digital Audio Output
      • 2 RCA Jacks for 2CH audio output
      • 1 RJ45 Shielded connector for Ethernet
      • 1 USB Port for firmware upgrade
      • 1 2.1mm barrel locking connector for Power
      • Power Supply: 110-240VAC to 24VDC/2.71A power supply
      • Power Consumption: 35W (Max.)
      • Operating Temp.: 0°C to 50°C
      • Storage: -20°C to 85°C
      • Humidity: Up to 90% non-condensing
      • Enclosure: Metal
      • Dimensions: 14.17" x 1.10" x 5.91"
      • Weight: 2.00 lbs
      • Compliance Regulatory: FCC, CE, RoHS


      • HDBT Receiver
      • Environment: HDMI 2.0 (4K/60 4:2:0), HDCP 1.4 & 2.2
      • Devices: DVD, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI
      • Transmission: Transparent to the user
      • Video Bandwidth: 10.2Gbps
      • Maximum Pixel Clock: 297Mhz
      • Video Resolution: VESA and SMPTE 480p to 2160p (4K) With 3D Bit depth: 16, 20, 24
      • Signal: HDMI 2.0 (4K/60 4:2:0) protocol and HDCP 1.4 & 2.2
      • Maximum Distance: Cat 5e/6: Up to 230ft (70 m) @ 1080p, Up to 131ft (40m) @ 4K/30 (4:4:4), or 4K/60 (4:2:0)
      • Control: 1 IR Emitter, 1 IR Sensor
      • Connectors-
      • 1- HDMI connector for HDMI Output
      • 1- RJ45 shielded connector for HDBT
      • 2- 3.5mm Jacks; for the IR Sensor & IR Emitter
      • 1- 3-pin phoenix/terminal block (3.81 mm) for RS232
      • Operating Temp.: 0° to 50°C
      • Storage Temp.: -20°C to 85°C
      • Humidity: Up to 90% non-condensing
      • Enclosure: Metal
      • Dimensions: 2.40" x 0.95" x 4.71"
      • Weight 0.62 lbs
      • Compliance Regulatory: FCC, CE, RoHS

    • Item Includes:

      • 1x - HDMI 4x4 Matrix Switch
      • 3x - HDBT Receivers
      • 4x - IR Emitters
      • 3x - IR Sensors
      • 1x - IR Sensor for the Matrix IR eye port
      • 1x - IR Remote
      • 2x - Mounting Brackets and 6 screws for the Matrix Switch
      • 6x - Mounting Brackets and 6 screws for the HDBT Receivers
      • 1x - RS232 Cable (3-pin Phoenix/Terminal Block to DB9)
      • 1x - 24VDC, 2.71A Power Adapter
      • 1x - Power Cord
      • 4x - Trapezoidal Plastic Feet for the Matrix Switch
      • 12x - Round plastic pads for the HDBT Receivers
      • 1x - User Manual

    • Warranty:

      • 2 Years

    • GTIN:

      0627699014127
