MuxLab 500451 HDMI Mono Extender Kit Over 230 Feet of One Cat5e/6 Cable

ITEM #: MUX-500451 MFG #: 500451

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$371.00

Our Price:

$256.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    500451 - Overview

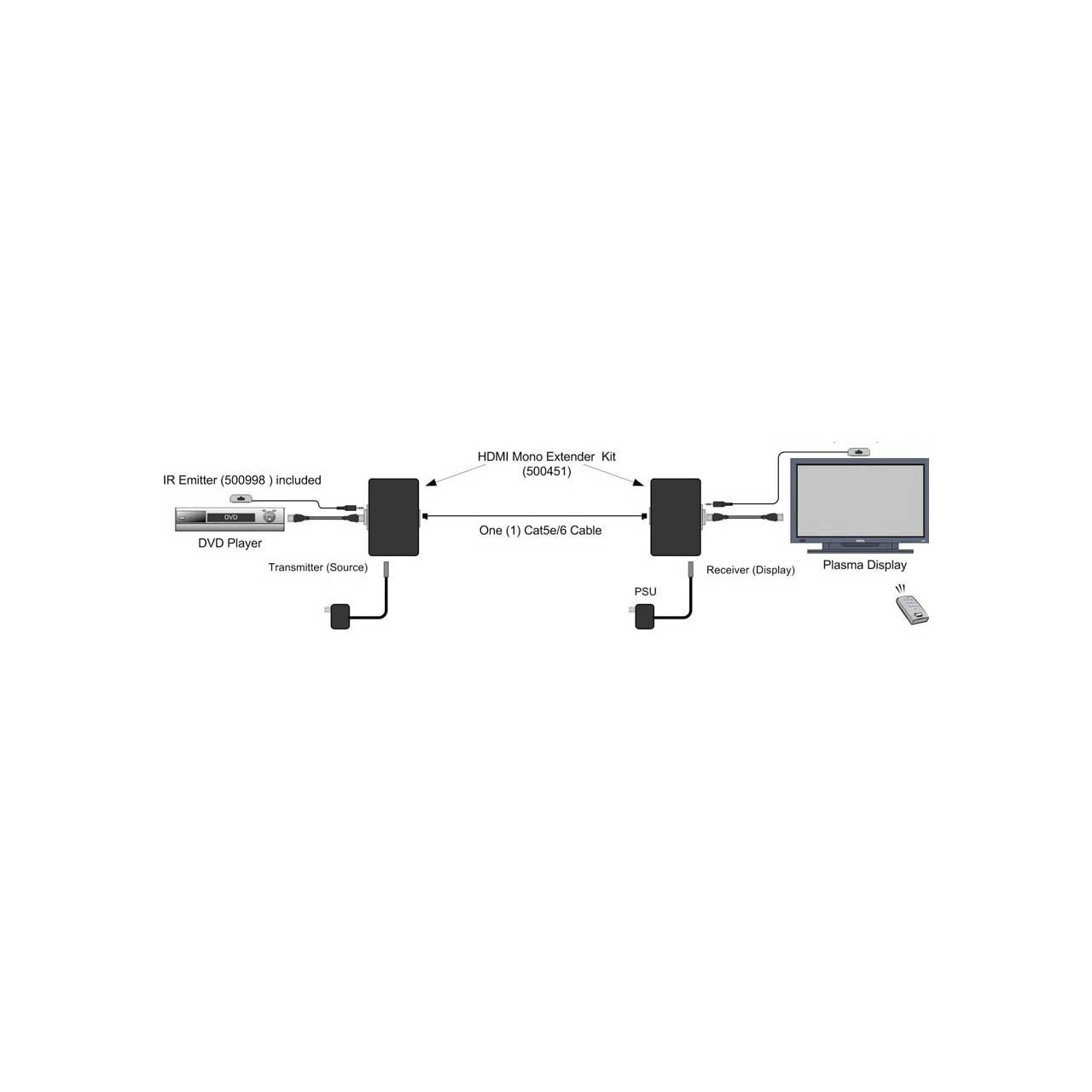

    The MuxLab 500451 allows HDMI equipment to be connected up to 230 ft (70m) via one (1) Cat5e/6 cable in a point-to-point configuration at 1080p Deep Color. The HDMI Econo Mono Extender Kit supports IR source and comes well equipped with one IR emitter, one IR sensor, and a power supply. Ideal for applications such as commercial and residential AV systems, classroom projector systems, digital signage, and boardroom systems, this kit is surely a versatile product with endless possibilities for use.

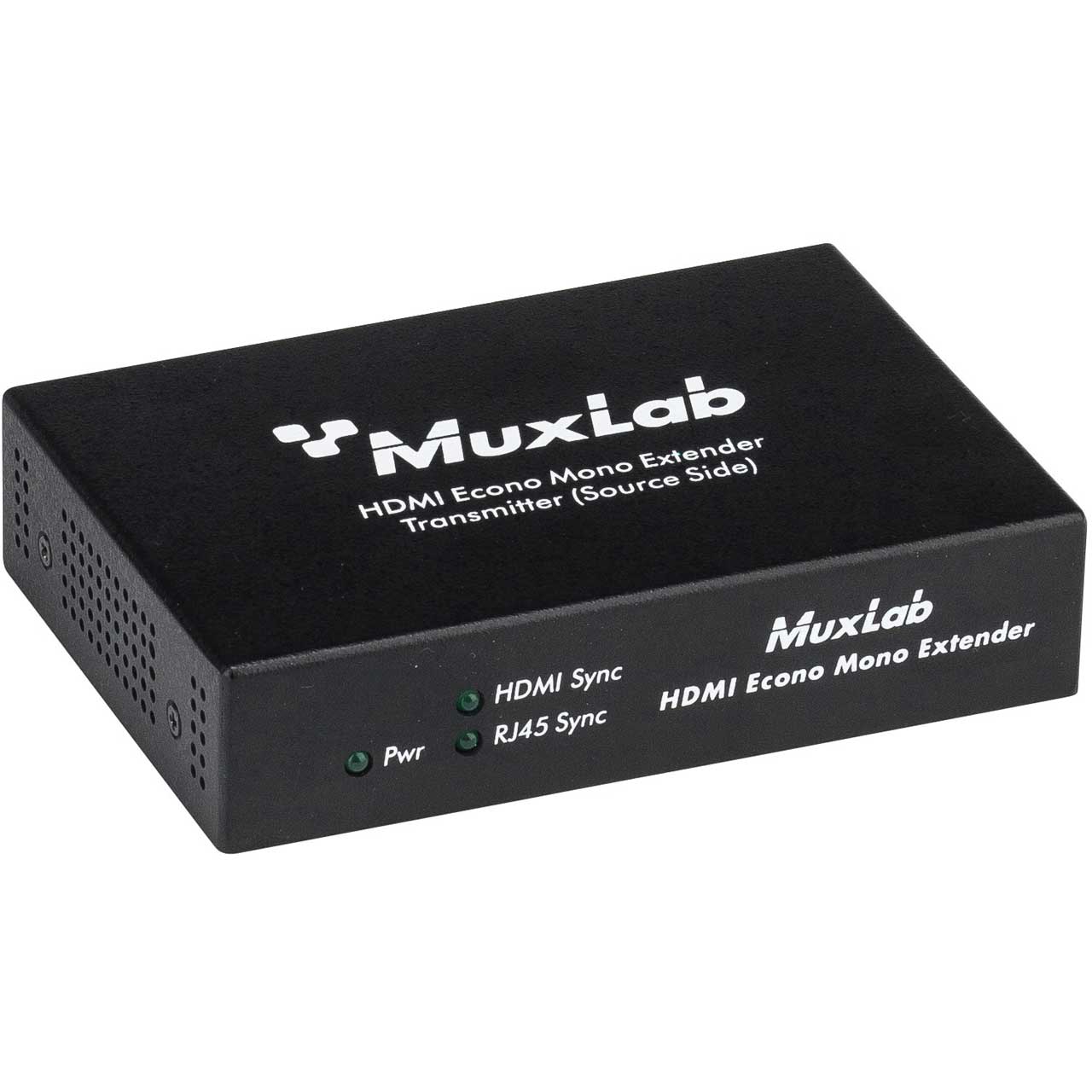

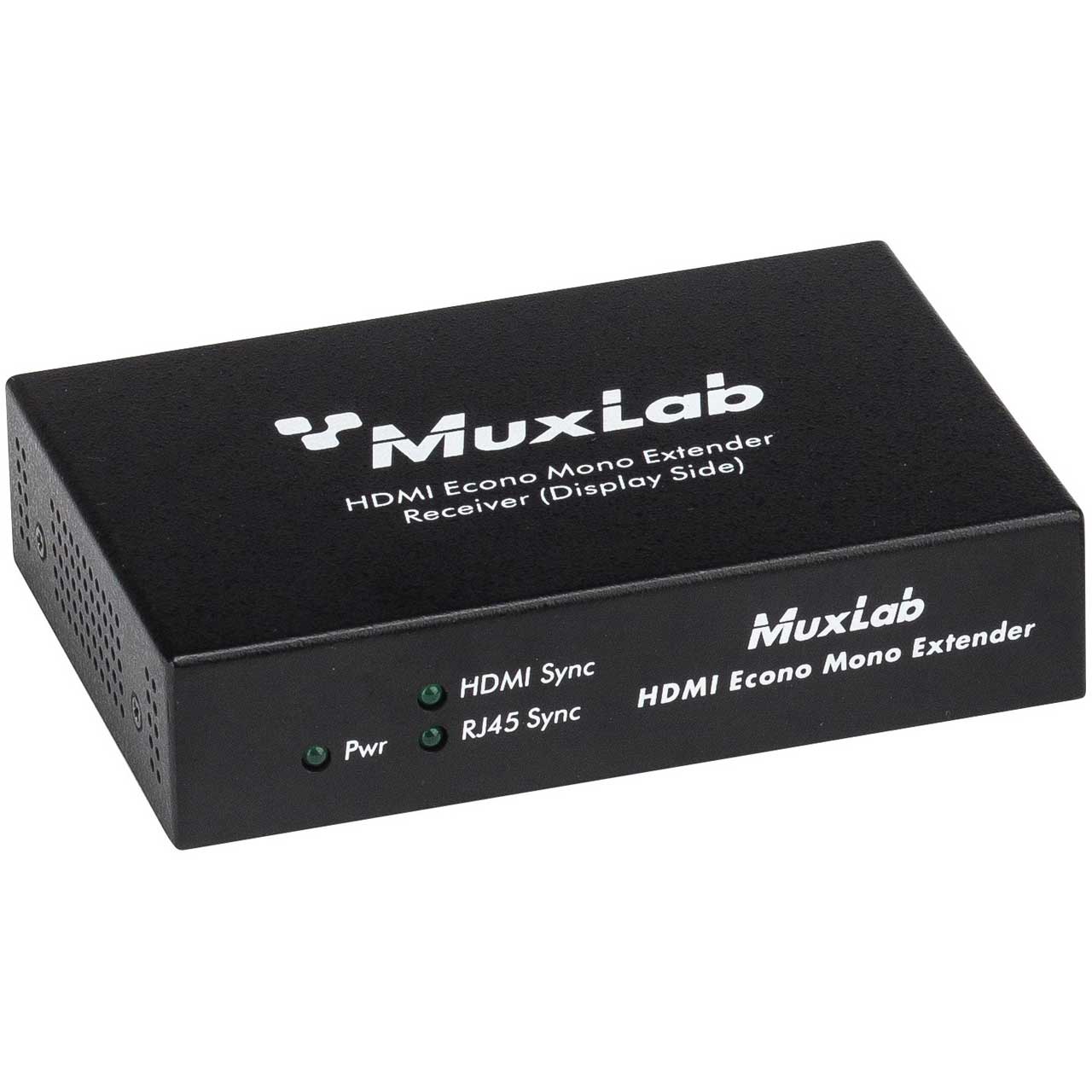

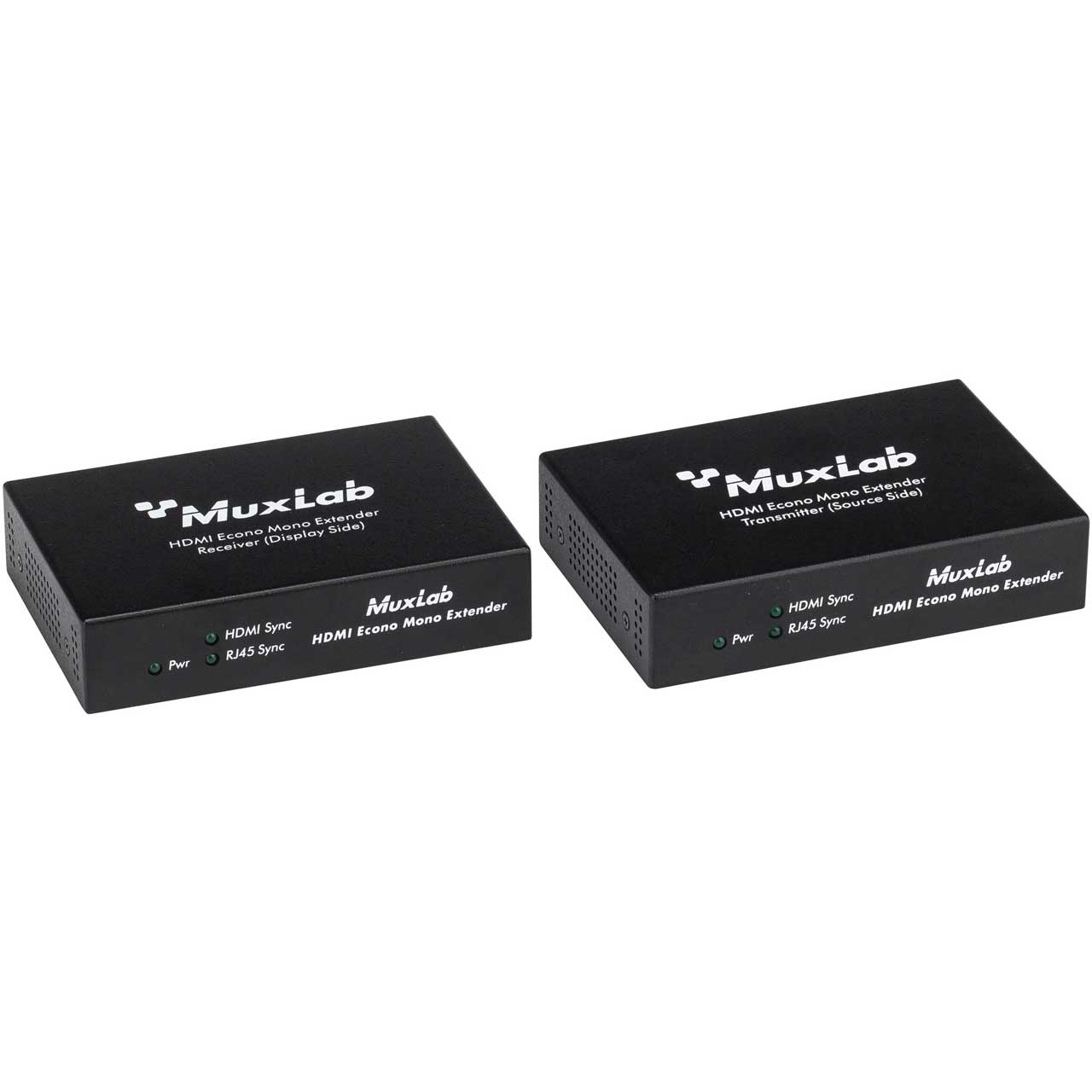

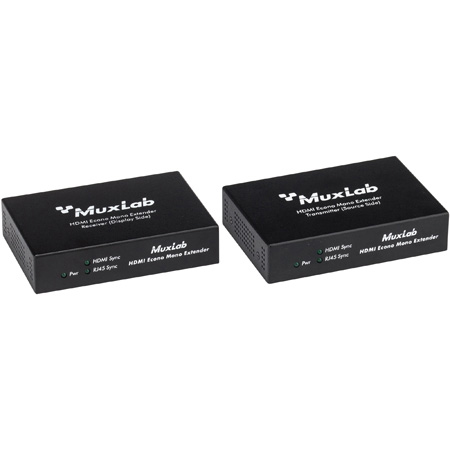

    The kit comes with one (1) transmitter, one (1) receiver and two (2) power supplies.

    Note: When installed in an electrically noisy environment, STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used. Patch panels are not recommended with 1080p Deep Color.

    • Features:

      • Up to 230 ft (70m) at all resolutions up to 1080p Deep Color via single Cat5e/6S
      • Includes IR Emitter (500998) and IR Sensor (500999)
      • Supports IR remote source control

    • Specifications:

      • Environment: HDMI 1.3a, HDBaseT. (Supports the 3D feature of HDMI 1.4)
      • Devices: DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI
      • Transmission: Transparent to the user
      • Bandwidth: 340 MHz
      • Standard: HDMI 1.3a
      • Connectors: One (1) HDMI receptacle, One (1) RJ45S for link via Cat5e/6 cable, 3.5mm jacks for IR Emitter and IR Sensor
      • Max. Distance (Based on a max length of 6.6 ft HDMI cable per end): 4480i/p: Cat 5e/6: 230 ft (70 m); 720p, 1080i: Cat 5e/6: 230 ft (70 m); 1080p: Cat 5e/6: 230 ft (70 m); 1080p Deep Color: Cat 5e/6: 230 ft (70 m)
      • RJ45 Pin Configuration: Use EIA/TIA 568 A or B, straight-through wiring.
      • Cable: One (1) Category 5e or better twisted pair cables required.
      • Power Supply: Two (2) 110-240V/5VDC power supply with interchangeable blades included
      • Power Consumption: Transmitter: 1.6W Receiver: 3.2W
      • Enclosure: Metal
      • Dimensions: 4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5 cm)
      • Weight: 1.4 lb (.6 kg)
      • Compliance Regulatory: FCC Class A, CE, RoHS
      • Warranty: 2 years

    • Item Includes:

      • One (1) transmitter
      • One (1) receiver
      • Two (2) power supplies
      • IR Emitter (500998)
      • IR Sensor (500999)

    • Warranty:

      • 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products

    • GTIN:

      0627699004517
