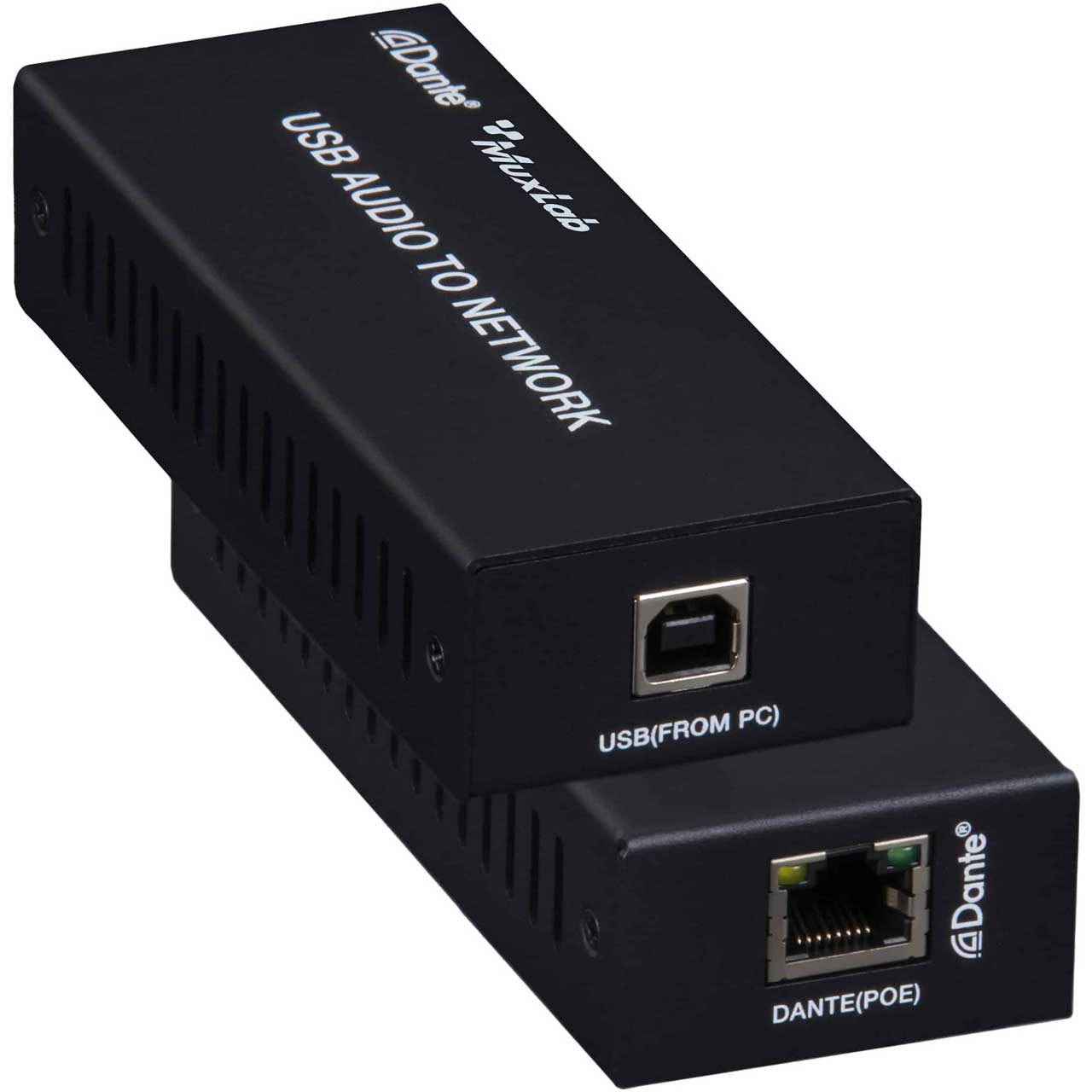

MuxLab 500550 Dante 2-Channel USB Audio Encoder/Decoder - up to 328 Foot via CAT6/6A

500550 - Overview

• Features:

  • Compliant with USB 2.0 Full Speed Operation
  • Compliant with USB Audio Device Class Specification V1.0
  • Encodes USB audio to Dante digital signal
  • Decodes a Dante digital signal to USB audio
  • Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
  • Support USB 5V power supply and PoE function (IEEE802.3af Class 0)
  • Supports AES67 RTP audio transport


• Specifications:

  • Technical
  • Video Network Bandwidth: 328 Foot
  • Audio Formats: PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
  • Transmission Distance: 328 Foot (CAT6/6A)
  • Control Method: Dante Controller

    Connection
  • Input & Output: 1 x USB-B, 1 x DANTE [RJ45 connector, PoE]

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions (WxDxH): 7 x 3.35 x 2.17"
  • Weight: .66lb
  • Power Supply: USB input: 5V-500MA PoE input: IEEE802.3af Class 0
  • Power Consumption: 1W
  • Operation Temperature: 32 - 104°F
  • Storage Temperature: -4 - 140°F
  • Relative Humidity: 20 - 90% RH (no condensation)


• Item Includes:

  • 1x MuxLab 500550 Dante 2-Channel USB Audio Encoder/Decoder - up to 328 Foot via CAT6/6A


• Warranty:

  • 2 years
