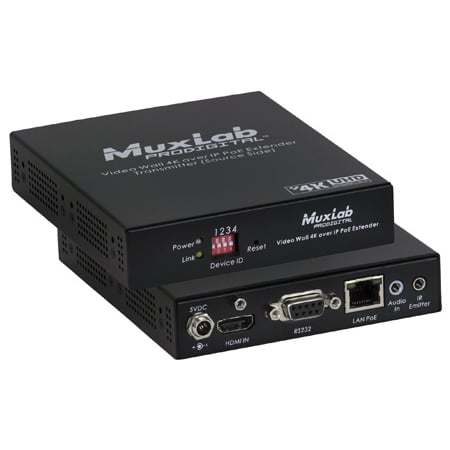

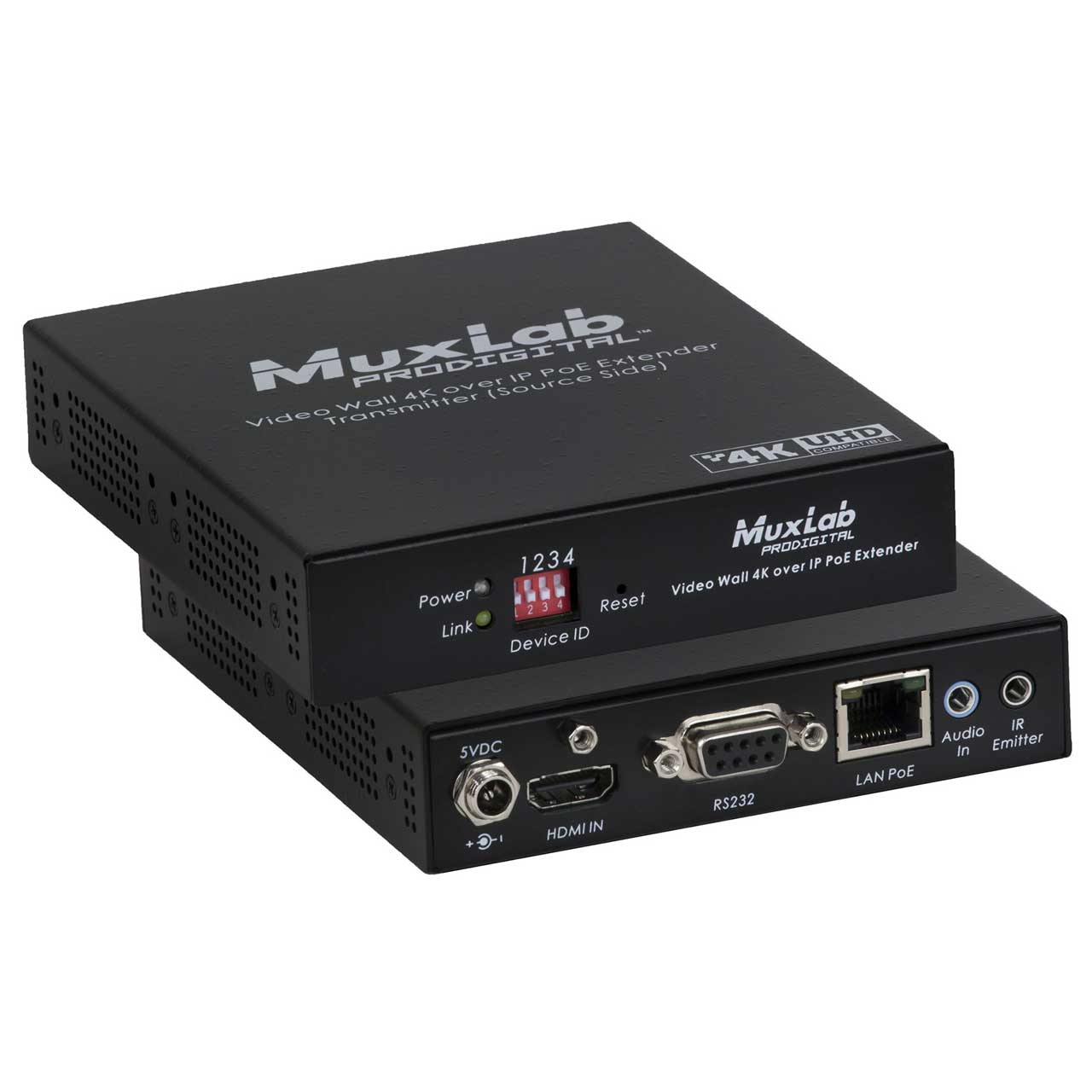

MuxLab 500759-TX Video Wall 4K over IP / PoE Extender Transmitter

ITEM #: MUX-500759-TX MFG #: 500759-TX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    500759-TX - Overview

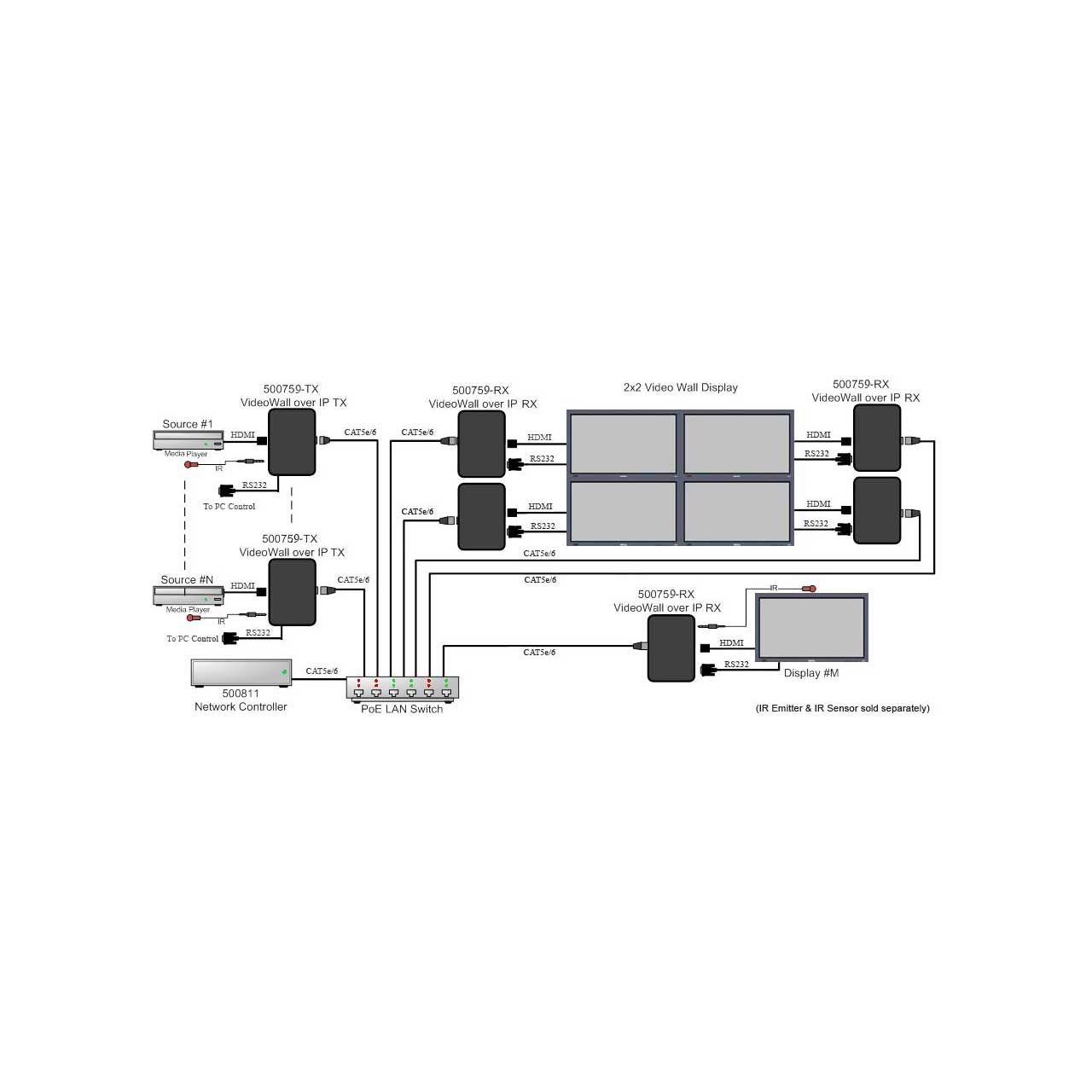

    The Video Wall 4K over IP PoE Extender Kit allows HDMI equipment supporting up to 4K @ 30Hz or 1080p at 60Hz resolution to be connected and extended to create a Video Wall of user configurable size (X by Y) supporting 100’s of screens, depending on network bandwidth, utilizing one Receiver for each display in the array. Each Transmitter (500759-TX) and Receiver (500759-RX) can be connected via Cat5e/6 cable up to 330ft (100m) from an Ethernet Switch. The Transmitters and Receivers support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch. The kit comes with one (1) Transmitter and one (1) Receiver. The IR Emitter and IR Sensor, if required, may be purchased separately for IR based remote control applications.
    Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (MUX-500992) may be purchased separately.

    • Features:

      • Configure a Video Wall array with 100’s of displays, depending on network bandwidth
      • Supports up to 4K @ 30Hz and 1080p @ 60Hz
      • Visually lossless video (1 frame latency)
      • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
      • Transmission up to 330ft (100m) over Cat5e/6
      • Supports audio insert (TX) & audio extract (RX)
      • Supports RS232 and IR transmission for remote control
      • PoE powered
      • Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)
    • Specifications:

      • Environment: HDMI 1.4
      • Devices: Blu-Ray, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
      • Bandwidth: 300MHz
      • Signals: HDMI 1.4 protocol
      • Connectors:
      • One (1) HDMI receptacle.
      • One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
      • Two (2) 3.5mm jacks for IR emitter (on TX)/sensor (on RX).
      • Two (2) 3.5mm jacks for audio insert (on TX)/audio extract (on RX).
      • One (1) DB9 for the RS232
      • Four (4) DIP Switches for device ID addressing.
      • Maximum Distance Based on a maximum length of 6.6ft (2m) of HDMI cable per end: Cat5e/6: 330ft (100m) up to 4K @ 30Hz. Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
      • Latency: Typical one (1) Frame (16ms), maximum 2 frames (33ms)
      • Compression: Proprietary Compression
      • Bandwidth: Up to 850Mbps
      • Network Requirement: 1000BaseT with Jumbo Frame
      • IR Frequency: 38 to 56KHz (IR Emitter and IR Sensor sold separately)
      • RJ45 Pin Configuration: Reverse Polarity Sensitive. Use EIA/TIA 568A or 586B straight-through wiring.
      • RJ45 Link: Pin 1 (R) Pin 2 (T); Pin 3 (R) Pin 6 (T); Pin 4 (R) Pin 5 (T); Pin 7 (R) Pin 8 (T)
      • Cable: One (1) Cat 5e/6 or better twisted pair cables required
      • Power Source: This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.
      • PoE: IEEE 802.3af
      • Power Consumption Transmitter: 2.85Watt Receiver: 2.55Watt
      • Temperature Operating: 0° to 40°C Storage: -20° to 85°C
      • Humidity: Up to 95% non-condensing
      • Dimensions: 4.40” x 5.08” x 1.00” (112mm x 129mm x 25mm)
      • Weight: 1.5lbs (0.68kg)
      • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
      • Warranty: 2 years
    • Warranty:

      • 2 Years Part & Labor
    • GTIN:
