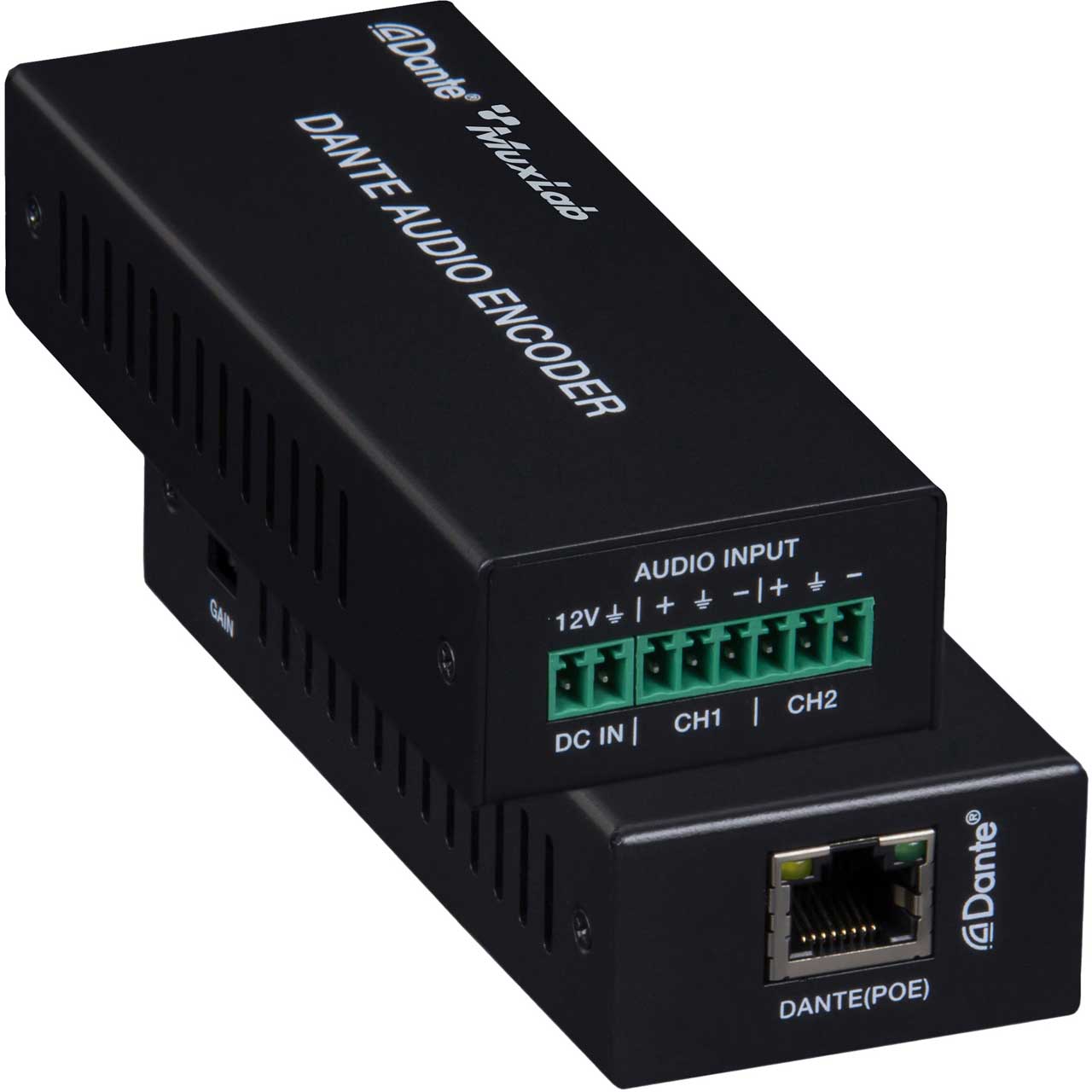

MuxLab 500551 Dante 2-Channel Analog Audio Encoder - up to 328 Foot via CAT6/6A

ITEM #: MUX-500551 MFG #: 500551

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$374.00

Our Price:

$299.00

Availability: In Stock
iAvailability Description Popup


    500551 - Overview

    This Dante 2-Channel Analog Audio Encoder (model: 500551) permits non-Dante compatible analog audio equipment to interface with Dante compatible professional audio equipment. The unit allows the transmission of full-range (20Hz to 20KHz) balanced or unbalanced two-channel analog audio signals over the network to Dante equipment. It can be powered using either PoE from any PoE network switch or via local with a 12v power supply.

    Applications:
    Conference Rooms
    Education
    Retail Stores
    Hotels
    Restaurants
    Conference Center
    Hospitals

    • Features:

      • Interface analog audio equipment to Dante audio equipment
      • Supports balanced/unbalanced 2chanalogue audio input
      • Audio sampling rate supports 44.1kHz,48kHz and 96kHz (24bit)
      • Audio input supports 3-level gain adjustment:+18dBu, 0dBu (default) and-10dBV
      • Supports DC 12V power supply and PoE function (IEEE802.3af Class 0)
      • Supports AES67 RTP audio transport

    • Specifications:

      • Technical
      • Video Network Bandwidth: 328 Foot
      • Audio Formats: PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
      • Transmission Distance: 328 Foot (CAT6/6A)
      • Control Method: Dante Controller

        Connection
      • Inputs: 1 x PWR [2-pin phoenix, 3.81mm], 1 x AUD [6-pin phoenix, 3.81mm]
      • Outputs: 1 x DANTE [RJ45 connector, POE]

        Mechanical
      • Housing: Metal Enclosure
      • Color: Black
      • Dimensions (WxDxH): 7 x 3.35 x 2.17"
      • Weight: .66lb
      • Power Supply: DC input: 12V PoE input: IEEE802.3af Class 0
      • Power Consumption: 1.2W
      • Operation Temperature: 32 - 104°F
      • Storage Temperature: -4 - 140°F
      • Relative Humidity: 20 - 90% RH (no condensation)

    • Item Includes:

      • 1x MuxLab 500551 Dante 2-Channel Analog Audio Encoder - up to 328 Foot via CAT6/6A

    • Warranty:

      • 2 years

    • GTIN:

      0627699005514
