MuxLab 500610 Table Top Cable Management Panel - Includes 4 Blank Plate Modules - Black

ITEM #: MUX-500610 MFG #: 500610

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
MuxLab Inc
Free Shipping with $49 Minimum Order

List Price:

$117.00

Our Price:

$81.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    500610 - Overview

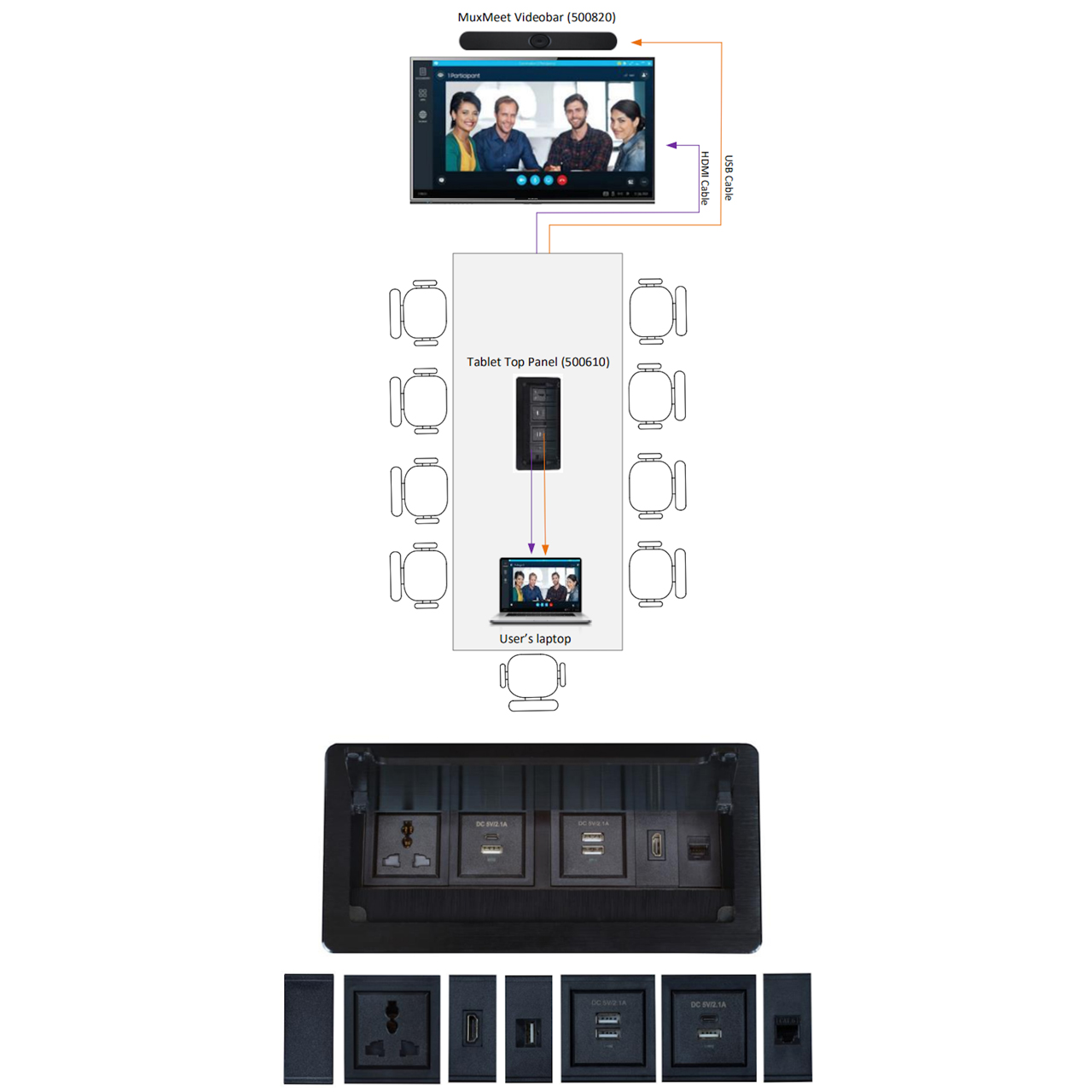

    The Muxlab 500610 table top panel is designed as a head-end cable management solution, allowing any combination of up to eight (8) MuxLab single modules to be installed (Modules sold separately). Head-end AV equipment such as laptops, multimedia players, USB devices and power distribution may be installed on the conference room table and connected to the structured cabling system via a vast array of cables. The Table Top Panel may be installed on a wide variety of tables using a versatile attachment system. Power modules are provided with a pig tail of 12" (30cm) with a female C14 connector. The Table Top Panel includes four (4) Blank Plate Modules.

    • Features:

      • Applications Include:
      • Conference rooms
      • Boardroom systems
      • Commercial and residential AV systems
      • Classroom projector systems
      • Collaborative PC system

        Supports up to 8 modules
      • Aluminium construction
      • Versatile attachment system
      • Power module provided with a 12" (30cm) pig tail with female C14 connector
      • Includes four (4) Blank Plate Modules
      • Provides for neat installation and cabling
      • Modules are sold separately


    • Specifications:

      • Environment: Custom audio-video systems in a structured cabling environment.
      • Application: Conference room, audio-video rooms.
      • Capacity: Eight (8) positions.
      • Compatible Modules:One and two space modules
      • Power connector: 12" (30cm) pig tail with female C14
      • Lock-In Mechanism: Back plate attachment to hold the module into position via back screws.
      • Enclosure: Black painted aluminium.
      • Mounting Holes: Multiple holes side attachment
      • Mounting Hardware: Four (4) Phillips wood screws
      • Dimensions: 3.15 x 10.47 x 5.12" (266 mm x 130 mm x 80 mm).
      • Weight: 2.5 lbs (1.14 kg).
      • Standards: EIA/TIA


    • Item Includes:

      • 1x Muxlab 500610 Table Top Cable Management Panel (includes four (4) Blank Plate Modules)


    • Warranty:

      • 2 Years


    • GTIN:

      0627699006108
