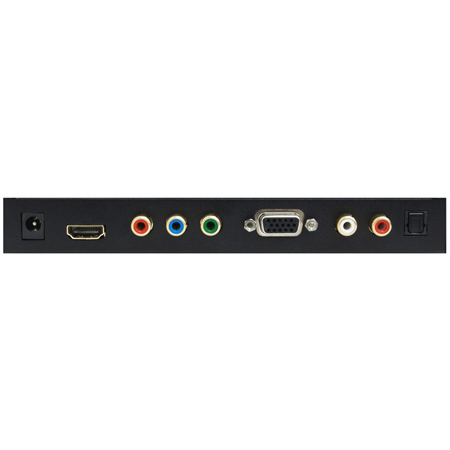

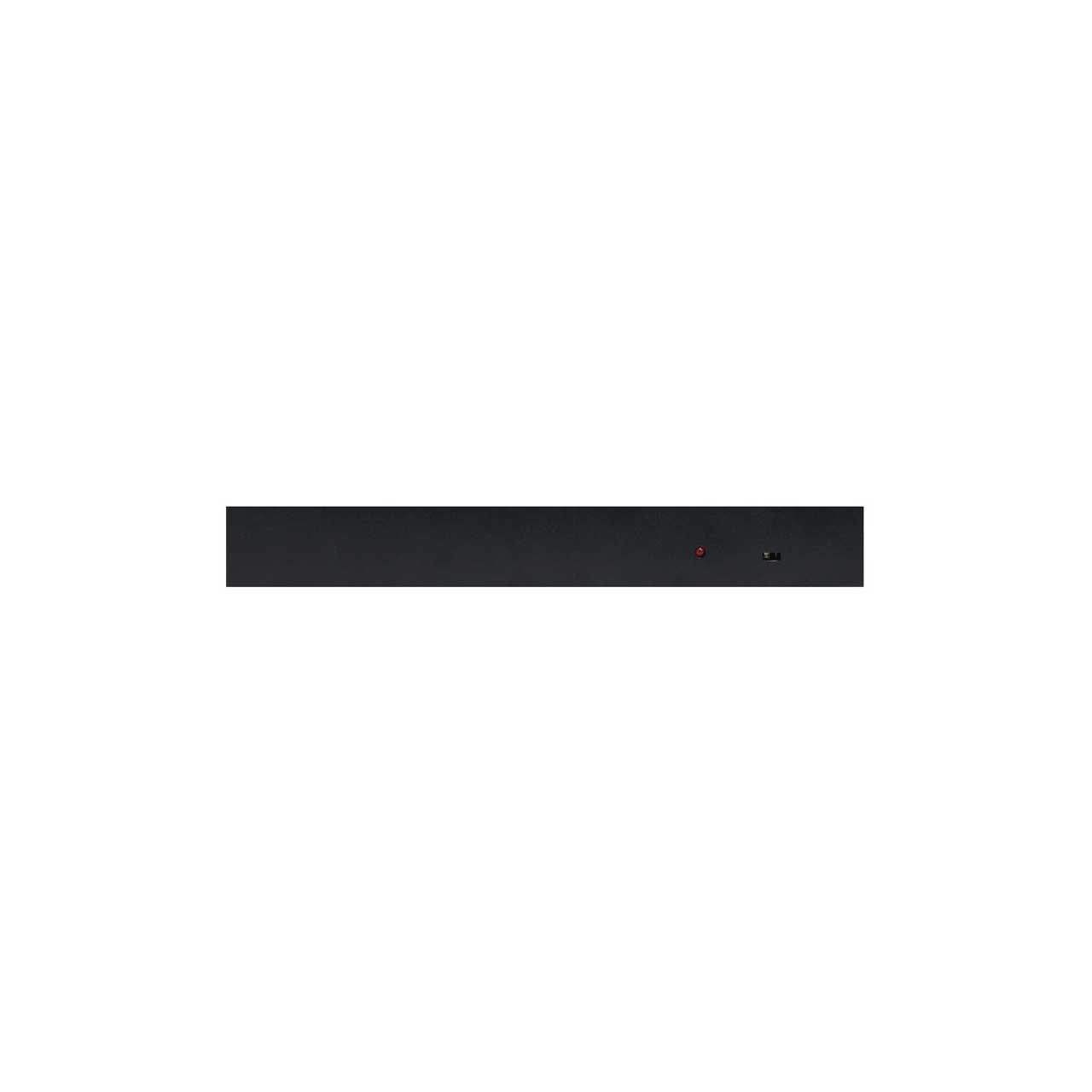

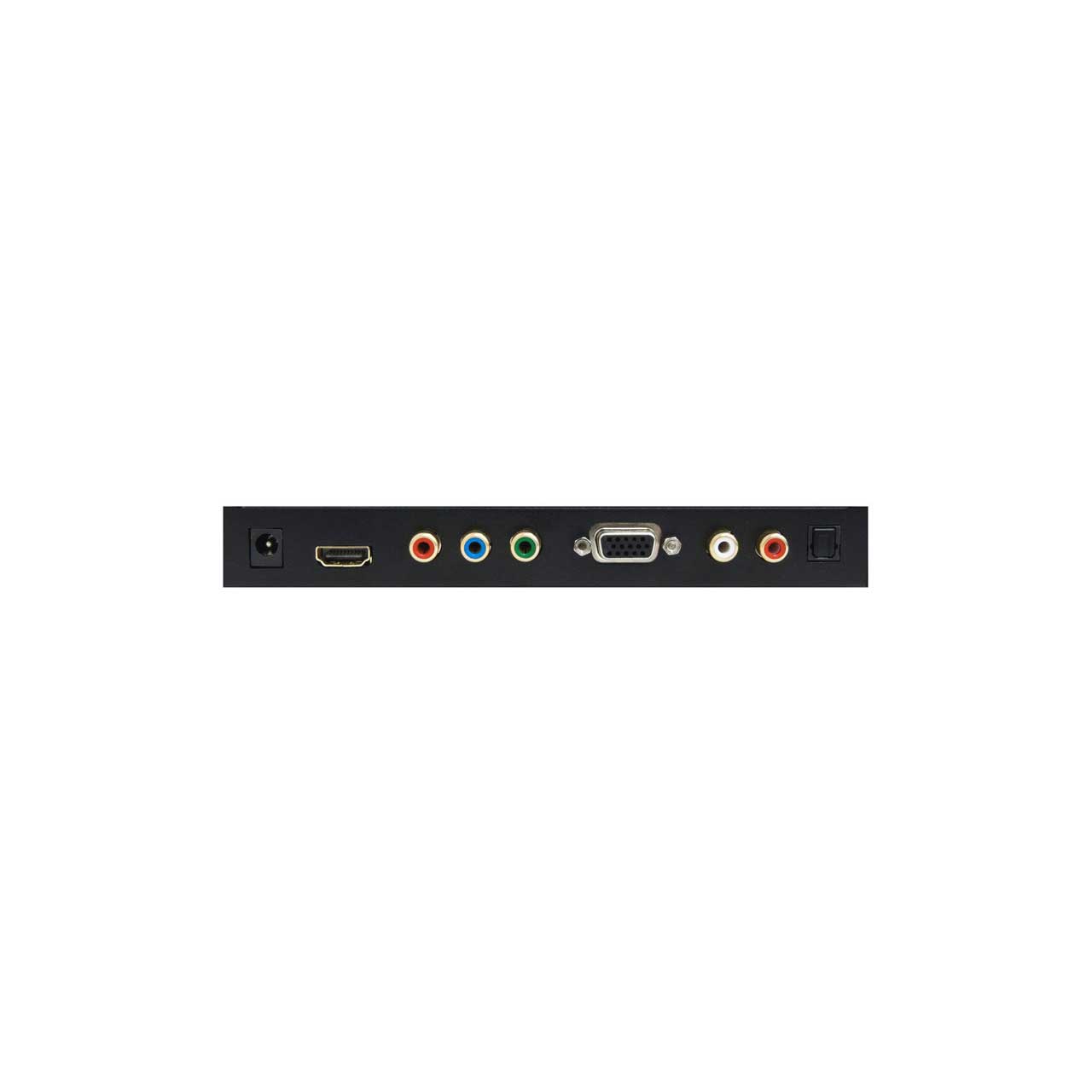

Smart AVI V2VH2V-01 - Converts HDMI to Component Video/VGA w/ Stereo Audio/SPDIF

ITEM #: SAVI-V2V-H2V-01 MFG #: V2V-H2V-01

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$299.00

Our Price:

$239.20

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    V2V-H2V-01 - Overview

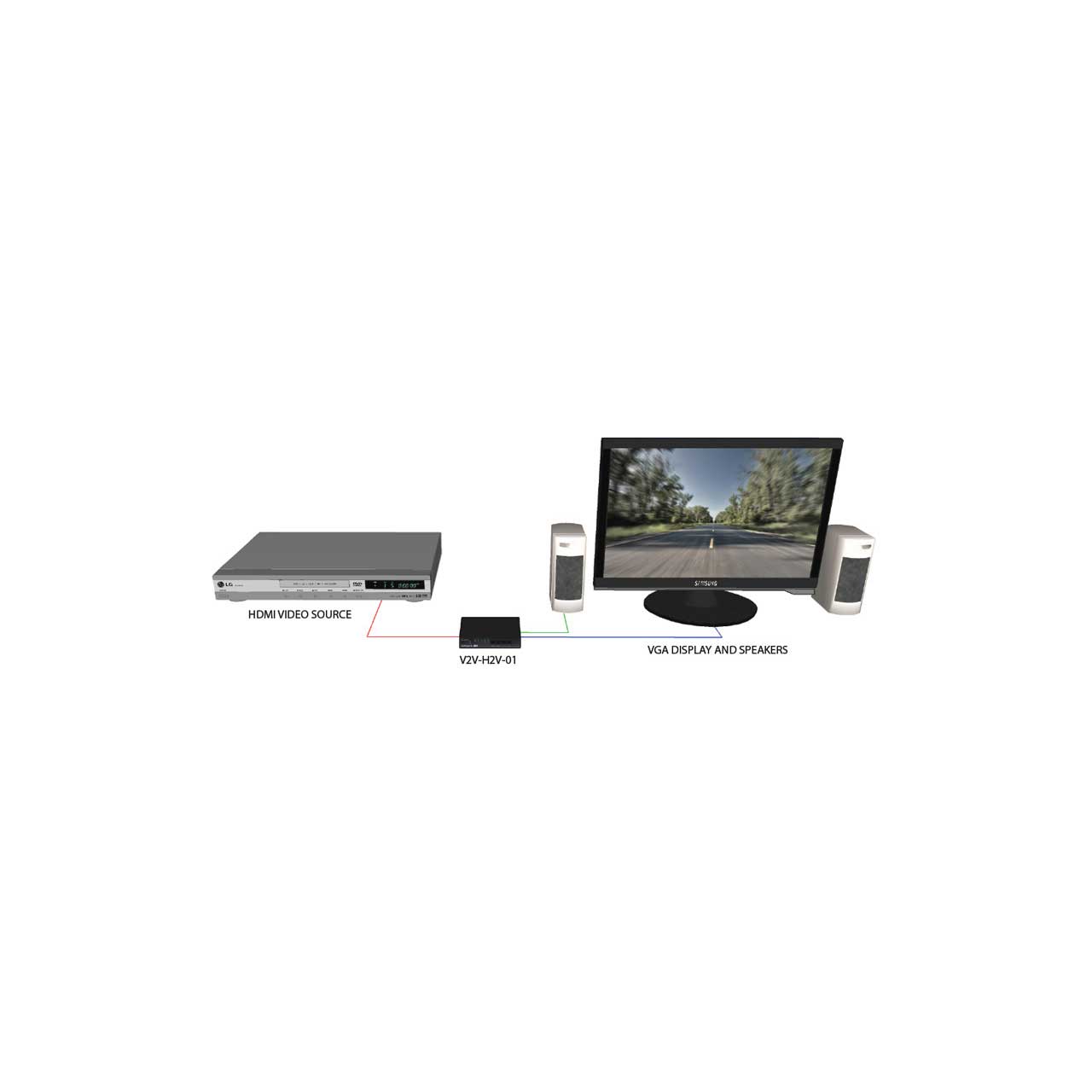

    The V2V-H2V-01 enables you to connect old monitors and other AV equipment to the newer HDMI format. It has the option to output component video or VGA video with audio.

    • Features:

      • Converts One HDMI Input Signal to One YPbPr+SPDIF or VGA+SPDIF Signal
      • Supports Video input : HDMI 1.2a
      • Supports Audio output : SPDIF(Optical)+ R/L Analog
      • Supports Video Output : Supports up to WUXGA, 480i, 480p, 720p and 1080i(50/60Hz)
      • HDCP 1.2 Protocol Compliant
      • No loss of quality
      • LED Indicators
      • Easy to install within minutes

    • Specifications:

      • HDMI VIDEO
      • Format HDMI 1.3b [Deep Color, xvYcc color space supported]
      • DVI Compliance Single-link DVI-D 1.1
      • HDCP Compliance 1.0/1.1
      • Video Bandwidth Single-link 340MHz [10.2Gbps]
      • Resolution 480i,480p,720i,720p,1080i
      • Input Interface (1) HDMI[7.1ch audio & video]
      • Connector Type A[19-pin female]
      • Maximum Distance 25 ft.
      • VGA VIDEO
      • Format RGBHV, RGsB, YUV, Y/C, CVBS
      • Resolution Up to 1920 x 1200 VGA, SVGA, XGA, SXGA, UXGA, WUXGA
      • Output Interface (1) HD-15 Female
      • Maximum Distance 30 ft.
      • COMPONENT VIDEO
      • Format (RCA) Y (75?, 1.0Vp-p), PbPr (75?, 0.7Vp-p)
      • Resolution 480i, 480p, 576i, 576p, 720p, 1080i (24/25/30Hz)
      • AUDIO
      • Frequency Response 20 Hz to 20 KHz
      • Impedance 600 ohm
      • Nominal Level 0-1.0 V
      • Common Mode Rejection at 60dB
      • Output Interface Right/Left RCA Female
      • SPDIF AUDIO
      • Output Level 0.5 to 0.6 V peak to peak
      • Min Input level 600 ohm
      • Nominal Level 0.2 V
      • Maximum Distance 30 ft.
      • Output Interface TOSLINK Female
      • OTHER
      • Power External 100-240 VAC/5VDC2A @10W
      • Dimensions 7.25 in W x 1 in H x 2.5 in D
      • Weight 0.83 lbs
      • Operating Temp. 0-55 °C (32-131°F)
      • Storage Temp. -20-85 °C (-4-185 °F)
      • Humidity Up to 95%
