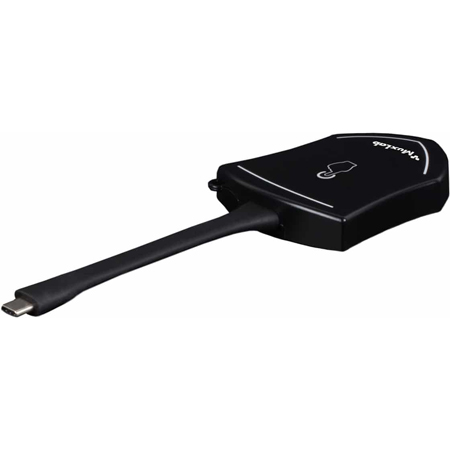

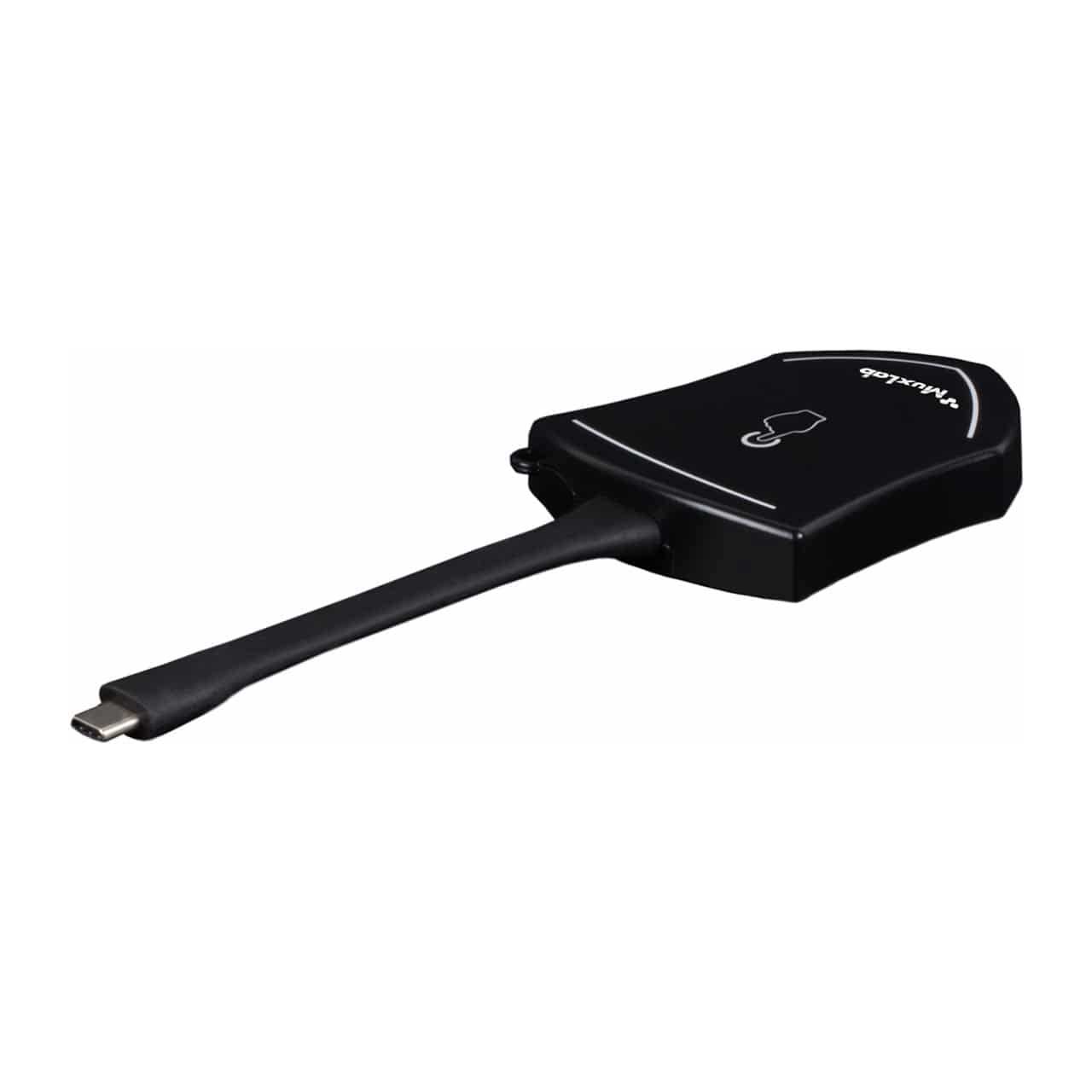

MuxLab 500828 MuxMeet Share U1 USB-C Dongle Wireless Video Transmitter

500828 - Overview

• Features:

  • Can be plugged to a Windows or Mac based laptop
  • Can wireless transmit the computer desktop to MuxMeet Share Base-1 or MuxMeet Share Base-2
  • Supports transmit the computer desktop in mirror or extend mode
  • Supports VESA PC resolution, auto-detecting
  • No driver installation required
  • With the push of a button, it is possible to start or stop a transmission


• Specifications:

  • Video Input Formats:
    Compliant with DP 1.2 for 1.62Gbps, 2.7Gbps, 5.4Gbps
    Compliant with DP 1.2 and eDP1.4
    Supports DP 1, 2, and 4 lanes Over type C
  • HDCP: HDCP 1.3
  • Video Input Resolution: VESA, maximum 1920x1080
  • Video Input Timing: 1920x1080, 1680x1050, 1600x900, 1440x900, 1400x1050, 1366x768, 1280x1024, 1280x800, 1280x720, 1024x768, 1920x1200, 1600x1200, 2560x1440 @50HZ~60HZ
  • Video Output Formats: 1 x Wireless
  • Wireless Output: WIFI 11b/g/n/ac
  • Audio Input Formats: PC embedded digital, 2CH PCM
  • Audio Output Formats: WIFI 11b/g/n/ac
  • USB Input: USB Type C
  • Video Capacity Wireless Transmission: 1080P@ < 60Hz, 2560x1440 30Hz
  • Distance Typical: 35m without obstacle between WMT3-H and WMS
  • Control Button: Capacitive touch Key and vibration
  • Indicator: Green/Red/color back-lit LED indicator
  • Operating Temperature: -20° to 60°C (-4° to 140°F)
  • Humidity (Storage/Operating): 20 to 85% (non-condensing)
  • DC Power: USB Internal 5V
  • Power Consumption: 3W (MAX)
  • Weight: 0.77Lbs (0.350kg)
  • Dimensions: 3.50 x 1.49 x 0.46" (8.90 x 3.78 x 1.18cm)


• Warranty:

  • 2 Year


• GTIN:

  0627699008287
